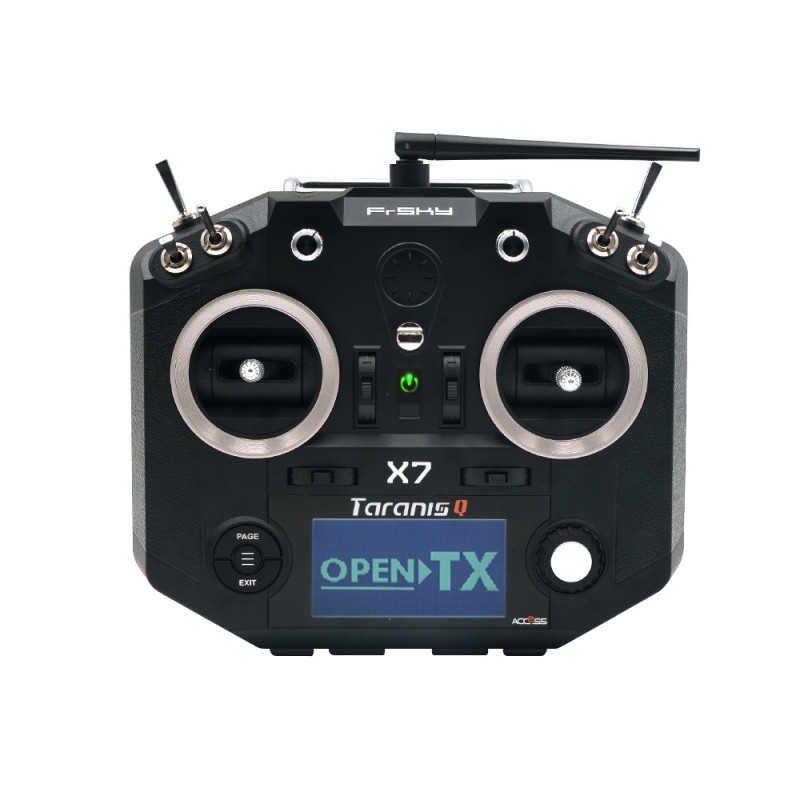

FrSky Taranis Q X7 ACCESS FCC Radio System — a compact and functional transmitter from the Frsky brand, designed for drone and quadcopter pilots who need reliable and modern radio control. The model is positioned as an affordable alternative with professional capabilities.

Product Description

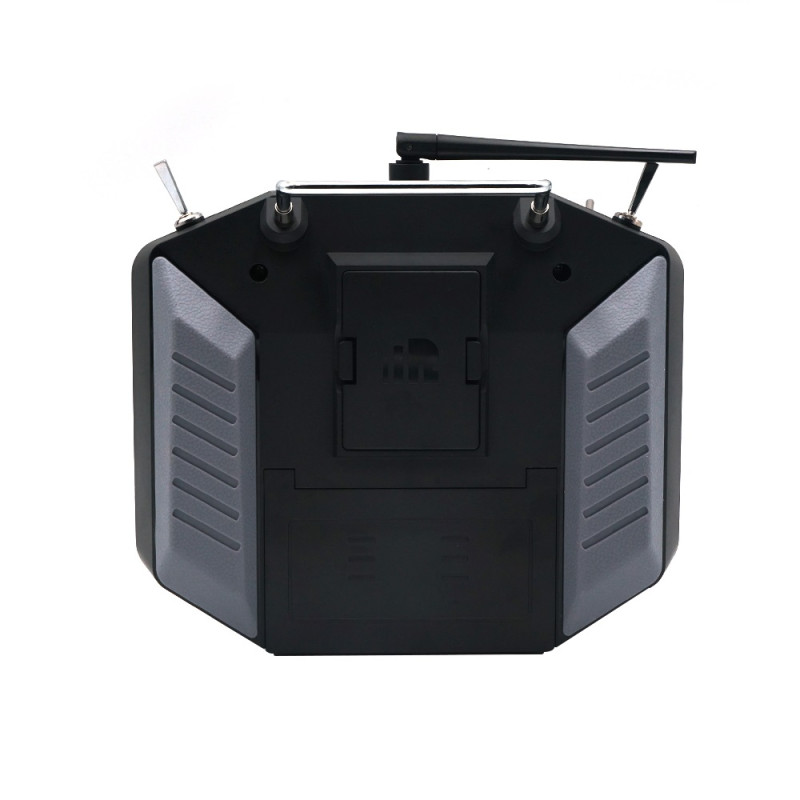

Taranis Q X7 ACCESS — an updated version of the well-known transmitter with support for the ACCESS (Advanced Communication Control Elevated Spread Spectrum) protocol, which provides increased data transfer speed, reduced latency, and improved link stability. In ACCESS mode, the device supports up to 24 wideband channels; it is also compatible with D16 and OTA series receivers and allows for wireless firmware updates and simplified binding. The casing is available in black and white; the device is 15 mm thinner and 70 g lighter compared to the Taranis X9D, with rubber pads on the back for a comfortable grip.

Power and Design

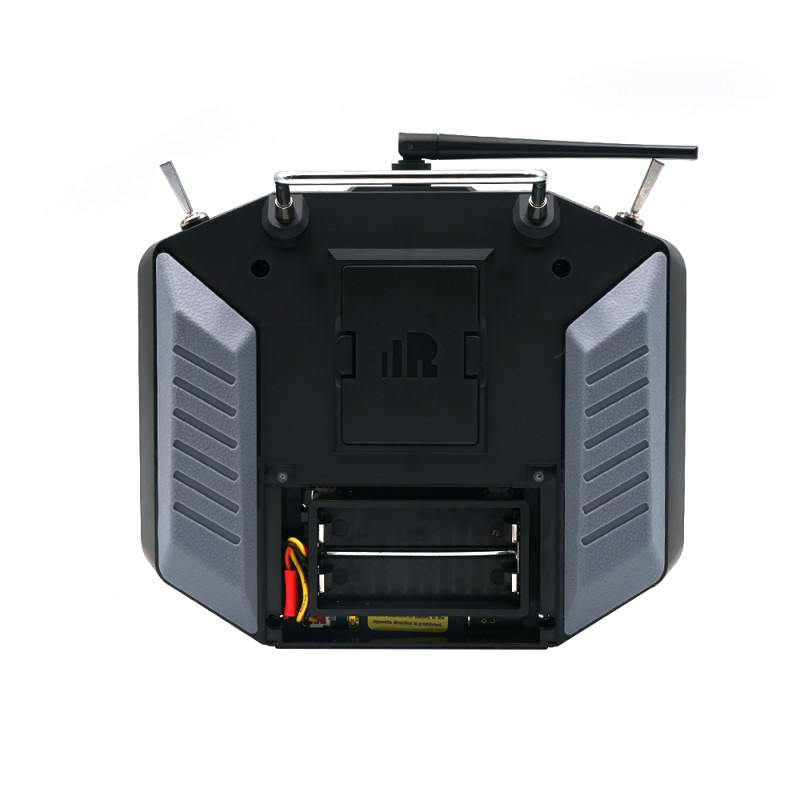

The compartment includes a tray for two 18650 lithium-ion batteries with charging capability via the Mini USB port. The tray is removable, so a 2S LiPo battery of appropriate size can be installed if needed. Operating voltage: 6.5–8.4V (2S LiPo).

Features

• ACCESS protocol — up to 24 wideband channels, increased speed, and reduced latency.
• High-speed internal ISRM-N RF module.
• Support for Smart Share, Smart Match, Trio Control, and wireless update/binding (OTA).
• OpenTX OS — open-source software for flexible settings and extensions.
• Audio prompts, Haptic vibration system, RSSI alerts, and real-time flight data recording.
• Ball-bearing gimbals for smooth and precise control.
• Model file compatibility with Taranis X9D / X9D Plus / X9E.
• Micro SD slot (model memory: 60 entries, expandable with SD card).
• Interfaces: Smart Port, Mini USB, DSC port.

Specifications

• Type: Mode2
• Version: FCC-(NON-EU)
• Number of channels: 16 (ACCST D16) / 24 (ACCESS)
• Operating voltage: 6.5 ~ 8.4V (2S LiPo)
• Operating current: 160mA at 7.4V
• Internal RF module: ISRM-N
• LCD screen resolution: 128 x 64, monochrome
• Operating temperature range: -10~60°С
• Battery compartment: 92 x 59 x 17 mm
• Dimensions: 202 x 190 x 96 mm
• Weight: 620 g

Package Contents (ACCESS version)

• 1 x Taranis Q X7 ACCESS radio system
• 1 x Radio system neck strap
• 1 x Mini USB cable
• 1 x User manual

Compatibility and Additional Features of the ACCESS Protocol

ACCESS is an evolution of ACCST with extended features: automatic bind (Smart Match), channel remapping, managed telemetry (Trio Control™), the ability to use the radio as a spectrum analyzer and power meter, as well as an improved data encryption algorithm. Receivers of the X, XM, RX, GX series are gradually being updated to ACCESS; XM, RXSR, RX4R, RX6R, G-RX6, G-RX8, XM Plus, and R9 models are supported. For users of D8 series receivers, a solution is available — connecting the FrSky XJT Lite transmitter module to ACCESS equipment for compatible control.

Thanks to the combination of a modern digital ISRM-N radio interface, a full set of interfaces, and OpenTX support, the FrSky Taranis Q X7 ACCESS is suitable for both amateur athletes and professionals looking for a reliable, multi-functional, and relatively inexpensive transmitter. Brand: Frsky. Product category: Drones and Quadcopters > Remote Controls.

Note: please pay attention to the new features, advantages, and requirements of the ACCESS protocol; before purchasing, check receiver compatibility and local frequency mode requirements (FCC-(NON-EU) version).
