Matek H743-MINI V3 Flight Controller from Matek is a high-performance and compact flight controller designed for multi-copters, FPV drones, and other unmanned aerial vehicles. Category: Drones and Quadcopters > Drone Components > Drone Spare Parts > Stacks (FC+ESC). This model combines powerful hardware, precise sensors, and extensive connectivity options, making it a versatile solution for various projects.

Key Features

• Processor: STM32H743VI, 480 MHz.
• Gyroscope and Accelerometer: MPU6000 (SPI connection).
• Barometer: BMP280 (I2C).
• Blackbox Memory: 32 Mbit flash memory for recording telemetry and flight logs.
• Built-in OSD: BetaFlight OSD on MAX7456E chip for displaying flight parameters on FPV screen.
• UART Ports: 6 x UART for connecting GPS, telemetry, radio modules, and other peripherals.
• PWM Outputs: 8 channels for motor and servo control.
• Input Voltage: 7-36V (2-8S LiPo).
• Firmware Support: ArduPilot, iNav, BetaFlight, EmuFlight.

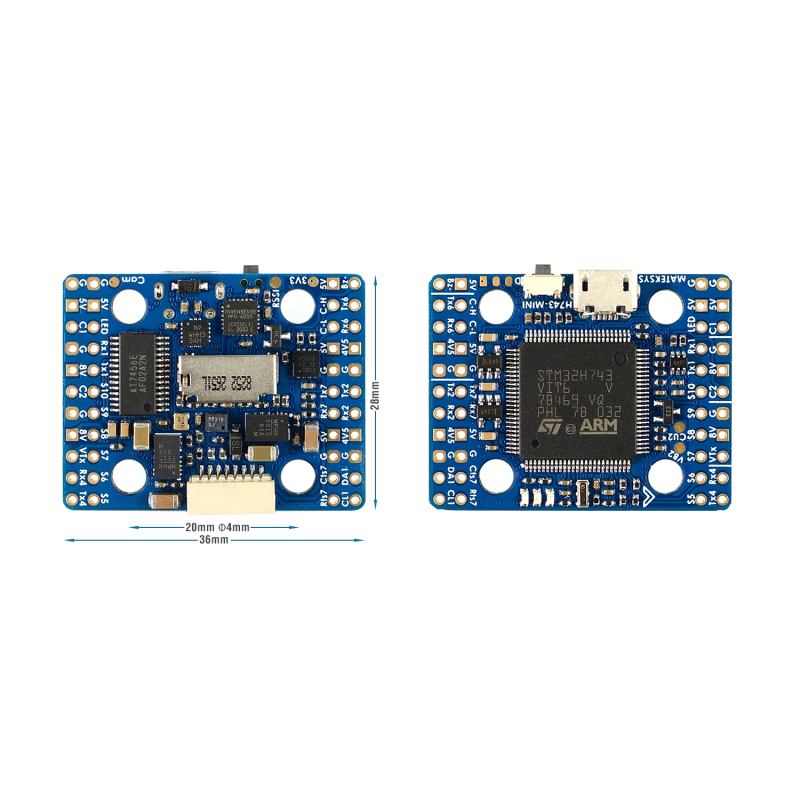

• Board Dimensions: 30 x 30 mm.
• Mounting Holes: 20 x 20 mm (hole diameter 3 mm).
• Weight: approximately 6 g.

Product Description

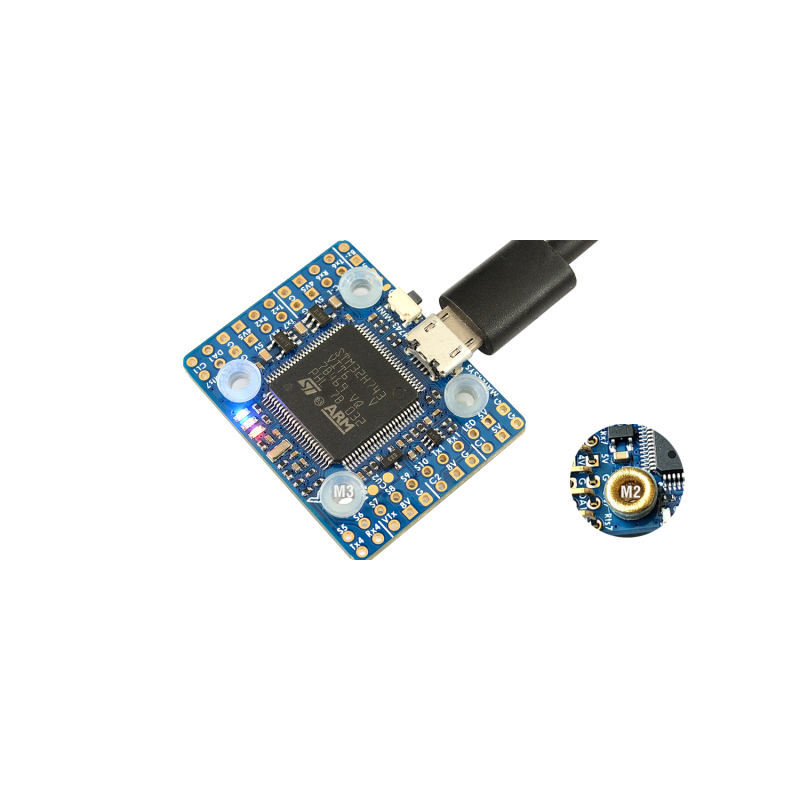

Matek H743-MINI V3 FC is the third generation of the popular controller from MATEKSYS, designed for pilots who demand maximum performance in a compact form factor. The powerful 32-bit STM32H743VI processor with a frequency of 480 MHz ensures fast processing of data from sensors and control algorithms, guaranteeing precise control and stability even during aggressive maneuvers.

The controller is equipped with a high-quality MPU6000 gyroscope and accelerometer with SPI connection and a BMP280 barometer with I2C, providing reliable measurement of acceleration, angular velocities, and altitude. The presence of 32 Mbit flash memory for Blackbox allows recording flight logs for detailed analysis and optimization of settings. The built-in OSD based on the MAX7456E chip displays key flight parameters directly on the FPV video feed.

Extended connectivity options include six UART ports for GPS, telemetry, radio modules, and other peripheral devices, as well as eight PWM outputs for controlling motors and servos. The input voltage of 7-36V (2-8S LiPo) makes the board compatible with a wide range of batteries. Support for ArduPilot, iNav, BetaFlight, and EmuFlight firmware allows choosing the optimal software for specific tasks.

Advantages of MATEKSYS Matek H743-MINI V3 FC

• High Performance: powerful processor and fast sensors ensure smooth, precise, and stable flight.
• Compactness: dimensions of 30×30 mm and weight of about 6 g — ideal for limited space in FPV drone frames.
• Flexible Connectivity: 6 UART and 8 PWM allow connecting a large number of peripherals simultaneously.
• Ease of Setup: support for multiple firmwares and built-in OSD simplify operation and configuration.

Package Contents

• MATEKSYS Matek H743-MINI V3 FC Flight Controller.
• Set of cables and connectors.

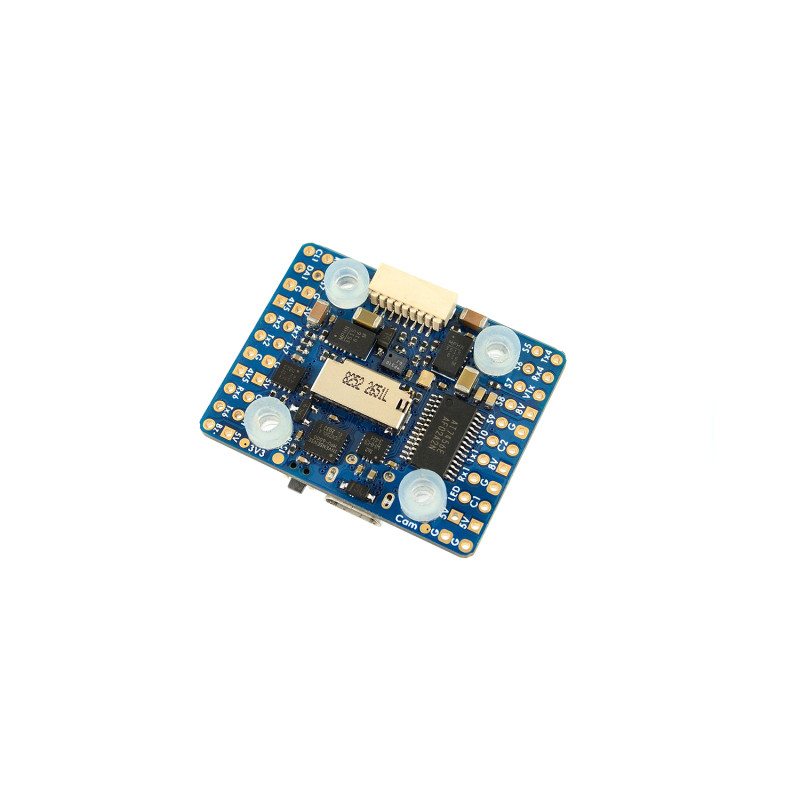

• Rubber dampers for mounting.
• User manual.

This controller is suitable for experienced pilots building fast FPV machines, as well as for engineering projects where compactness and high computing power are important. Thanks to a wide range of ports, support for popular firmwares, and built-in OSD, the Matek H743-MINI V3 is a versatile choice for various tasks and configurations.
