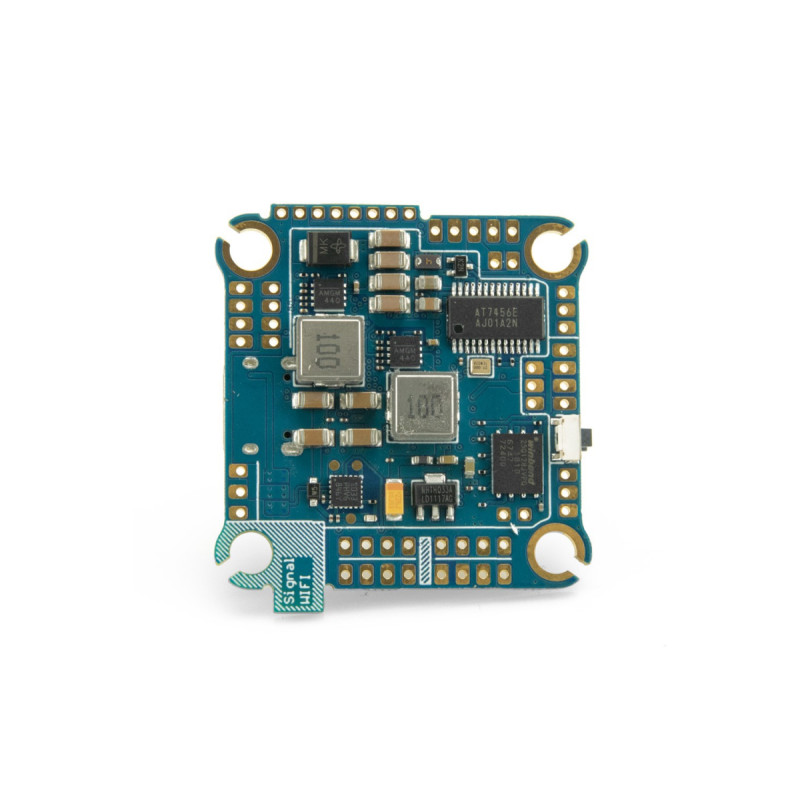

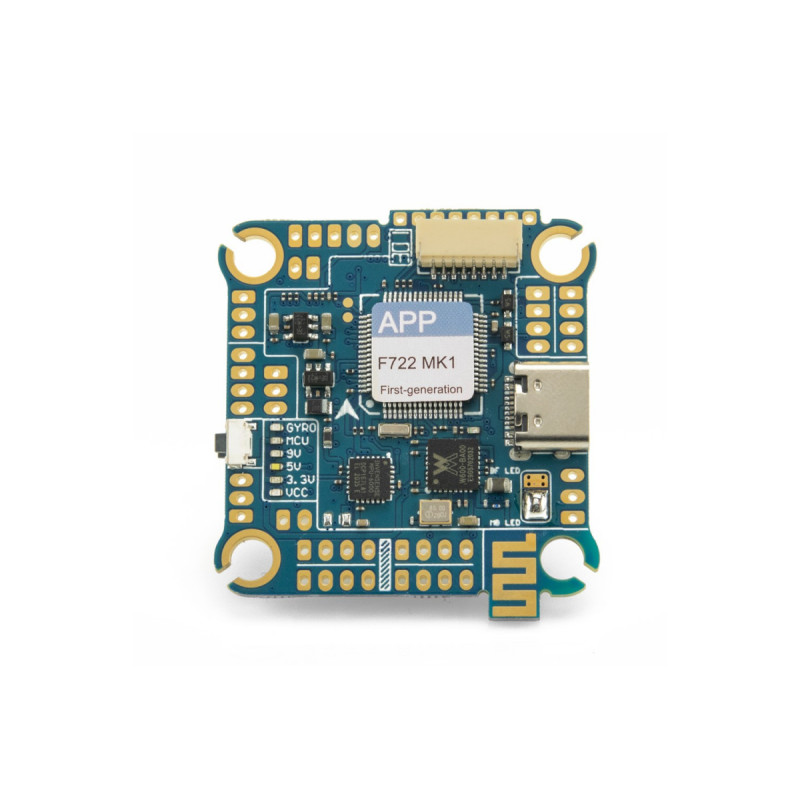

Diatone Mamba F722APP MK1 WiFi Flight Controller
Product Description: The Diatone Mamba F722APP MK1 WiFi Flight Controller is an updated and improved version of the popular Diatone Mamba F722S controller, in which the Bluetooth module has been replaced with a fast and reliable wireless WiFi connection. This allows for configuration via the SpeedyBee App mobile application without connecting to a PC, significantly simplifying flight stack setup. The controller is ideal for modern drone builds and is used in conjunction with the Diatone Mamba F50Pro 4-in-1 ESC as part of the Diatone Mamba F722APP MK1 flight stack.
Key Advantages
- WiFi instead of Bluetooth for fast and reliable access via the SpeedyBee mobile app.
- USB Type-C for convenient connection and saving receiver and OSD settings without additional equipment.
- Added I2C pins (SCL and SDA) for connecting external sensors and peripherals.
- Inverted Dual-Way TX serial port for bidirectional telemetry.
- Built-in 2812 LED switch for quick LED on/off; improved interface for connecting LED modules (check pinout before connecting).
- Optimized pad layout for easier mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Processor | STM32F722RET6 32Bit 216MHz |
| Gyroscope | MPU6000 |
| Barometer | none |
| OSD | AT7456E |
| Blackbox | 16Mb |
| UART | 6 ports |
| ESC Telemetry | RX6 |
| LED Indication | blue and orange — FC status; green — BEC 9V; white — BEC 5V; red — BEC 3.3V |
| Built-in LED Controller | 2812 (yes) |
| WiFi | control and configuration via SpeedyBee |
| SmartAudio | yes |
| RSSI | yes |
| I2C | yes (SCL, SDA) |
| Buzzer | supported |
| Input Voltage | 3-6S LiPo (12.6-25V) |
| Short Circuit Protection | yes |
| BEC | 5V/2A, 9V/2A (max. 3A), 3.3V |
| Firmware | BetaFlight |
| Target | MAMBAF722_I2C |
| Mounting Pattern | 30.5 x 30.5 mm, M3 |
| Dimensions | 41 x 39 x 7.5 mm |
| Weight | 9 grams |
Recommendations and Additional Notes: It is recommended to activate the WiFi function for full functionality and convenient configuration via the mobile application. The STM32F722 processor generates a significant amount of heat, so leave at least 5 mm of free space on both sides of the controller to ensure effective air circulation and cooling. Before connecting LED modules, be sure to check the pinout, as it may differ from the standard on other controllers.
Compatibility and Application: The Diatone controller is ideal for those seeking a modern, functional, and easy-to-configure Flight Controller with WiFi connectivity. Broad compatibility with BetaFlight and popular ESCs makes it an excellent choice for racing and versatile quadcopters.
