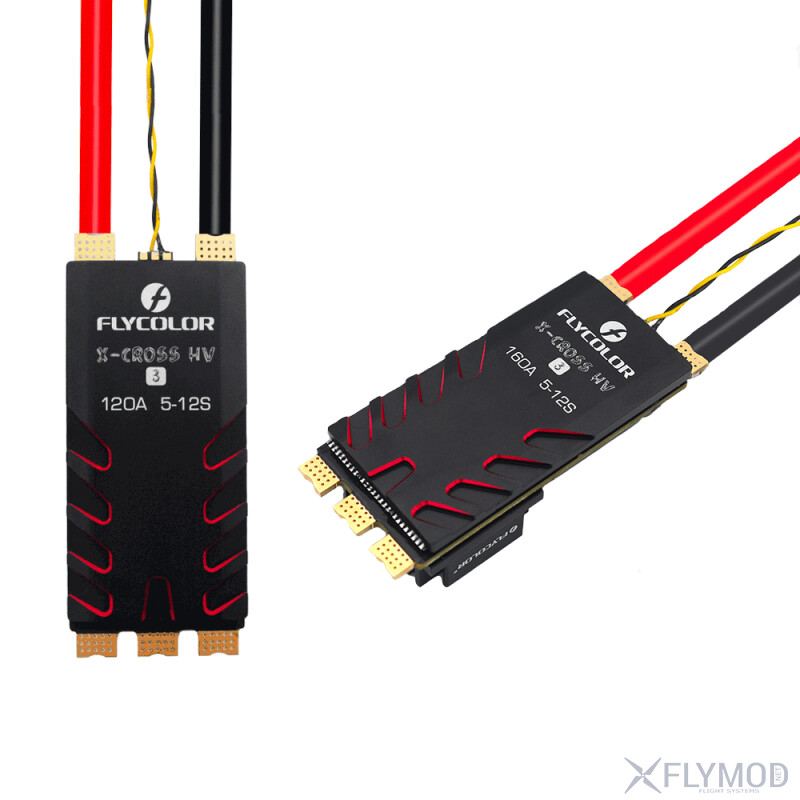

The FLYCOLOR X-Cross HV3 ESC 120A/160A speed controller is designed for precise control of brushless motors in high-load models. It operates on 5-12S LiPo power and comes in two models with continuous current of 120A and 160A. Dshot, Proshot, Oneshot, and Multshot protocols are supported, ensuring compatibility with most control systems. Equipped with a 32-bit ARM Cortex microcontroller, it provides stable operation at high currents. Dual aluminum heatsinks enhance cooling efficiency and prevent overheating.

Features

• Built-in ARM 32-bit Cortex microcontroller
• Features overcurrent, high temperature, and low RPM protection
• Dual aluminum heatsinks slow down temperature increases
• Supports normal input pulse duration of 1-2ms, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multshot (5-25us)
• All Dshot and Proshot protocols are supported

Specifications

• Input power: 5-12S LiPo
• Continuous current:
  • 120A
  • 160A
• Peak current:
  • 120A - 150A (10 sec)
  • 160A - 180A (10 sec)
• BEC: none
• MCU: ARM 32-bit Cortex
• Operating frequency: up to 64mHz
• Firmware: Flycolor_X_Cross_HV3_G071
• Size: 82*34*21.1mm
• Weight: 132g

Package Contents

• 1 x FLYCOLOR X-Cross HV3 ESC 120A/160A speed controller (optional)
