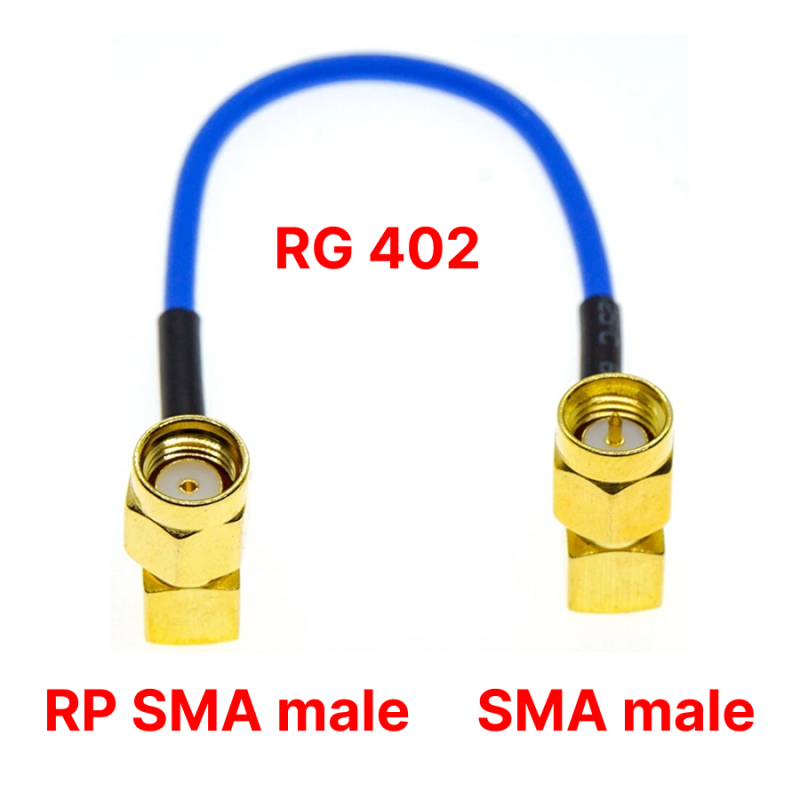

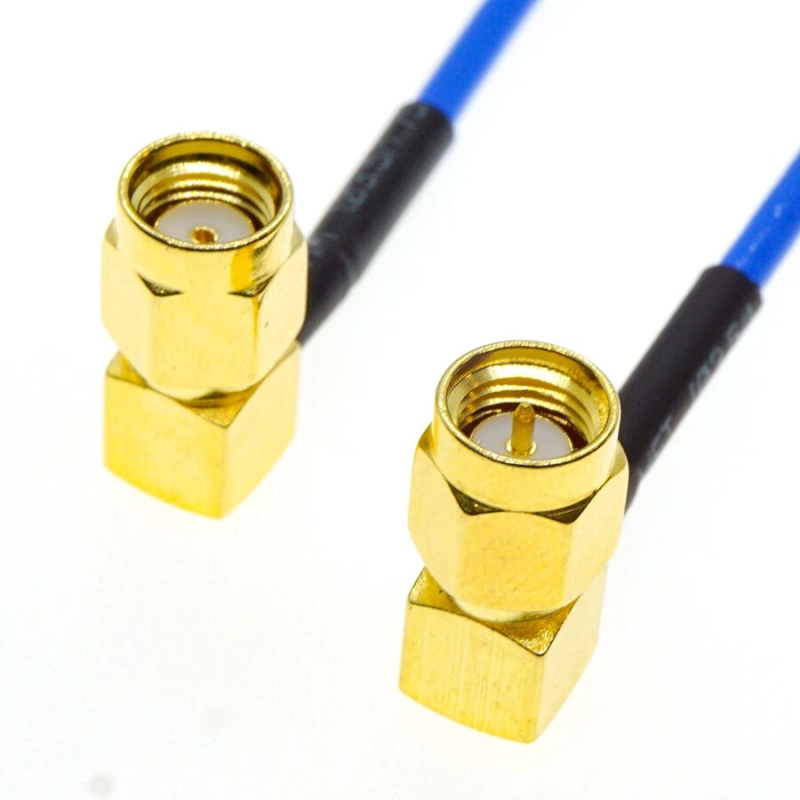

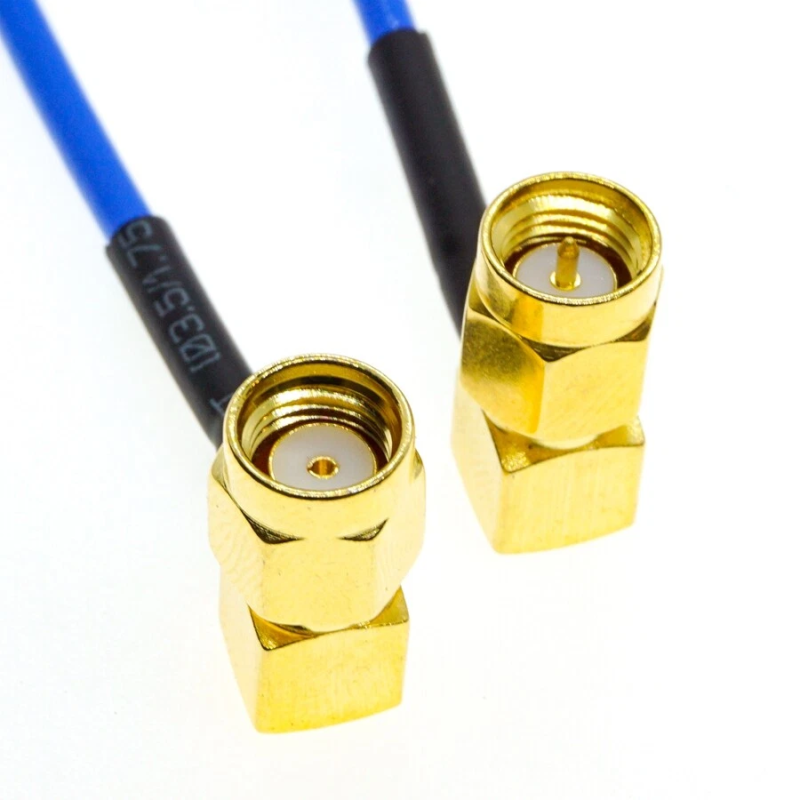

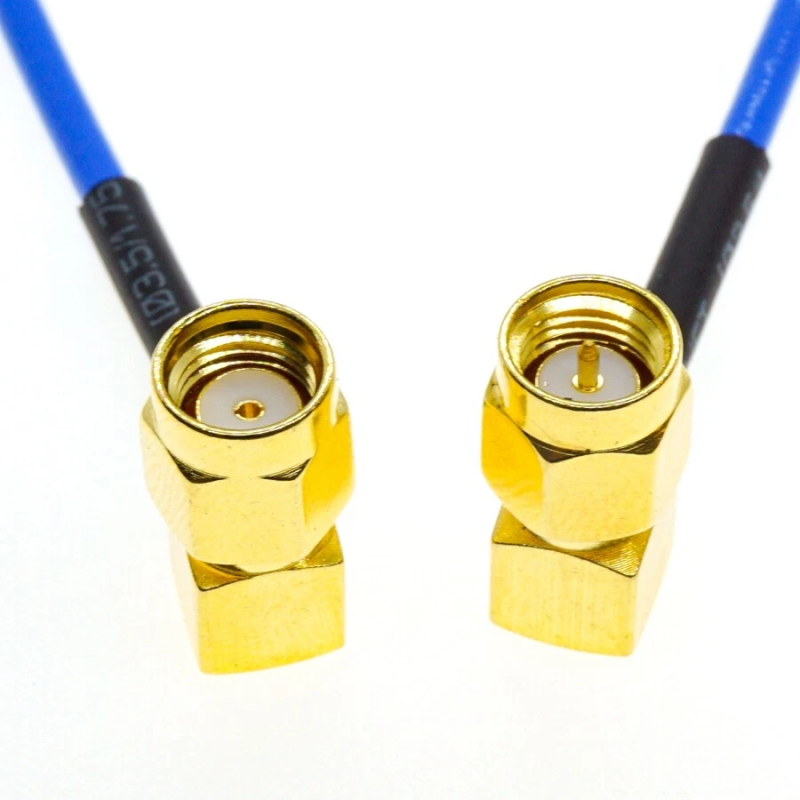

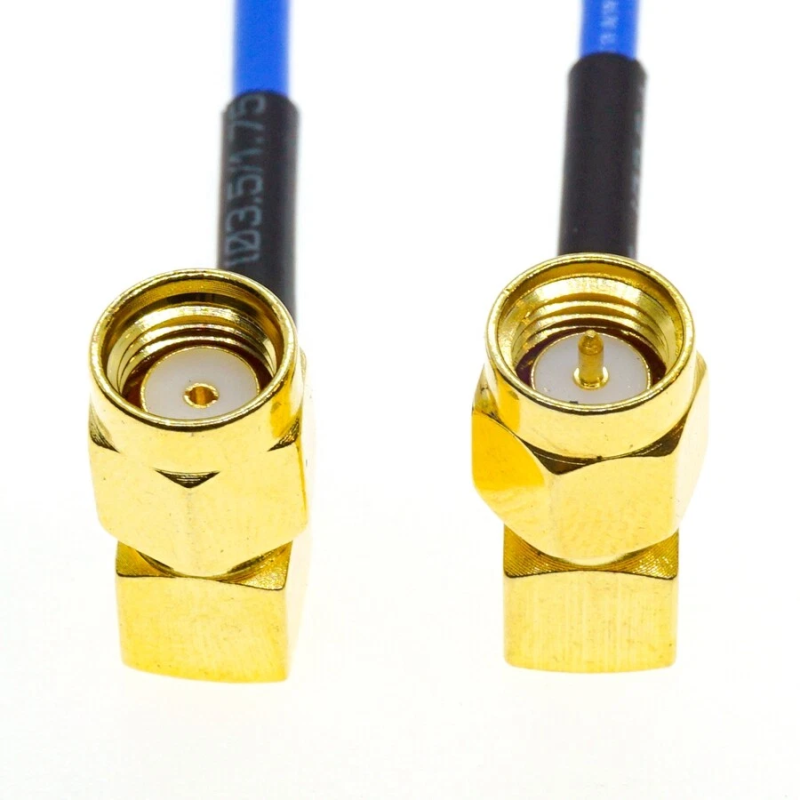

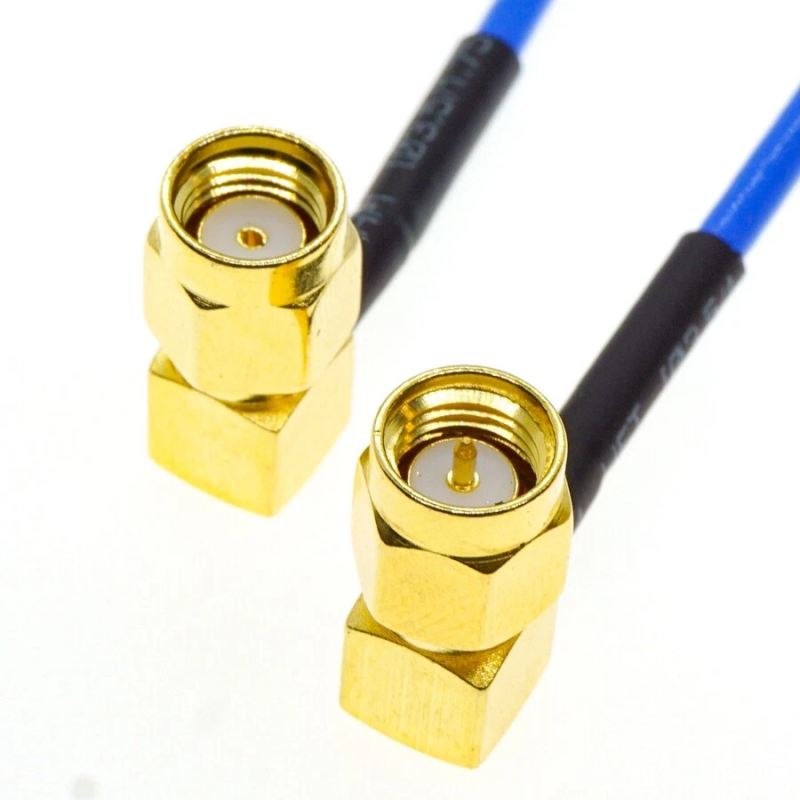

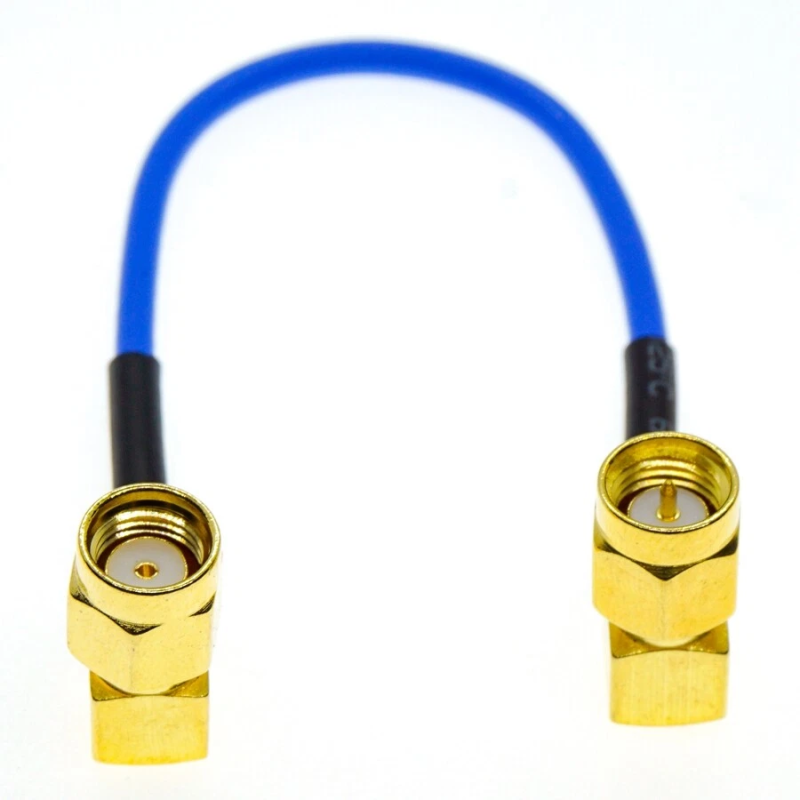

The SMA male - RP SMA male pigtail, right-angle, brass, RG402 coaxial cable, 50 Ohm, high-frequency, crimp is an indispensable element for creating reliable high-frequency connections in various radio-electronic systems. It is designed for efficient signal transmission between devices with SMA and RP-SMA connectors, ensuring minimal losses and high operational stability. Its right-angle design allows for compact equipment placement in limited spaces, avoiding unnecessary cable bends that can affect signal quality.

This high-quality SMA male - RP SMA male pigtail is ideal for use in telecommunications equipment, wireless communication systems, measuring instruments, and amateur radio projects. It ensures stable operation across a wide frequency range, making it a versatile solution for many tasks. Thanks to its characteristics, the SMA male - RP SMA male pigtail is an excellent choice for those who value reliability and performance in their systems.

Key features of the SMA male - RP SMA male pigtail

Attenuation and average power of the SMA male - RP SMA male pigtail

Advantages of the SMA male - RP SMA male pigtail

This high-quality SMA male - RP SMA male pigtail stands out with a number of significant advantages, making it an ideal choice for professional and amateur radio systems. Its key benefits include:

• Reliable connection: Thanks to its crimp connection type and high-quality materials, the SMA male - RP SMA male pigtail provides an exceptionally strong and durable connection, resistant to vibrations and mechanical stress.


• High performance: The use of RG402 coaxial cable and an optimized design ensure minimal signal loss and stable operation at frequencies up to 20 GHz.


• Compactness: The right-angle connector design allows for convenient use of the SMA male - RP SMA male pigtail in devices with limited space, simplifying installation and reducing cable stress.


• High-quality materials: The brass connector body guarantees excellent conductivity and corrosion resistance, extending the service life of the SMA male - RP SMA male pigtail.


• Wide operating temperature range: The ability to function in a temperature range from -55 to +125 °C allows this SMA male - RP SMA male pigtail to be used in various climatic conditions.




Features of the right-angle pigtail

The right-angle SMA male - RP SMA male pigtail has a number of unique features that distinguish it favorably from other analogs. In particular, the right-angle connector design allows for optimal use of space, which is especially important for compact devices and systems where every millimeter matters. This also helps reduce mechanical stress on the cable and connectors, preventing wear and damage. Thanks to the high-quality PTFE dielectric and silver-plated copper clad steel inner conductor, the pigtail ensures stable signal transmission with minimal losses even at high frequencies. The reliable outer conductor made of copper tube or tin-plated copper tube guarantees excellent shielding from external interference.

Useful functions

• High-frequency connection: The pigtail allows connecting devices with different types of SMA connectors, ensuring reliable data transmission.


• Space optimization: The right-angle design allows for compact equipment placement, reducing occupied space.


• High interference immunity: Thanks to the RG402 cable design, the pigtail effectively protects the signal from electromagnetic interference.


• Ability to operate in extreme conditions: A wide operating temperature range and high withstand voltage allow the pigtail to be used in challenging environments.




Pigtail compatibility

This SMA male - RP SMA male pigtail is designed for a wide range of applications and provides excellent compatibility with various devices using SMA and RP-SMA connectors. It is ideal for connecting Wi-Fi antennas, 3G/4G modems, radio transmitters, GPS receivers, measuring equipment, and other high-frequency devices. Its standard dimensions and 50 Ohm impedance ensure seamless integration into most existing radio frequency systems.

Package contents

The package includes:

• SMA male - RP SMA male pigtail, right-angle, brass, RG402 coaxial cable, 50 Ohm, high-frequency, crimp - 1 pc.




Packaging

The SMA male - RP SMA male pigtail is carefully packed in a protective polyethylene bag, which protects the product from mechanical damage, dust, and moisture during transportation and storage. This packaging ensures the preservation of all operational characteristics of the product until its use.

This SMA male - RP SMA male pigtail is an optimal solution for those seeking a reliable and high-quality connection for their radio frequency systems. Its unique characteristics and high-quality craftsmanship guarantee long-lasting and stable operation. Don't miss the opportunity to improve the performance of your equipment - purchase this high-frequency pigtail today!
