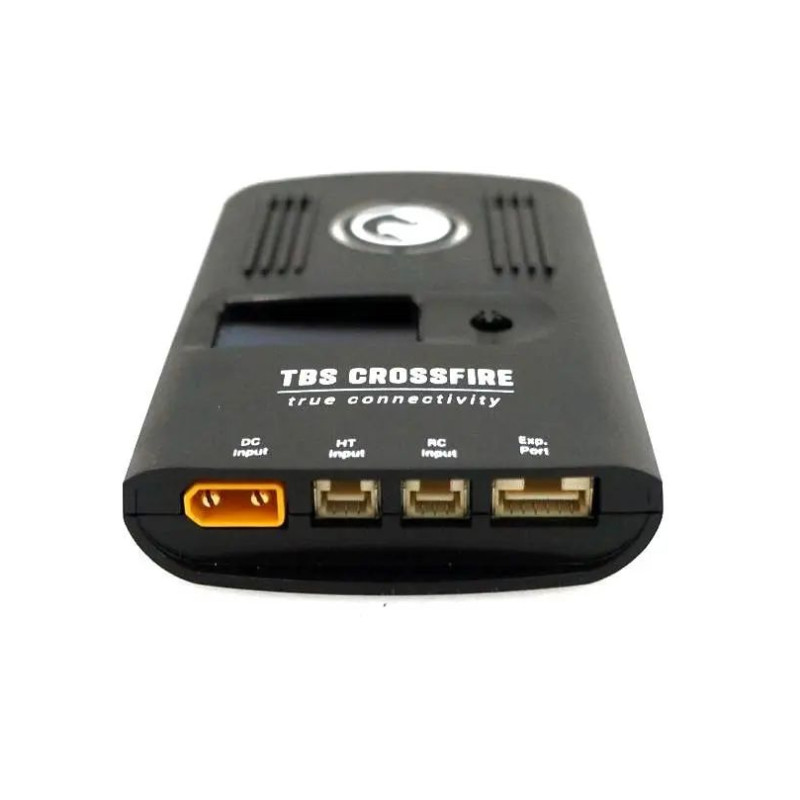

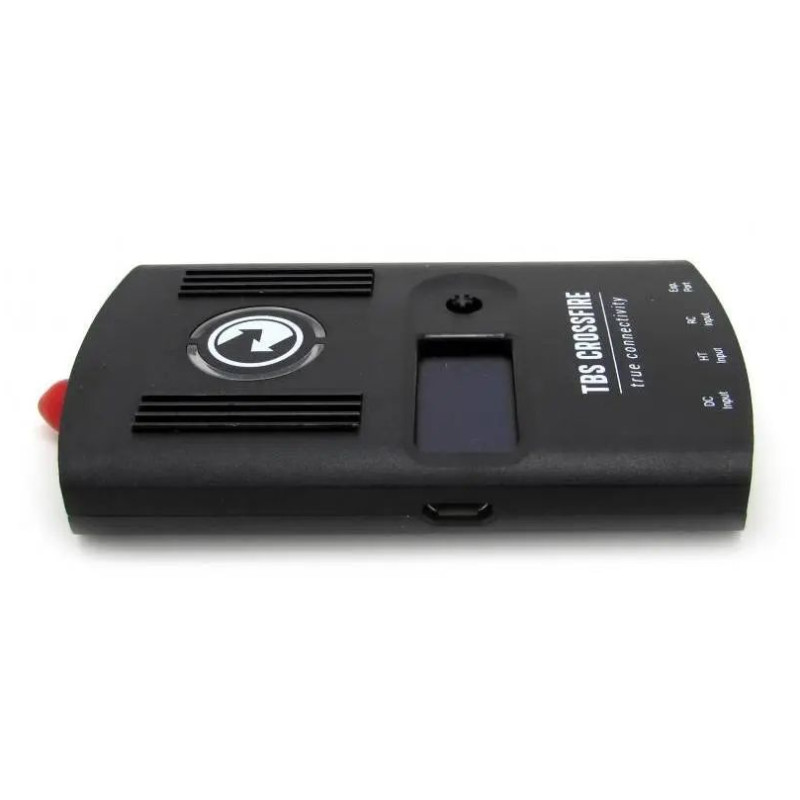

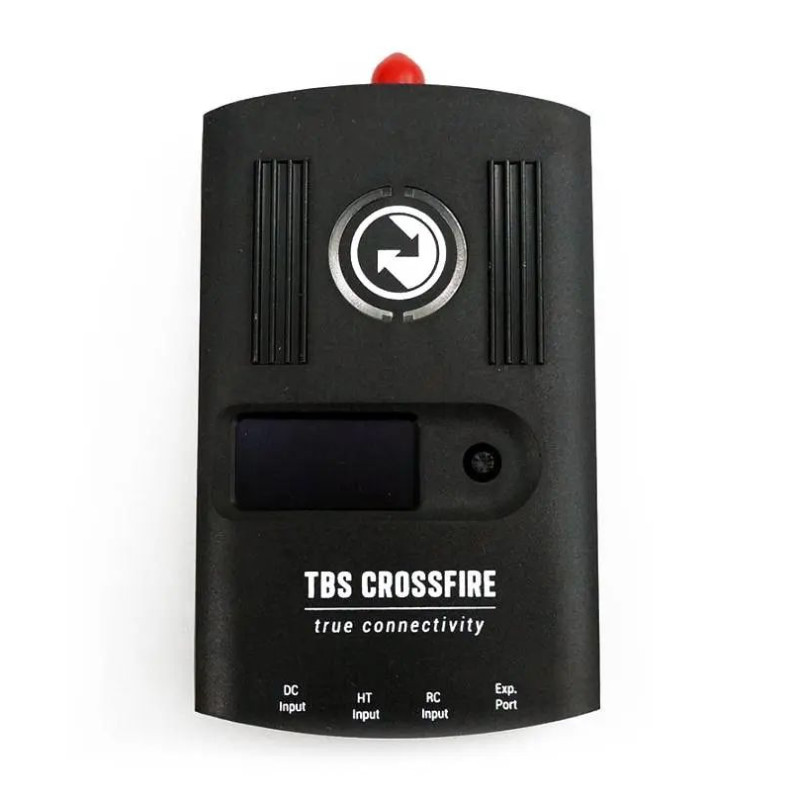

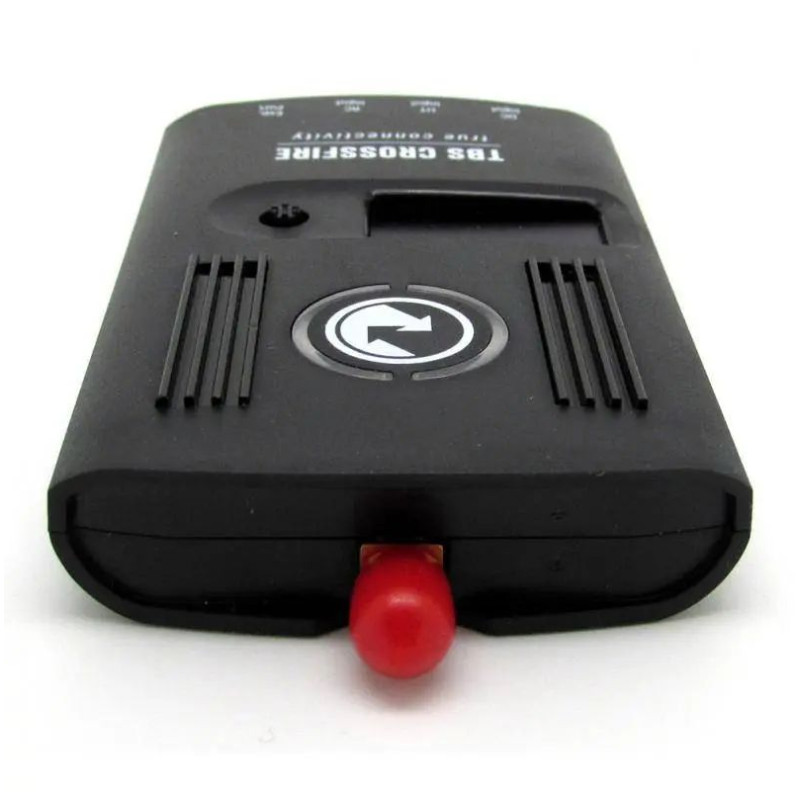

TBS Crossfire TX Radio Transmitter - Long Range R/C Link

Brand: TBS. Category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Transmitters. The TBS Crossfire TX transmitter is a professional module for long-range and reliable control of aircraft over long distances, designed for FPV pilots, competitions, and applications where connection stability and minimal latency are critical.

Description and Key Advantages:

• Adaptive long-range remote control system with a highly adaptive RF algorithm to ensure stable coverage in challenging conditions.
• High resistance to onboard noise and interference thanks to DSSS and FHSS mechanisms.
• Two-way communication with real-time display of important telemetry, allowing monitoring of the aircraft's status directly on the transmitter or a compatible controller.
• Self-healing and frequency hopping modes to restore connection in case of interference.
• Built-in serial modem for transmitting serial protocols in both directions and an expansion port for future features and updates.
• RX beacon mode to aid in recovering a downed aircraft and a dedicated head-tracking input for full FPV immersion.
• Easy binding and intuitive setup using the built-in OLED display; an LED indicator provides connection status.
• Low latency and high 150 Hz refresh rate, providing three times faster updates compared to standard RC channels — ideal for racing and precise control.
• Support for simultaneous flights of multiple pilots — 10 or more, and the ability to select RF power from 10 mW to 2 W (subject to local restrictions).
• Full configurability via OpenTX and TBS TANGO with remote control of parameters via CRSF protocol, compatibility with Betaflight, KISS, and Raceflight flight controllers for minimal latency and telemetry transmission.
• Firmware updates via RF Link without the need for a wired connection, making updates fast and convenient in the field.

Receivers and Outputs:

• Two mini-receiver models available: an 8-channel diversity mini-receiver and a 4-channel PPM/SBUS mini-receiver weighing only 4g, allowing installation even in the most compact frames.
• Channel output: 8 or 12-channel output via PPM / SBUS / CRSF on both receivers, providing flexible connectivity to various controllers and configurations.

Technical Specifications:

• Frequency bands: 868 MHz (EU, Russia) / 915 MHz (USA, Asia, Australia).
• Input voltage: 3.5–13 V.
• Power: adjustable from 10 mW to 2 W (local restrictions apply); stated power consumption: 1.1 W (@10 mW) – 3.2 W (@2000 mW).
• Case dimensions: 55 x 89 x 15 mm.
• Weight: 76 g.

Thanks to the CRSF interface and telemetry support, the TBS Crossfire TX provides accurate onboard data and maximum control sensitivity with minimal latency. The ability to adjust RF power and multiple communication modes allows the transmitter to be used in lightweight micro-drones as well as in long-range FPV competition conditions. The expansion port ensures the system's future-proofing with new features and updates, while the beacon mode and RF Link updates increase confidence in safe return and long-term equipment use.

The TBS Crossfire TX is an excellent choice for pilots seeking stable long-range communication, extensive fine-tuning capabilities, and compatibility with popular radio systems and flight controllers.
