Scream Sakura 19.5dBi RHCP Patch Antenna — Overview and Key Advantages

The Scream Sakura 19.5dBi RHCP Patch Antenna from the Sakura brand is a flat, high-performance patch antenna designed for reliable transmission and reception of video signals in wireless systems. It combines compact size and weight with powerful gain, making this model an optimal choice for both professional applications and field or mobile solutions.

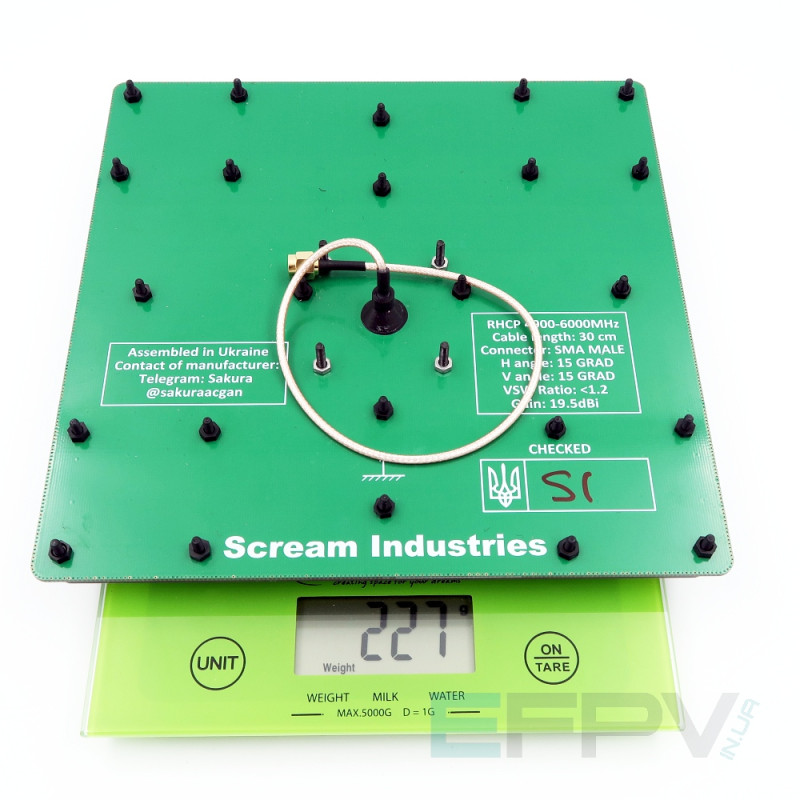

Its design and compact dimensions (198*198*30 mm) ensure easy integration into equipment enclosures or mounting solutions where space saving and aesthetics are important. The antenna's lightness (weight of only 227 g) facilitates its installation and transportation in challenging operating conditions.

Purpose and Applications

The patch antenna is ideal for wireless video surveillance systems, real-time video transmission, satellite, and specialized communication channels. In military and tactical scenarios, Scream Sakura is used to ensure stable video communication between units and command posts, for monitoring and controlling situations at distances where high signal directivity is required.

Main Advantages

• High gain of 19.5 dBi for increased range and quality of video signal reception/transmission.
• Right-hand circular polarization (RHCP) to enhance channel stability in multipath propagation conditions and reduce interference.
• Narrow beam angle of 15° for precise energy focusing in the desired direction.
• Lightweight and durable composite material housing for long-term operation.
• Standard SMA-F connector for convenient connection to compatible equipment.

Technical Specifications

The antenna provides reliable communication thanks to its right-hand circular polarization (RHCP), which reduces signal loss from multipath reflections and interference. The 19.5 dBi gain, combined with a narrow 15° beam angle, allows for effective energy focusing towards the receiver or transmitter to achieve maximum range and channel stability.

The composite material housing ensures durability and resistance to operational loads, while the standard SMA-F connector facilitates connection to equipment without the need for additional adapters. The model is well-suited for integration into stationary and mobile video surveillance systems, wireless video links, and specialized communication solutions.

Brand: Sakura. Product category: Antennas > Patch Antennas. The model is distinguished by a good balance of weight and technical characteristics, making it a justified choice for tasks of varying complexity.

You can buy a proven patch antenna, including the Scream Sakura 19.5dBi RHCP Patch Antenna, at the Flash Army online store. This antenna is suitable for professional engineering solutions and amateur projects where a compact and reliable means of transmitting video signals over long distances is required.

Other important parameters repeated: frequency range 4.9-6.0 GHz, RHCP polarization, beam angle 15°, SMA-F connector, material — composite materials, gain 19.5 dBi, size 198*198*30 mm, weight 227 g.
