Product Code: 59734-sma-17-27-50
4 836 грн.
Buy this product in 1 click:
Main specifications
Connector type:
SMA Female
Housing type:
directional
Material:
ABS plastic
Weight (depends on size):
560 g
Frequency range:
1.8–2.7 GHz
All specifications
We will deliver this product:
Payment
Description

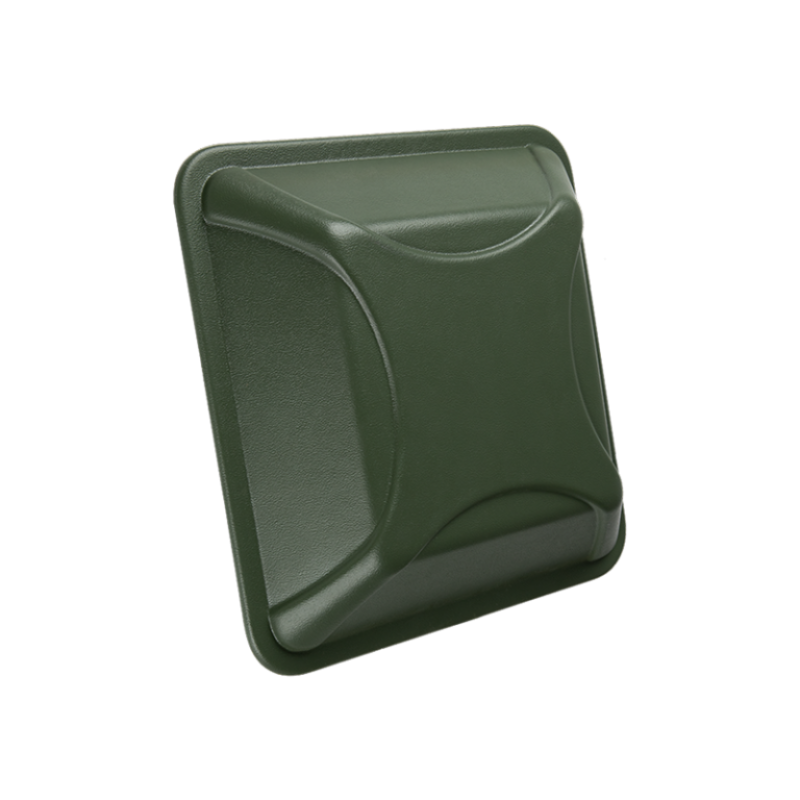

The 1.7-2.7 GHz patch antenna is a high-gain directional antenna designed for stable signal transmission over medium and long distances. It is equipped with an SMA connector for easy connection to ground stations and FPV system receivers. An optimal solution for increasing communication range and quality.
Specifications
| Band | 1.8 GHz – 2.7 GHz (VSWR < 1.5) |
| Gain | 14 dBi |
| Input impedance | 50 Ohm |
| Max power | 100 W |
| Beamwidth | horiz - 30°, vert - 30° |
| Connector | SMA Female |
| Dimensions | 220 x 220 x 40 mm |
| Material | ABS plastic |
| Weight | 560 g |
| Mounting | included |
Specifications
Connector type
SMA Female
Housing type
directional
Material
ABS plastic
Weight (depends on size)
560 g
Size
220 × 220 × 40 mm
Antennas
Frequency range
1.8–2.7 GHz
Beam angle
30°
Enhancements
14 dBi
