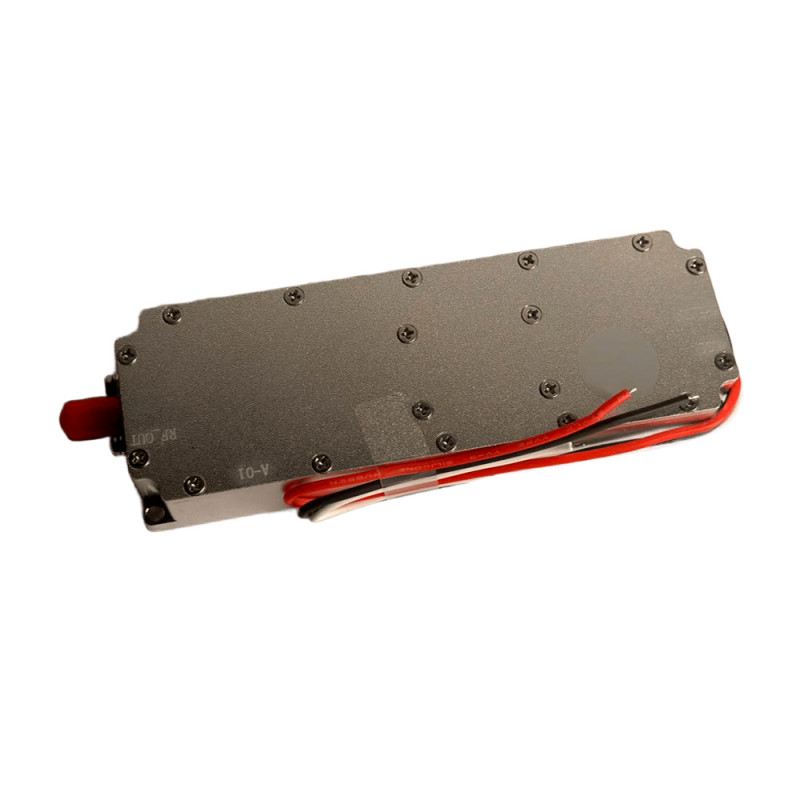

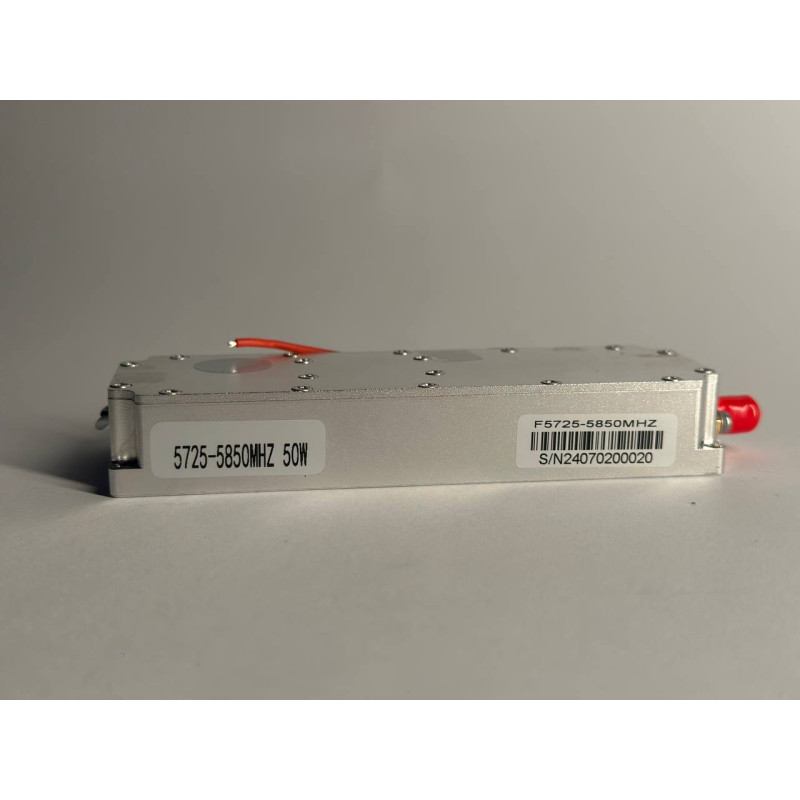

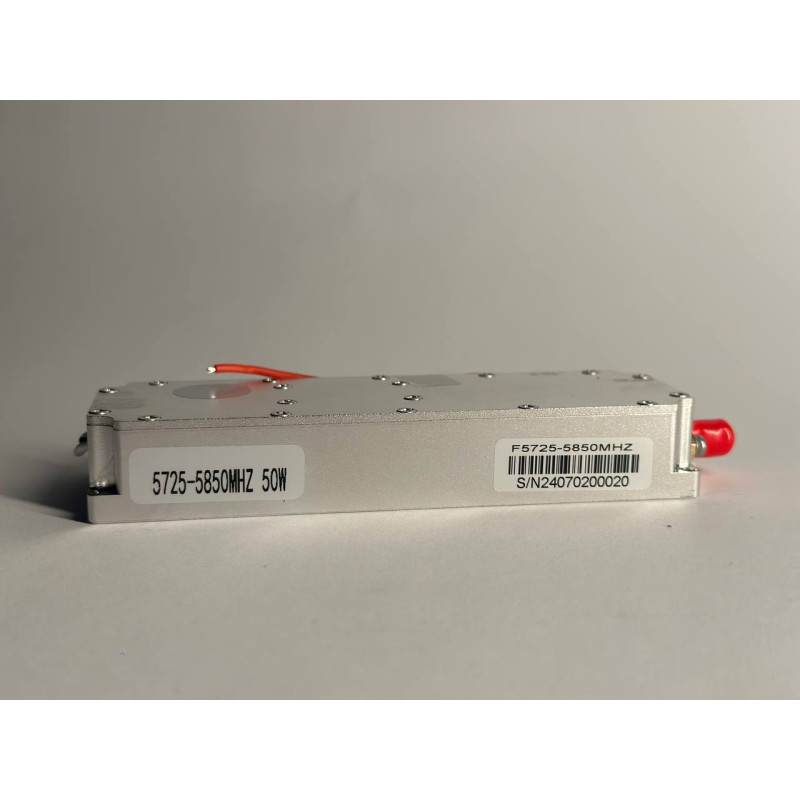

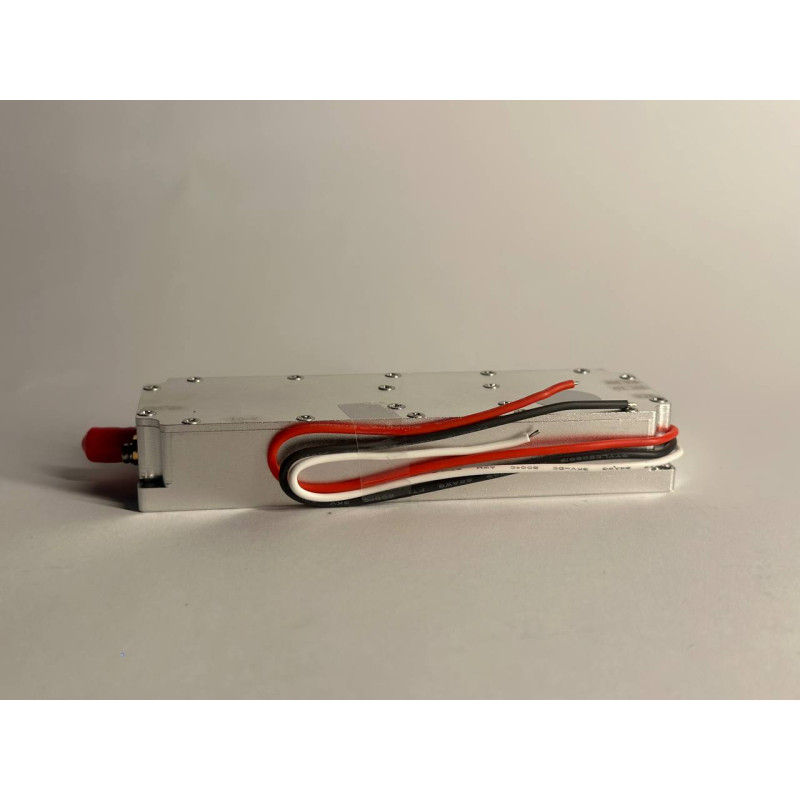

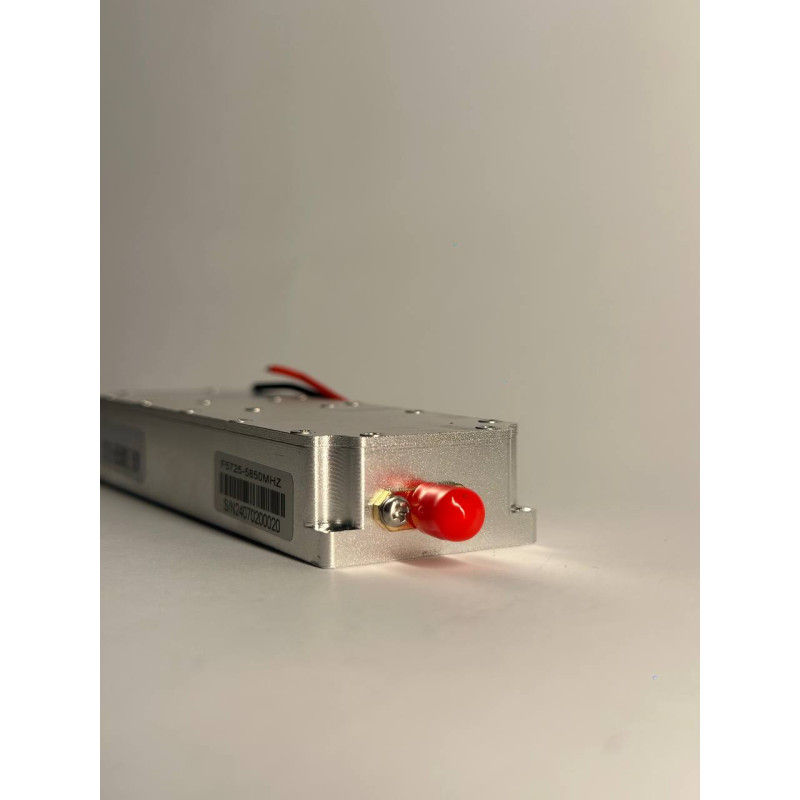

5.8 GHz (50 Watt) big body Module

We offer a high-power radio frequency module, the 5.8 GHz (50 Watt) big body Module, for professional use in electronic warfare (EW) systems, test benches, and engineering projects. The device is designed to operate in the 5.8 GHz frequency range with a continuous output power of 50 W, making it suitable for tasks requiring stable and strong RF radiation. The product is supplied by the manufacturer: China, and belongs to the category: EW > EW Components > Modules. Product ID: 3366.

Key Features

• Frequency: 5.8 GHz.
• Output power: 50 W.
• Housing: enlarged (big body) for improved cooling and ease of installation.
• Purpose: integration into EW systems, training and laboratory complexes, field solutions.
• Manufacturer: China.
• Product type: EW > EW Components > Modules.
• Product ID: 3366.

Advantages and Applications

Thanks to its stable 50 W power, the module ensures effective impact in high-complexity tasks. Operation in the 5.8 GHz range is compatible with equipment using the ISM band and adjacent frequency solutions. The large housing (big body) further improves heat exchange and simplifies installation in chassis or on mounting frames. The module is suitable for training complexes, research laboratories, field test benches, and test setups where reliable and long-term operation under increased loads is required.

Integration and Installation

It is recommended to install the module with effective heat dissipation in mind: mounting on metal radiators or in ventilated compartments is mandatory for prolonged operation at high power. Before connecting, check the compatibility of connectors and power lines, the impedance of the output connector, and permissible load levels. To ensure electromagnetic compatibility, follow your project's technical requirements and the manufacturer's instructions. The module is convenient for integration into various structural solutions due to its large housing and mounting points.

Safety and Operating Recommendations

When working with powerful RF modules, observe electrical safety rules and measures to reduce the impact of radio frequency radiation. Ensure protection against overheating, short circuits, and overloads; use cables and connectors rated for high power. Regular maintenance, calibration, and checking of main parameters are recommended before serial operation. A factory manual and installation recommendations from the manufacturer in China may be available.

If additional technical data is needed (exact housing dimensions, operating temperature range, output connector impedance, and other electrical parameters), contact the supplier or the manufacturer's technical documentation for specification clarification.
