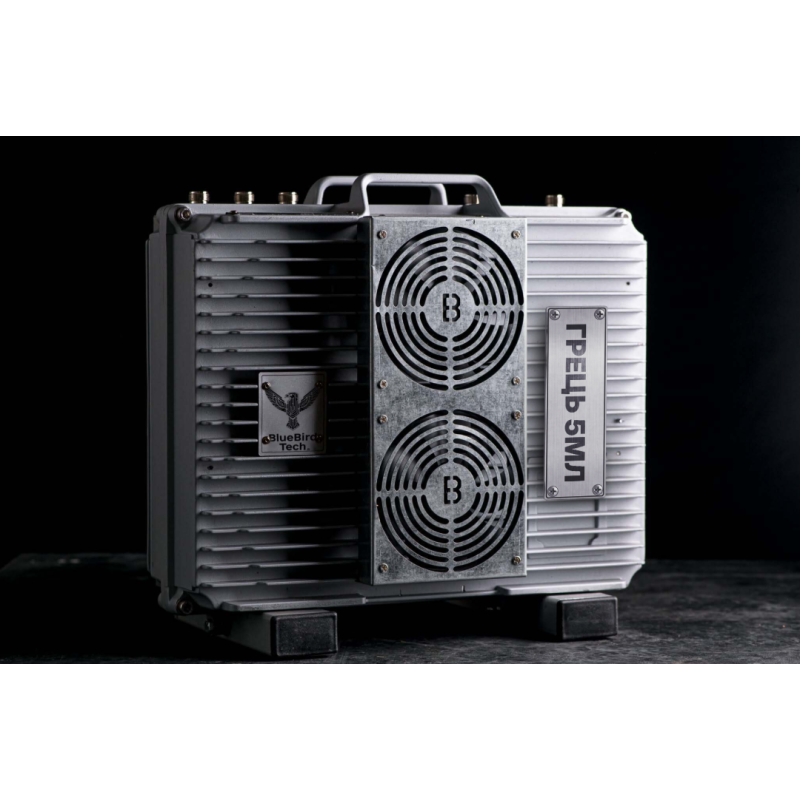

Trench EW Jammer "Grets" 5ML from BlueBird is a mobile electronic warfare countermeasure designed for effective jamming of FPV UAVs operating in the 350–700 MHz range. The device is intended for field deployment, installation on vehicles or stationary tripods, and provides reliable protective action at distances up to 400 m, depending on conditions and the frequency of the enemy drone. The "Grets – 5ML" EW jammer combines five separate jamming bands with the ability to simultaneously create interference across all ranges, increasing the likelihood of disrupting communication between the pilot and the enemy's aircraft.
Features and Capabilities
The device has five separate jamming bands: it covers the range from 350 to 700 MHz and allows for selective or simultaneous operation across all bands. This design makes "Grets – 5ML" a versatile solution for suppressing FPV drone communication links of various standards. The device is equipped with high-quality collinear and quadrifilar antennas that have undergone field testing and received positive feedback for their effectiveness and reliability.
Frequency Bands
- 350-410 MHz (collinear);
- 400-460 MHz (quadrifilar);
- 450-530 MHz (quadrifilar);
- 500-580 MHz (collinear);
- 575-700 MHz (collinear).
Technical Specifications
| Parameter Name | Value |
|---|---|
| Frequency Range | 350-700 MHz |
| Power Supply | 220 V |
| Number of Antennas | 5 pcs. (2 quadrifilar + 3 collinear) |
| Bracket for mounting 5 antennas on a vehicle or stand | 1 pc. |
| Connecting cables for each band | 5 pcs. x 2 m |
| Case Dimensions | 380×330×180 mm |
| Total Power | up to 250 W |
| Power Consumption | up to 750 W |
| Effective Range | up to 400 m, depending on the distance to the enemy pilot and FPV drone frequency |
| EW Jammer Weight (without battery) | 12 kg |
Package Contents
- 1. "Grets 5ML" EW Jammer device;
- 2. 5 antennas (2 quadrifilar + 3 collinear);
- 3. 220 V power cable;
- 4. 2 brackets for mounting 5 antennas on a vehicle or stand;
- 5. Antenna unit patch extension cable for each band (5 pcs. x 2 m);
- 6. User Manual: "Grets 5ML".

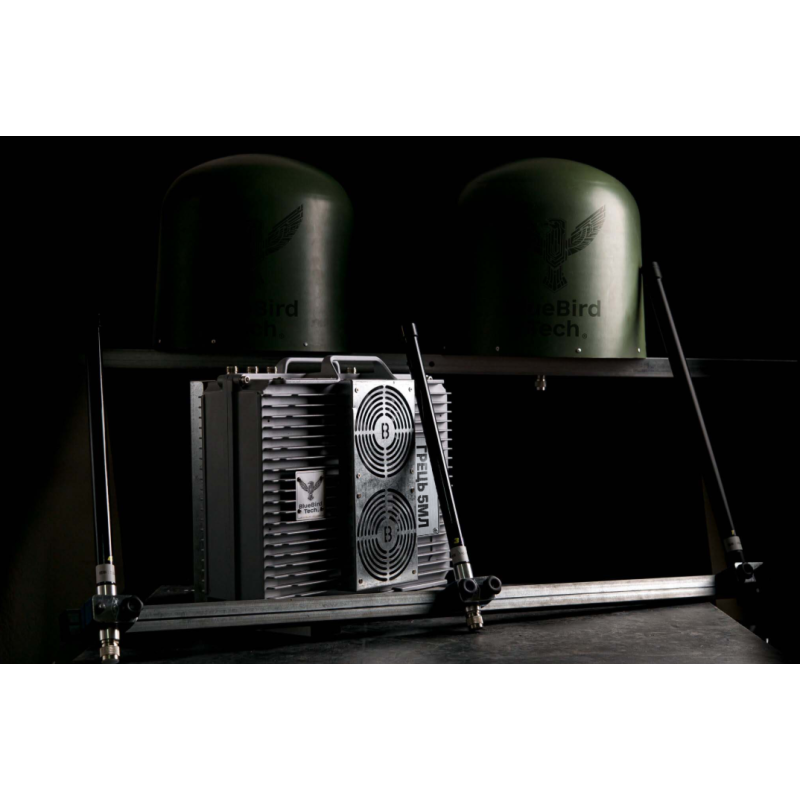

The "Grets" 5ML Trench EW Jammer from BlueBird is an optimal combination of power (up to 250 W total power with up to 750 W power consumption), mobility, and ease of integration into field protection systems. The design includes reliable antenna mounting, convenient cable connections (5 cables x 2 m), and a compact body with dimensions of 380×330×180 mm, which facilitates deployment on equipment or mounting on a tripod. Carefully selected collinear and quadrifilar antennas ensure effective coverage of each declared frequency band and guarantee a high probability of disrupting the enemy's control channel.
This device is recommended for units that require a reliable countermeasure against FPV drones in field conditions, with the ability for rapid deployment and a versatile configuration scheme for selective or simultaneous suppression of all five bands.
