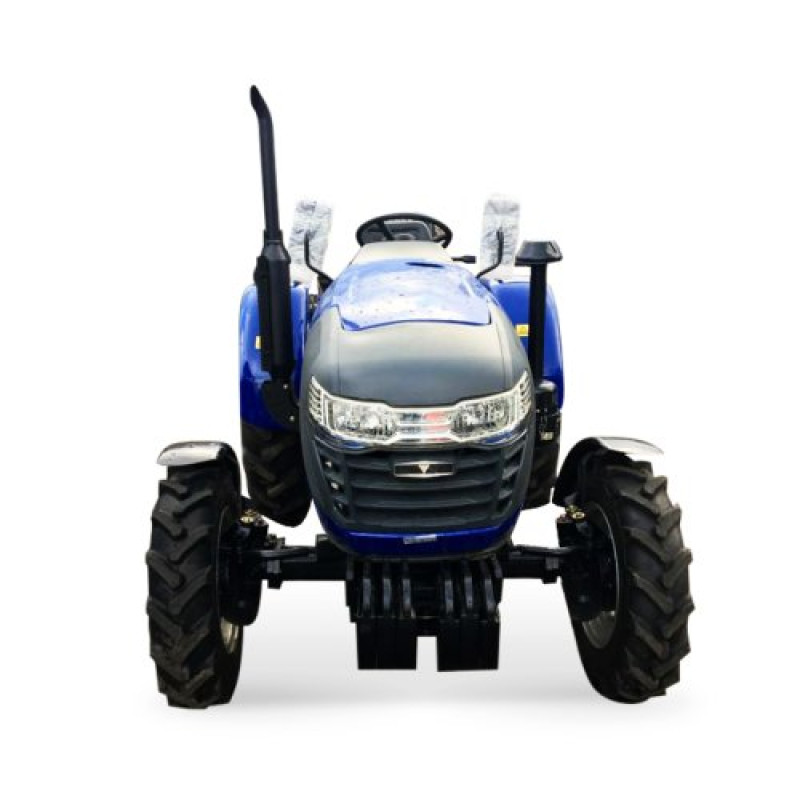

Mini Tractor LOVOL FT 244 HRXN
The LOVOL FT 244 HRXN mini tractor from the Foton brand (manufacturer Lovol Heavy Industry Co., LTD, China) is a compact yet productive all-rounder for private households, small farms, and municipal work. The Foton Lovol FT244HRXN model belongs to the 0.6 traction class of universal row-crop wheeled tractors and offers an optimal combination of power, off-road capability, and compatibility with various mounted and trailed equipment.
Key Features at a Glance

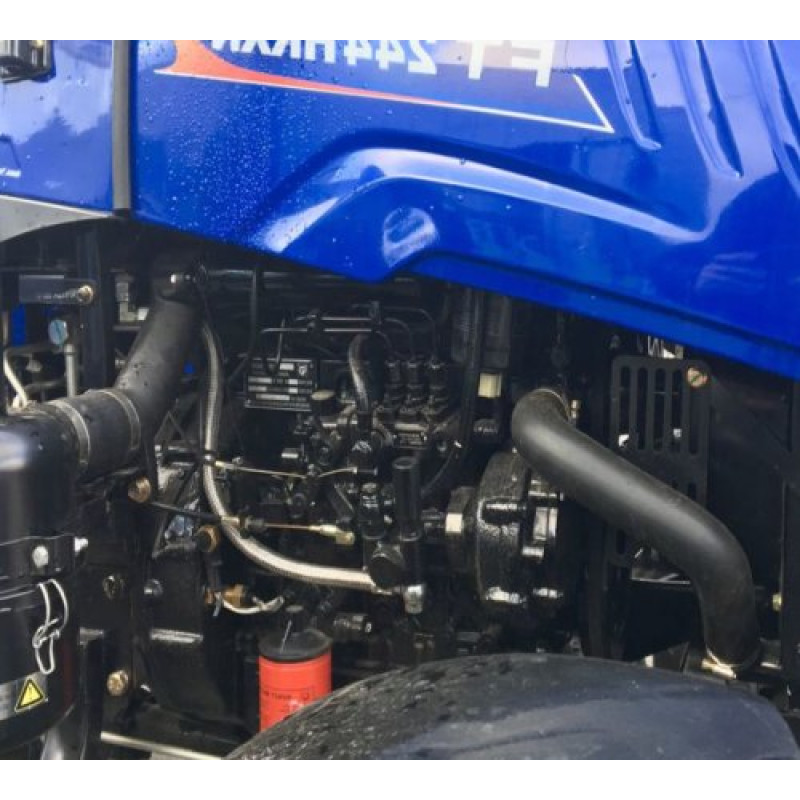

- Engine: three-cylinder diesel (KM385BT or QC385BT models), four-stroke, with direct injection and liquid cooling system, non-turbocharged.
- Engine displacement: 1,530 cm3; power: 24 hp (17.6 kW); cylinder bore 85 mm, piston stroke 90 mm; fuel consumption — up to 244 g/(kW·h).
- Wheel formula: 4x4 with switchable front axle drive — for better traction and maneuverability in the field and off-road conditions.
- Gearbox: mechanical, stepped with reverse — 8 forward and 8 reverse gears; clutch — dry dual-disc.
- Power take-off (PTO) shaft: dual-mode (540 and 1000 rpm), 6 splines, diameter 35 mm.
This tractor is compatible with a wide range of mounted and trailed equipment: tillers, rakes, potato diggers, seeders, sprayers, trailers, snow removal devices, and more. Thanks to this, one machine can perform tasks such as soil cultivation, sowing, haymaking, grass mowing, cargo transportation, waste removal, cleaning, and snow clearing.
When purchased at the Flash Army store, the model is offered at a price of $6350, including free delivery across Ukraine. The certified original tractor is supplied according to the photos and technical specifications on the website, with the option of installment payments or credit supported by a partner bank. Delivery is available throughout Ukraine, including Kyiv, Vinnytsia, Poltava, Chernihiv, and Kharkiv.
Below is a detailed table of the model's technical specifications with a complete list of parameters for its design, engine, dimensions, gearbox, PTO, electrical system, and other data.
| Model Information | |
|---|---|
| Model Name | Foton Lovol FT244HRXN |
| Tractor Type | Universal Row-Crop Wheeled Tractor |
| Traction Class | 0.6 |
| Manufacturer | Lovol Heavy Industry Co., LTD |
| Country of Manufacture | China (PRC) |
| Wheel Formula | 4x4, with switchable front axle drive |
| Engine Specifications | |
| Engine Type | Three-cylinder diesel, four-stroke, non-turbocharged, with direct injection, liquid-cooled |
| Engine Model | KM385BT or QC385BT |
| Engine Displacement, cm3 | 1,530 cm3 |
| Engine Power | 24 hp (17.6 kW) |
| Number of Cylinders | 3 |
| Cylinder Bore | 85 mm |
| Piston Stroke | 90 mm |
| Fuel Consumption | up to 244 g/(kW·h) |
| Overall Dimensions, mm | |
| Wheelbase | 1670 mm |
| Dimensions (L x W x H) | 3240 x 1350 x 1850 mm |
| Front Wheel Track | 1280, 1380 mm |
| Rear Wheel Track | 1080, 1160, 1260 mm |
| Agrotechnical Ground Clearance | 360 mm |
| Clearance | 270 mm |
| Minimum Turning Radius | 3.0 m (with one brake pedal depressed), 3.75 m (without brake pedal depressed) |
| Structural Weight | 1390 kg |
| Gearbox (КПП) | |
| Gearbox Type | Mechanical, stepped, with reverse |
| Number of Gears (forward/reverse) | 8 forward / 8 reverse |
| Clutch Type | Dry dual-disc (dependent basket with two discs) |
| Braking System | |
| Brake Type | Dry-type brake drums on rear wheels, separate brake pedals |
| Power Take-Off (PTO) | |
| PTO Type | Rear, semi-independent |
| PTO Rotation Speed, rpm | 540 / 1000 rpm |
| Number of Splines and Diameter | 6 splines, diameter 35 mm |
| Electrical System | |
| On-board Network Voltage | 12 V |
| Travel Speed, km/h | |
| Maximum Speed | Forward: 1.92–29.83 km/h; Reverse: 0.54–11.91 km/h |
| Configuration | |
| Front Wheel Size | 6.50 - 16 |
| Rear Wheel Size | 11.20 - 24 |
| Other Characteristics | |
| Engine Oil Volume | 5 L |
| Engine Cooling System Volume | 10 L |
| Fuel Tank Volume | 29 L |
| Transmission Oil Volume | 15 L |
| Front Axle Oil Volume | 3.5 L |
| Hydraulic Tank Volume | 9.5 L |
The Lovol FT 244 HRXN model is suitable for both field and municipal and seasonal tasks — from plowing and sowing to snow removal and cargo transportation. If you need assistance with selecting mounted equipment, delivery terms, or payment, please contact a Flash Army manager using the contacts on the website. We also recommend considering other models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350 L, DW 244, DTZ 5404K, Solis 26 Tractor, Solis 50, Shifeng SF-244.
Brand: Foton. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
