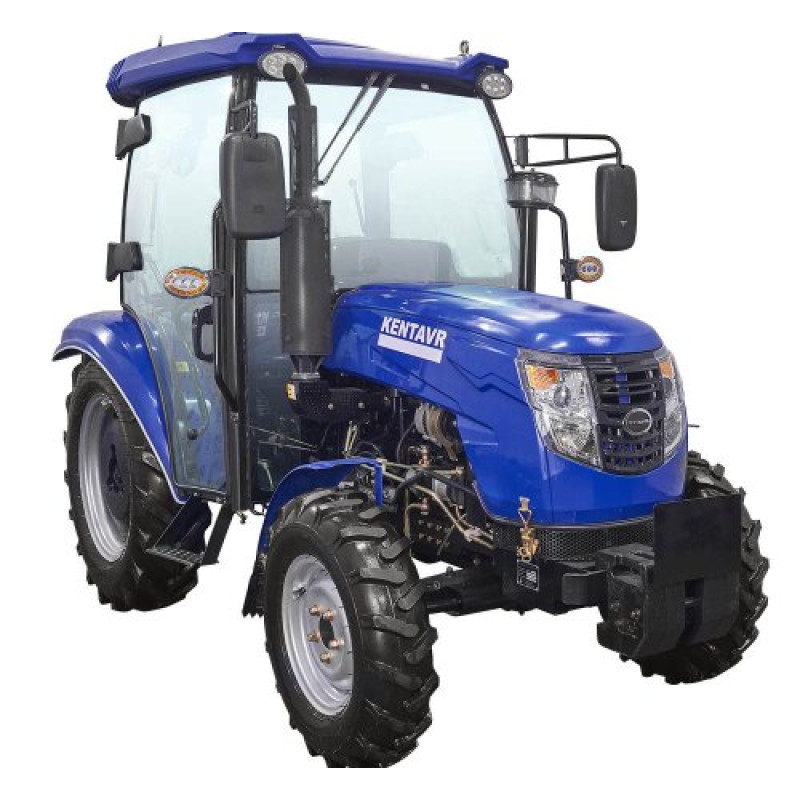

KENTAVR 504 SDC Mini Tractor — A Powerful and Versatile Farm Assistant
Manufacturer: KENTAVR. The KENTAVR 504 SDC mini tractor combines power, efficiency, and versatility, making it an excellent choice for farms, municipal services, and businesses with intensive workloads. The model features 4x4 all-wheel drive and a reinforced chassis for operation in challenging conditions.
Purpose: Field and garden work, forest belt maintenance, trailer towing, operation with mounted equipment via power take-off (PTO) shaft and rear hitch.
Technical Specifications
| Engine type: | 4-stroke, 4-cylinder, JDM490T3 |
| Power, kW: | 36.8 |
| Power, hp: | 50 |
| Cooling: | water |
| Fuel tank capacity, L: | 35 |
| Engine speed, rpm: | 2300 |
| Engine start: | electric starter |
| Crankcase oil volume, L: | 6 |
| Cooling system volume, L: | 5 |
| Bore and stroke, mm: | 90/100 |
| Oil consumption, grams/kWh: | 2.04 |
| Fuel delivery: | direct injection |
| Oil pump: | plunger, inline |
| Transmission: | (4+1)x2 |
| Clutch type: | dry, dual-disc |
| Ground clearance, mm: | 300 |
| Differential lock: | yes |
| Brake system: | drum brakes |
| Front wheel track, cm: | 1240-1440 |
| Rear wheel track, cm: | 1230-1550 |
| Turning radius, m: | 4.45 |
| Wheel formula: | 4x4 (all-wheel drive) |
| Front tires: | 7.5-16 |
| Rear tires: | 11.2-24 |
| Overall dimensions L/W/H, mm: | 3550/1600/2300 |
| Steering: | with power steering |
| PTO shaft speed: | 540/720 |
| Max. lifting capacity of hitch mechanism, kg: | 550 |
| Wheelbase, mm: | 1840 |
| Weight, kg: | 1750 |
Details that distinguish the KENTAVR 504 SDC: the JDM490T3 water-cooled engine provides 50 hp (36.8 kW) at 2300 rpm, and the electric starter makes starting quick and convenient. The direct fuel injection system and plunger inline oil pump increase efficiency and durability under heavy loads. A 35 L fuel tank ensures long autonomous operation in the field.
- Reliable transmission: (4+1)x2 gearbox and dry dual-disc clutch provide smooth and economical power transfer.
- Off-road capability: 300 mm ground clearance, 4x4 all-wheel drive, differential lock — all enhance off-road capability on difficult terrain.
- Control and safety: drum brakes and good maneuverability (turning radius 4.45 m).
Compact dimensions of 3550×1600×2300 mm combined with a weight of 1750 kg make the tractor stable yet maneuverable enough for working in confined spaces. Power steering reduces operator fatigue during long shifts. Two PTO speed modes (540/720) allow the use of a wide range of mounted equipment, and the maximum lifting capacity of the rear hitch mechanism of 550 kg makes the tractor compatible with plows, cultivators, and other implements.
The KENTAVR 504 SDC is equipment that combines operator comfort, economical operation, and high productivity. An ideal choice for farmers, municipal services, and owners of large garden plots who need a reliable and versatile mini tractor.
Product information: name — KENTAVR 504 SDC Mini Tractor; manufacturer — KENTAVR; category — Tractors > Mini Tractors.
