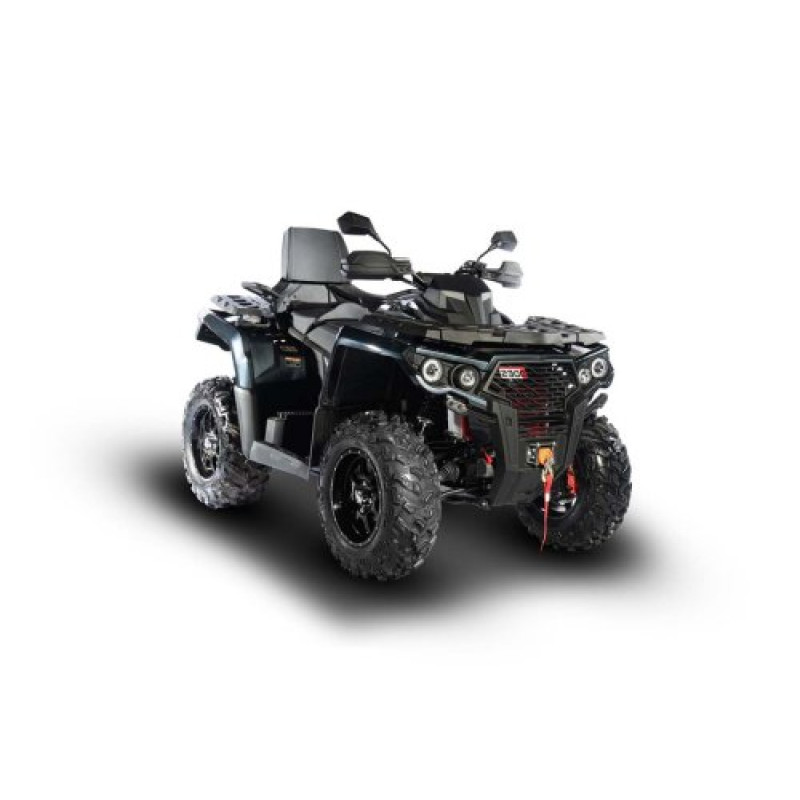

ODES 800 ATV Quad Bike
ODES 800 ATV is a powerful and reliable quad bike designed for challenging off-road conditions and intensive daily use. Manufacturer: ODES. Category: Motor Vehicles > Quad Bikes. The model combines modern technical solutions and durable components: a two-cylinder, 4-stroke, SOHC fuel-injected engine with an 800 cm3 displacement, developing 60 hp at 6000 rpm, ensuring good acceleration and traction on difficult terrain.
The starting system includes both an electric starter and a kickstarter, guaranteeing reliable starting in any conditions. The liquid cooling system maintains a stable engine temperature under prolonged loads, and the SOHC design is optimized for durability and ease of maintenance.
The transmission is automatic, with a V-belt variator, making control simple and convenient; available modes: high, low, forward, neutral, and reverse. For enhanced off-road capability, an all-wheel-drive system with 2WD/4WD/4WD Lock modes and differential lock is installed. The final drive is direct. This combination allows overcoming sandy clearings, swamps, and steep climbs with minimal effort.
The braking system features dual-disc front and rear brakes, ensuring effective braking on various surfaces and when towing loads. The chassis and suspension are designed for harsh conditions: the front and rear suspensions are independent, with double A-arms, coil springs, and oil dampers — for comfort and stability on uneven terrain.
The quad bike's dimensions and wheelbase combine maneuverability and stability: wheelbase 1490 mm, external dimensions 2270x1210x1430 mm. Tire sizes are 26x9-14 for the front and 26x11-14 for the rear, providing good ground contact and the option to mount alternative treads for specific tasks. Average fuel consumption is about 7 l/100 km, and the vehicle's weight is 305 kg.
The body and protection are made of high-quality materials: the plastic body kit, made of high-strength ABS plastic, includes a front bumper, side mudguards, and fender flares. The metal body kit is tubular, integrated into the frame, with the possibility of installing additional cases for carrying luggage and tools.
The quad bike is suitable for a wide range of applications: farm work, touring, hunting, fishing, and active recreation. The combination of an 800 cm3, 60 hp engine, well-designed transmission, suspension, and durable body kit makes the ODES 800 ATV a versatile solution for those seeking a reliable and capable quad bike.
Key advantages of the model:
- Powerful two-cylinder SOHC 800 cm3 fuel-injected engine — 60 hp at 6000 rpm.
- Electric starter and kickstarter for reliable starting.
- Liquid cooling for prolonged loads.
- Automatic transmission (V-belt variator) with high/low/forward/neutral/reverse modes.
- All-wheel drive 2WD/4WD/4WD Lock with differential lock.
- Independent suspensions with double A-arms, coil springs, and oil dampers.
- High-strength ABS plastic body kit and tubular metal body kit integrated into the frame.
Below are the full technical specifications of the model:
| Wheel formula | 4x4 |
| Engine power, hp | 60 hp at 6000 rpm. |
| Engine type | two-cylinder, 4-stroke, fuel injection, SOHC |
| Engine displacement, cm3 | 800 |
| Engine starting system | electric starter/kickstarter |
| Cooling system | liquid |
| Transmission (КП) | automatic (V-belt variator) |
| Transmission modes | high, low, forward, neutral, and reverse / all-wheel drive, 2WD/4WD/4WD Lock modes |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | dual-disc |
| Rear brakes | dual-disc |
| Wheelbase, mm | 1490 |
| Tire size | front 26x9-14, rear 26x11-14 |
| Dimensions, LxWxH mm | 2270x1210x1430 |
| Front suspension | independent, double A-arm, coil spring / oil damper |
| Rear suspension | independent, double A-arm, coil spring / oil damper |
| Average fuel consumption, l / 100 km | 7 |
| Weight, kg | 305 |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional cases |
The ODES 800 ATV is ideal for users who need a versatile, durable, and powerful quad bike for work and recreation. Its reliable transmission, effective braking system, powerful engine, and high-quality body kit materials make this model an excellent choice for operation in challenging conditions.
