Matek M10S-5883 GNSS & Compass Navigation Module

Matek M10S-5883 GNSS & Compass is a compact, high-precision navigation module from Matek, designed for drones and unmanned systems. It is ideal as a drone accessory in the category: Drones & Quadcopters > Drone Components > Drone Accessories. The module combines a modern u-blox MAX-M10S GNSS receiver and a QMC5883L magnetic compass in one housing, making it a versatile solution for upgrading and building positioning systems — from amateur multi-drones to professional UAVs.

Advantages and Capabilities

Matek M10-5883 supports simultaneous reception of signals from four satellite systems: GPS, GLONASS, Galileo, and BeiDou. This enhances positioning availability in challenging conditions, including urban environments. u-blox Super-S (Super-Signal) technology increases reception sensitivity and provides better dynamic positioning accuracy even when using small antennas or with limited satellite visibility. The integrated MAX-M10S features an LNA followed by a SAW filter on the RF path for maximum sensitivity in designs with passive antennas.

Design Features

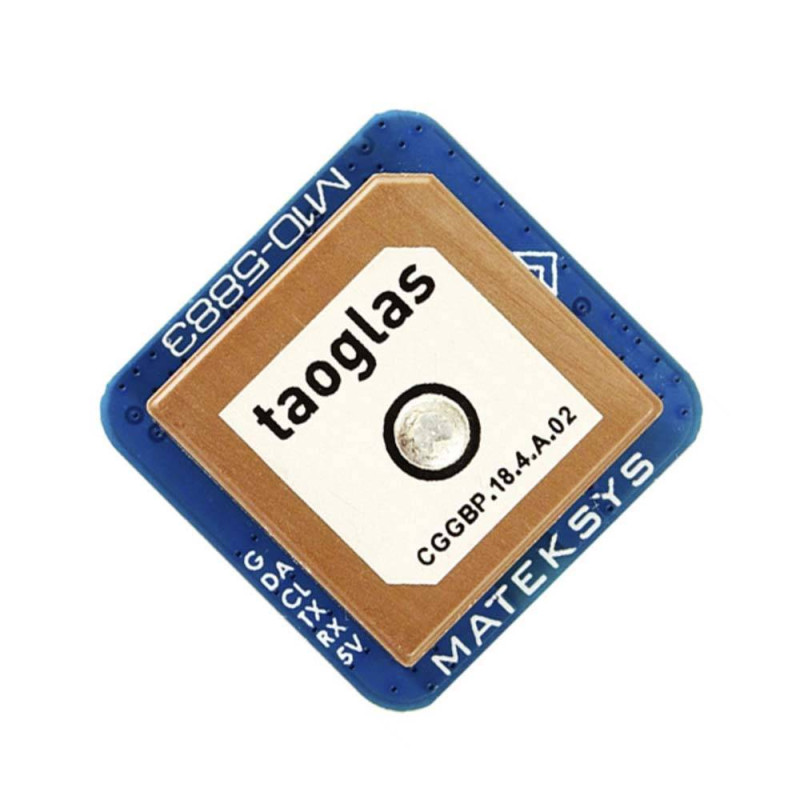

The module is equipped with a built-in 18×18×4 mm patch antenna and a green GNSS PPS indicator: the indicator glows continuously after power-on and blinks at 1 Hz when a position fix is acquired. Compact dimensions and low weight allow for easy integration of the module into most platforms, preserving the system's weight and power characteristics.

Technical Specifications

• GNSS chip: u-blox MAX-M10S (supports GPS, GLONASS, Galileo, BeiDou)
• Magnetic compass: QMC5883L

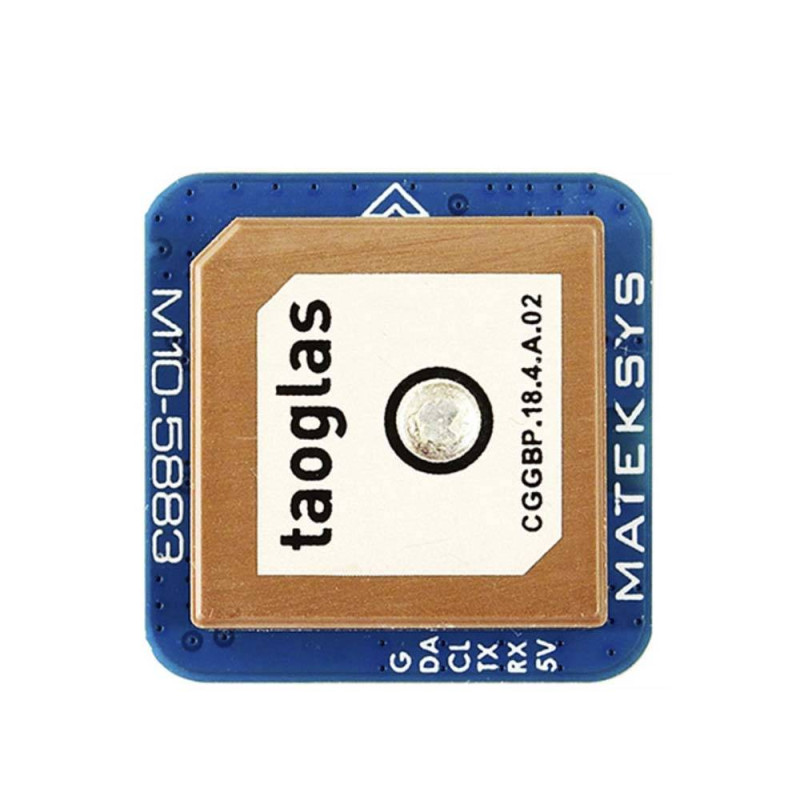

• Patch antenna: 18×18×4 mm

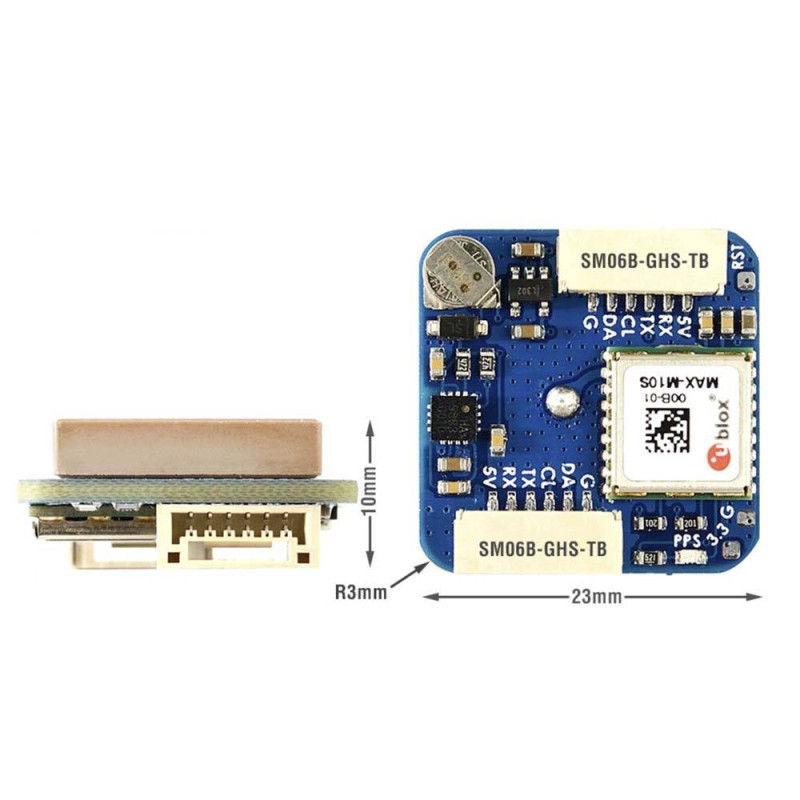

• Module size: 23 mm × 23 mm × 10 mm
• Weight: 9 g
• Input voltage range: 4 ~ 9 V (5 V on pad)
• Current consumption: 13 mA
• Default UART baud rate: 9600
• Operating temperatures: -20 ~ 80 °C

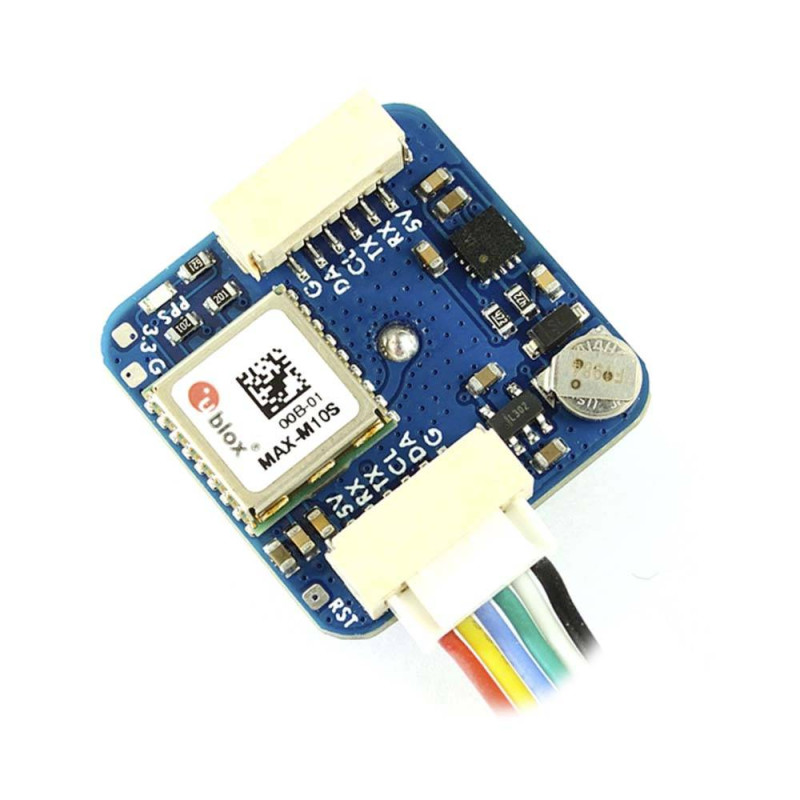

• Interface for GNSS MAX-M10S: UART (TX, RX)
• Interface for compass QMC5883L: I2C (DA, CL)
• Connector: JST-GH-6P (SM06B-GHS-TB)
• GNSS PPS LED: green (solid after power-on, blinks 1 Hz when position acquired)

Package Contents

• M10-5883 Sensor
• JST-GH-6P — 20 cm silicone wire (JST-GH-6P)

The Matek M10S-5883 navigation module combines the precision of a modern GNSS chip and the reliability of a magnetic compass, providing convenient interfaces for quick connection and integration. Low power consumption and compact size make it an excellent choice for preserving platform characteristics without sacrificing navigation quality. This is a practical solution for developers, enthusiasts, and professionals seeking an accurate and lightweight navigation module for their projects.
