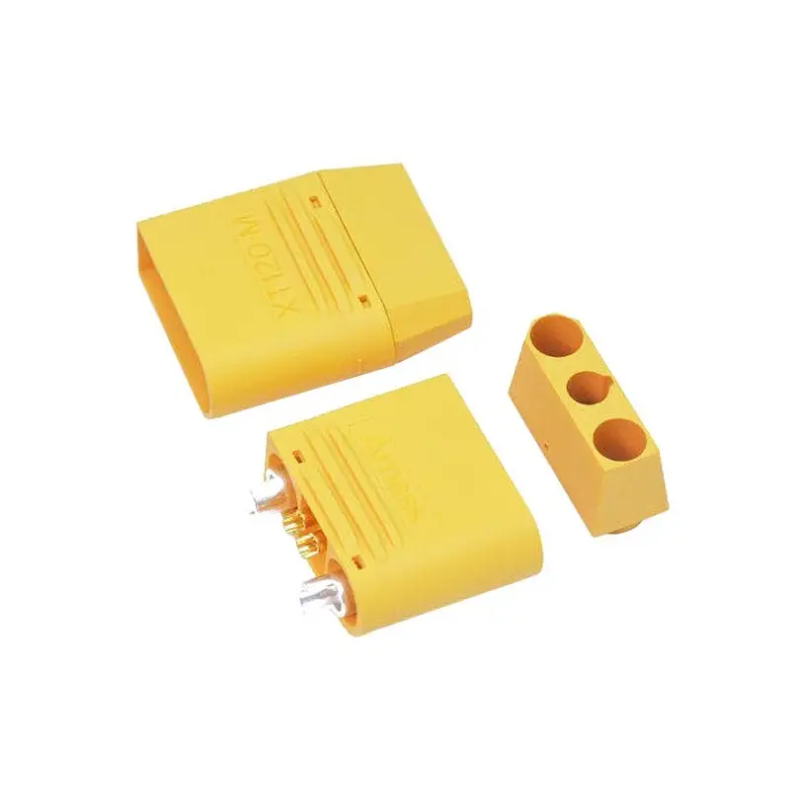

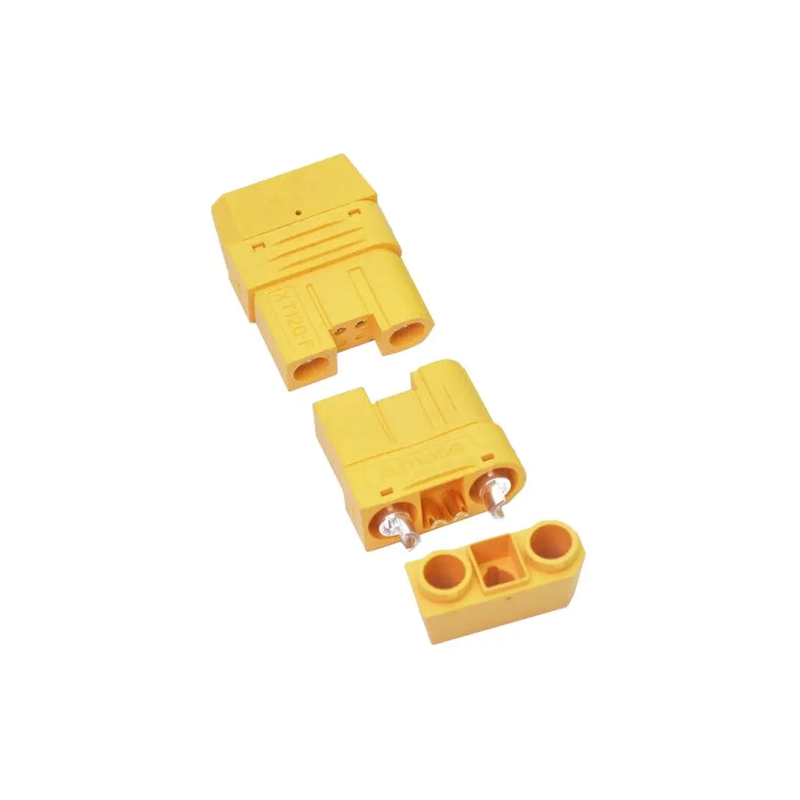

AMASS XT120 Connector Pair/M/F — Reliable Power Connector for Drones and Batteries
Introducing the high-quality AMASS XT120 connector (model XT120-F2.S.Y) from manufacturer AMASS — an optimal solution for connecting lithium batteries, power circuits of drones, quadcopters, and other electronic projects with high current and reliability requirements. The connector comes as a pair (Male/Female) and combines durability, safety, and ease of installation.
This connector has a rated current of 60 A and can withstand peak loads up to 120 A, ensuring stable operation under intensive use. The maximum permissible voltage is 500 V DC, which expands the device's application beyond modeling to include power systems and inverters. The housing is made with a yellow insulator for easy polarity identification and reduced risk of incorrect connection.
The contacts are made of gold-plated brass, guaranteeing low contact resistance (no more than 1 mOhm) and high corrosion resistance. The insulator is made of polyamide, and the housing complies with the UL94-V0 flame retardancy class. The device's operating temperature range is from -20 to 120 °C, and the recommended wire gauge for cable mounting is 8 AWG. The connector has two main (power) lines and two auxiliary (signal) lines, allowing both power supply and signal transmission within a single connector.
Advantages and Applications
Key advantages of the AMASS XT120 include: high current throughput, low contact resistance, durability with a reconnection life of up to 1000 times, and an additional cover for the contact group to protect against dust and mechanical damage. Thanks to these characteristics, the connector is perfectly suited for use in models with high current loads, drone power supplies, energy storage systems, and other electronic devices where reliability and safety are crucial.
| AMASS XT120 Connector Pair/Male/Female Specifications | Value |
|---|---|
| Manufacturer | AMASS |
| Model | XT120-F2.S.Y |
| Application Areas | Lithium batteries |
| Group | XT120 |
| Insulator Color | Yellow |
| Rated Current | 60 A |
| Peak Current | 120 A |
| Max Voltage | 500 V (DC) |
| Recommended Wire Gauge | 8 AWG |
| Mounting | Cable mount |
| Number of Main (Power) Lines | 2 |
| Number of Auxiliary (Signal) Lines | 2 |
| Conductor Material | Gold-plated brass |
| Insulator Material | Polyamide |
| Contact Resistance (max) | 1 mOhm |
| Flame Retardancy Class | UL94-V0 |
| Additional Options | Contact group cover |
| Operating Temperature | -20 – 120 °C |
| Rated Number of Reconnections (max) | 1000 times |
Package Contents:
- 1 x AMASS XT120 Connector Pair/M/F (model XT120-F2.S.Y)
The AMASS XT120 connector combines thoughtful design and high-quality materials, ensuring stable contact under high current loads and a long service life. It is ideal for drone-building enthusiasts, professional use in power systems, and anyone who values reliability and safety in electrical connections. The connector group is XT120, making it compatible with relevant components and accessories for drones and batteries.
