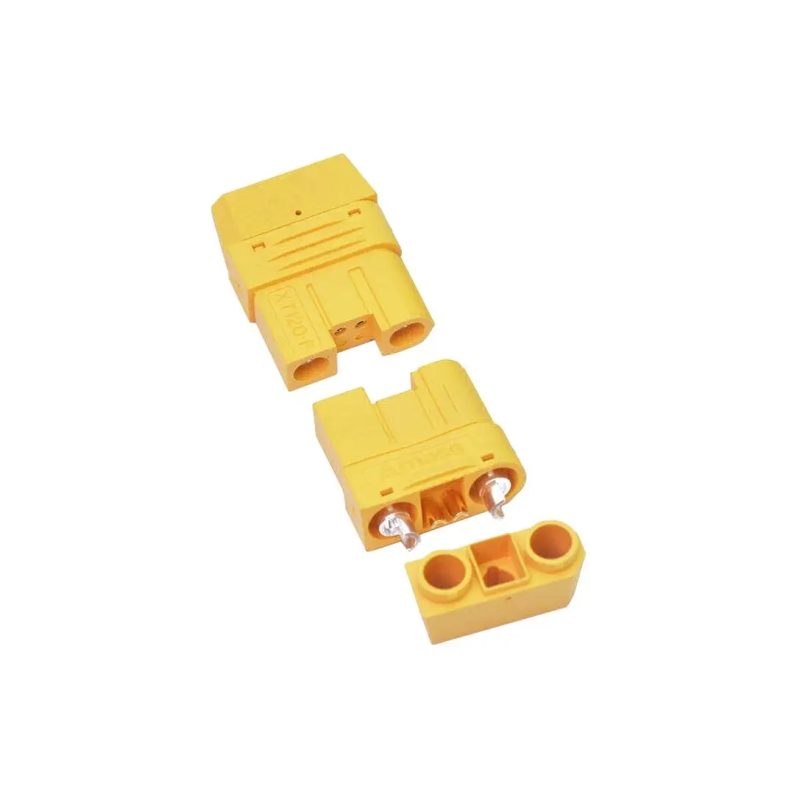

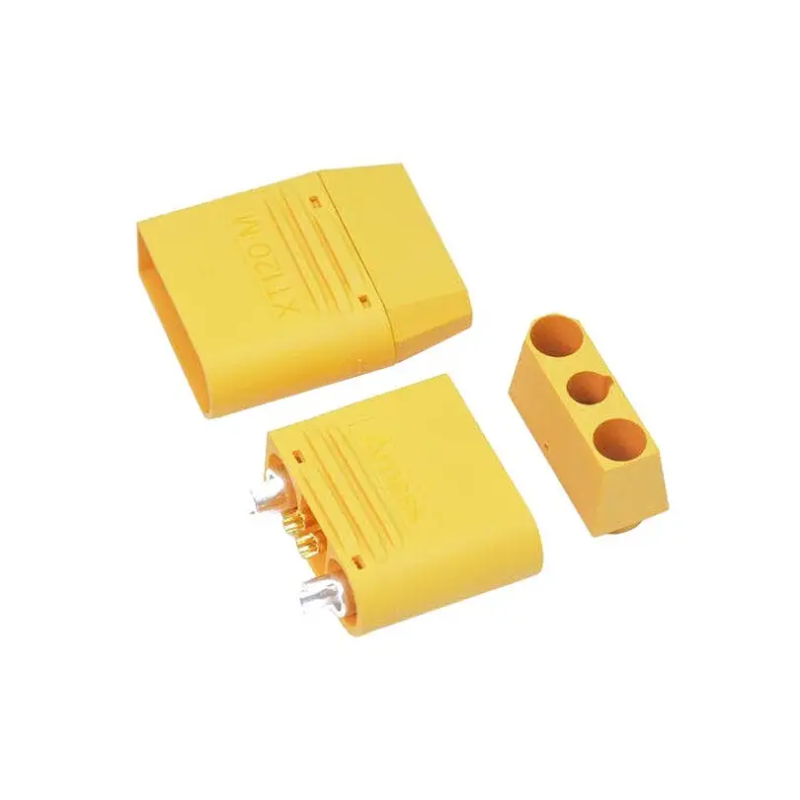

AMASS XT120 Connector Pair/M/F
The AMASS XT120 connector is a reliable, high-performance power connector designed for applications where electrical contact safety and stability are critical. Manufacturer: AMASS, model: XT120-F2.S.Y. The package includes a pair of contacts (Male/Female). The connector is rated for a nominal current of 60 A with a peak tolerance of up to 120 A and a maximum operating voltage of up to 500 V DC. Recommended wire gauge: 8 AWG. Installation is directly on the wire, providing a compact and stable connection for drones, quadcopters, battery packs, and other equipment.
| AMASS XT120 Specifications Pair/Male/Female | Value |
|---|---|
| Manufacturer | AMASS |
| Model | XT120-F2.S.Y |
| Application areas | Lithium batteries |
| Group | XT120 |
| Insulator color | Yellow |
| Nominal current | 60 A |
| Peak current | 120 A |
| Maximum voltage | 500 V (DC) |
| Recommended wire gauge | 8 AWG |
| Mounting | On wire |
| Number of main (power) lines | 2 |
| Number of auxiliary (signal) lines | 2 |
| Conductor material | Gold-plated brass |
| Insulator material | Polyamide |
| Contact resistance (max) | 1 mOhm |
| Flame retardancy class | UL94-V0 |
| Additional options | Cover for contact group |
| Operating temperature | -20 – 120 °C |
| Nominal number of reconnections (max) | 1000 times |
Package contents:
1 x AMASS XT120 Connector Pair/M/F
AMASS design solutions ensure minimal contact resistance (not exceeding 1 mOhm) thanks to gold-plated brass contacts, guaranteeing efficient current transmission and corrosion resistance. The insulating material is yellow polyamide with a UL94-V0 flame retardancy class, which increases safety during operation in high temperatures and fire risk conditions. The connector is designed for long-term use: nominal number of reconnections up to 1000 times, operating temperature range from -20 °C to 120 °C. The recommended 8 AWG wire gauge provides an optimal balance between dimensions and current carrying capacity.
This connector is suitable for applications in drones and quadcopters, battery packs, charging systems, and electric transport, where resistance to high currents and contact reliability are important. An additional cover for the contact group increases safety during storage and transportation, protecting contacts from mechanical damage and foreign objects.
Other advantages and key features:
- Compact XT120 group housing and convenient wire mounting.
- Gold-plated brass contacts – low contact resistance and corrosion protection.
- Supports nominal current of 60 A and peak of 120 A for powerful applications.
- Maximum operating voltage of 500 V DC.
- UL94-V0 flame retardancy class and wide operating temperature range (-20 – 120 °C).
- Two main power lines and two auxiliary signal lines for flexible wiring schemes.
- Nominal number of reconnections up to 1000 times ensures durability in operation.
By choosing the AMASS XT120 Connector, you get a reliable and professional solution for powering lithium batteries and electrical systems with increased current load and safety requirements. Thanks to the combination of quality materials, thoughtful design, and additional protective options, this connector will become a reliable component in your equipment.
