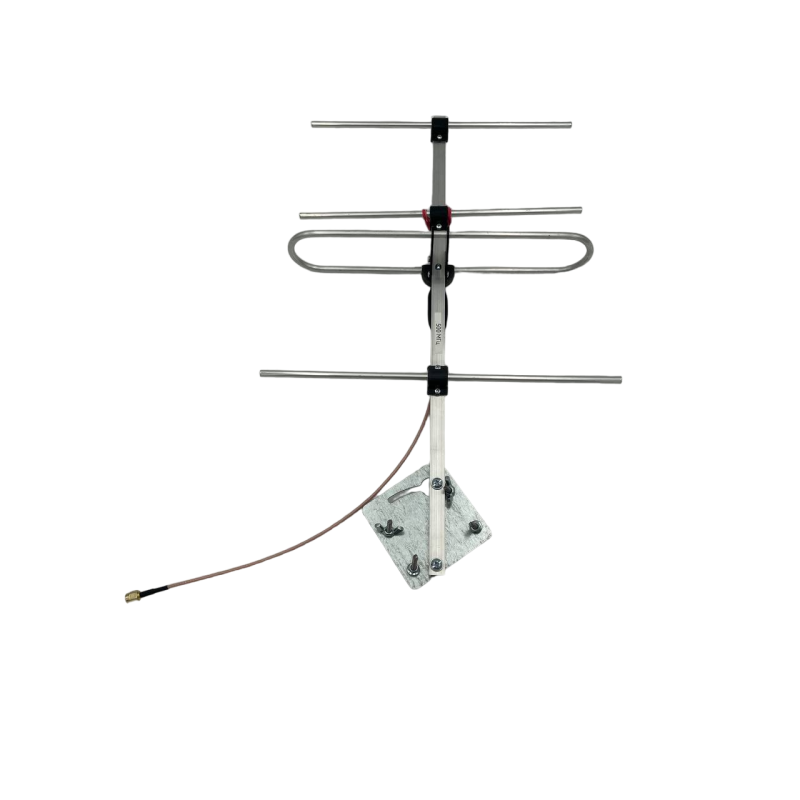

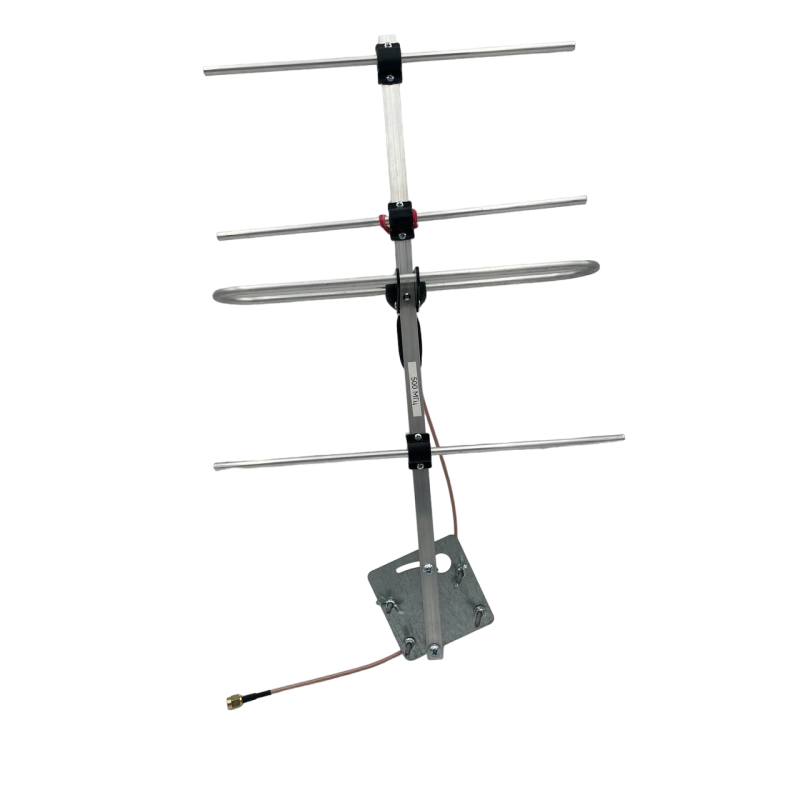

Directional mini Yagi Antenna 730 MHz with 8.6dBi Gain, 4 Sections, SMA

SkyReach presents a compact directional Yagi antenna designed for operation in the 730 MHz band. This antenna combines high gain with ease of installation: 8.6 dBi gain ensures enhanced signal reception and transmission over distance, a 40° beamwidth provides precise directionality, and a VSWR of 1.1 guarantees minimal losses and efficient impedance matching. The antenna's body and elements are made of aluminum, making the device lightweight, durable, and corrosion-resistant.

Description and Advantages

This mini Yagi is ideal for outdoor or indoor installation where directionality and stable reception in the 730 MHz frequency zone are required. Linear polarization ensures compatibility with most communication devices. Compact dimensions of 370 x 198 x 60 mm and a weight of only 172 g make it convenient for installation in confined spaces. The SMA connector provides a reliable connection to radio equipment, and the 410 mm cable length offers sufficient flexibility during installation.

Technical Specifications

• Frequency: 730 MHz
• Polarization: Linear
• Gain: 8.6 dBi
• Beamwidth: 40°
• Input Impedance: 50 Ω
• VSWR: 1.1
• Number of Directors: 2
• Cable Length: 410 mm
• Connector: SMA
• Material: Aluminum
• Dimensions: 370 x 198 x 60 mm
• Weight: 172 g
• Configuration: 4 sections

The SkyReach antenna meets the requirements for both stationary and mobile installations where directionality and reliability are needed. High gain combined with low VSWR makes this model an effective solution for signal amplification in challenging conditions, reducing interference and improving communication quality. The aluminum construction ensures durability in various weather conditions, and its light weight simplifies mounting on masts, roofs, or walls.

This antenna is suitable for integration into communication systems, internet connections, relaying, and other applications in the 730 MHz frequency range. Thanks to its standard 50 Ω input and SMA connector, it is easy to connect to most receivers and transmitters. If you need a compact, lightweight, and efficient directional Yagi antenna — this model is an optimal choice.

Other characteristics and installation recommendations can be found in the manufacturer's technical documentation or by consulting store specialists. The product is categorized under Antennas > Yagi Antennas and is manufactured under the SkyReach brand.
