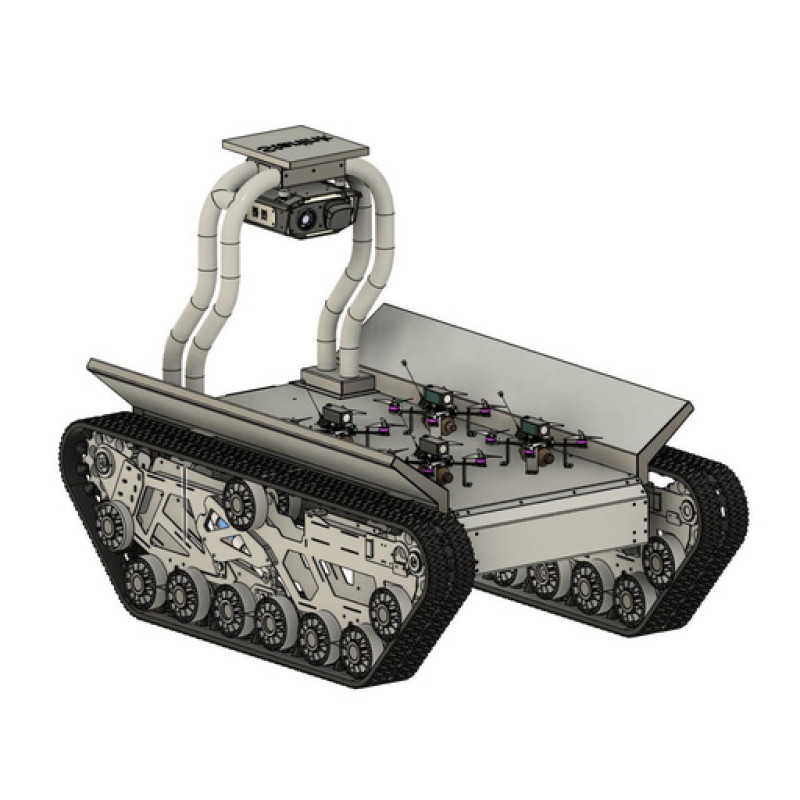

MURAKHA mini UGV (stage 1) — Unmanned Ground Vehicle by Robotic Complexes

MURAKHA (mini) UGV — is an electric unmanned ground vehicle by the Ukrainian brand Robotic Complexes, designed for combat missions involving logistics and evacuation in complex and difficult terrain. The complex combines high cross-country capability, payload capacity, and modularity for special tasks in the battlefield and remote areas.

Product category: Drones & Quadcopters > Unmanned Ground Vehicles (UGV). Product ID: 24254.

Specifications

• Dimensions: 1600*1040*1600 mm
• Max speed: 16 km/h
• Range: 28 km
• Complex weight: 300 kg
• Max payload: 250 kg
• Ground clearance: 300 mm (optional 300/360 mm clearance)
• Power unit: 2 electric motors, 2 kW (each)
• Batteries: quick-release lithium iron phosphate (LiFePO4)
• Cooling and heating: active cooling and heating of power elements
• Satellite terminal: Starlink Mini

Control and communication system

The control and communication system is implemented via low-frequency ELRS in combination with ETHER, allowing connection of external communication channels: Starlink, Silvus, LTE, fiber optic lines, and other types of IP-based channels. Optionally, the complex can be equipped with Starlink for high-speed satellite communication.

Modularity and additional equipment

The MURAKHA (mini) UGV is designed as a modular platform with the possibility of additional equipment for specific tasks. Upgrades and options include:

• ability to install an automatic cargo dropper for remote material delivery;
• FPV drone launch table (FPV-mother UGV configuration), allowing the complex to be used as a ground platform for rapid deployment of unmanned aerial vehicles;
• track and suspension configuration options: optionally choose between two types of tracks and various suspension settings to adapt to terrain conditions;
• tow hitch for towing or attaching additional equipment.

Design advantages

• high-quality and reliable track, ensuring long service life;
• low noise and smooth turning thanks to design solutions without sprockets and chains;
• high payload capacity with relatively compact dimensions;quick-release batteries for fast replacement and operational field maintenance;
• protection of power elements through active cooling and heating for operation in a wide temperature range.

By combining two 2 kW electric motors, the complex demonstrates reliable traction and the ability to move with a payload of up to 250 kg with a platform weight of 300 kg. A range of 28 km and a maximum speed of 16 km/h allow for logistics and evacuation tasks at a distance and in conditions of limited access for large-footprint equipment.

The MURAKHA (mini) UGV is suitable for both tactical application and support of operations in remote areas thanks to adaptive communication solutions (ELRS + ETHER) and the ability to connect a Starlink Mini satellite terminal.

If individual equipment or adjustment of the track chassis and suspension for specific conditions is required, the manufacturer Robotic Complexes offers options that allow optimizing the platform for the customer's tasks.
