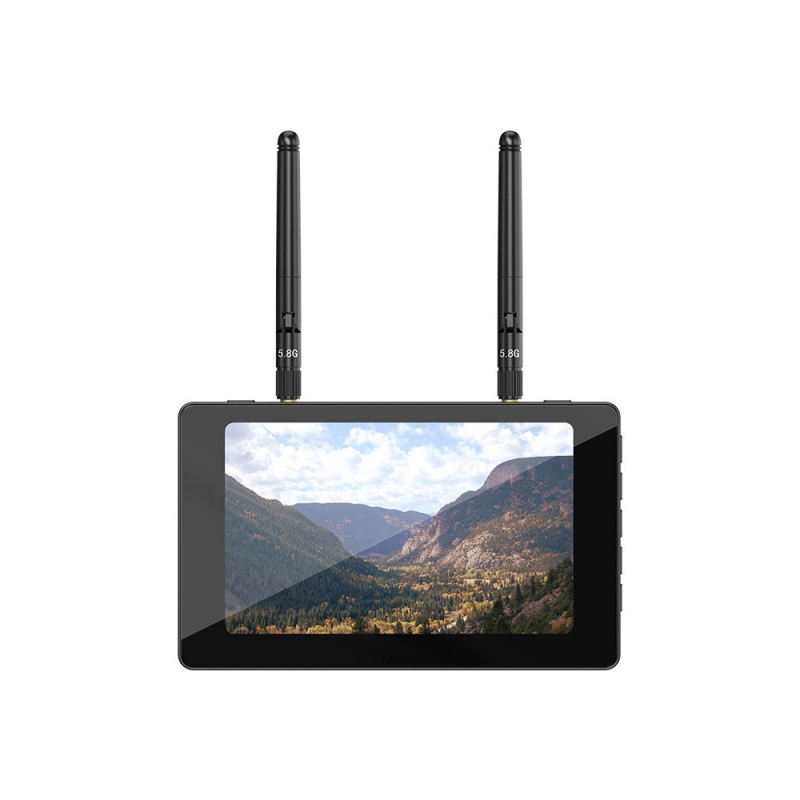

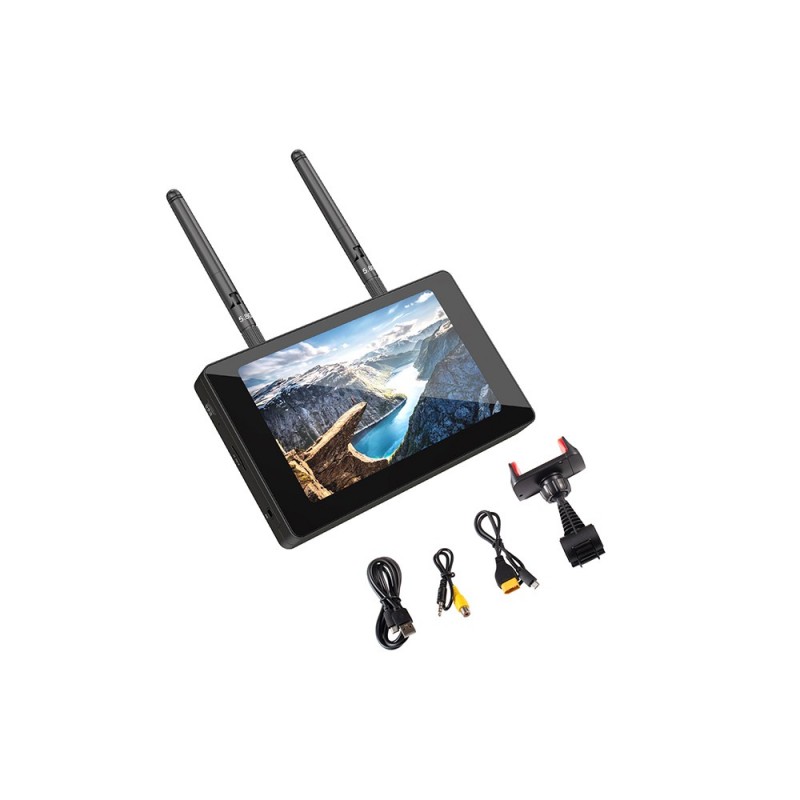

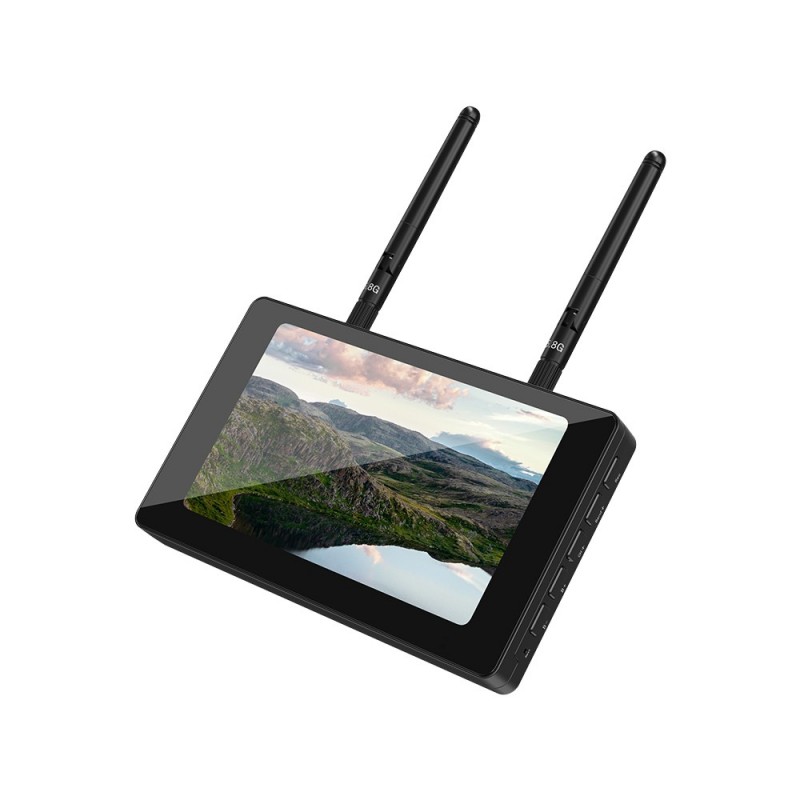

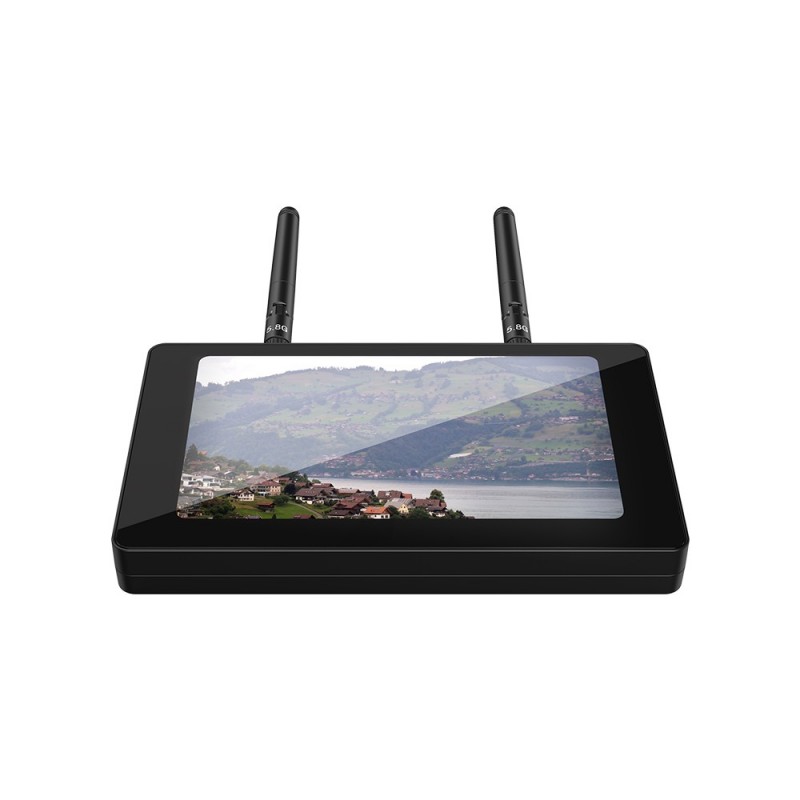

FPV Monitor Foxeer 5 inch IPS 800*480
Brand: Foxeer. A compact and functional monitor designed for drone pilots and FPV enthusiasts who need a clear image during flight, as well as reliable video recording and playback capabilities.
Description and Advantages
The FPV Monitor Foxeer 5 inch with an IPS matrix and 800x480 pixel resolution combines wide viewing angles and high brightness of 1000 lux, ensuring comfortable operation even in bright sunlight. The model supports DVR in VGA / D1 / HD modes for recording flights and subsequent analysis, and is compatible with standard 5.8G video transmitters.
| Model | Monitor 5' IPS |
|---|---|
| Resolution | 800*480 |
| Brightness | 1000 lux |
| DVR Mode | VGA / D1 / HD |
| Channels | 40CH |
| Frequency | 5.8G |
| Battery | 2000 mAh / 7.4V |
| Battery Capacity (mentioned) | 4000 mAh |
| Battery Material | 3.8V Polymer Battery |
| Continuous Operating Time | Over 3 hours |
| Input Voltage | DC 5-23V |
| Charging | USB |
| SD Card | Class C10, maximum support up to 64G |
| Glass Material | High brightness IPS, all viewing angles |
| Size | 145x86x16 mm (without antenna) |
| Weight | 170 g |
Technical Features and Compatibility

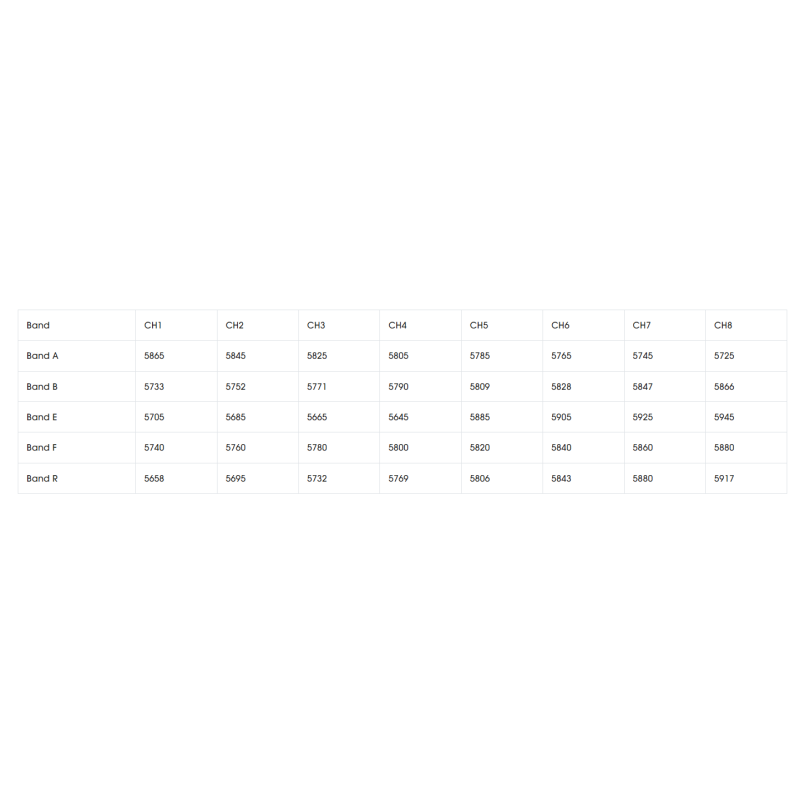

The device supports 40 channels (40CH) at 5.8G frequency, making it compatible with most FPV video transmitters. DVR modes VGA, D1, and HD allow recording flights in various formats, and the Class C10 memory card slot supports cards up to 64 GB for saving long sessions. The IPS matrix ensures excellent color reproduction and image stability at various viewing angles.
Power and Autonomy
The monitor can be powered by a 2000 mAh / 7.4V battery, while the description also mentions a capacity of 4000 mAh and the use of a 3.8V polymer battery. Under optimal operating conditions, the device provides continuous operating time of over 3 hours. The DC 5-23V input voltage and USB charging make the monitor versatile for flight and field use.
Dimensions and Ergonomics
Compact dimensions of 145x86x16 mm (without antenna) and a weight of 170 g allow the monitor to be conveniently mounted on a remote control or carried in a bag. The combination of a lightweight body and a bright IPS screen makes the Foxeer 5" an ideal solution for racing pilots and FPV enthusiasts who need a clear screen and flight recording.
Who it's for
This monitor is suitable for FPV enthusiasts, racing pilots, and professionals looking for a quality display with video recording capability, long operating time, and wide compatibility with 5.8G video systems. The Foxeer brand is known for the reliability and quality of its drone components, so the device will be a useful addition to your equipment kit.
