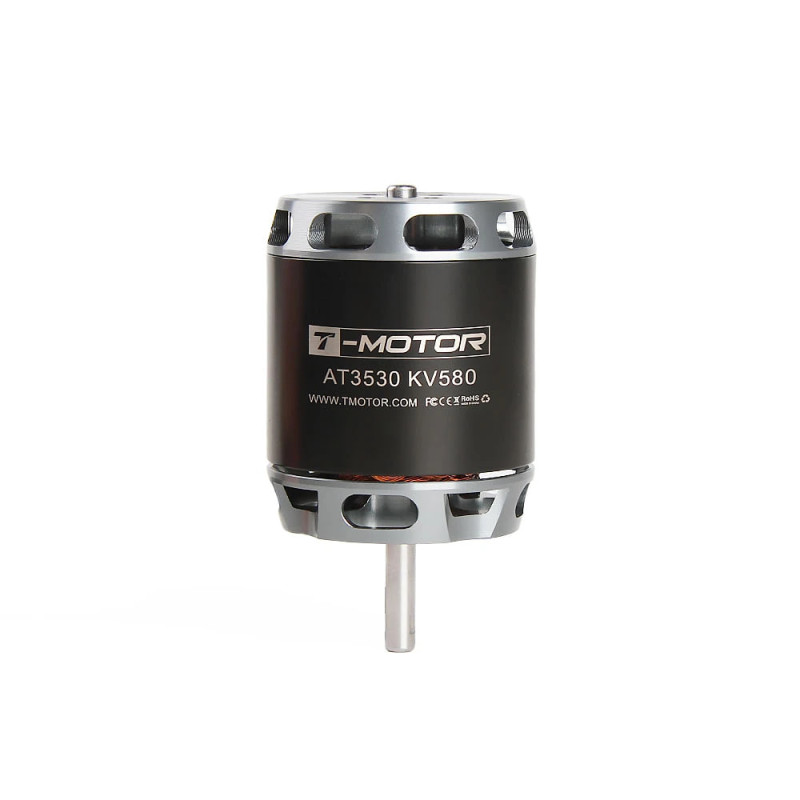

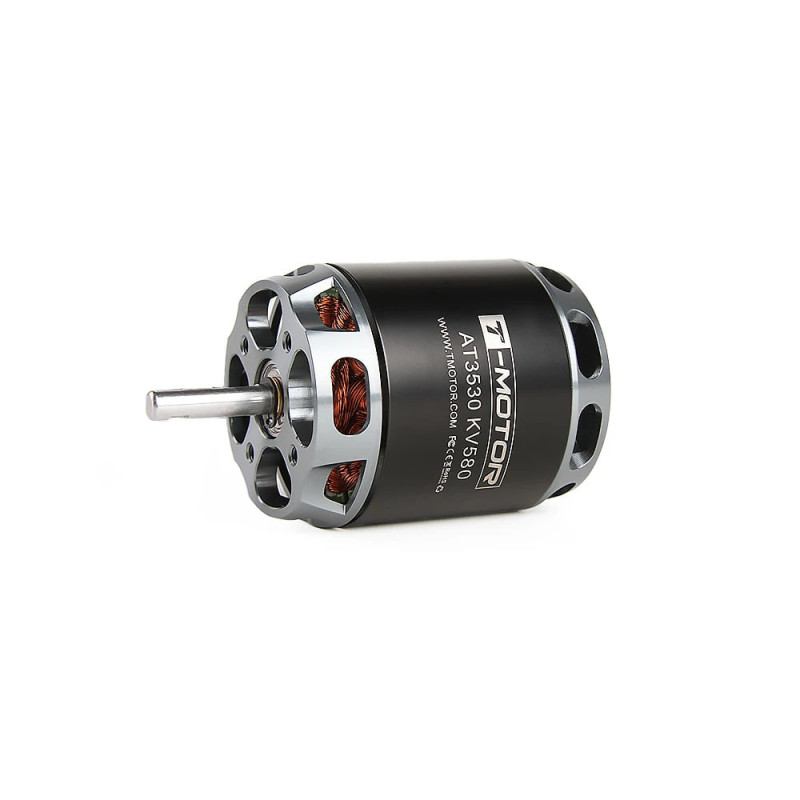

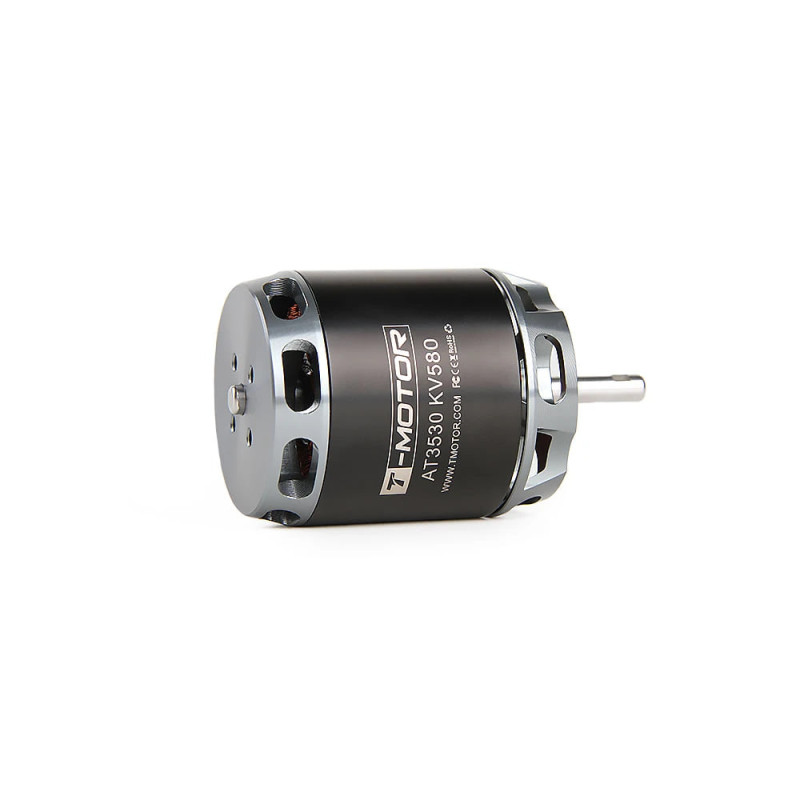

T-Motor AT3530 KV580 4-6S 1400W Motor

Description: The T-Motor AT3530 KV580 motor is a high-performance brushless electric motor designed specifically for RC aircraft and multi-rotor drones. Thanks to its optimized stator and rotor design and 12N14P configuration, this motor provides high efficiency, stable operation under load, and powerful thrust necessary for aggressive maneuvering and lifting heavy payloads. It is an ideal choice for projects requiring a reliable motor with high continuous power and current overhead.

Key advantages: high maximum continuous power up to 1400 W, wide power supply voltage range of 14.8–22.2 V (4-6S LiPo), significant maximum thrust from 4082 to 4805 g, and compatibility with large 13-14″ propellers, making it a versatile solution for various aircraft configurations.

Technical Specifications

• Manufacturer: T-Motor
• Model: AT3530
• Type: Brushless electric motor
• Application: RC aircraft
• Size: 3530
• KV (RPM per volt): 580
• Maximum thrust: 4082 – 4805 g
• Supply voltage: 14.8 – 22.2 V (4-6S LiPo)
• Rated current: 8.5 A
• Maximum continuous current: 58.46 A
• Peak current: 65 A
• Idle current: 1.9 A
• Maximum continuous power: 1400 W
• Shaft: Smooth shaft
• Shaft diameter: 5 mm
• Configuration: 12N14P
• Wire length: 100 mm

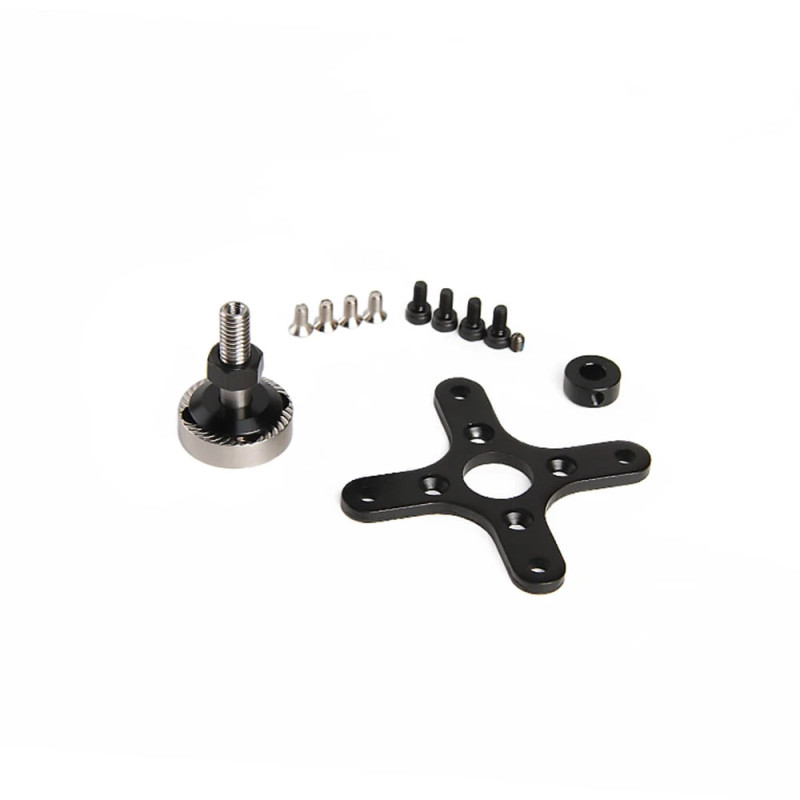

• Motor mount: 25×25 mm; 50×50 mm
• Recommended propellers: 13-14″
• Dimensions (LxWxH): 75 x 43 x 43 mm
• Weight: 298 g

This motor combines robust mechanics, optimized heat dissipation, and precise balancing, which reduces vibrations and extends bearing life. The 5 mm smooth shaft allows for the use of various types of adapters and propellers, while the 25×25 mm and 50×50 mm mounting options make installation simple for most chassis and frames. The 100 mm wire length ensures convenient connection to the electronic speed controller (ESC) without additional extensions in compact enclosures.

The recommended 13-14″ propeller range optimizes the thrust-to-power consumption ratio. To achieve the stated thrust and efficiency, an ESC with appropriate current overhead should be used, as the motor can draw up to 65 A at peak load and has a maximum continuous current of 58.46 A. The nominal operating current is 8.5 A, highlighting efficient operation at medium loads.

The T-Motor AT3530 KV580 motor is suitable for experienced modelers and projects requiring high thrust and reliability when operating on 4-6S lithium-polymer batteries. If you are looking for a motor for heavy multi-copters or high-speed aircraft with powerful thrust and long service life — this option will be an excellent choice.
