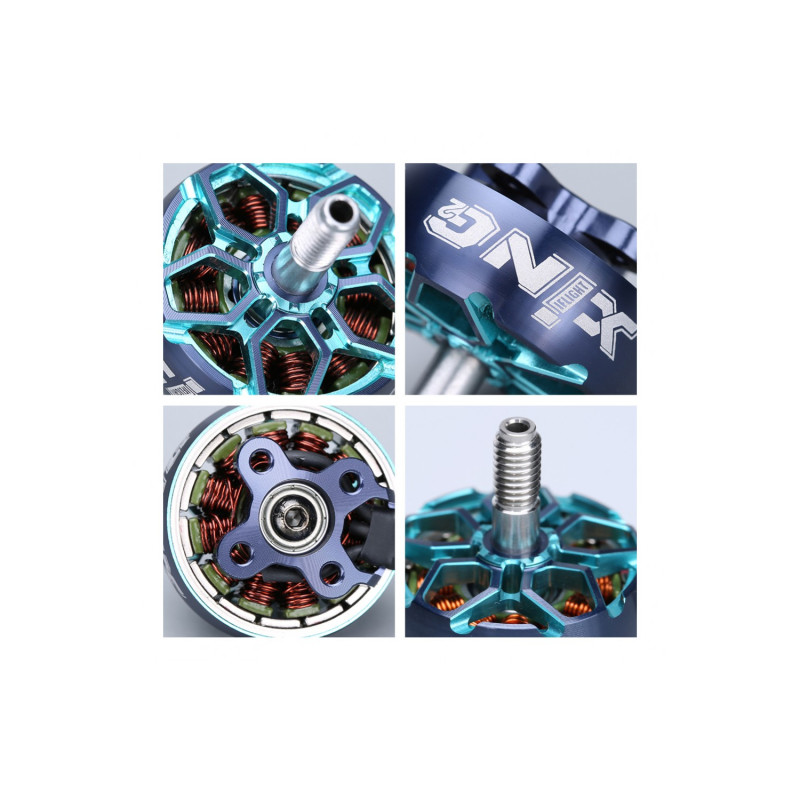

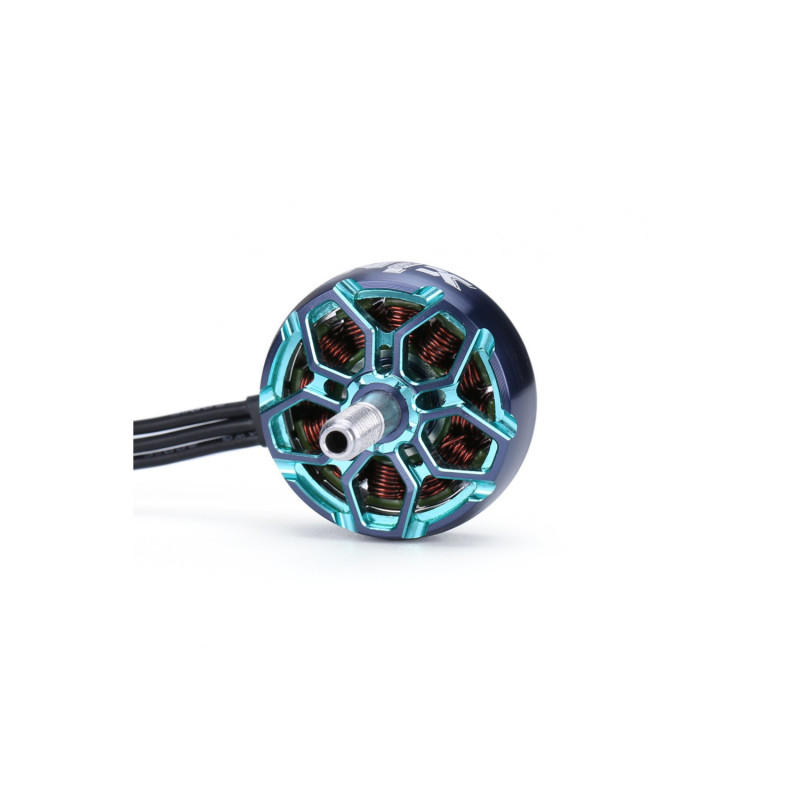

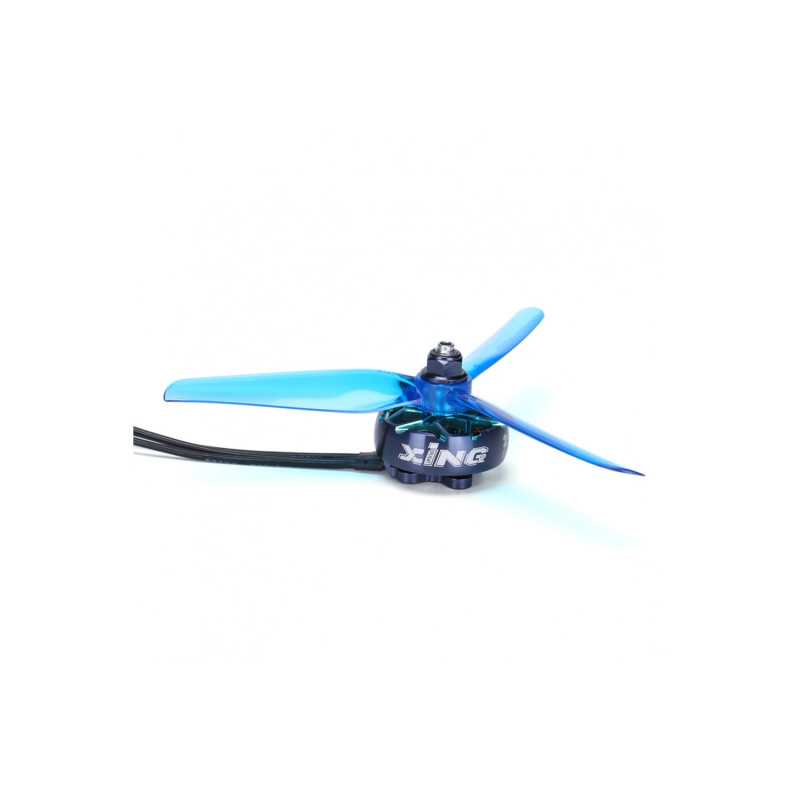

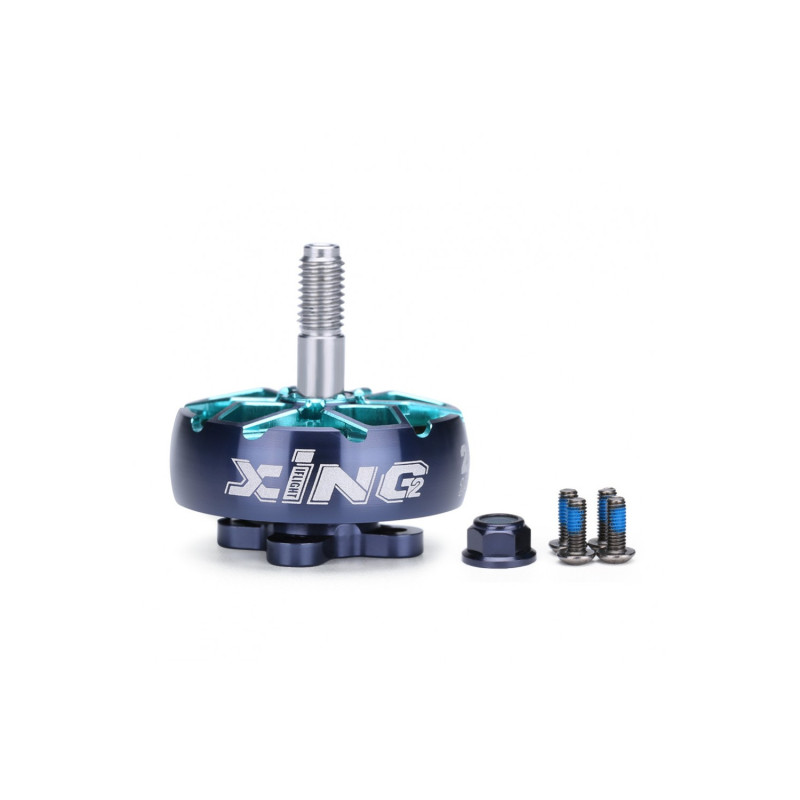

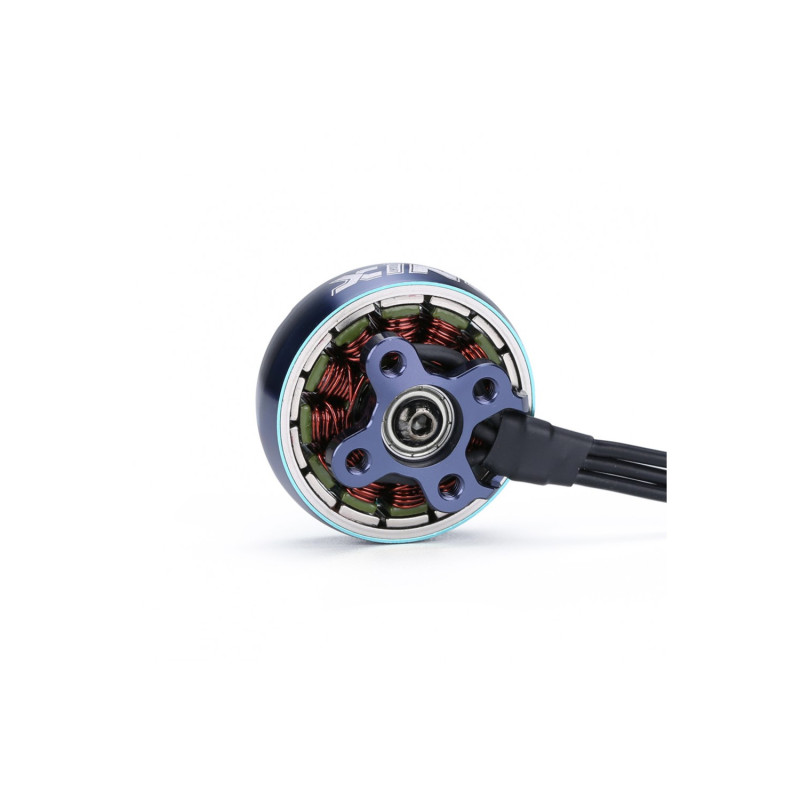

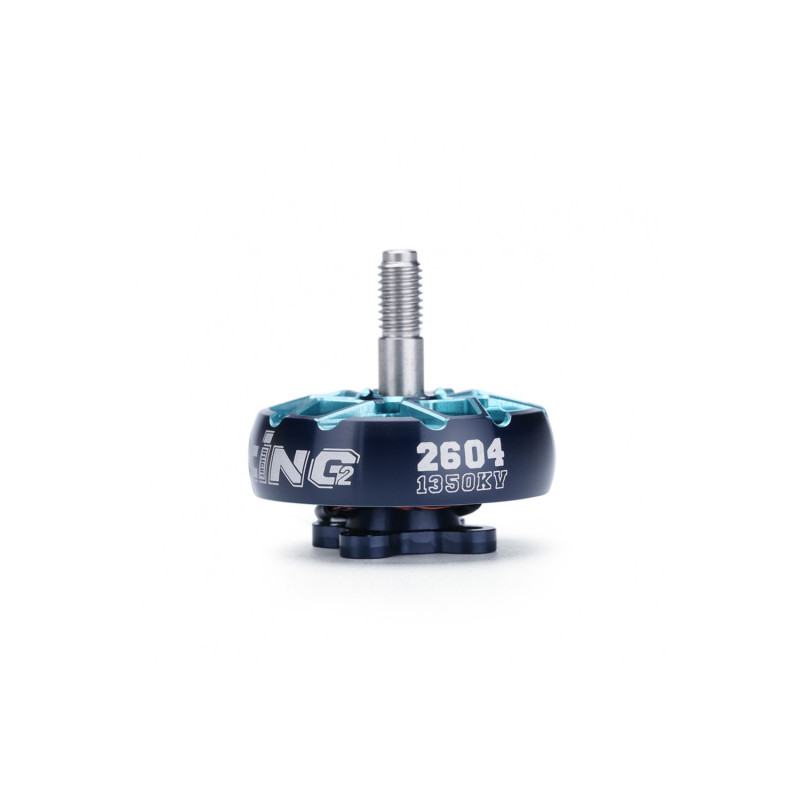

iFlight XING2 2604 1350KV / 1650KV Motor

Manufacturer: iFlight. Category: Drones & Quadcopters > Drone Accessories. ID: 11550

Product Description

The iFlight XING2 2604 motor, available in 1350KV and 1650KV variants, is a high-performance brushless motor designed for modern multirotor drones. This motor combines power, efficient cooling, and durability thanks to its high-quality aluminum housing. The XING2 2604 is suitable for applications ranging from aerial photography and videography to racing quadcopters; the choice between KV allows the motor to be adapted to specific needs—from stable lift to maximum maneuverability.

Technical Specifications

• 1. Motor Type: Brushless Motor. Such motors are characterized by high efficiency, durability, and reliability during intensive operation.
• 2. KV Rating:
  • 1350KV: A variant for aircraft requiring increased thrust and stability when lifting heavy cameras or additional equipment. Ideal for flights with increased load and for aerial photography.
  • 1650KV: A variant for racing and sport drones where high performance, quick response, and maneuverability are important. Provides faster rotations and dynamic flights.
• 3. Stator Size: The stator diameter is 26 mm (2604), providing an optimal balance between weight and output power.
• 4. Weight: Approximately 34 grams per motor, making it lightweight for installation on most multirotor aircraft designs.
• 5. Housing Material: The housing is made of high-quality aluminum, which contributes to efficient heat dissipation and extends the motor's service life under load.
• 6. Number of Stator Poles: 12 poles, which increases rotation precision and engine operation stability at various RPMs.
• 7. Operating Voltage: Recommended range 4S to 6S (14.8V – 22.2V), allowing high performance with modern LiPo batteries.
• 8. Mounting Thread: Standard M3 mounting thread for propeller attachment, compatible with popular propellers and adapters.
• 9. Application: Recommended for many types of multirotor drones: aerial photography and videography, industrial imaging, racing quadcopters, and universal multicopters. The choice between 1350KV and 1650KV depends on the priority—thrust/stability or speed/maneuverability.

The iFlight XING2 2604 1350KV/1650KV motor will be a reliable choice for those seeking a quality motor with balanced weight, power, and heat dissipation. Thanks to the aluminum housing and 12-pole stator, you get stable operation even under intensive loads, and wide voltage and mounting thread compatibility simplifies integration into various frames and configurations.

When choosing between the 1350KV and 1650KV variants, evaluate your tasks: if you plan to lift heavy equipment and require stable flight—choose 1350KV; if your goal is high dynamics, fast maneuvers, and racing characteristics—1650KV will be the better choice. By purchasing the iFlight XING2 2604 motor, you receive a product from the renowned manufacturer iFlight, which meets modern requirements for reliability and performance.
