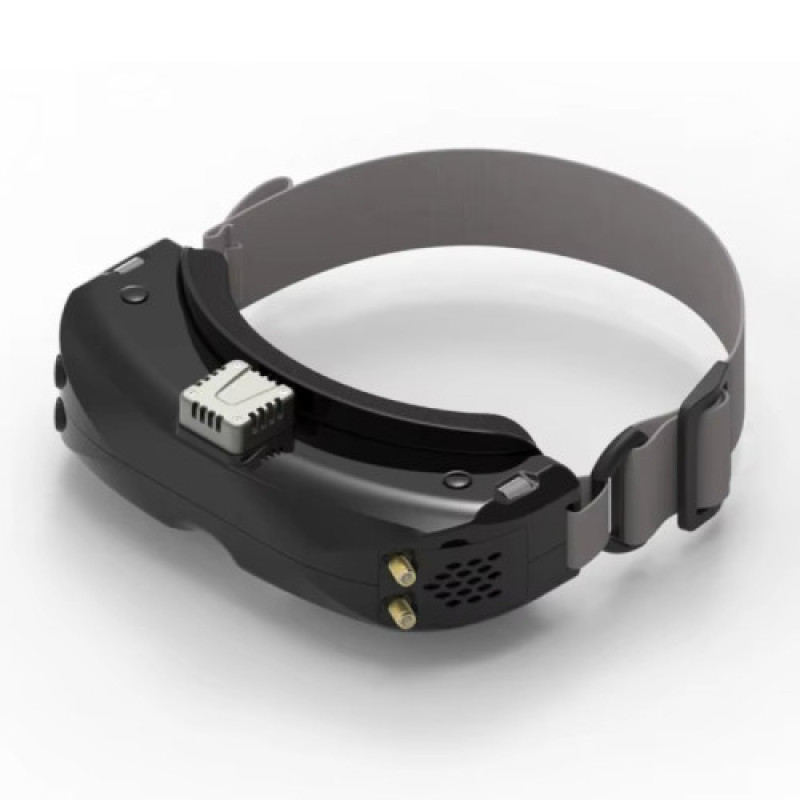

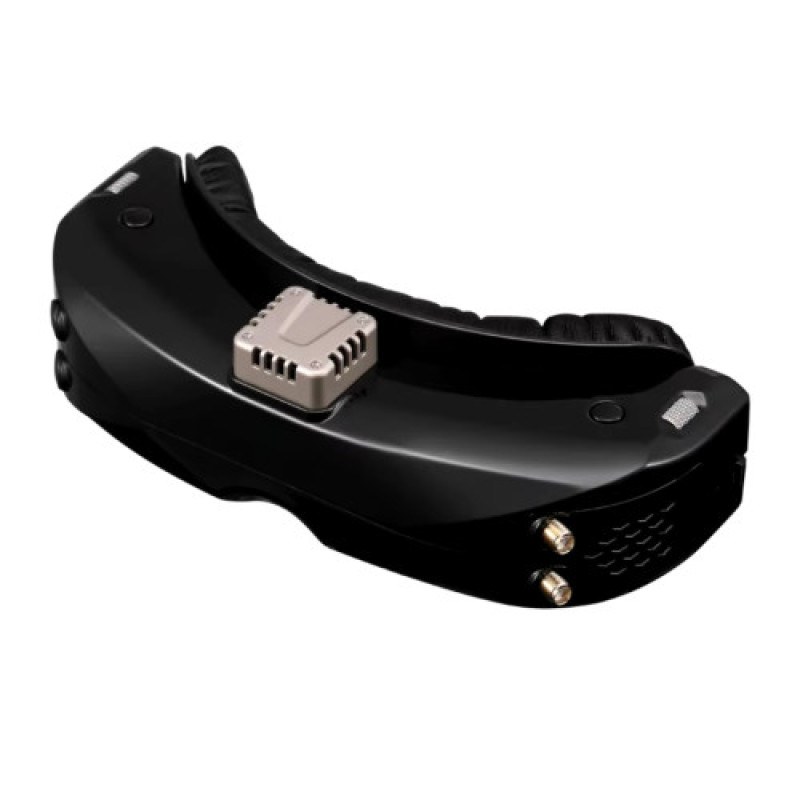

FPV Goggles Skyzone SKY04X Pro OLED 5.8GHz 48CH Steadyview Receiver
The Skyzone SKY04X Pro is an updated professional model of FPV goggles that combines modern optics, improved OLED displays, and a built-in digital receiver for a stable video signal. In the product card, the brand is listed as Flytex, while the specifications state SKYZONE, which should be considered when choosing. The SKY04X Pro model offers an increased field of view and enhanced image clarity, ensuring an immersive and comfortable flight for drone pilots and FPV enthusiasts.
Key Features
Main advantages of the SKY04X Pro model:
- OLED panels with 1920×1080 resolution for high image clarity;
- Wide field of view (diagonal) of 52° for better spatial orientation;
- High frame rate: up to 100 fps when operating via HDMI IN (supports 720P 100FPS) for smooth video;
- Built-in digital receiver Steadyview V3.3 (5.8 GHz, 48 channels) for reliable reception in a busy air environment;
- DVR with H.264 encoding at 60 fps for recording high-quality footage;
- Matte finish on the body, reducing fingerprints and glare;
- Cooling fan in the right side compartment to maintain optimal temperature for the OLED panels;
- Note: SKY04X Pro does not support quad-version mode.
| Parameter | Value |
|---|---|
| Brand (in card) | Flytex |
| Brand (in specifications) | SKYZONE |
| Model | SKY04X Pro |
| Screen | OLED |
| Resolution | 1920×1080 |
| Field of View (diagonal) | 52° |
| Aspect Ratio | 4:3 / 16:9 |
| Focus | -6 ~ +2 (adjustable) |
| Interpupillary Distance (IPD) | 58–71 mm |
| Receiver | 5.8 GHz, 48CH V3.3 Steadyview Receiver |
| DVR | H.264, 60 fps |
| HDMI IN | 720P, 100 FPS |
| Input Voltage | 2–6S LiPo |
| Head Tracker | 3-axis accelerometer, 3-axis gyroscope |
| Dimensions | 185×75×67 mm |
| Weight | 267 g |
Package Contents
The package includes all necessary components to start using the goggles and connect the receiver:
- 1 × SKY04X Pro Goggles
- 1 × Steadyview V3.3 Receiver Module
- 2 × Faceplate (wide and narrow)
- 1 × Velcro Sponge
- 1 × Zipper Case
- 1 × Power Cable
- 1 × Headtracker Cable
- 2 × 5.8 GHz 2dB Antennas
- 1 × Video/Audio Cable
- 1 × USB-C Cable
- 1 × SKY04x Pro User Manual
The Skyzone SKY04X Pro is designed for pilots who value high image quality, a wide field of view, and reliable receiver performance in complex RF environments. High-resolution OLED matrices with a high refresh rate provide clear and smooth video during rapid maneuvers. The presence of HDMI IN 720P 100FPS makes the goggles compatible with digital video transmission systems and external video sources, making the SKY04X Pro a versatile solution for professional and amateur use. The matte finish of the body enhances comfort during use, and the built-in cooling system increases the durability of components during long sessions.
If you are looking for a balance between professional image quality and functionality in a compact body, the SKY04X Pro model from Skyzone / Flytex will be an excellent choice for the modern FPV pilot.
