TOR-5 Mobile EW Backpack with Five Antennas

The Tor 5 mobile anti-drone EW system is a portable EW backpack for the Armed Forces of Ukraine. Manufacturer: Asgard Defence Technologies. Product type: EW Jammers > EW Backpacks. This is a modern portable EW jammer in the form of a tactical backpack, designed for effective countering of FPV drones, Mavic, Autel, and other models. The system is equipped with a main and a backup battery, providing autonomous operation for up to 8 hours, and allows for close-range EW tasks in combat conditions.

Key Features and Benefits:

• Signal blocking across a wide frequency range: from 200 to 5850 MHz.
• Supports band selection per antenna: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz (available bands; the number of bands equals the number of antennas).
• The kit comes with five antennas by default; it is possible to choose a different number of antennas according to needs.
• Total output power per antenna: example — 50 W per antenna; for 5 antennas = 250 W (the specification also indicates power up to 300 W).
• Effective range: 500 m (specified assuming a distance between the drone and the drone operator of 3000 m).
• Average output power: 47 dBm.
• Power supply: 24–28 V from 35 Ah battery; included battery capacity 30,000 mAh (main + optional backup).
• Autonomous operation time up to 8 hours (depending on configuration and operating modes).
• Kit weight (housing + antennas): 6.5 kg.
• Operating temperature: from -25 to +55 °C.
• GaN (gallium nitride) technology: higher efficiency, less heat generation, and more compact dimensions.
• Dual active cooling for stable operation under load.
• Reverse polarity protection.
• Made in Ukraine.

Functionality Description: The Tor 5 EW backpack is an optimal solution for mobile and special forces units, combining an EW complex with ease of transport. The system can operate in motion without loss of effectiveness and supports multiple jamming modules for more flexible threat coverage. The device is designed to combat FPV drones and civilian models such as Mavic or Autel, providing protection during patrolling, object guarding, or field operations.

Tor-5 Technical Configuration

• 5 antennas. The number of antennas can be chosen depending on needs. Any of the possible bands can be selected for each antenna.

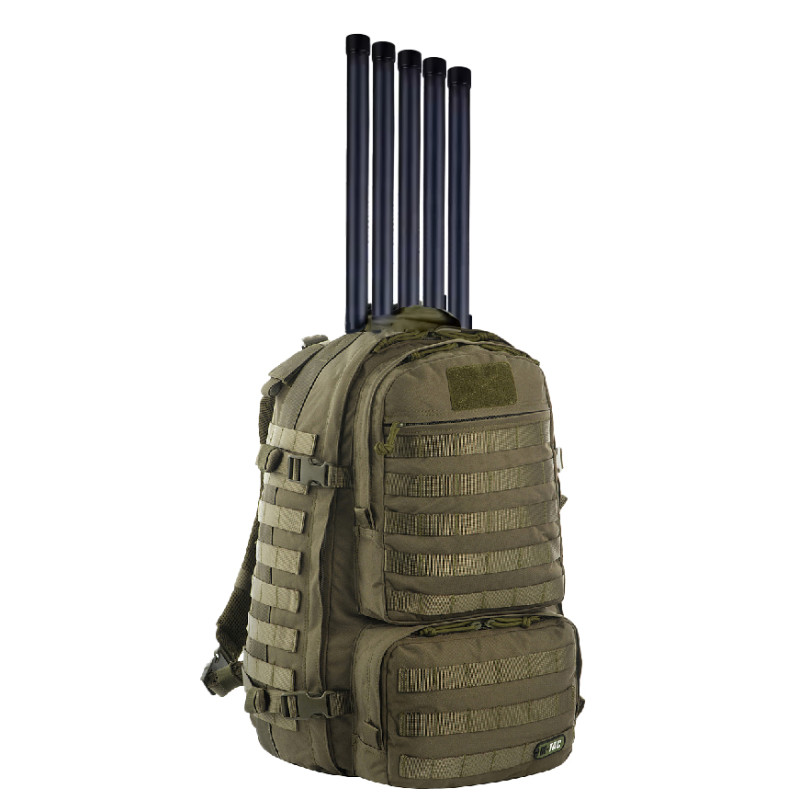

• Backpack: The "M-TAC TROOPER PACK :200W" fits into a durable and comfortable backpack with straps — easily carried by one person — 1 pc.
• Battery capacity — 30,000 mAh — 1 pc.
• Tor complex in assembled state — 1 pc.
• Charger 4A — 1 pc.
• Documentation: passport and user manual — 1 pc.

Options (can be ordered separately)

• Additional battery 30000 mAh — +12,600 UAH.
• Additional charger 110A — +2,100 UAH.
• LoRa modules (options): LoRa module 100-400 MHz 100W — +10,500 UAH; LoRa module 400-720 MHz 100W — +10,500 UAH; LoRa module 720-1020 MHz 100W — +10,500 UAH; LoRa module 2000-2700 MHz 100W — +10,500 UAH.

Purpose and Application: The system is designed for protection against enemy UAVs at the tactical level — perimeter security, unit protection, ensuring safe task execution in combat zones. Low weight and a comfortable backpack ensure quick deployment by one person, and modularity allows adapting the system to specific tasks.

Purchase Benefits: portability, wide frequency range (200–5850 MHz), GaN technology, dual active cooling, high output power, and autonomy up to 8 hours. An ideal choice for those who want to buy an EW jammer for the Armed Forces of Ukraine or acquire a portable anti-drone EW jammer.

Production: Ukraine. Brand: Asgard Defence Technologies. Product type: EW Jammers > EW Backpacks.

Information on certification and documents is provided in the kit (certificate of conformity, passport, user manual).

If you need a configuration with a different number of antennas or additional modules, please contact us to select the optimal set and calculate the cost.
