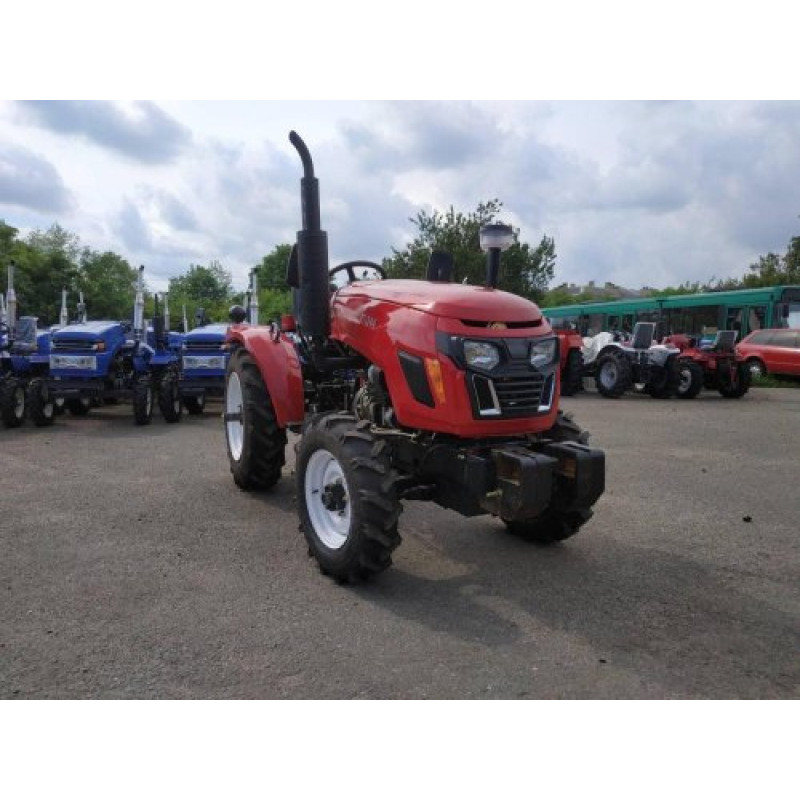

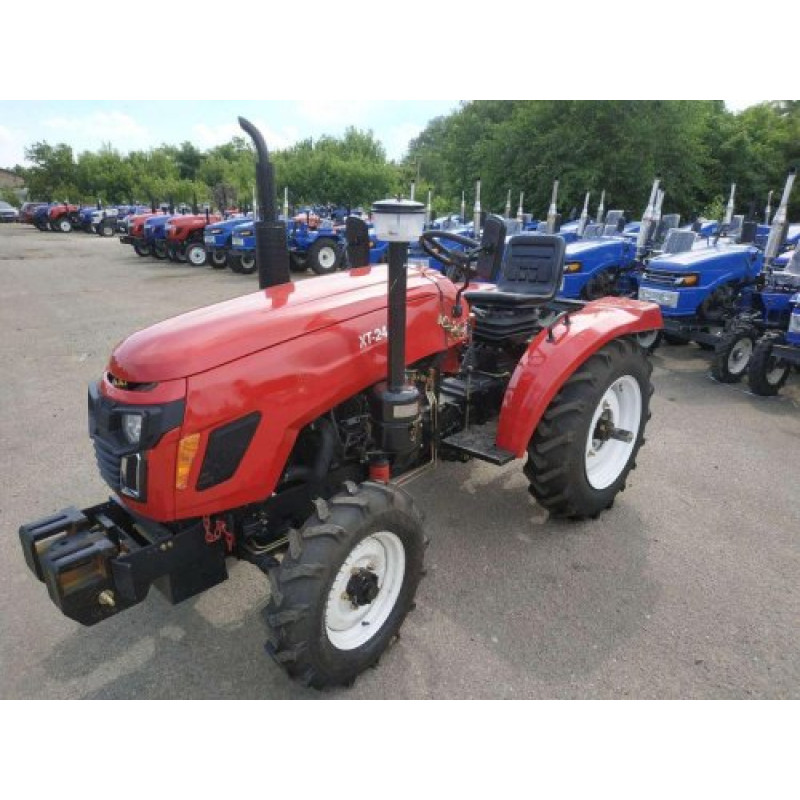

Xingtai XT-244 Mini Tractor — A Reliable Choice for Agriculture
Model: Xingtai XT-244 Mini Tractor. Manufacturer: Xingtai. This compact yet powerful mini tractor is designed for a wide range of tasks: soil cultivation, plowing, harrowing, mowing, and working with mounted and trailed equipment. It combines maneuverability, simple design, and high versatility for private farms, horticulture, municipal work, and larger farms.
Key Advantages: 4x4 all-wheel drive for enhanced off-road capability on challenging terrain; hydraulic power steering ensures comfortable and precise control; a power take-off (PTO) shaft with a nominal speed of 540 rpm allows connection of mowers, potato diggers, tillage units, and other mounted equipment.
Technical Specifications
| Wheel formula | 4x4 |
| Engine model | KM 385 BT |
| Engine power, hp and kW | 24 hp or 17.6 kW |
| Number of engine cylinders | 3 |
| Cylinder diameter | 85 mm. |
| Piston stroke | 90 mm. |
| Fuel consumption | up to 244 g/(kWh) |
| Wheelbase, mm | 1,560 mm. |
| Overall dimensions, mm | 3,100 mm x 1,240 mm x 1,940 mm |
| Front wheel track, mm | 980 mm. |
| Rear wheel track, mm | 980 mm - 1,100 mm |
| Agrotechnical ground clearance, mm | 330 mm. |
| Clearance, mm | 220 mm. |
| Weight, kg | 1,064 kg. |
| Drive type | 4x4 |
| Number of gears | (3+1)x2 |
| Clutch | Single-disc dry |
| PTO speed, rpm | 540 rpm |
| Front wheel size | 6.00x14 |
| Rear wheel size | 9.50x20 |
| Steering type | Hydraulic power steering |
The KM 385 BT three-cylinder engine provides a nominal power of 24 hp (17.6 kW), and economical fuel consumption — up to 244 g/(kWh) — makes operation cost-effective. The wheelbase is 1560 mm, overall dimensions are 3100 x 1240 x 1940 mm, and weight is 1064 kg, ensuring good stability and traction on various soils.
Adjustable front and rear wheel tracks (front — 980 mm, rear — 980–1100 mm) allow the tractor to be adapted to different crops and operations. The transmission with a (3+1)x2 gear configuration and a single-disc dry clutch ensure easy service and reliable field operation.
The 540 rpm PTO shaft opens up possibilities for connecting a wide range of mounted and trailed equipment. Wheel sizes of 6.00x14 at the front and 9.50x20 at the rear guarantee stability when working on both even and uneven terrain. Hydraulic power steering makes control easy and precise even when working with heavy implements.
The Xingtai XT-244 mini tractor is an optimal combination of compactness, power, and versatility for owners of small and medium-sized farms, municipal services, and landowners who require reliable equipment for daily agricultural operations.
