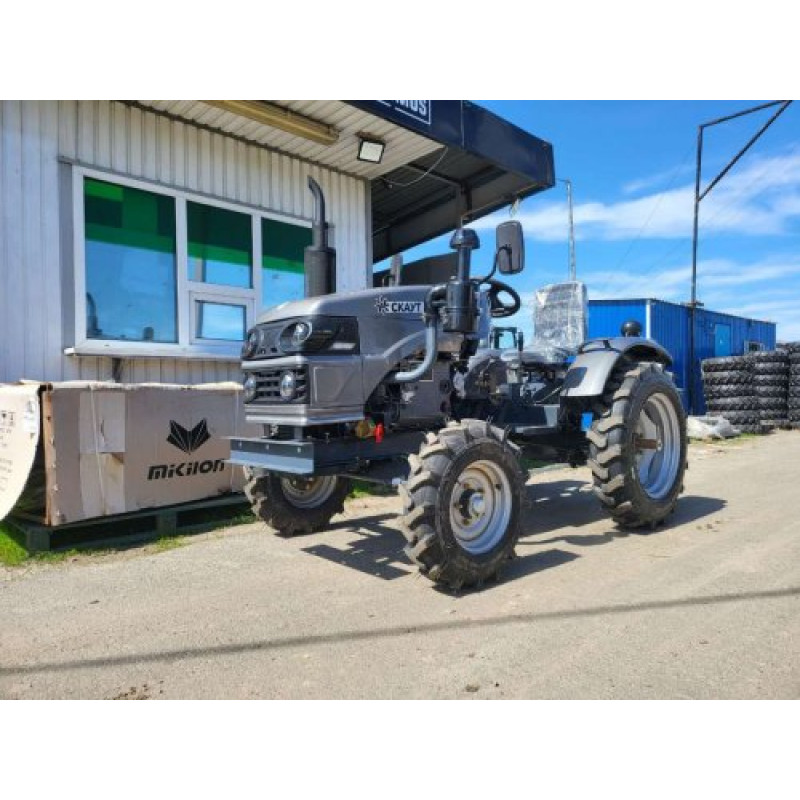

Minimotor Tractor Scout T-240B
Minimotor Tractor Scout T-240B is a reliable and versatile assistant for private households, farm work, and municipal services. This Scout brand model combines compact dimensions with high functionality, making it an optimal choice for soil cultivation, planting and sowing, area cleaning, and cargo transportation on plots of various scales.
Brief Overview and Purpose
The Scout T-240B is designed for working on small and medium-sized plots, in greenhouses, and on farms, where maneuverability and sufficient traction are important. Thanks to the liquid cooling system, the engine operates stably under intensive loads, and the presence of an electric starter along with a manual starter (Z-shaped handle) guarantees starting in various operating conditions.
Technical Specifications
Below is a detailed list of the technical parameters of the Scout T-240B model according to factory specifications:
| Engine: | ZS1115 |
| Rated Power: | 24 hp |
| Rated Speed: | 2200 rpm |
| Cooling System: | Liquid |
| Engine Start: | Manual starter (Z-shaped handle) + electric starter |
| Fuel Injection Advance Angle: | 16 ± 2 to top dead center |
| Intake Valve Clearance (cold engine): | 0.25 ± 0.05 mm |
| Exhaust Valve Clearance (cold engine): | 0.30 ± 0.05 mm |
| Engine Weight: | 230 kg |
| Engine Dimensions ZS1115: | 820x530x750 mm |
| Differential Lock: | no |
| Overall Dimensions, mm: | 2450x1320x1740 mm |
| Ground Clearance: | 330 mm |
| Tractor Structural Weight: | 876 kg |
| Wheels: | front - 6.0x12, rear - 7.5x20 |
| PTO Speed: | 540 rpm |
| Drive: | 4x2 |
| Gearbox: | Combined type (3+1)x2 |
| Steering Mechanism: | worm type |
| Hydraulic System Oil Volume: | 2.5 - 6 L |
The ZS1115 engine with a rated power of 24 hp and an operating frequency of 2200 rpm provides sufficient power for most agricultural operations. Liquid cooling maintains an optimal temperature regime during prolonged work, and the dual starting method (manual and electric starter) increases operational reliability in low temperatures or with a discharged battery.
The tractor's structural weight of 876 kg and dimensions of 2450x1320x1740 mm make the T-240B stable and easy to maneuver. A ground clearance of 330 mm allows safe operation on uneven terrain, and the combination of 6.0x12 front and 7.5x20 rear wheels provides good cross-country ability and traction. A PTO speed of 540 rpm makes the tractor compatible with a wide range of mounted and trailed equipment.
Model Advantages
- Reliable ZS1115 diesel engine with 24 hp;
- Liquid cooling for stable operation under prolonged loads;
- Two starting methods: manual starter (Z-shaped handle) and electric starter;
- Compact dimensions and 330 mm ground clearance for working on complex terrain;
- Versatile combined gearbox (3+1)x2 and 4x2 drive for various operating modes;
- Practical wheel configuration and 540 rpm PTO for connecting mounted equipment;
- Easy-to-maintain hydraulic system with an oil volume of 2.5 - 6 L.
The Minimotor Tractor Scout T-240B is a well-considered choice for those seeking a balance between power, maneuverability, and reliability. It is ideal for soil preparation, sowing, material transport, and seasonal work in the yard or on the farm.
Brand: Scout. Category: Tractors > Minimotor Tractors.
