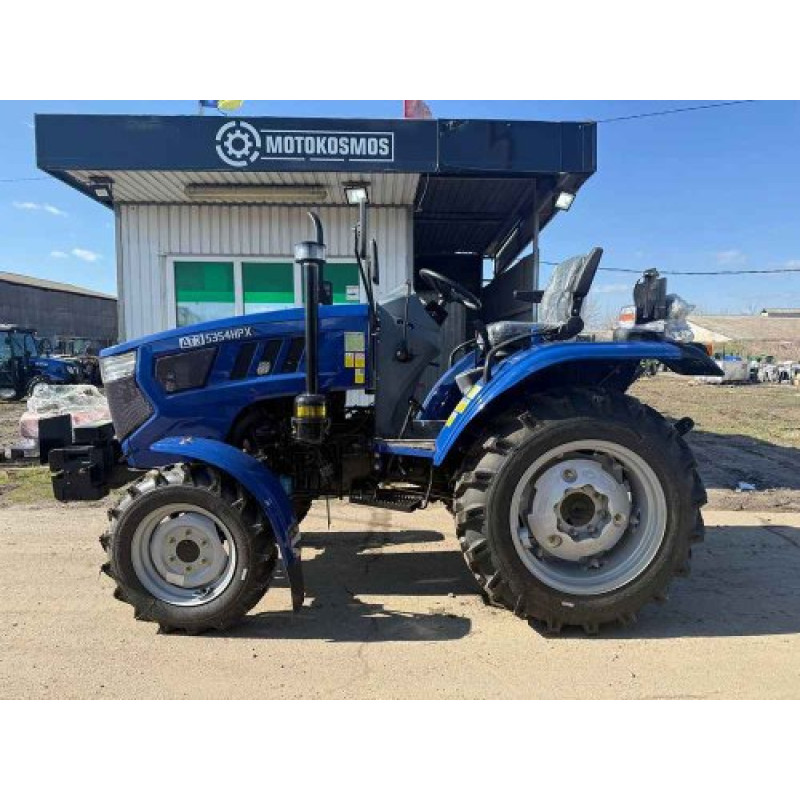

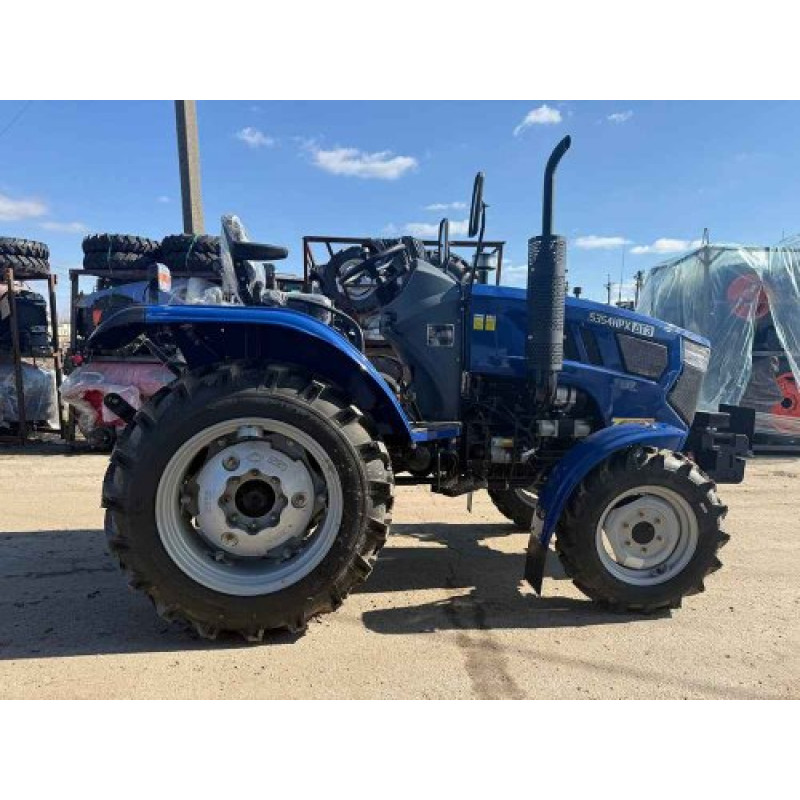

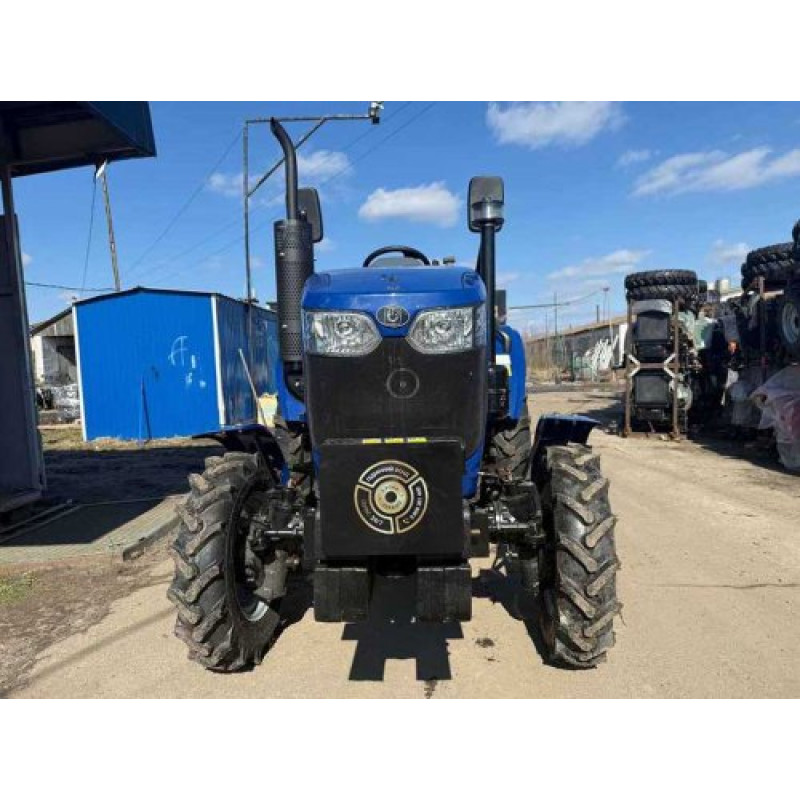

The DTZ 5354 HPX NEW mini-tractor from the DTZ brand is a reliable and versatile compact tractor designed for work in gardens, vegetable patches, small farms, and for municipal tasks. The model combines a powerful diesel engine, 4x4 all-wheel drive, and modern technical equipment, ensuring high productivity and a long service life.
Model Advantages
The CF3B35T engine with 35 hp, three vertically arranged cylinders, and a direct injection system provide fuel efficiency and stable traction under various loads. The electric starter and a closed liquid cooling system with forced circulation ensure easy starting and consistent operation in various climatic conditions. A robust transmission with a 9+9 gearbox and a twin-disc clutch guarantee smooth gear changes and operator comfort. The 4x4 all-wheel drive enhances off-road capability on difficult terrain and in challenging conditions.
Areas of Application
Ideal for soil cultivation, sowing and harvesting, cargo transportation, as well as for working with mounted and trailed equipment. Thanks to the rear splined power take-off (PTO) shaft with speeds of 540/1000 rpm, the tractor is compatible with a wide range of agricultural implements and attachments.
Technical Specifications
| Engine: | CF3B35T |
| Engine power, hp: | 35 |
| Wheel formula: | 4x4 |
| Engine type: | diesel, 4-stroke with direct injection |
| Number and arrangement of cylinders: | 3, vertical |
| Engine starting system: | electric starter |
| Cooling system: | liquid, closed with forced circulation of cooling fluid |
| Engine displacement, cm3: | 1909 |
| Nominal engine crankshaft speed, rpm: | 2300 |
| Gearbox (КП): | 9+9 |
| Clutch: | twin-disc |

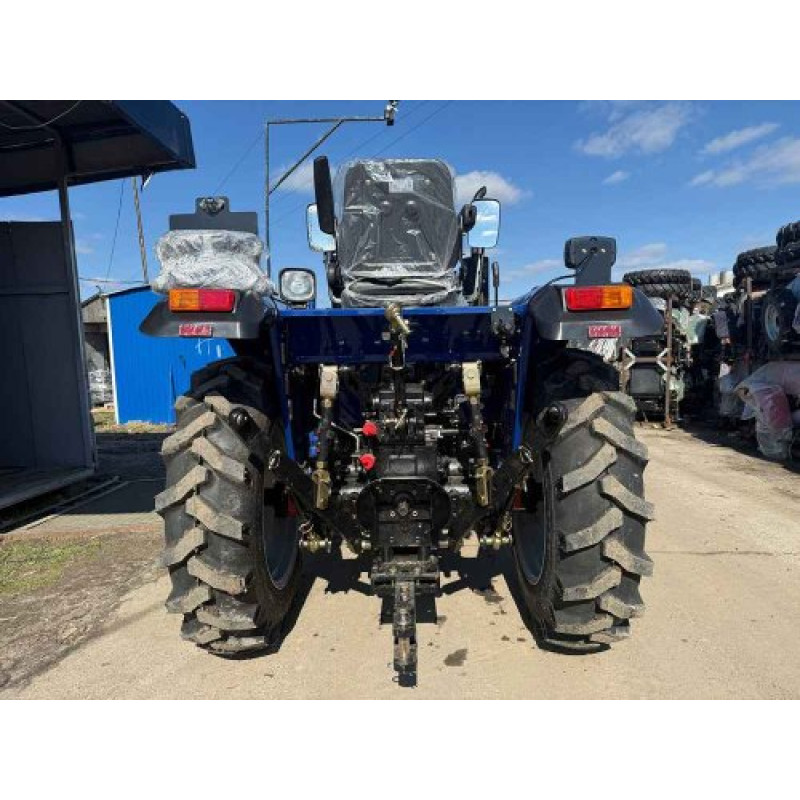

| Power take-off (PTO) shaft: | rear splined |
| Hydraulic system pump type: | gear pump |
| Power take-off (PTO) shaft speed, rpm: | 540/1000 |
| Maximum lifting capacity of mounted mechanism, kg: | 800 |
| Minimum ground clearance, mm: | 300 |
| Wheelbase, mm: | 1700 |
| Wheel track, mm: | front -; rear: 1400; 1300; 1200; 1100 |
| Tire size: | front 6.50-16; rear: 11.2-24 |
| Travel speed, km/h: | forward 2.62-42.7; reverse 2.56-41.6 |
| Fuel tank capacity, l: | 32 |
| Overall dimensions (L x W x H), mm: | 3400x1500x2020 |
| Curb weight, kg: | 1605 |
The DTZ 5354 HPX NEW model combines compact dimensions with impressive technical characteristics: from a powerful CF3B35T engine and 9+9 transmission to the ability to connect a wide range of mounted equipment thanks to the PTO and hydraulics with a gear pump. A minimum ground clearance of 300 mm and adjustable track make the tractor versatile for working on various soil types and in confined spaces. A fuel tank capacity of 32 L and a curb weight of 1605 kg provide an optimal balance between autonomy and machine stability. Product type: Tractors, Motorcycles, ATVs, Boats > Tractors > Mini Tractors.
If you need a mini-tractor with all-wheel drive, a reliable diesel engine, and a full set of technical characteristics for agriculture or municipal work, the DTZ 5354 HPX NEW will be an excellent choice.
