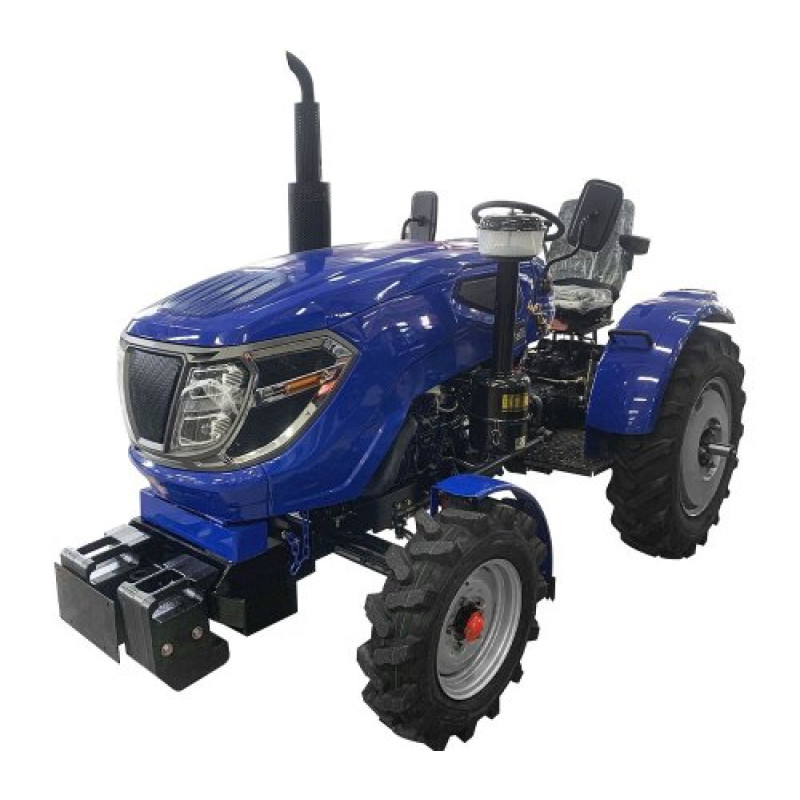

Xingtai T240 TPK New Mini Tractor
The Xingtai T240 TPK New Mini Tractor is a compact and reliable unit from the Xingtai brand, combining robust construction and ease of use. It is a versatile assistant for private households, farms, gardeners, and utility services, designed for plowing, cultivating, hilling, cleaning, transporting, and working with attachments.
Technical Specifications
| Engine Type | Three-cylinder diesel, four-stroke, with direct fuel injection, non-turbocharged, liquid-cooled |
| Engine Displacement, cm3 | 1532 cm3 |
| Engine Power, hp and kW | 24 hp or 17.6 kW |
| Number of Engine Cylinders | 3 |
| Cylinder Diameter | 85 mm |
| Piston Stroke | 90 mm |
| Engine Dimensions, mm | 569x525x604 mm |
| Engine Structural Weight, kg | 234 kg |
| Wheelbase, mm | 1520 mm |
| Overall Dimensions, mm | 2870x1190x1920 mm |
| Front Wheel Track, mm | 1070 mm |
| Rear Wheel Track, mm | 990 mm |
| Ground Clearance, mm | 320 mm |
| Drive Type | 4x2 |
| Transmission Type | Mechanical, non-synchronized |
| Number of Gears (forward / reverse) | (3+1)x2 |
| Clutch | Single-disc dry |
| Power Take-Off (PTO) Shaft, rpm | 540 |
| Front Wheel Size | 5.00x14 (agricultural road-type tires) |
| Rear Wheel Size | 7.50x20 |
| Engine Oil Volume, L | 5 |
| Engine Cooling System Volume, L | 10 |
| Fuel Tank Volume, L | 20 |
Key Features of the Model
- Powerful three-cylinder 1532 cm3 diesel engine provides reliable 24 hp (17.6 kW) for a wide range of agricultural and utility tasks.
- Mechanical non-synchronized gearbox with (3+1)x2 gear configuration allows for optimal driving modes and working with attachments.
- 4x2 drive and single-disc dry clutch ensure ease of maintenance and repair cost savings.
- 540 rpm PTO shaft is suitable for attaching mowers, rotary rakes, potato diggers, and other implements.
- 5.00x14 front wheels and 7.50x20 rear wheels provide good maneuverability and traction on fields and in gardens.
- Compact dimensions of 2870x1190x1920 mm, a wheelbase of 1520 mm, and a ground clearance of 320 mm guarantee off-road capability and stability on uneven terrain.
- Fluids: engine oil volume 5 L, cooling system 10 L, fuel tank 20 L — for long operating times without frequent refueling.
The Xingtai T240 TPK New Mini Tractor is ideal for private household owners who need a compact yet powerful solution for soil cultivation and transportation. Its simple design, availability of spare parts, and straightforward maintenance make this model attractive for those who value economical operation. Thanks to the combination of working power, a reliable engine, and the ability to work with various attachments, this mini tractor will become a versatile tool in your household.
Brand: Xingtai. Category: Tractors > Mini Tractors.
