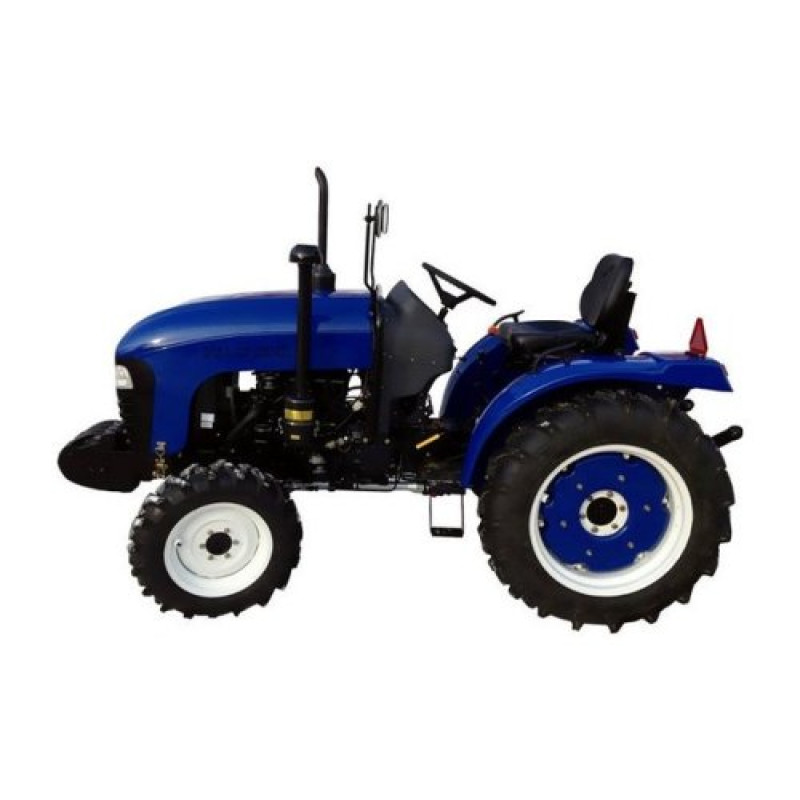

Jinma 264 SE Mini Tractor — Overview and Key Features

The Jinma 264 SE mini tractor from the manufacturer Jinma is a versatile all-wheel drive (4x4) model with a three-cylinder water-cooled diesel engine delivering 24 hp (17.6 kW). Compact and maneuverable, it is designed for a wide range of agricultural and municipal tasks: plowing and tilling soil, clearing hay and snow, transporting goods (up to a ton in a trailer), pumping water, and other farm or private household tasks. The tractor is equipped with power steering, a comfortable spring-loaded seat adjustable for driver height and weight, an hour meter, and rear drum brakes.

Technical Specifications

Engine: 4-stroke water-cooled diesel engine, 1532 cm3 displacement. Engine power: 24 hp (17.6 kW). Rated engine crankshaft speed: 2350 rpm. Rated traction force: 7.7 kN. Rated fuel consumption: ≤275 g/kWh. Transmission: mechanical, non-synchronized (4+1)x2x2. Clutch: dry, dual-disc. Rear differential lock: yes. Power take-off (PTO) speed: 540 rpm. Maximum lifting capacity of the hitch mechanism: 400 kg.

Dimensions, Chassis, and Fluid Capacities

Wheel formula: 4x4. Wheelbase: 1645 mm; front wheel track: 1270 mm; rear wheel track: 1080~1270 mm. Front tire size: 6.0-16; rear: 9.50-24. Theoretical forward speed: 26.4 km/h; reverse: 11.0 km/h. Fuel tank capacity: 18 L. Engine crankcase capacity: 4 L; transmission and rear axle crankcase capacity: 14 L; lift housing capacity: 9 L; engine cooling system capacity: 12 L. Overall dimensions: according to technical table 3080/1280/1930 mm; factory description also indicates dimensions 3080x1440x1930 mm (with muffler). Structural weight: 1280 kg.

Advantages and Applications

• Support for front and rear mounted equipment: brushes, snow removal attachments, excavator attachments, and more.
• Economical liquid-cooled diesel engine ensures long continuous operation in hot weather and winter operation with antifreeze.
• High maneuverability due to compact size and 4x4 all-wheel drive.
• Ease of operation and maintenance, presence of power steering.
• Versatility of tasks: plowing, hay and snow clearing, cargo transport, water pumping, etc.

You can buy the Jinma 264 SE mini tractor through the website with delivery across Ukraine from Kyiv, Kharkiv, Vinnytsia, Poltava, or Chernihiv within 1-3 days. A credit order option is available for customers. We also recommend familiarizing yourself with other models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50.

Technical Specifications

The Jinma 264 SE model is ideal for small and medium-sized farms, municipal services, and private properties where reliable, economical, and multifunctional equipment is needed. Thanks to the ability to install various mounted and trailed equipment, this mini tractor significantly simplifies daily work on the plot or farm.
