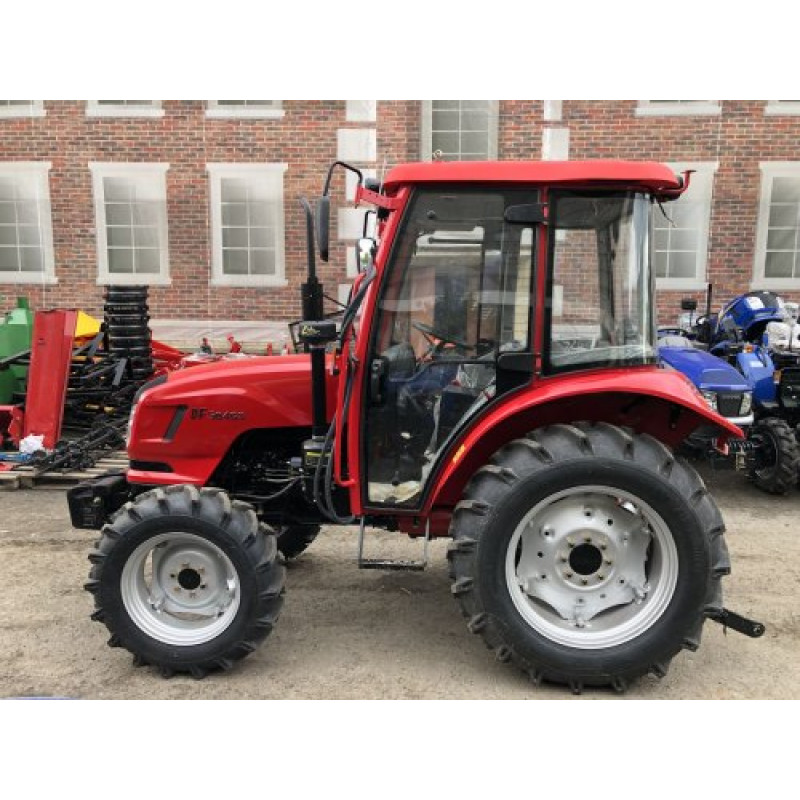

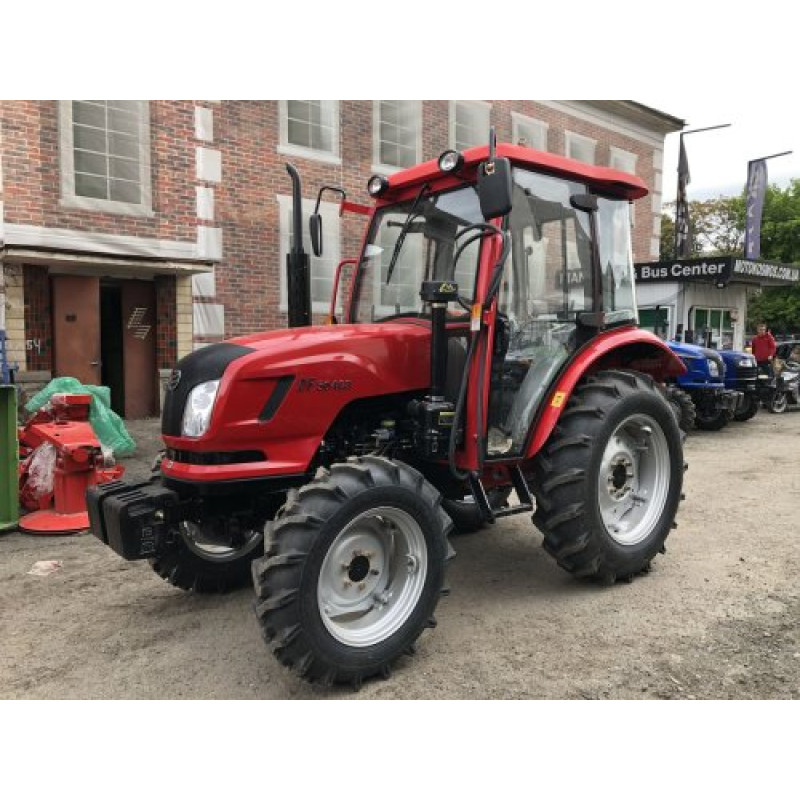

Mini Tractor Dongfeng DF-504 G3 is a modern 2020 model from the DongFeng brand, designed for intensive use in agriculture, utilities, and construction. This versatile mini tractor is suitable for a wide range of tasks thanks to its three-point hitch system and compatibility with numerous attachments: plows, rakes, balers, mowers, potato planters, front loaders, sprayers, mulchers, tillers, trailers, etc. Brand: DongFeng.

Advantages and Technical Features of Dongfeng DF-504 G3

• Engine: Four-cylinder, 4-stroke 4G33T diesel engine with forced water cooling and direct injection system. Displacement of approximately 3300 cm3 (3.26 L), nominal speed of 2400 rpm, power 50 hp (≈36.8 kW). Electric starter, external air filter in oil bath. Fuel tank capacity — 55 L for extended autonomous operation.
• Transmission: The specification includes a gearbox with a "(4+4)x3, with synchronizers" configuration (according to the table), while the description also mentions a mechanical transmission with 8 forward and 6 reverse speeds — in any case, the model provides a wide range of gears for field and transport work. Features a dry dual-disc clutch and forced rear differential lock for working on difficult terrain.
• Chassis and Tires: 4x4 wheel formula, front tires 9.5x20, rear 13.6x28; ground clearance 350 mm, wheelbase 2040 mm allow working on uneven ground. Front axle — planetary.

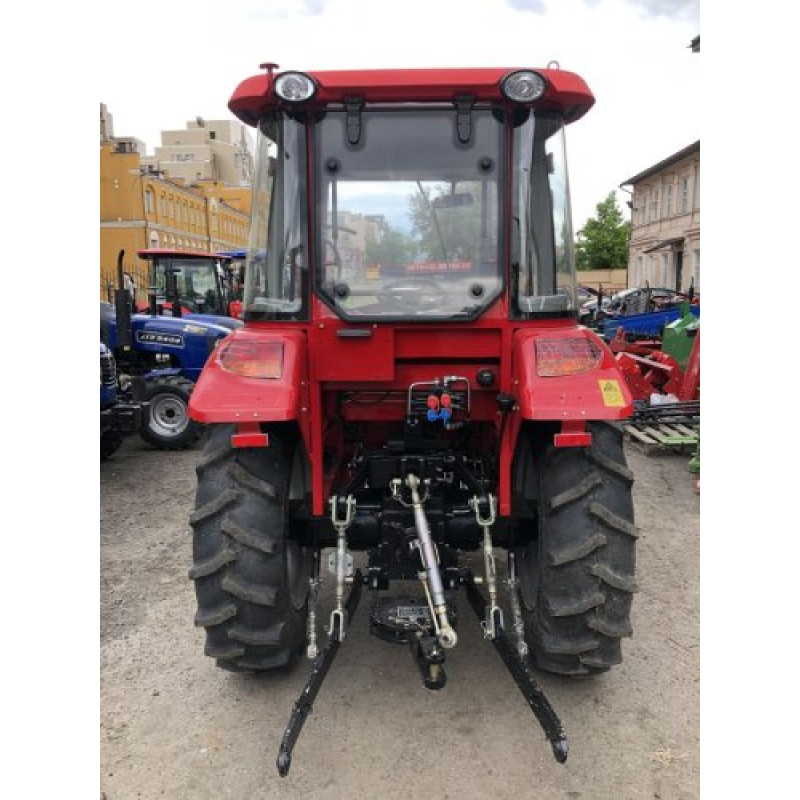

• Hydraulics: Two gear pumps, a separate pump for power steering and a pump for the rear three-point mechanism, four hydraulic valves, an additional distributor, and a hydraulic outlet for a trailer — all ensure compatibility with various attachments and stable operation under heavy loads.

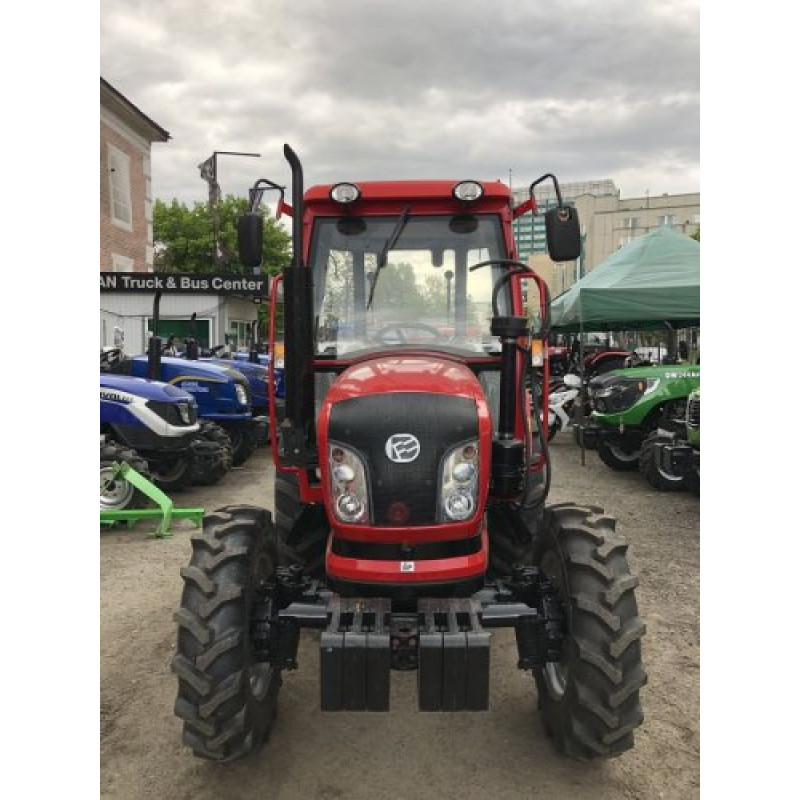

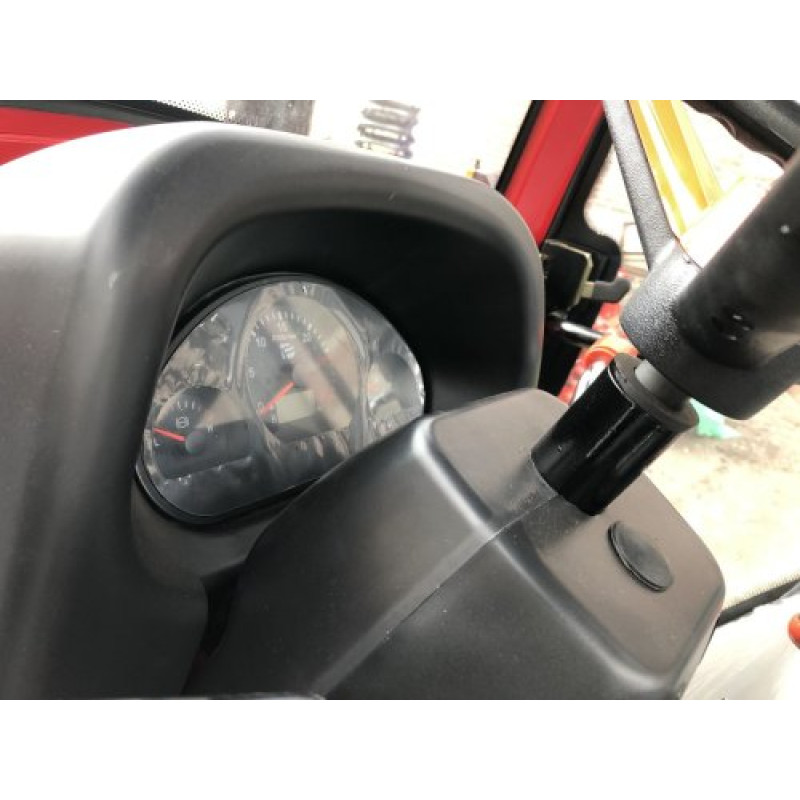

• Comfort and Equipment: Heated cabin, spring-loaded operator's seat, hour meter, compressor, rearview mirrors, trailer socket. Front counterweights are provided — 6 pieces of 20 kg each for balancing when working with heavy equipment.

The DF-504 G3 stands out with its increased hitch lifting capacity (maximum lifting capacity — 900 kg), reliable components, and well-designed transmission, making it convenient for earthworks, soil cultivation, transportation, and utility tasks. The model is equipped with disc brakes with a booster and a V-belt driven fan system.

Technical Specifications:

Buying the Dongfeng DF-504 G3 mini tractor in our online store is advantageous: we are the official representative of the brand in Ukraine, offering competitive prices, full service support, and consultations on selecting attachments. This machine will become a reliable assistant in performing a wide range of agricultural and utility tasks.
