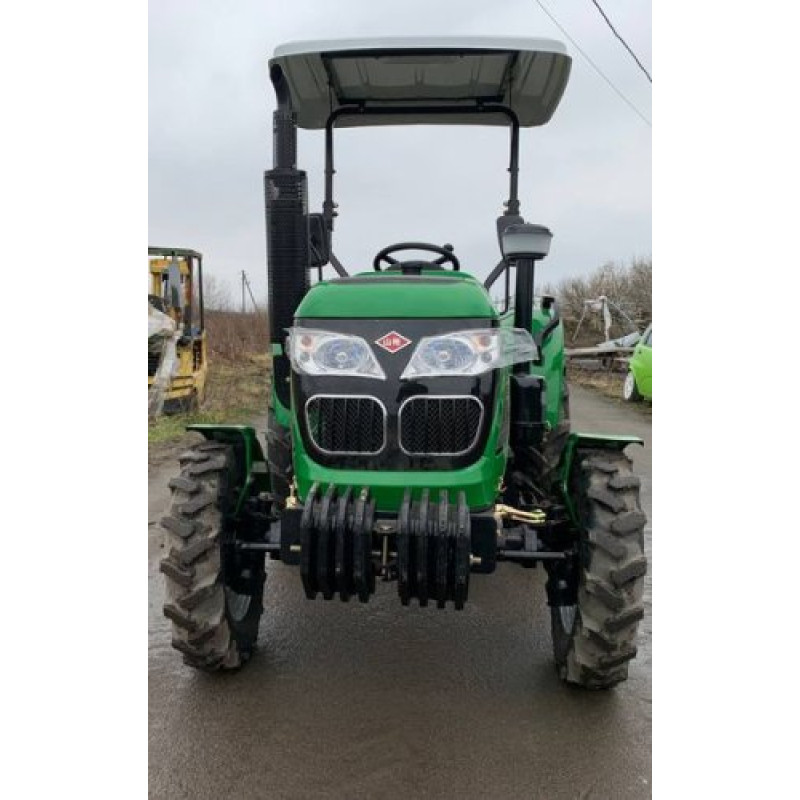

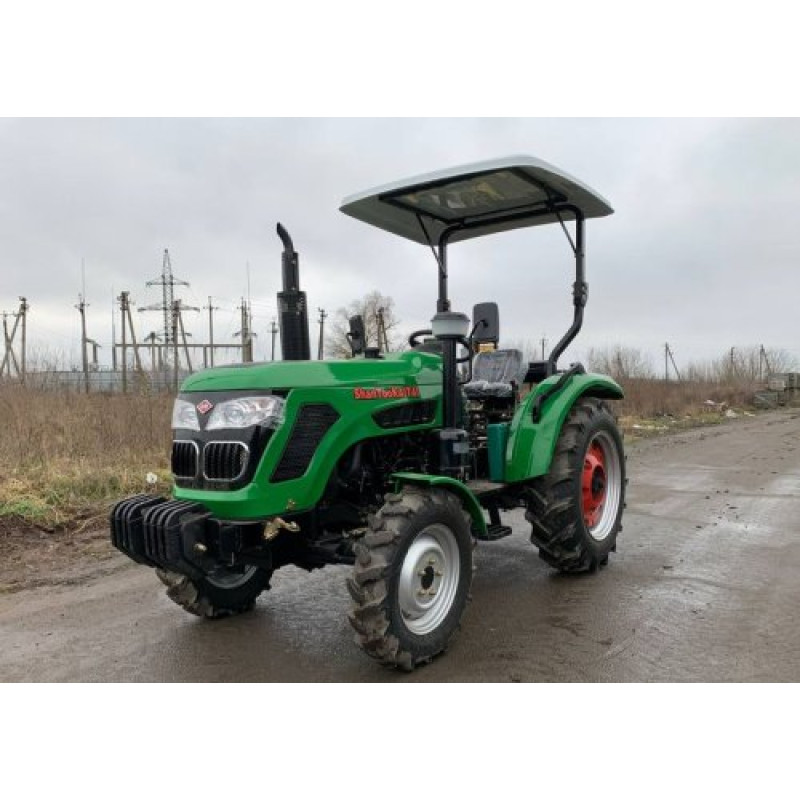

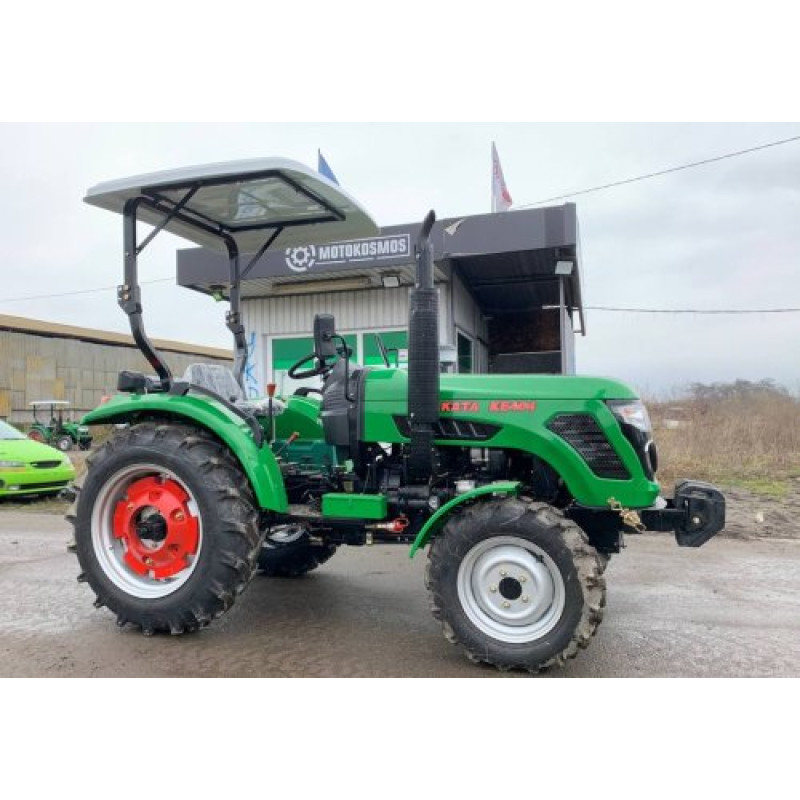

Mini Tractor KATA KE 404

Manufacturer: KATA. Category: Mini Tractors. The compact and functional mini tractor KATA KE 404 is designed for a wide range of agricultural, municipal, and household tasks. Thanks to its reliable design, all-wheel drive, and powerful engine, this unit is suitable for soil cultivation on small plots, garden and vineyard care, area cleaning, and working with mounted and trailed equipment.

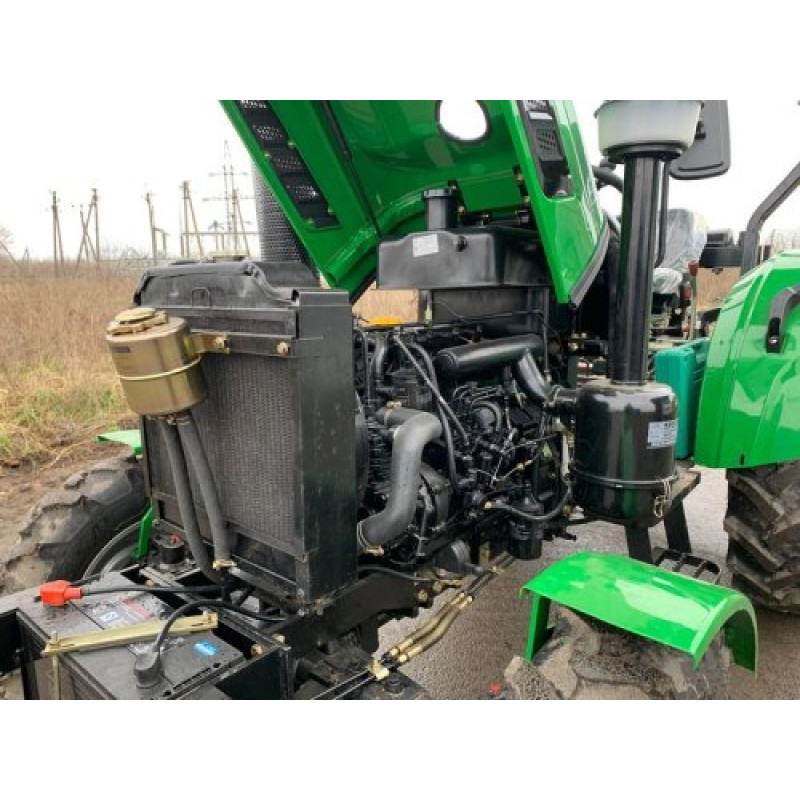

The heart of the tractor is a 4-stroke diesel engine model 4L23BT with four vertical cylinders. The engine power is 40 hp (29.4 kW), engine displacement is 2540 cm3, and nominal crankshaft speed is 2350 rpm. The nominal engine fuel consumption is ≤235 g/kWh. The starting system is an electric starter, the cooling system is liquid, closed, with forced circulation of coolant, and the fan drive is a V-belt transmission.

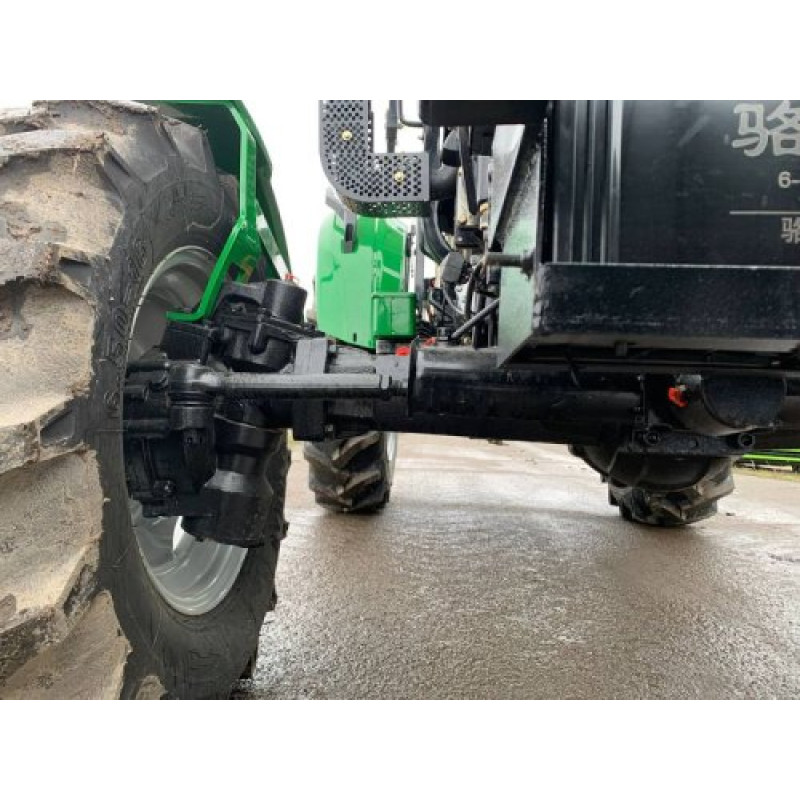

The tractor features 4x4 all-wheel drive, ensuring high проходимость on various terrains. The gearbox has a (4+4)x2 configuration with a direct main drive. For improved off-road capability, a rear differential lock is provided. The clutch is a dry 2-disc constantly closed type. Steering is hydraulic, and the brakes are located on the secondary shaft of the gearbox in the form of brake drums.

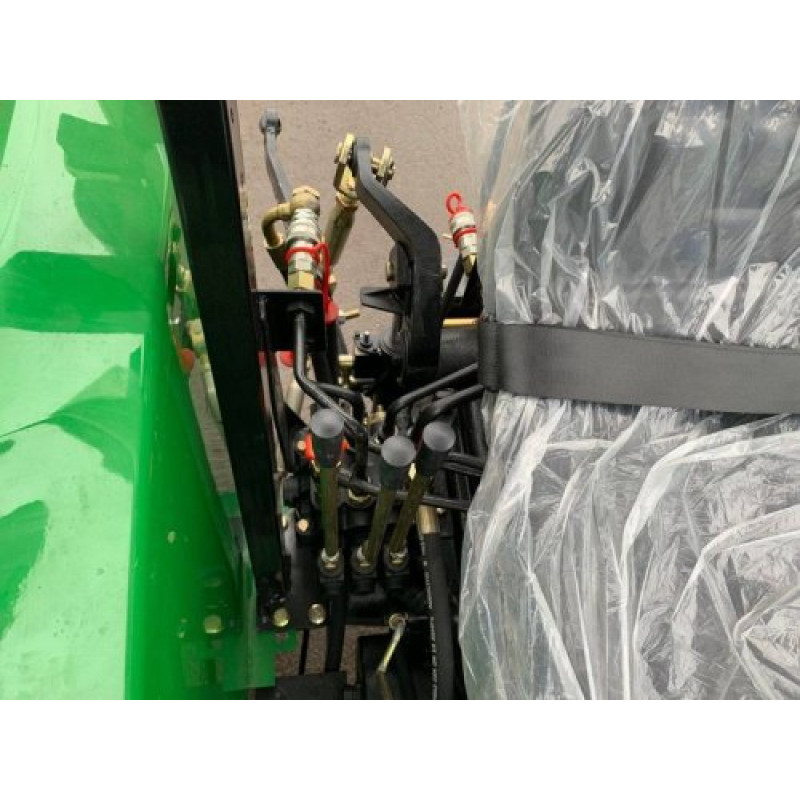

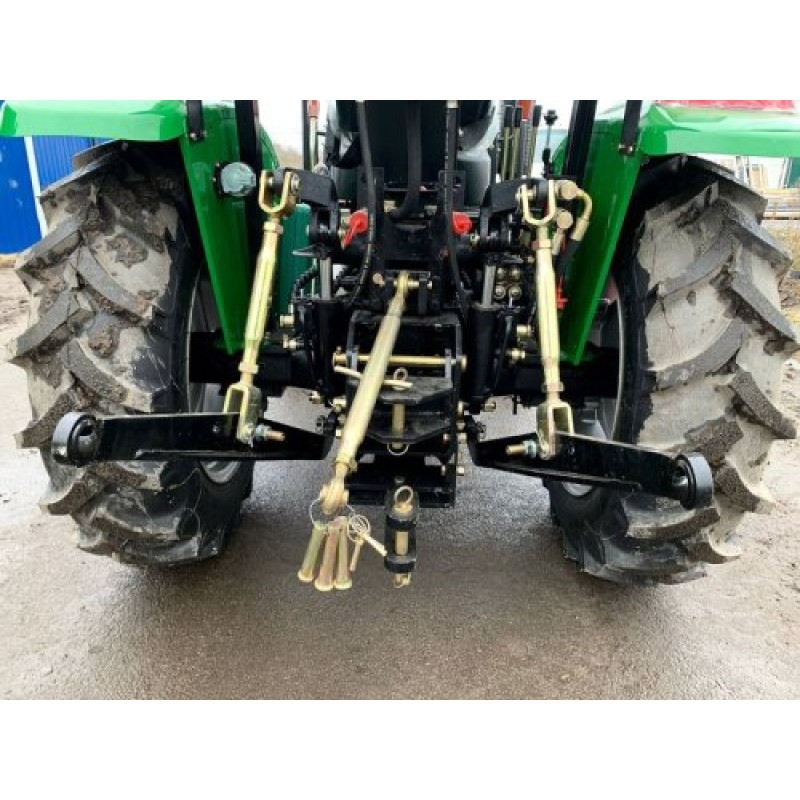

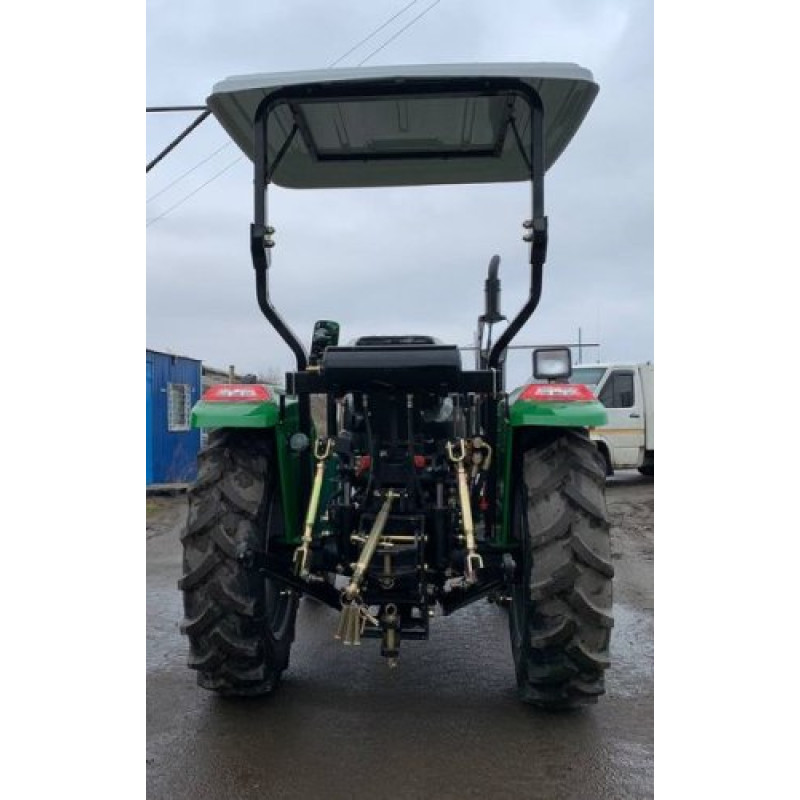

The KATA KE 404 is equipped with a rear splined power take-off (PTO) shaft with speeds of 540 / 1000 rpm, allowing for the connection of a wide range of mounted and trailed equipment. The hydraulic system pump type is a gear pump for hitch drive / gear pump for power steering operation. The maximum lifting capacity of the hitch mechanism is 720 kg. The number of hydraulic outlets is 2. A trailer connector (socket) and a compressor are present to expand functionality during work.

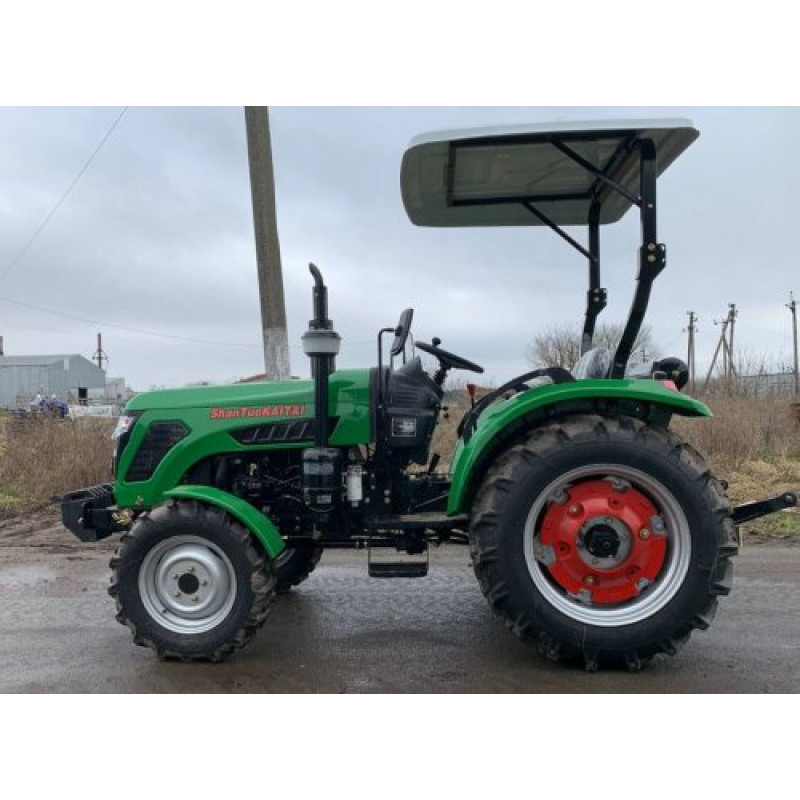

The nominal traction force of the tractor is 10.5 kN. The curb weight of the unit is 1800 kg. Overall dimensions (LxWxH) are 3435x1630x2230 mm. Tire size: front — 6.50-16, rear — 11.2-24. Wheel track: front — 1205 mm, rear — 1244-1425 mm. This design combines maneuverability and stability on various terrains.

The well-designed transmission and chassis, reliable cooling system, and stable clutch operation make the KATA KE 404 mini tractor efficient and trouble-free. The presence of power steering and two hydraulic outlets speeds up work with mounted equipment, while the socket and compressor increase the machine's versatility for transport and auxiliary operations.

Brief Technical Data

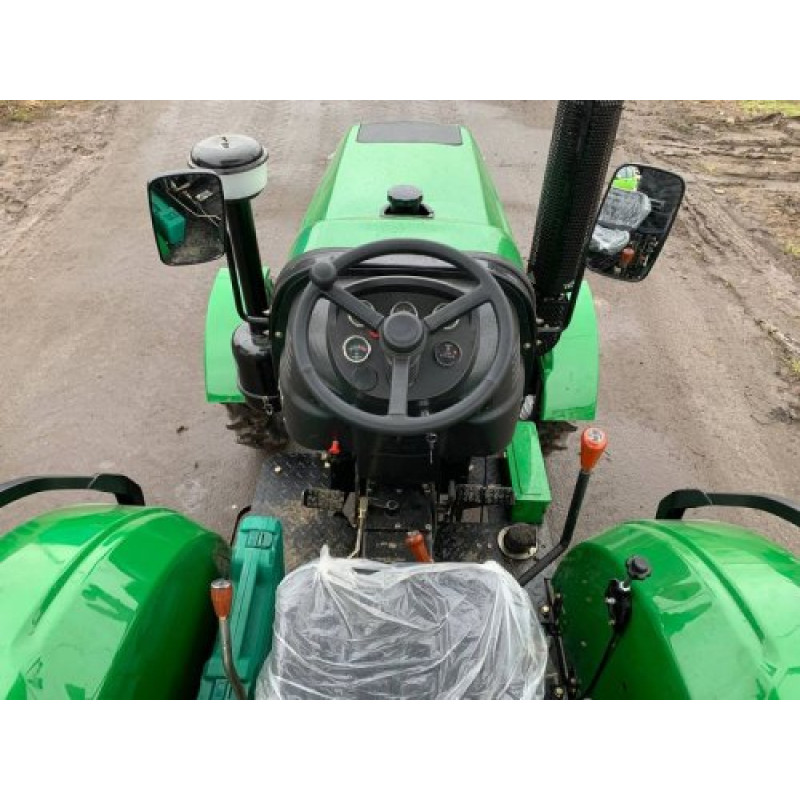

The KATA KE 404 mini tractor is ideal for private farms and municipal services requiring reliability, versatility, and economy. It allows for plowing, cultivation, harvesting on small areas, care of gardens, meadows, and vineyards, trailer towing, and working with various mounted equipment. The ergonomic workplace and intuitive controls ensure operator comfort during long periods of operation.

Other advantages of the model include simple maintenance, a stable chassis design, the ability to use standard mounted equipment and implements, and balanced fuel consumption for various tasks.
