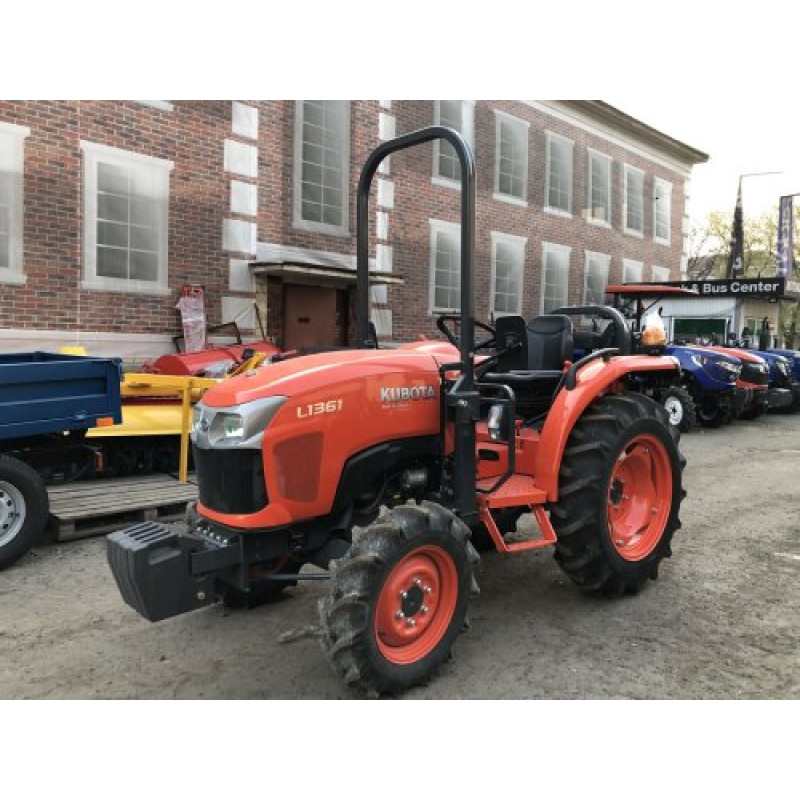

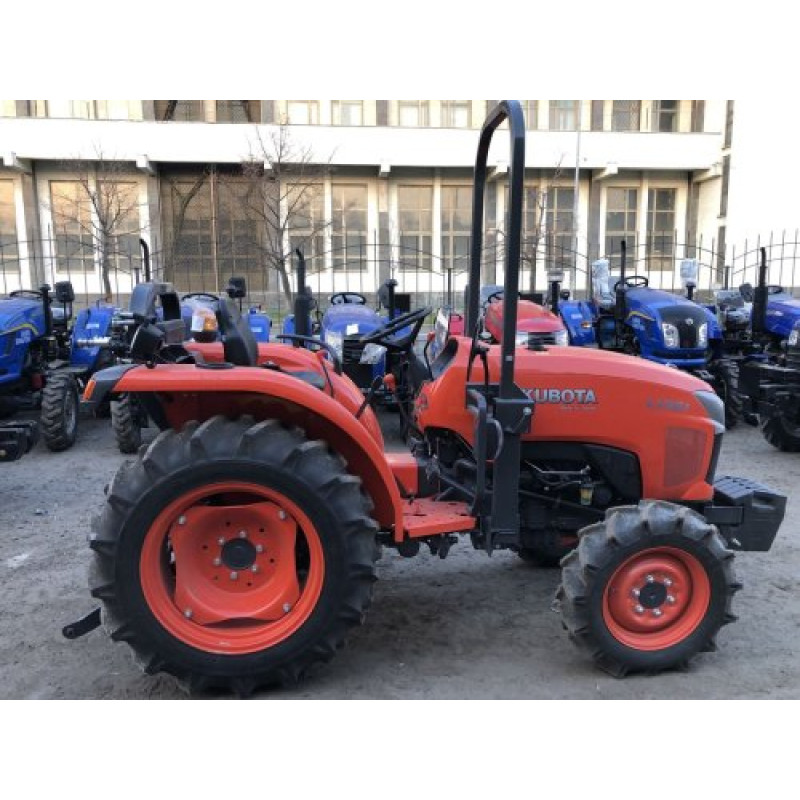

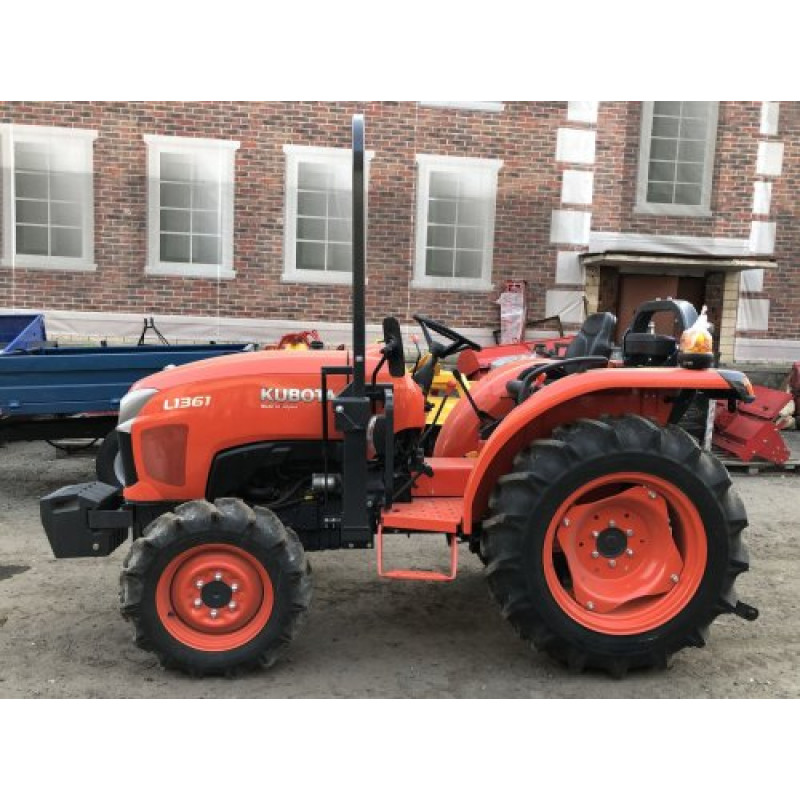

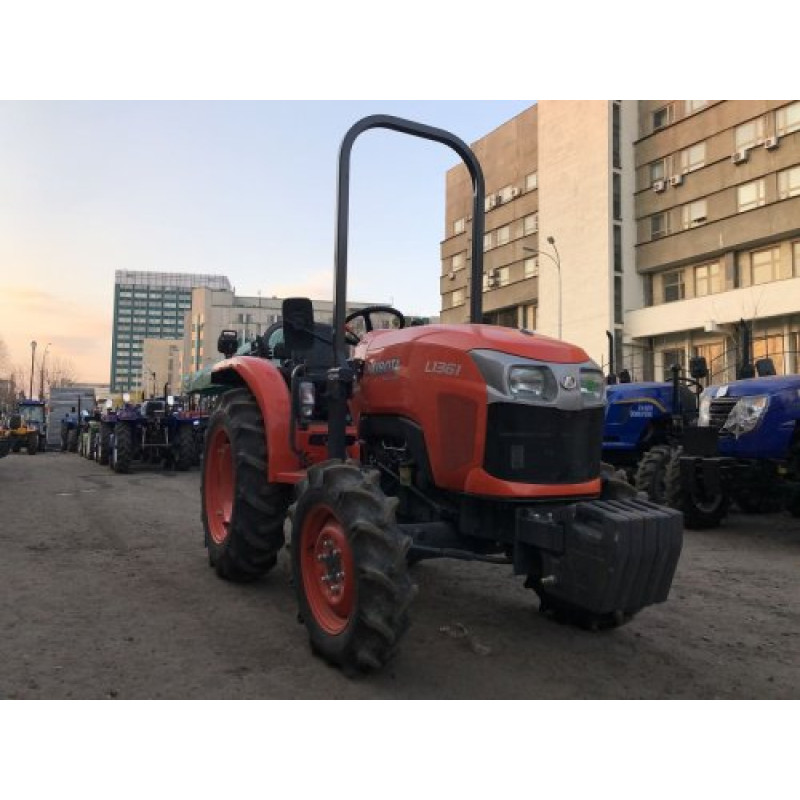

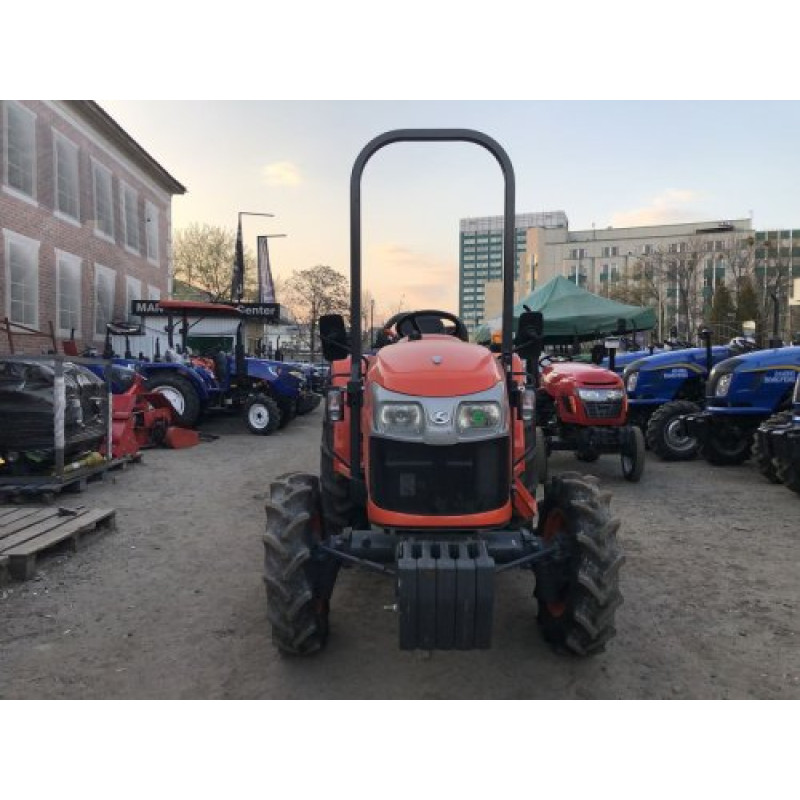

KUBOTA L1361 Mini Tractor — Power and Reliability for Field and Farm Work
The KUBOTA L1361 mini tractor from Kubota Corporation is a combination of Japanese quality, thoughtful design, and high operational reliability. The model is designed for a wide range of tasks: soil cultivation, milling, plowing, site preparation, cargo transportation, utility work, and construction. Thanks to its compact dimensions and good maneuverability, this mini tractor operates easily in confined spaces while withstanding intensive loads.
Engine, Transmission, and Chassis

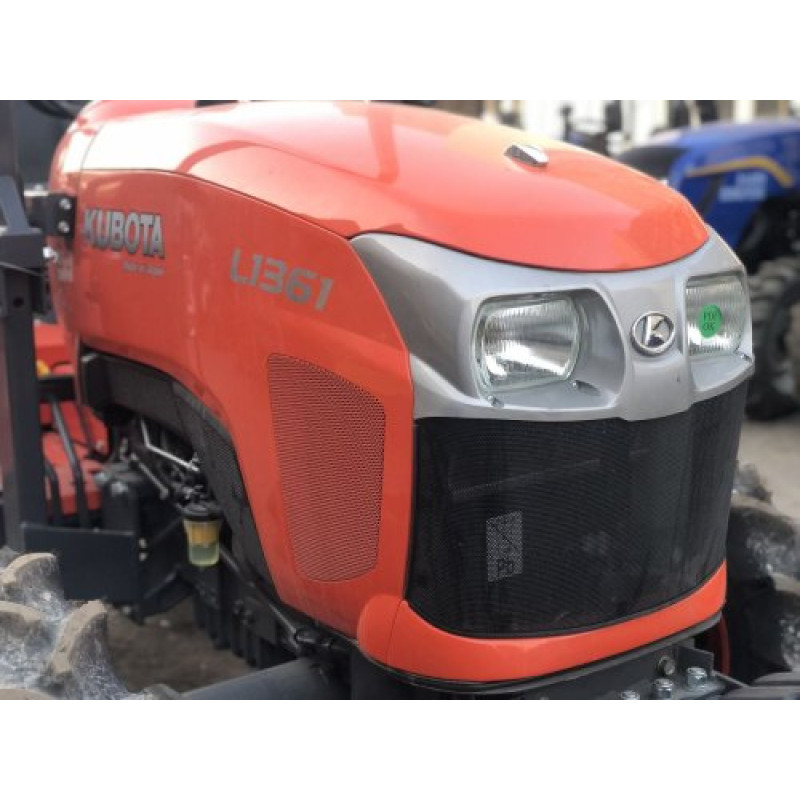

Engine: Four-stroke D1803 diesel engine, three-cylinder, 1826 cm3 displacement, 36 hp nominal power. The forced liquid cooling system ensures stable operation at high temperatures and prolonged loads. Wheel formula: 4x4, which, combined with massive tires and a herringbone tread, provides excellent grip and проходимость on various soil types. Tire sizes: front 7x16, rear 11.2x24.
Brakes and Differential: Multi-disc oil-cooled brakes guarantee smooth and effective braking; differential lock — mechanical, on the rear axle, which increases проходимость in difficult conditions. Gearbox: The description mentions an 8 forward and 4 reverse speed configuration, while the technical table indicates an 8 forward/8 reverse option; this suggests the availability of different configuration options or transmission choices.
Operating Parameters and Dimensions
Fuel tank capacity — 38 L. Maximum travel speed — up to 30 km/h. PTO speed — 540 rpm. Machine dimensions: length 3030 mm, width 1290 mm, height 2490 mm; wheelbase 1610 mm. Minimum turning radius — 2.5 m, ensuring high maneuverability in working conditions. Mini tractor weight — 1245 kg.

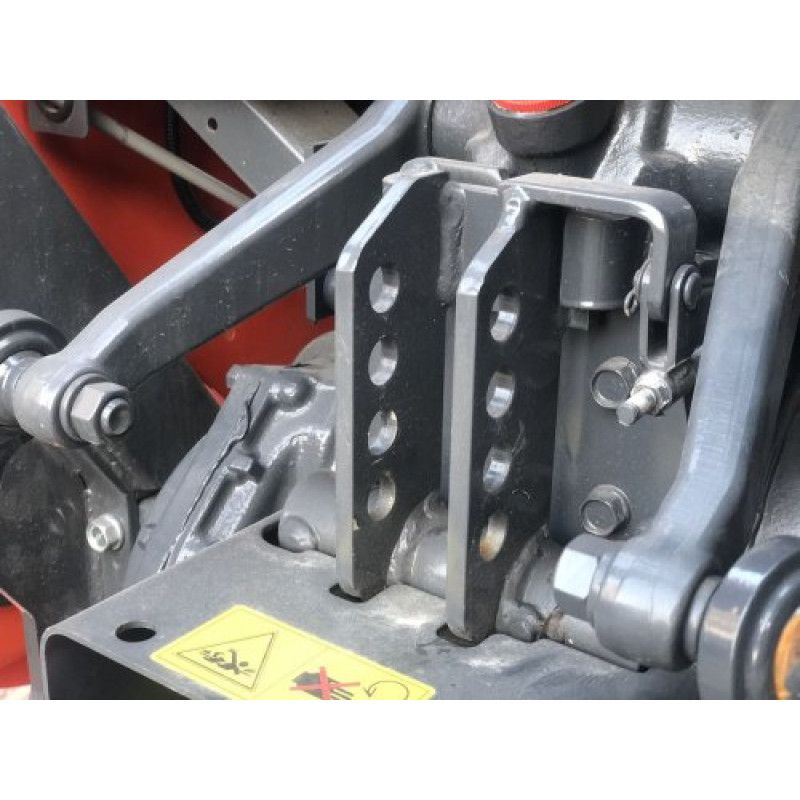

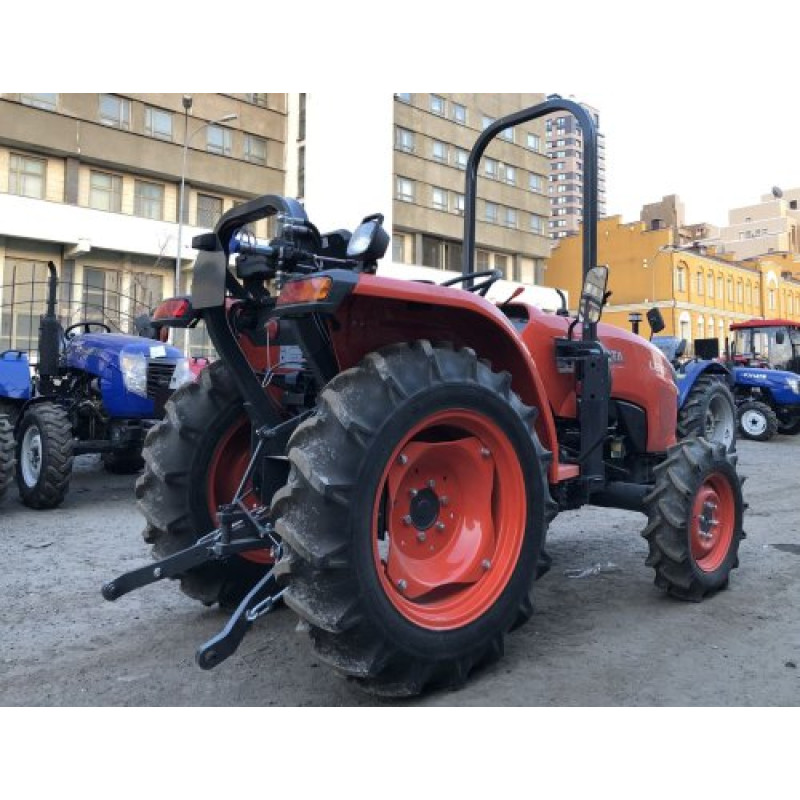

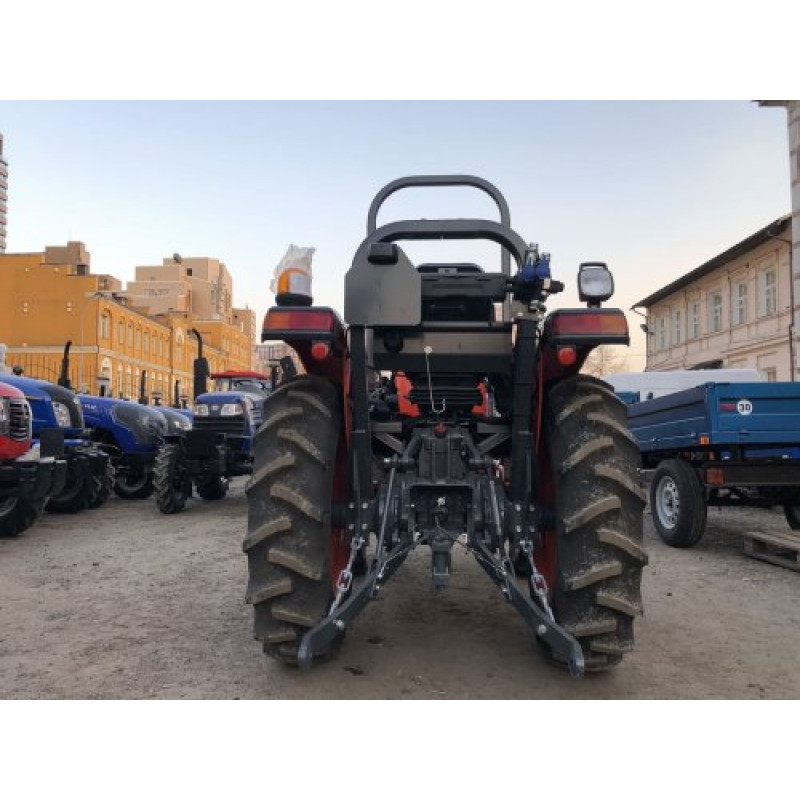

The mini tractor is easily equipped with mounted and trailed implements: cultivators, plows, harrows, trailers, and other mounted units make the KUBOTA L1361 a versatile tool for small and medium-sized farms. Compatible mounted implements and components are available in our online store.
Model advantages: reliable Japanese D1803 engine, efficient liquid cooling, 4x4 all-wheel drive, compact dimensions with a small turning radius, choice of gearbox configuration depending on the package, durable components and elements, efficient multi-disc oil-cooled brakes, and mechanical differential lock.
Payment: we accept cash, cashless payments with VAT, and credit through our partner bank's program. Delivery is free throughout Ukraine. To place an order, use the form on the website or contact a manager by phone.
Additional manufacturer information: Kubota Corporation produces not only tractors and mini-equipment but also generators, transporters, lawnmowers, hay mowers, and other equipment with high quality and long service life.
Specifications:
| Engine brand: | D1803 |
| Engine power, hp: | 36 |
| Wheel formula: | 4x4 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Engine displacement, cm3: | 1826 |
| Tank capacity, L: | 38 |
| Max. travel speed, km/h: | 30 |
| Gearbox (КП): | 8 forward, 8 reverse |
| Differential lock: | mechanical, rear axle |
| Brakes: | multi-disc oil-cooled brake |
| Tires: | front 7x16/ rear 11.2x24 |
| Overall length, mm: | 3030 |
| Overall width, mm: | 1290 |
| Overall height, mm: | 2490 |
| Wheelbase, mm: | 1610 |
| Min. turning radius, m: | 2.5 |
| PTO speed, rpm: | 540 |
| Weight, kg | 1245 |
Purchase reliable equipment that withstands daily operation and allows you to perform a wide range of tasks. The KUBOTA L1361 mini tractor is a smart investment in the efficiency of your farm.
