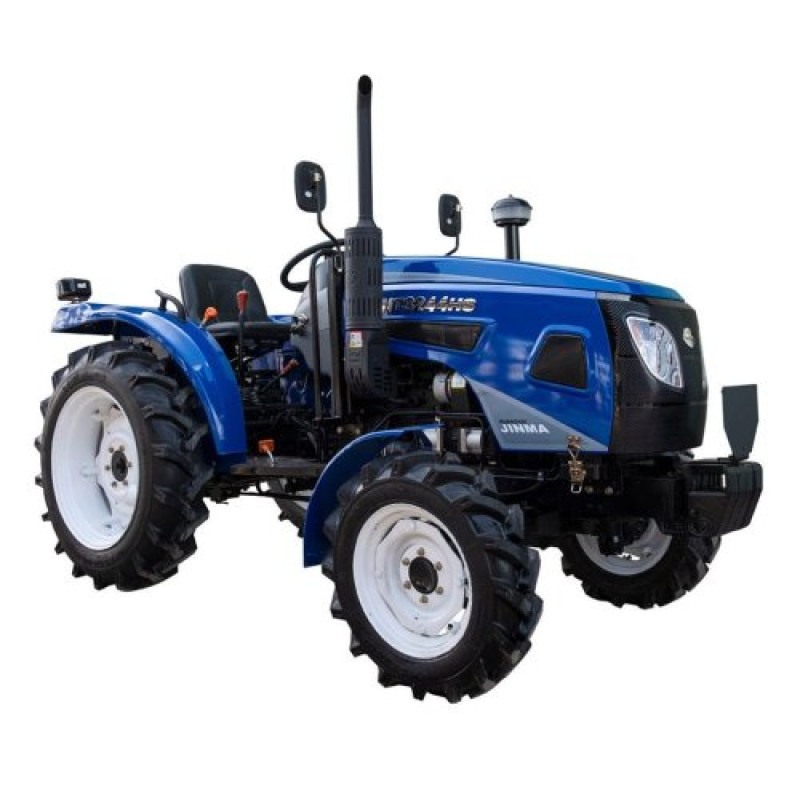

Jinma JMT 3244 HSU Mini Tractor — Overview and Key Advantages

The Jinma JMT 3244 HSU mini tractor from the Jinma brand is a reliable and versatile machine for agriculture, horticulture, and utility work. The model features 4x4 all-wheel drive and a 3-cylinder diesel engine with 24 hp (17.65 kW), providing an optimal combination of fuel efficiency and performance. The engine displacement is 1531 cm3, with vertical cylinder arrangement. Nominal crankshaft speed is 2300 rpm, and nominal fuel consumption is ≤275 g/kWh. The engine is started by an electric starter, and the cooling system is liquid-cooled, closed, with forced circulation; the fan is driven by a V-belt.

The transmission features a (4+1)x2 gearbox with a direct main gear. The clutch is a dry, 2-disc, constantly closed type. The nominal traction force of the tractor is 5.8 kN. Steering is hydraulic with power steering as standard, ensuring comfortable and precise control. Brakes are located on the secondary shaft of the gearbox and are drum brakes.

The power take-off (PTO) shaft is located at the rear and is splined; available PTO speeds are 540 and 1000 rpm. The hydraulic system pump type is a gear pump for implement drive and a separate gear pump for power steering. The maximum lifting capacity of the three-point hitch is 420 kg. The standard configuration also includes 2 hydraulic outlets, a trailer connector (socket), and a rear differential lock.

Operating and performance parameters: wheelbase — 1720 mm; minimum ground clearance — 320 mm; adjustable wheel track (front — 1220; 1290; 1300; 1380 mm, rear — 1000; 1080; 1140; 1180; 1220; 1260; 1320; 1400 mm). Tire size: front 6.0-16, rear 9.50-24. Minimum turning radius without brakes — 4.2 m, with brakes — 3.8 m. Forward speeds — from 1.73 to 26.4 km/h, reverse — from 2.28 to 11.02 km/h. Fuel tank capacity — 18 L. Tractor dimensions: 3180x1440x1900 mm, weight — 1330 kg.

Technical Specifications

Below is a complete table of technical specifications for the Jinma JMT 3244 HSU model:

The Jinma JMT 3244 HSU mini tractor is ideal for working with trailers and small to medium-class implements, providing stable traction, precise control, and economical operation. Thanks to its hydraulic outlets, differential lock, power steering, and universal PTO, this model will be a reliable assistant in farming and utility operations.
