FIBERFORM Mark4 10” V2 Frame — Carbon Chassis by FiberForm
FIBERFORM Mark4 10” V2 — an advanced carbon frame for FPV drones, developed by a team of engineers and pilots. This model is optimized for 10-inch propellers and combines a reinforced structure, light weight, and broad compatibility with modern digital and analog FPV systems, including DJI O3 Air Unit. The frame is suitable for both aggressive freestyle and long-range flights, ensuring reliability, repairability, and flexible component selection.
Key Advantages
-
Reinforced construction: 7 mm thick arms, 3 mm plates for increased rigidity and impact resistance.
-
Durable premium carbon — 100% carbon in the construction.
-
Compatible with DJI O3 Air Unit and modern analog FPV modules for use with digital and analog video systems.
-
Supports 20×20 mm and 30.5×30.5 mm mounting standards for flight controllers and expansion boards.
-
Designed for 2205–2306 series motors and 30–50A ESCs.
-
Lightweight — only 270 g, improving maneuverability and flight efficiency.
Specifications
-
Frame Diagonal: 427 mm
-
Type: X-frame
-
Material: 100% carbon
-
Arm Thickness: 7 mm
-
Plate Thickness: 3 mm
-
Camera Mount: 19.3 mm
-
Battery Support: 4–6S (1800–2200 mAh)
-
Recommended Motors: 2205–2306
-
Recommended ESCs: 30–50A
-
Frame Weight: 270 g

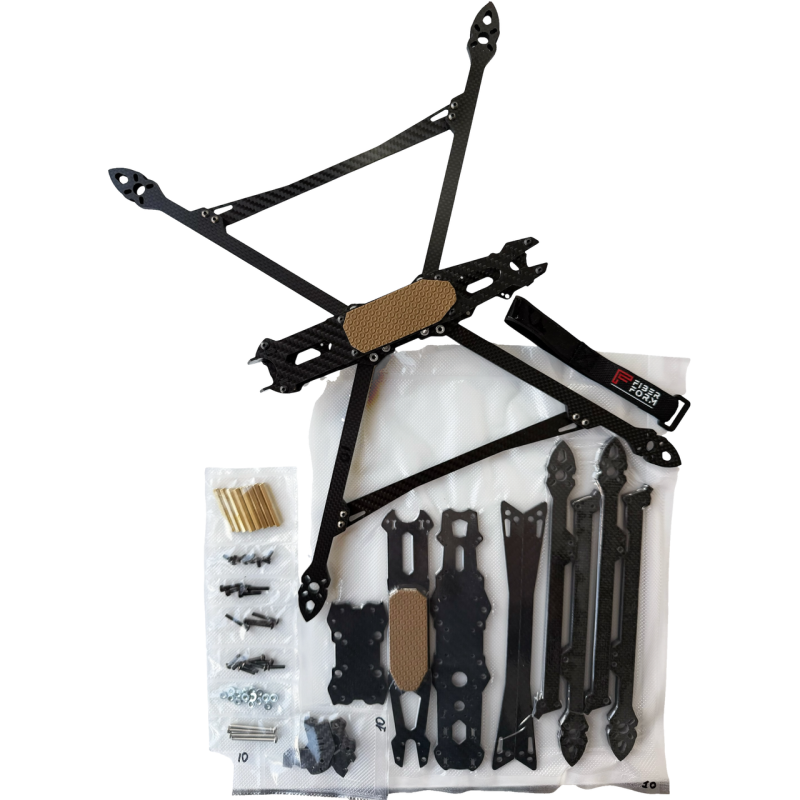

Package Contents
-
Carbon frame (all parts)
-
Standoffs: M3×35 – 8 pcs
-
Screws: M3×6 – 8 pcs, M3×14 – 4 pcs, M3×20 – 4 pcs, M3×12 – 8 pcs, M3×35 – 4 pcs
-
Press-fit nut – 16 pcs
Brand: FiberForm. Product category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Frames. Additional product description parameter: Type: Camera (according to product attributes).
The FIBERFORM Mark4 10” V2 is an optimal choice for those seeking a balanced carbon frame with an emphasis on strength and lightness. The 20×20 and 30.5×30.5 mounting standards ensure compatibility with most flight controllers and peripherals, while the thoughtful geometry and material thickness allow it to withstand significant loads and impacts during aggressive piloting. Support for 4–6S batteries (1800–2200 mAh) and recommendations for 2205–2306 motors and 30–50A ESCs enable the assembly of a drone for both fast freestyle flights and long-range missions.
The frame is suitable for beginners and experienced pilots who value reliability, repairability, and upgradeability. Support for DJI O3 Air Unit and analog systems makes the design versatile for various video output configurations and video transmission ranges.
