Mini Tractor KENTAVR 244 SD — a reliable and compact mini tractor from the KENTAVR brand, designed for work in small and medium-sized farms in Ukraine. The 2022 model is equipped with a three-cylinder JDM 385 diesel engine with a power of 24 hp (17.65 kW) and is designed for a wide range of agricultural, municipal, and general utility tasks thanks to its well-thought-out transmission, hydraulics, and control system.
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, with direct injection, non-turbocharged |
| Number and arrangement of cylinders | 3, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 1530 |
| Cylinder diameter / piston stroke, mm | 85 / 90 |
| Nominal fuel consumption, g/kWh | ≤275 |
| Nominal crankshaft speed, rpm | 2300 |
| Nominal traction force, kN | 7.2 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kWh | 2.31 |
| Gearbox (transmission) | (4+1)×2 |
| Oil type in gearbox and rear axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission oil) |
| Oil type in front axle | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission oil) |
| Rear differential lock | yes |
| Clutch | dry, single-disc, constantly closed type |
| Main drive | direct |
| Steering | mechanical |
| Brakes | on rear wheels, brake drums |
| Power take-off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump |
| PTO speed, rpm | 540 / 1000 |
| Maximum lifting capacity of hitch mechanism, kg | 420 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1730 |
| Wheel track, mm | front 1220, 1440; rear 1120–1450 |
| Tire size | front 6.50-16, rear 9.50-24 |
| Minimum turning radius, m | without brakes 3.5; with brakes 3.1 |
| Travel speed, km/h | forward 0.37–30.64; reverse 0.49–12.23 |
| Fuel tank capacity, L | 18.5 |
| Engine crankcase volume, L | 4.5 |
| Gearbox and rear axle crankcase volume, L | 14.0 |
| Front axle crankcase volume, L | 3.0 |
| Engine cooling system volume, L | 6.0 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | yes |
| Power steering | yes |
| Overall dimensions (L×W×H), mm | 3400×1465×1980 |
| Curb weight, kg | 1470 |
Equipment and Ergonomics

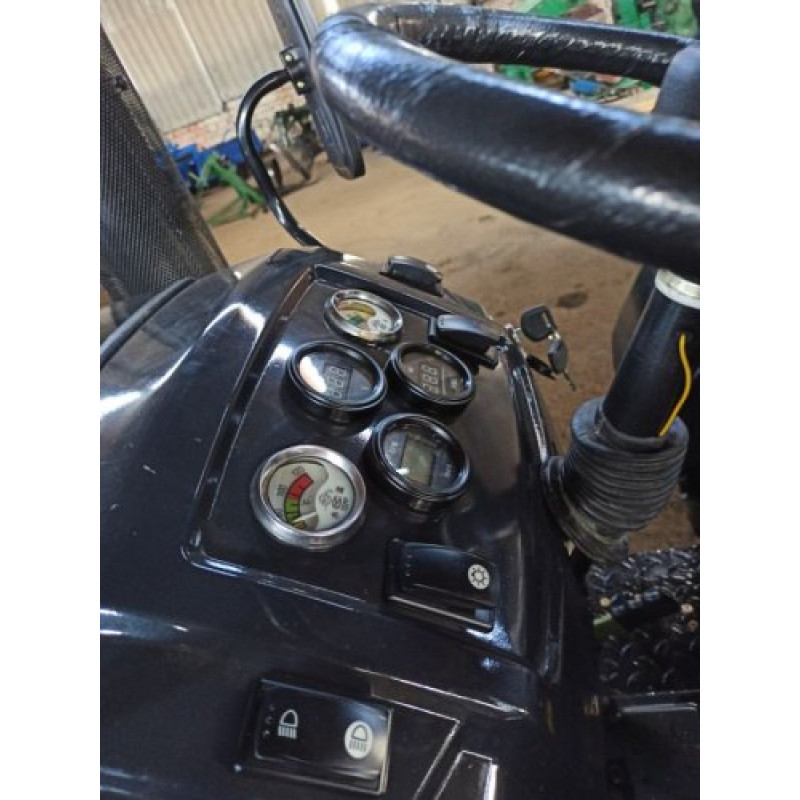

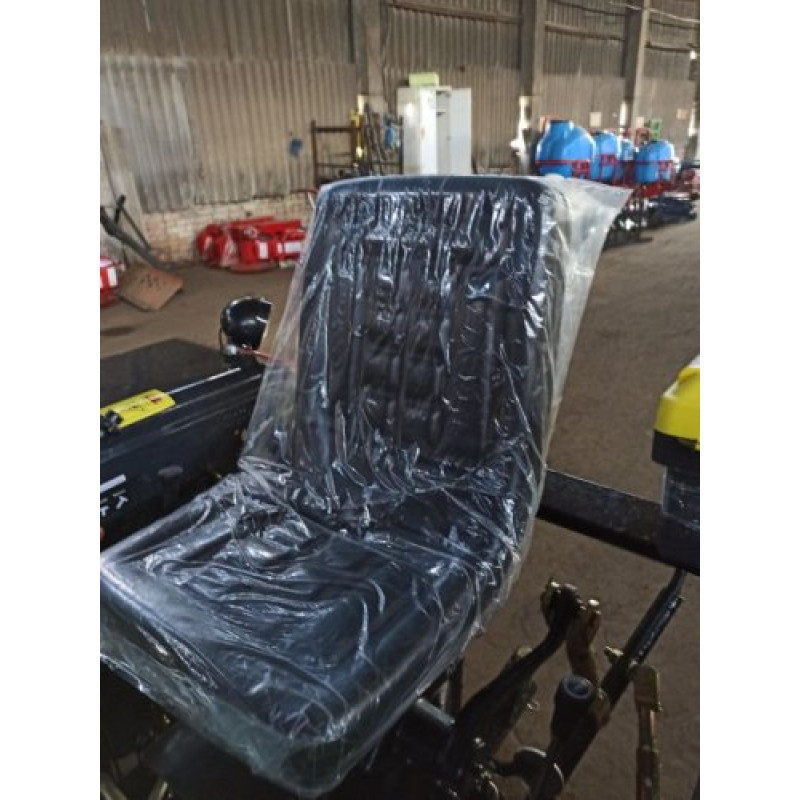

The KENTAVR 244 SD comes with everything necessary for initial startup and operation: counterweights for the rear wheels and front axle, protective fenders, rearview mirrors, work lights, a spare parts kit, and a complete set of technical documentation. The cabin/operator's station is designed for long hours of work: a comfortable seat with stiffness adjustment, an automotive-style dashboard, and convenient placement of levers and controls.
Model Advantages
- Economical three-cylinder diesel engine with a displacement of 1530 cm3 and a nominal fuel consumption of ≤275 g/kWh ensures low operating costs;
- 4x4 all-wheel drive combined with a rear differential lock enhances off-road capability on challenging terrains;
- Reliable transmission (4+1)×2 and two-speed PTO (540/1000 rpm) allow working with a wide range of mounted and trailed equipment;
- Liquid cooling system with forced circulation and V-belt driven fan guarantees stable operation in various climatic conditions;
- Brakes on the rear wheels with brake drums provide reliable stopping, and mechanical steering is easy to maintain;
- Hydraulic system with a gear pump and two hydraulic outlets has a lifting capacity of the hitch mechanism up to 420 kg;
- Compact dimensions (3400×1465×1980 mm), minimum ground clearance of 300 mm, and a small turning radius (without brakes 3.5 m; with brakes 3.1 m) increase maneuverability when working in confined spaces;
- Easy serviceability, readily available spare parts, and a manufacturer's warranty of 2 years or 1000 engine hours make operation convenient and predictable.
Who It's For
The KENTAVR 244 SD is ideal for private households, small farms, municipal services, work in gardens and greenhouses, as well as for tasks in hard-to-reach areas. Thanks to its low curb weight of 1470 kg and adjustable track width, this mini tractor is convenient for transportation and maneuvering in narrow spaces.
Where to Buy
Flash Army online store offers the KENTAVR 244 SD mini tractor under favorable conditions: no prepayment required for orders, with delivery across Ukraine by our own transport or postal carriers. We work without intermediaries, which allows us to guarantee competitive prices and full service support.
