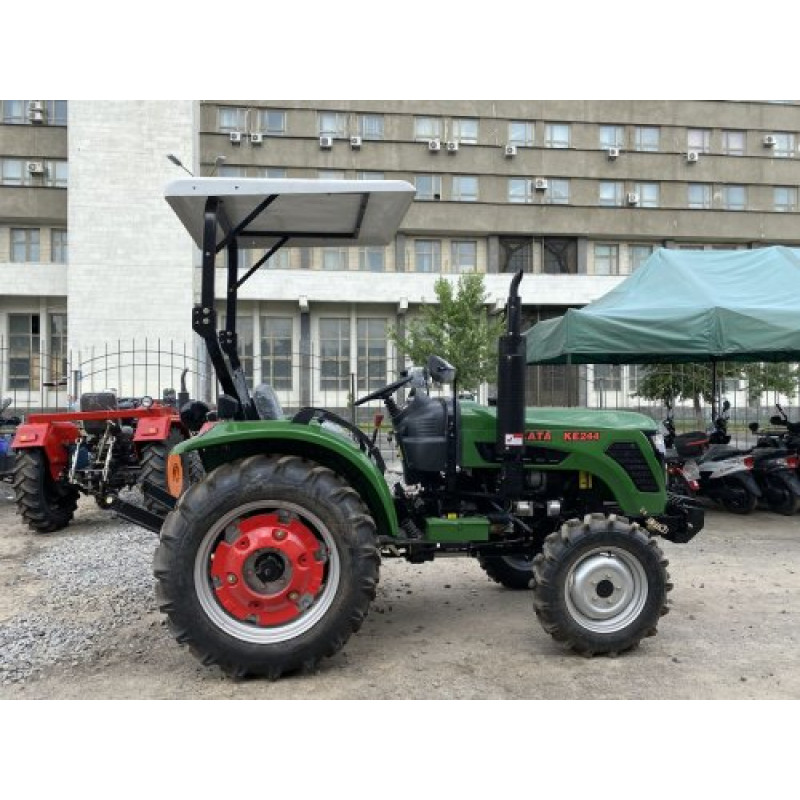

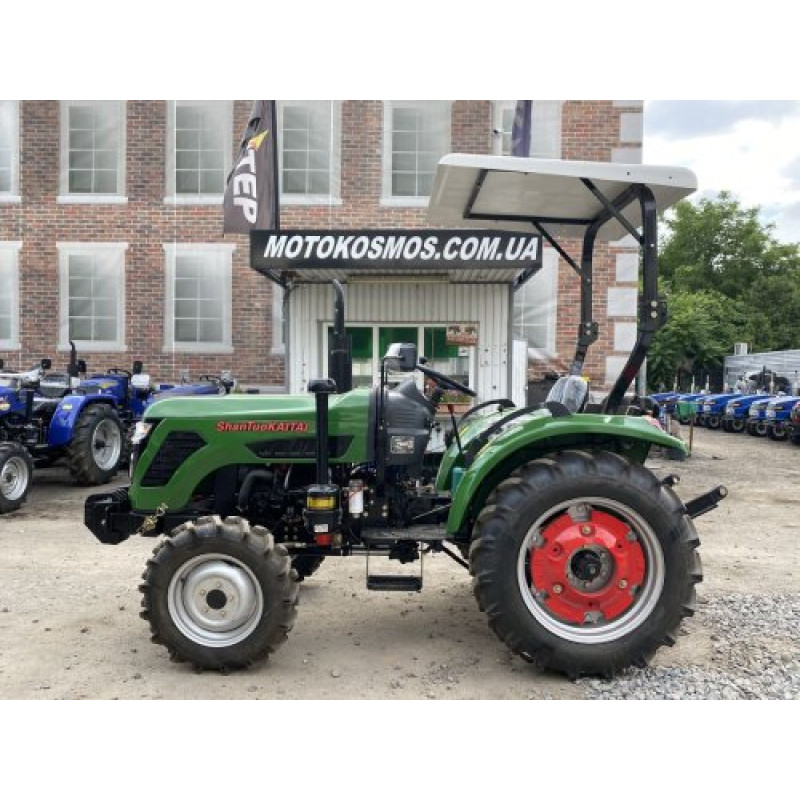

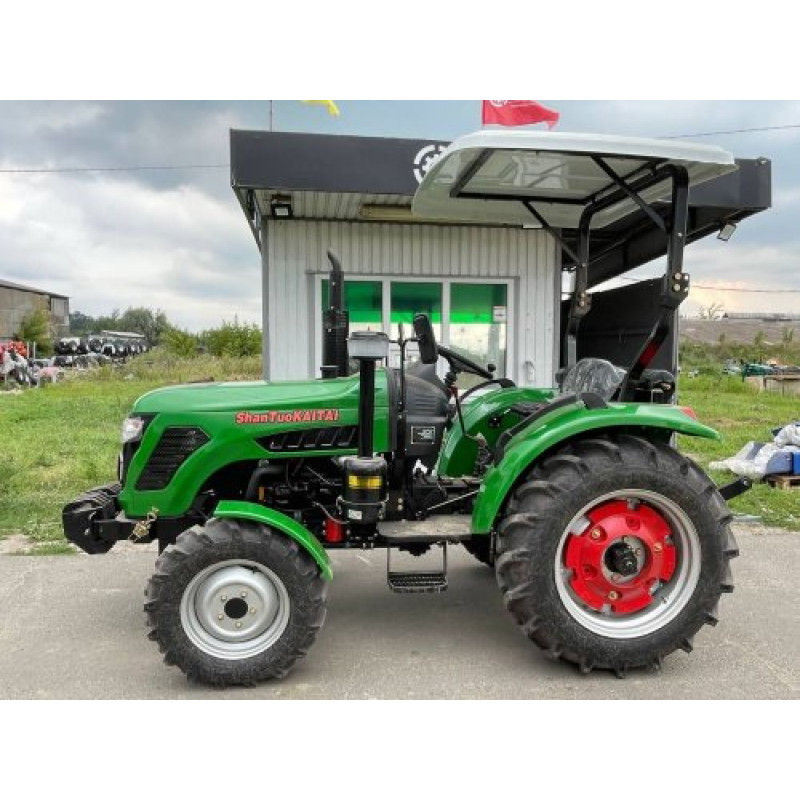

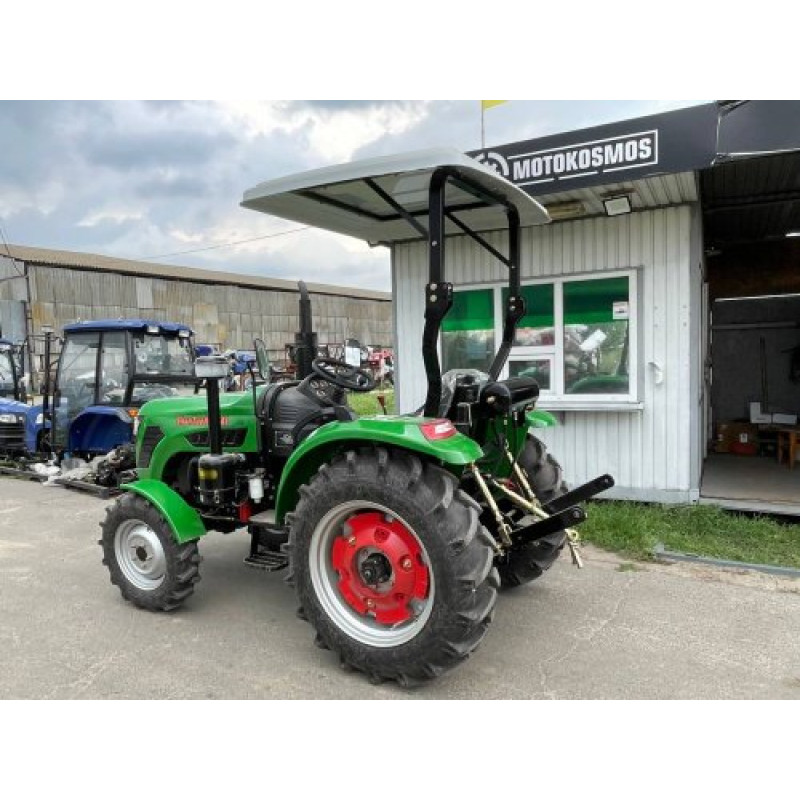

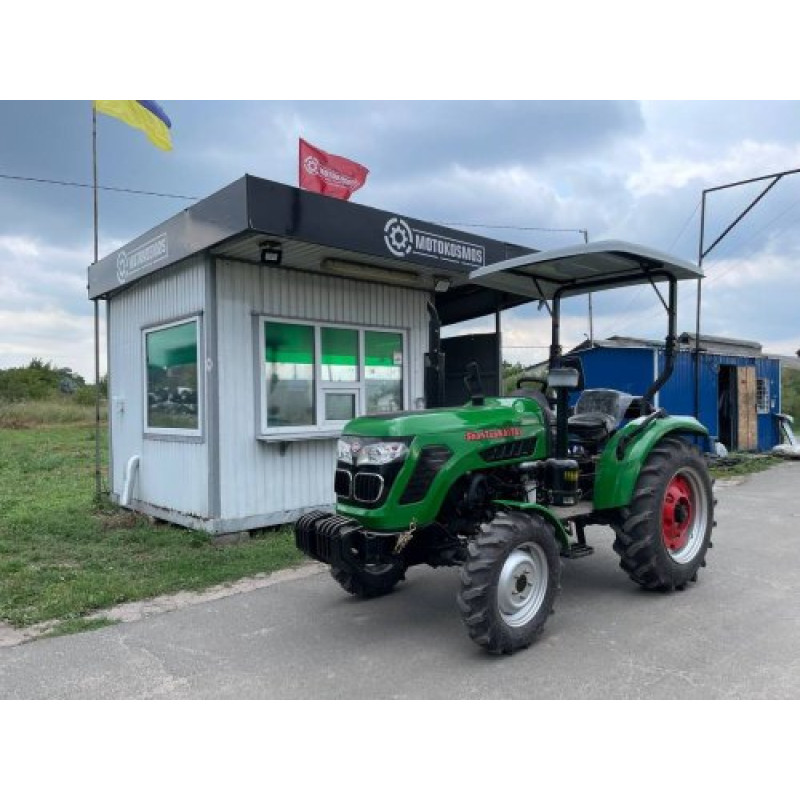

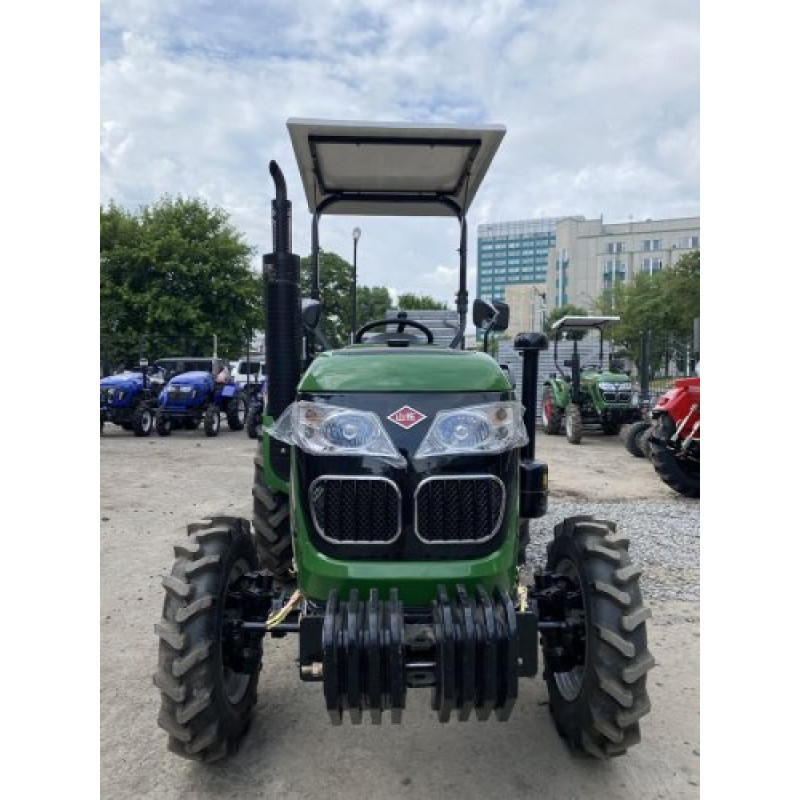

KATA KE 244 Mini Tractor — Reliable and Productive
Model: KATA KE 244 Mini Tractor. Manufacturer: KATA. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. This versatile 24 hp (17.65 kW) mini tractor with 4x4 all-wheel drive is designed for private farms, agricultural needs, municipal work, and maintenance of park and garden areas.
The KATA KE 244 is equipped with a KM 385 BT 4-stroke diesel engine with three vertically arranged cylinders. Engine displacement is 1532 cm3, cylinder bore/piston stroke is 85/90 mm. The engine features an electric starter, a closed liquid cooling system with forced circulation, and a fan drive via a V-belt transmission. Nominal crankshaft speed is 2350 rpm, nominal fuel consumption is ≤255 g/kW*h, nominal oil consumption is 2.31 g/kW*h, nominal traction force is 6.9 kN.

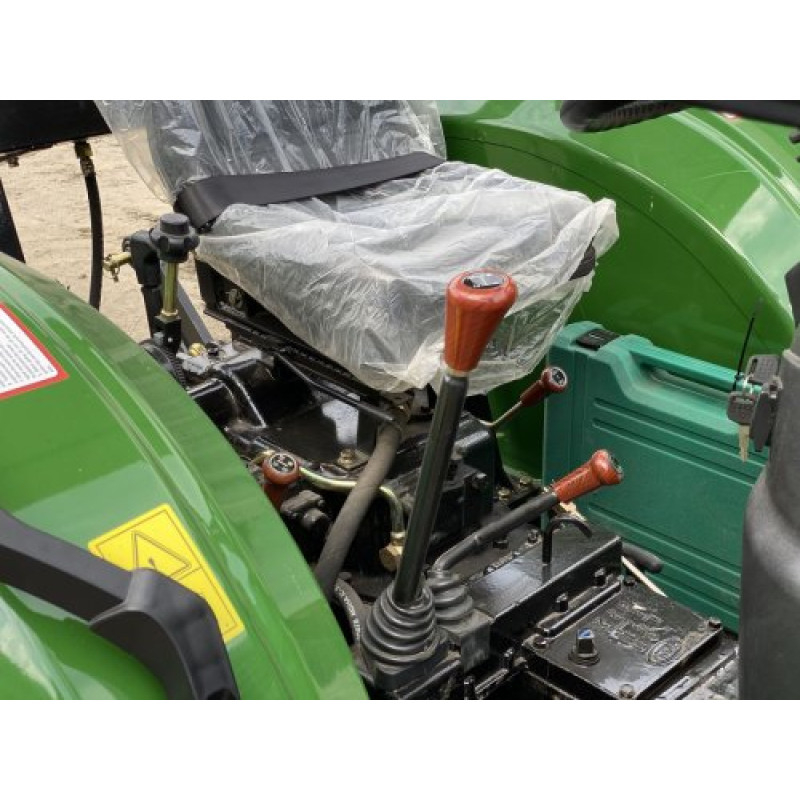

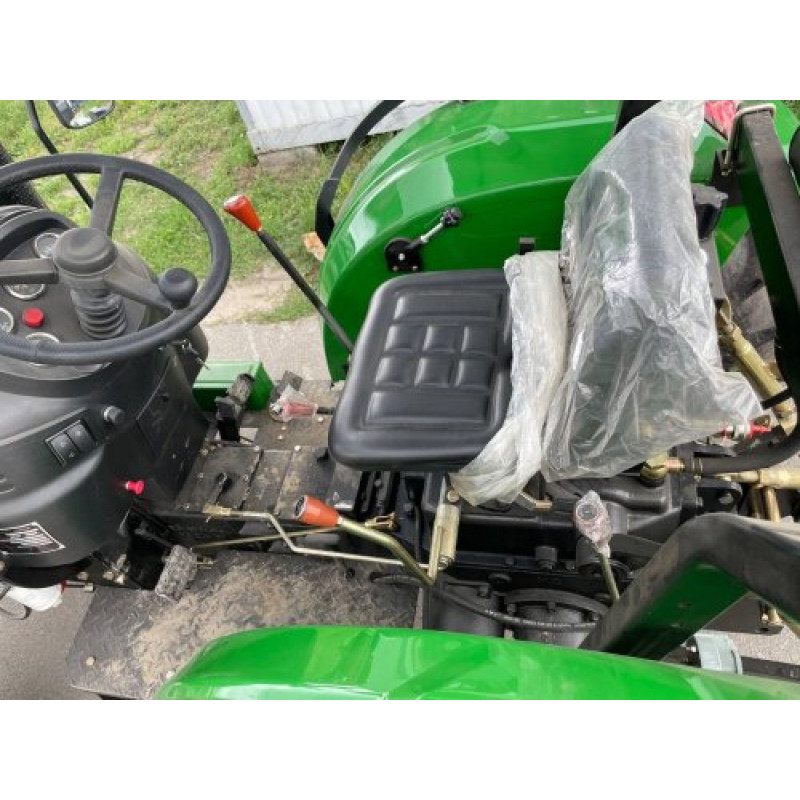

The transmission features a (4+4)x2 gearbox with a dry 2-disc constantly closed clutch. A rear differential lock and direct main drive are provided. The steering is hydraulic, ensuring easy and precise maneuvering. The braking system is implemented on the secondary shaft of the gearbox using brake drums.

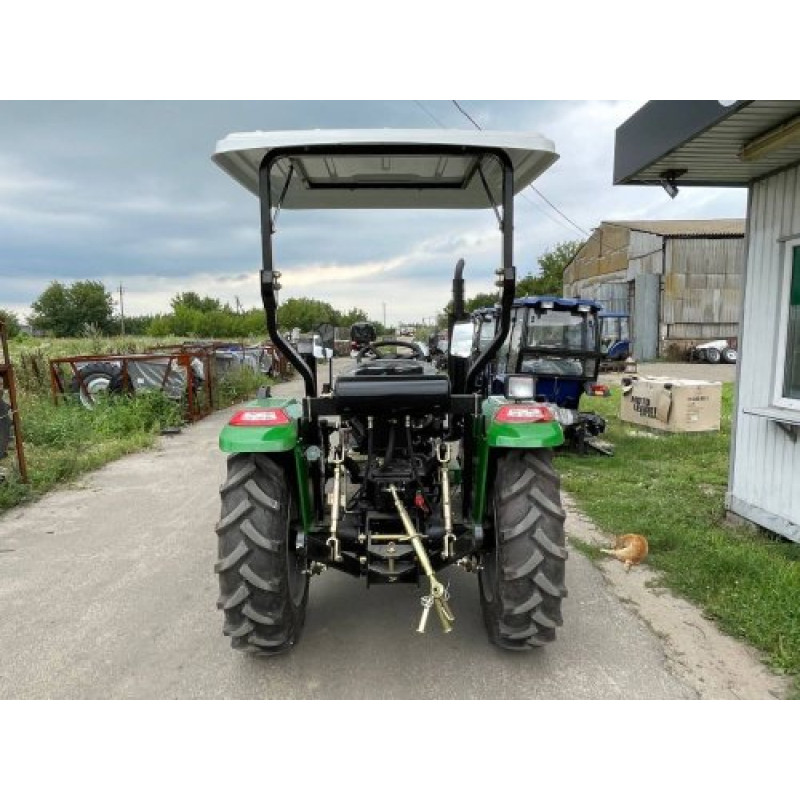

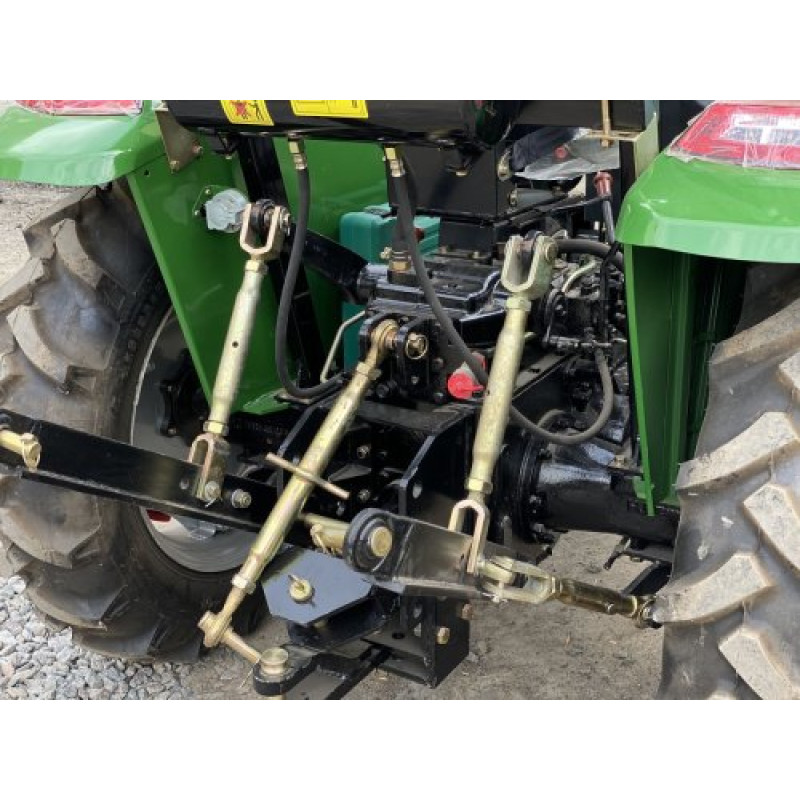

The mini tractor is equipped with a rear splined power take-off (PTO) shaft with 540 and 1000 rpm modes, allowing for the connection of a wide range of mounted and trailed equipment. The hydraulic system has a gear pump (GP) for driving the hitch and a GP for operating the power steering (PS). The maximum lifting capacity of the hitch mechanism is 420 kg. The number of hydraulic outputs is 1.
Dimensions and weight: front tires 6.50-16, rear 11.2-24; wheel track — front 1190 mm, rear 1244-1425 mm; tractor curb weight — 1510 kg. Additionally, the tractor is equipped with a trailer connector (socket) and a compressor for auxiliary operational needs.
The KATA KE 244 combines economical fuel consumption and high productivity: 24 hp (17.65 kW), 1532 cm3 displacement, efficient (4+4)x2 transmission, 540/1000 rpm PTO, and the ability to connect mounted equipment up to 420 kg. Hydraulic steering and differential lock ensure stable movement in difficult conditions, and the liquid cooling system with forced circulation guarantees stable operation under load.
Thanks to its versatility and reliability, this mini tractor is suitable for soil cultivation, work in greenhouses, on household plots, for moving trailed equipment, and performing municipal tasks where medium-class mobile machinery is required.
Technical Specifications:
| Engine power, hp (kW) | 24 (17.65) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, KM 385 BT |
| Number and arrangement of cylinders | 3, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 1532 |
| Cylinder bore / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g/kW*h | ≤255 |
| Nominal engine crankshaft speed, rpm | 2350 |
| Nominal traction force, kN | 6.9 |
| Nominal engine oil consumption, g/kW*h | 2.31 |
| Gearbox (GB) | (4+4)x2 |
| Rear differential lock | + |
| Clutch | dry 2-disc constantly closed type |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on the secondary shaft of the gearbox, brake drums |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (GP) for hitch drive / GP for power steering operation |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Maximum lifting capacity of hitch mechanism, kg | 420 |
| Tire size | front 6.50-16, rear 11.2-24 |
| Wheel track | front 1190 mm, rear 1244-1425 mm |
| Number of hydraulic outputs | 1 |
| Trailer connector (socket) | + |
| Compressor | + |
| Curb weight, kg | 1510 |
The KATA KE 244 is an optimal combination of power, economy, and functionality for a wide range of tasks. If you need a mini tractor with confident traction, a reliable transmission, and the ability to connect various mounted equipment, this model is worth considering.
