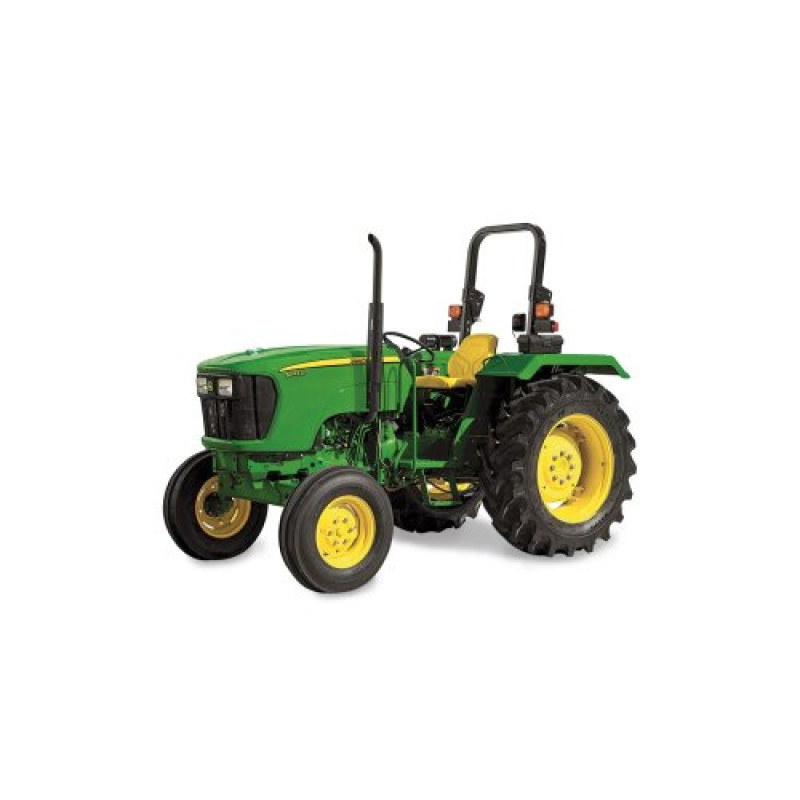

Mini Tractor John Deere 5036C
The John Deere 5036C mini tractor from the manufacturer John Deere is a compact, reliable, and multifunctional unit for agriculture, municipal works, and private farming. Combining smart dimensions with powerful traction, it is suitable for soil cultivation, cargo transportation, and working with various mounted and trailed equipment. The 5036C model features ergonomics, a reliable transmission, and a well-designed hydraulic system, ensuring long and efficient operation.
Key technical features: 3-cylinder vertical 4-stroke diesel engine with a volume of 2900 cm3, power of 36 hp (26.4 kW), cylinder bore/piston stroke of 106x110 mm. Fuel pump — plunger, inline; nominal crankshaft speed — 2100 rpm. Recommended engine oil — mineral or semi-synthetic for diesel engines. For easy steering, a power steering system with a separate pump and oil reservoir is provided.
| Tractor power, hp (kW) | 36 (26.4) |
| Wheel formula | 4x2 |
| Engine type | vertical, 3-cylinder 4-stroke diesel |
| Engine displacement, cm3 | 2900 |
| Cylinder bore / piston stroke | 106x110 |
| Fuel pump type | plunger, inline |
| Nominal crankshaft speed, rpm | 2100 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (transmission) | (4+1)x2 |
| Oil type in gearbox and rear axle | transmission oil |
| Oil type in front axle | transmission oil |
| Rear differential lock | + |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed, rpm | 540 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 1000 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1870 |
| Tire size | rear 12.4-28, front 6.0-16 |
| Minimum turning radius, m | with one-sided brake 2.8, without brake 3.1 |
| Fuel tank capacity, L | 45 |
| Overall dimensions (LxWxH), mm | 3570x1770x2100 |
| Curb weight, kg | 1730 |
The (4+1)x2 gearbox provides a sufficient number of forward and reverse speeds for working with mounted implements and transportation. Transmission oil is recommended for both the gearbox and the front and rear axles. The presence of a rear differential lock and a dry single-disc clutch increases off-road capability and reliability in difficult conditions. The V-belt fan drive and drum brakes ensure ease of maintenance and system durability.
A powerful 540 rpm PTO shaft, a gear pump for the hydraulic system, and a lifting capacity of the mounted mechanism up to 1000 kg allow for connecting a wide range of plows, harrows, seeders, and other tools. A minimum ground clearance of 300 mm and a compact wheelbase of 1870 mm provide good maneuverability in fields and confined spaces, while a minimum turning radius of 2.8 m makes the tractor convenient for working in green areas and gardens.
Dimensions of 3570x1770x2100 mm and a curb weight of 1730 kg make the John Deere 5036C a stable and balanced solution. The 45 L fuel tank capacity ensures long autonomous operation without frequent refueling. This model is an excellent choice for farmers, municipal services, and private households who need a versatile, economical, and reliable mini tractor.
