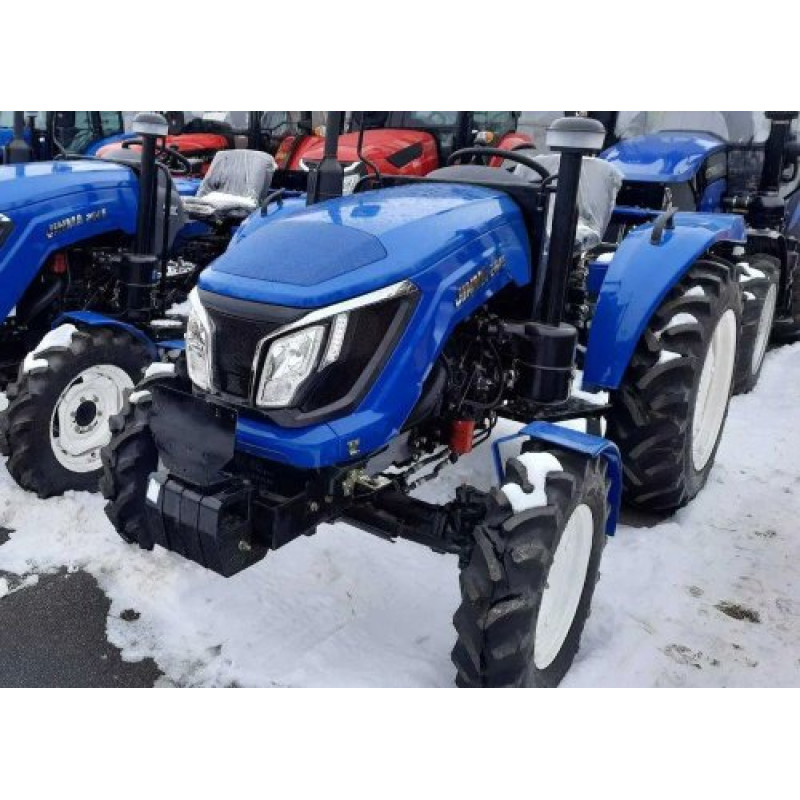

Mini Tractor JINMA 244 E LUX
Introducing the versatile and reliable mini tractor JINMA 244 E LUX manufactured by Jinma. Category: Tractors > Mini Tractors. This model is designed for efficient work on small and medium-sized plots, in the garden, on the farm, and for commercial tasks — it combines compact dimensions, sufficient weight for stability, and simple maintenance.
Engine and Main Parameters
Engine model: YD 385 or KM 385. Engine displacement: 1,532 cm3. Power is 24 hp (17.6 kW). The engine has 3 cylinders, cylinder diameter — 85 mm, piston stroke — 90 mm. Fuel consumption — up to 275 g/kWh. Engine dimensions: 569 mm x 525 mm x 604 mm, engine structural weight — 234 kg, engine oil volume — 6.6 L.
Dimensions and Chassis
Mini tractor wheelbase — 1,700 mm. Overall machine dimensions: 3,080 mm x 1,440 mm x 1,510 mm. Front wheel track: 1,080 / 1,280 mm, rear wheel track: 1,050 mm - 1,310 mm. Drive type: 4x4, ensuring confident grip and maneuverability. Maximum speed — 26.4 km/h. Front wheel size: 6.50 - 16, rear wheel size: 11.20 - 24. Number of hydraulic outputs: hydraulic output (2 couplings). Total tractor weight — 1340 kg.
Technical Table
| Engine Model | YD 385 or KM 385 |
| Engine Displacement, cm3 | 1,532 cm3 |
| Engine Power, hp and kW | 24 hp or 17.6 kW |
| Cylinders | 3 |
| Cylinder Diameter | 85 mm. |
| Piston Stroke | 90 mm. |
| Fuel Consumption | up to 275 g/kWh |
| Engine Dimensions, mm | 569 mm x 525 mm x 604 mm |
| Engine Structural Weight, kg | 234 kg. |
| Wheelbase, mm | 1,700 mm. |
| Overall Dimensions, mm | 3,080 mm. x 1,440 mm. x 1,510 mm. |
| Front Wheel Track, mm | 1,080 / 1,280 mm. |
| Rear Wheel Track, mm | 1,050 mm. - 1,310 mm. |
| Drive Type | 4x4 |
| Maximum Speed, km/h | 26.4 km/h |
| Front Wheel Size | 6.50 - 16 |
| Rear Wheel Size | 11.20 - 24 |
| Number of Hydraulic Outputs | hydraulic output (2 couplings) |
| Engine Oil Volume, L | 6.6 |
| Weight, kg | 1340 |
Advantages and Applications
The JINMA 244 E LUX is characterized by a balance of performance and economy: a powerful 24 hp engine provides sufficient traction with moderate fuel consumption, and the 4x4 all-wheel drive and machine weight guarantee stability under load. Compact dimensions facilitate maneuvering within homestead plots and between rows.
The model is ideal for cultivating small and medium-sized fields, garden work, cargo transportation, and operating various attachments. For farm owners looking for a versatile and reliable mini tractor with an optimal ratio of price, power, and operating costs, the JINMA 244 E LUX will be a good choice.
