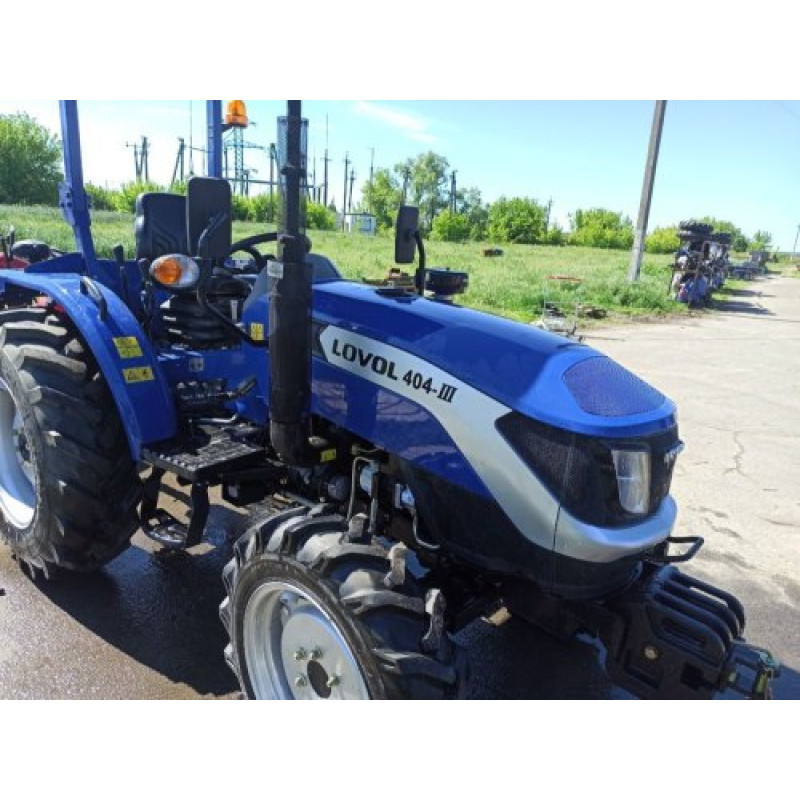

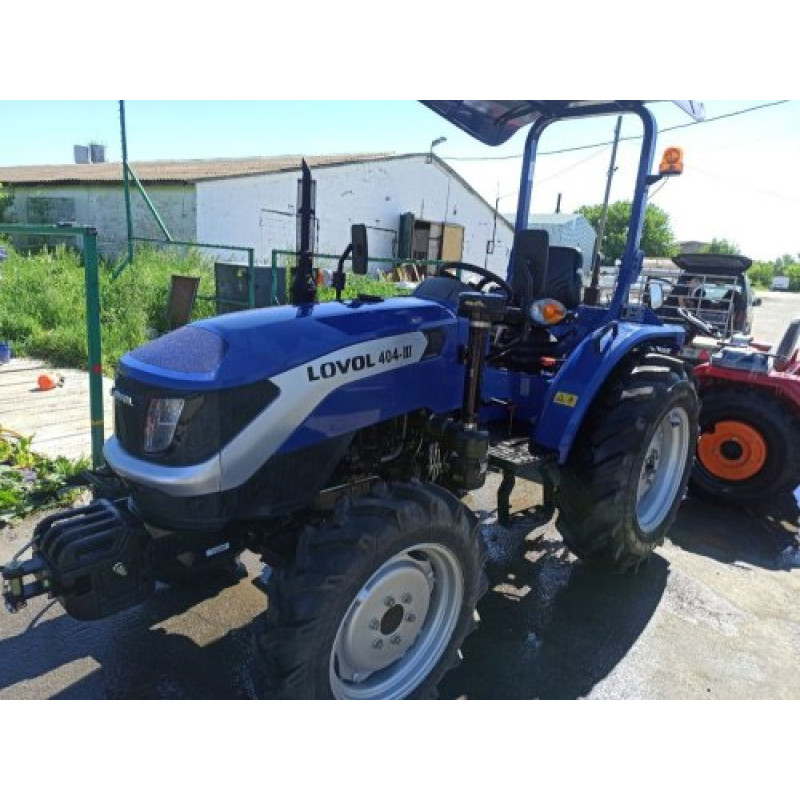

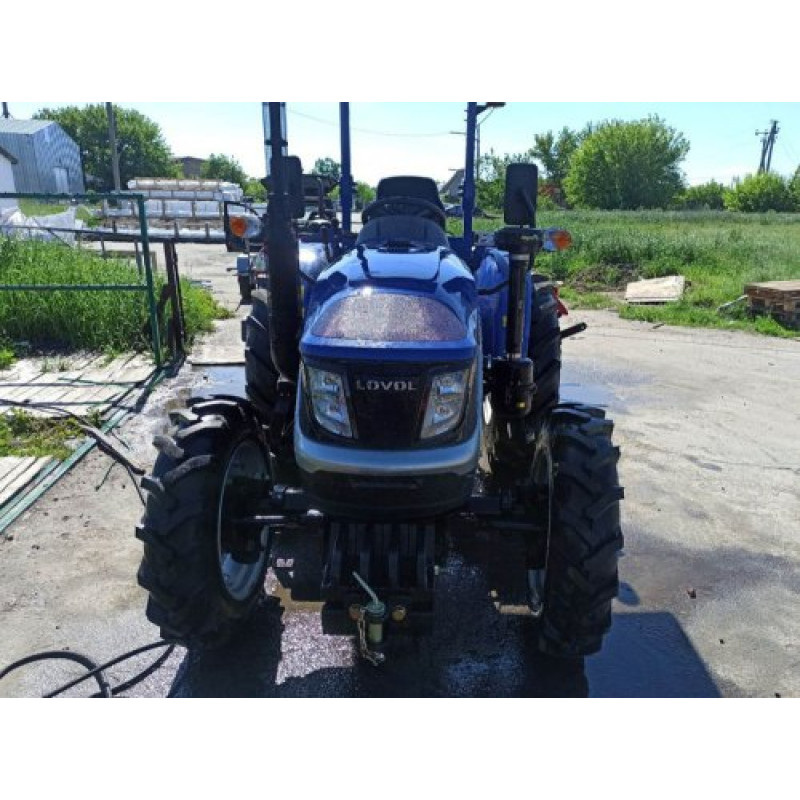

Mini Tractor Foton-Lovol FT404SX — Model Overview and Key Features
Model: Mini Tractor Foton-Lovol FT404SX. Manufacturer: Foton (Foton-Lovol) — a renowned manufacturer of agricultural and construction machinery. The FT404SX is a compact, maneuverable, yet powerful 4x4 mini tractor designed for small-scale farming, municipal work, gardening, and other household tasks. This model combines a reliable diesel engine, all-wheel drive, a multifunctional hydraulic system, and versatile capabilities with its implement lifting capacity.
| Tractor Power, hp (kW) | 40 (29.3) |
|---|---|
| Wheel Formula | 4x4 |
| Engine Brand | 4L23BT |
| Engine Type | vertical, 4-cylinder 4-stroke diesel with liquid forced cooling and direct injection |
| Engine Displacement, cm3 | 2495 |
| Nominal Engine Fuel Consumption, g/kWh | ≤278 |
| Fuel Pump Type | plunger, in-line |
| Nominal Engine Crankshaft Speed, rpm | 2400 |
| Transmission (Gearbox) | (4+4)x2 (mechanical with reverse) |
| Rear Differential Lock | yes |
| Clutch | dry, dual-disc |
| Power Steering | with separate pump and oil reservoir |
| Cooling System Fan Drive | V-belt drive |
| Braking Mechanism | drum type |
| Power Take-Off (PTO) Speed, rpm | 540/1000 |
| Hydraulic System Pump Type | gear pump |
| Maximum Lifting Capacity of Mounted Mechanism, kg | 600 |
| Minimum Ground Clearance, mm | 330 |
| Wheelbase, mm | 1805 |
| Wheel Track, mm | rear 1200-1400, front 1240 |
| Tire Size | rear 13.6 - 24.00, front 6.50 - 16.00 |
| Minimum Turning Radius, m | with one-sided brake 2.75, without brake 3.0 |
| Fuel Tank Capacity, L | 26 |
| Overall Dimensions (LxWxH), mm | 3588x1550x1850 |
| Curb Weight, kg | 1795 |

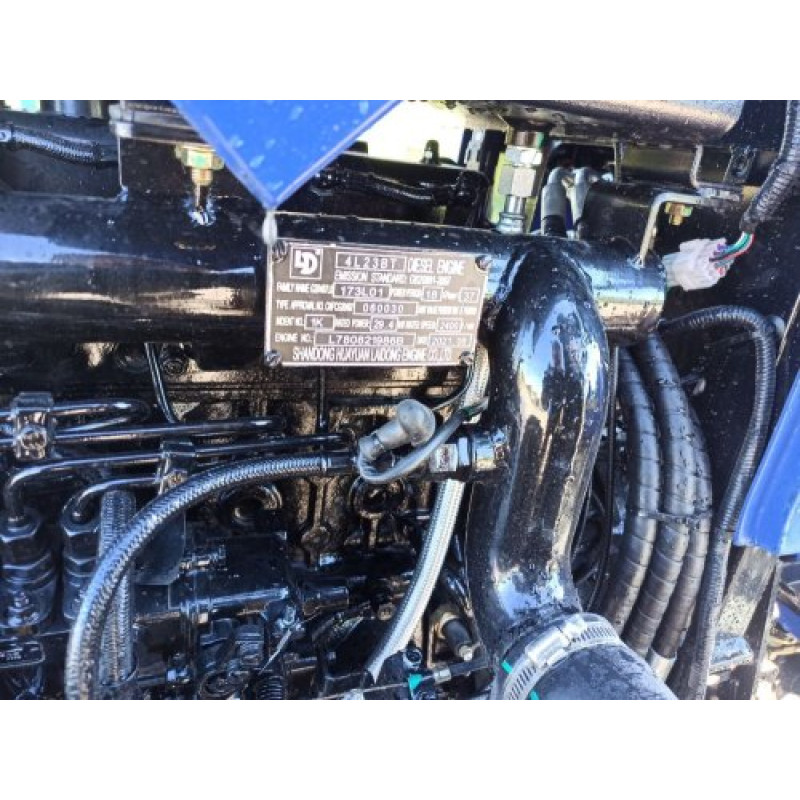

Engine and Fuel Consumption
The FT404SX is equipped with a four-cylinder diesel engine, model 4L23BT, with a displacement of 2495 cm3, developing a nominal power of 40 hp (29.3 kW). The cooling system is liquid with forced circulation, and the fan drive is V-belt, ensuring stable operation in various climatic conditions. Nominal fuel consumption does not exceed 278 g/kWh; fuel is supplied by an in-line plunger pump; both electric and manual engine start are possible.
Chassis and Transmission
The mini tractor features 4x4 all-wheel drive, a mechanical transmission with reverse in a (4+4)x2 scheme, a dry dual-disc clutch, and a rear differential lock for improved cross-country capability on difficult terrain. The drum-type braking system ensures reliable braking, and power steering with a separate pump and oil reservoir makes steering easier and more precise.

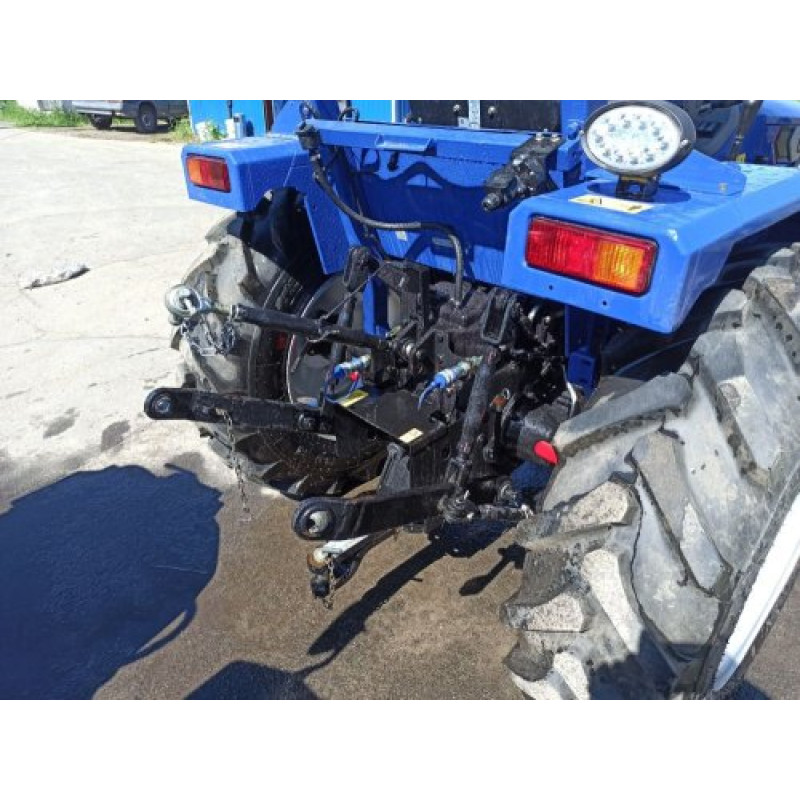

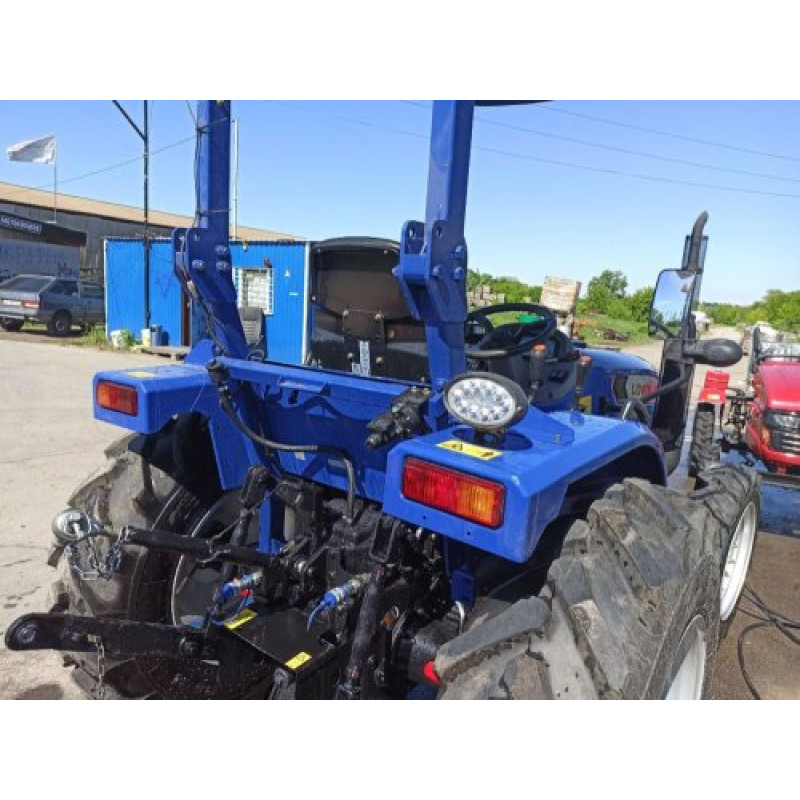

Hydraulics, PTO, and Mounted Equipment
The hydraulic system with a gear pump allows for connecting a wide range of mounted equipment; the maximum lifting capacity of the mounted mechanism is 600 kg. The power take-off (PTO) with two rotation speeds — 540 and 1000 rpm — makes the tractor versatile for many implements: plows, hay mowers, cultivators, spreaders, and other attachments.
Dimensions, Chassis, and Operational Capabilities
Compact dimensions of 3588x1550x1850 mm and a minimum ground clearance of 330 mm allow for work in confined areas and between rows. The adjustable rear wheel track of 1200–1400 mm and front track of 1240 mm enable adapting the tractor to various row widths. The minimum turning radius is 2.75 m with a one-sided brake and 3.0 m without a brake. Fuel tank capacity is 26 L, and curb weight is 1795 kg.
Advantages of the Foton-Lovol FT404SX Model
- Versatility of application — compatibility with a large number of mounted implements for agriculture, municipal, and forestry sectors;
- Optimal price-to-quality ratio from the manufacturer Foton-Lovol;
- Compact dimensions and adjustable track for working on small plots and between rows;
- All-wheel drive and differential lock for better cross-country capability on challenging terrain;
- Two-speed PTO and efficient hydraulic system for a wide range of agricultural tasks.
Where to buy: the Foton-Lovol FT404SX mini tractor is available in the Flash Army online store. We offer delivery throughout Ukraine, the possibility of purchasing on credit or in installments, and consultations on configuration, operation, and maintenance. This equipment is suitable for small farms, municipal services, gardening, and other areas where a compact and reliable tractor is needed.
About the manufacturer: Foton-Lovol has a reputation as a reliable manufacturer of agricultural and construction machinery, combining reasonable cost with high-quality execution of components and assemblies. The company's factories produce a wide range of models for various tasks, making the equipment attractive to farmers and businesses.
