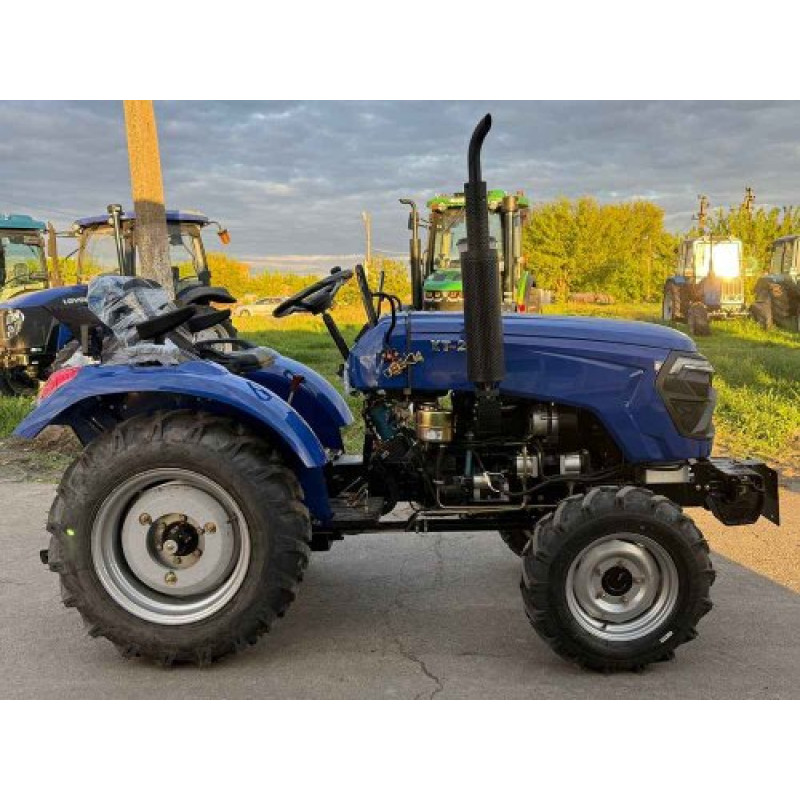

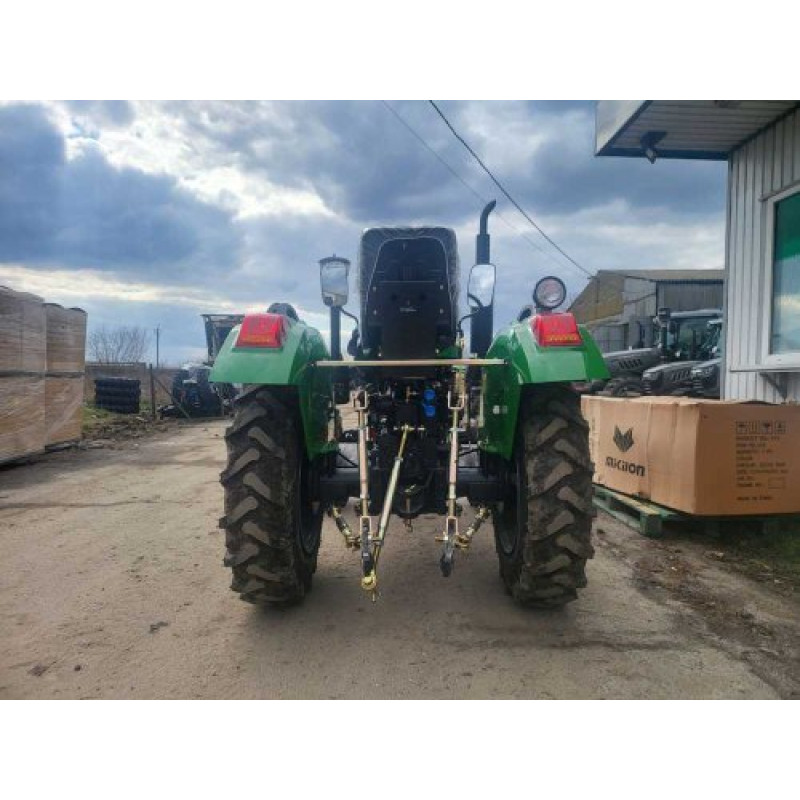

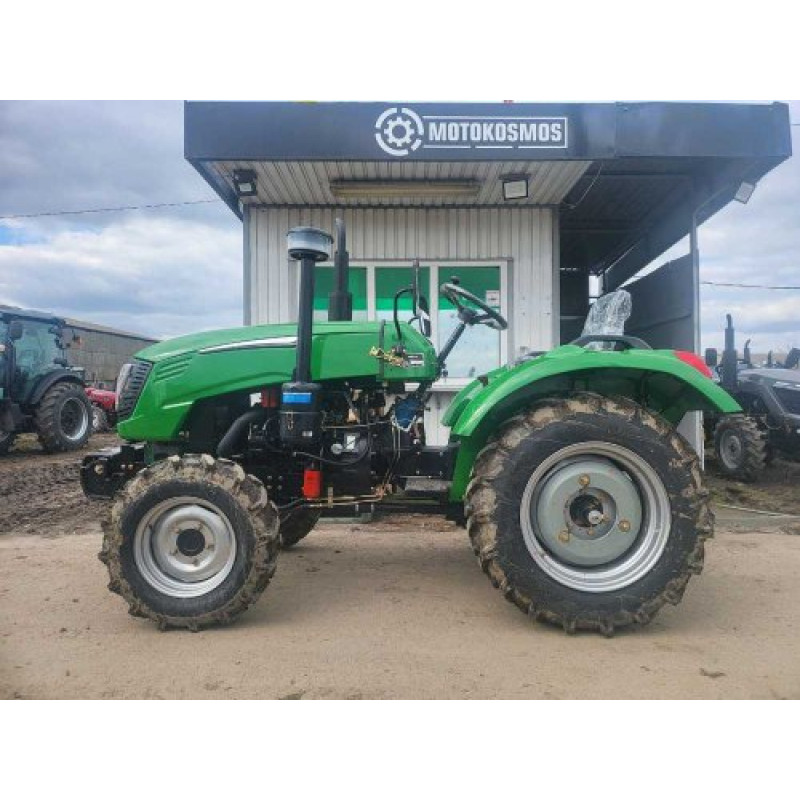

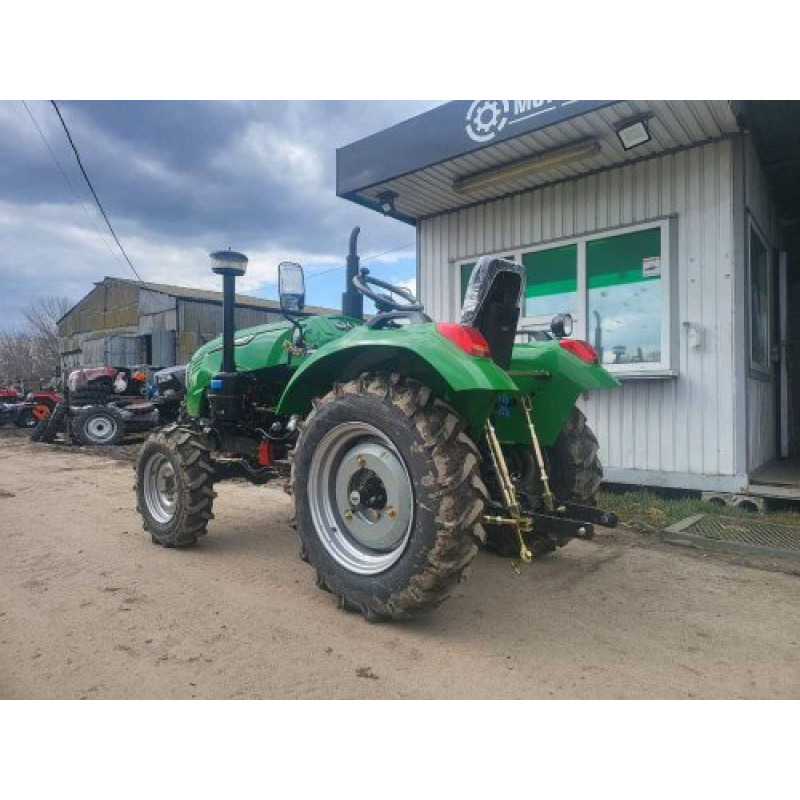

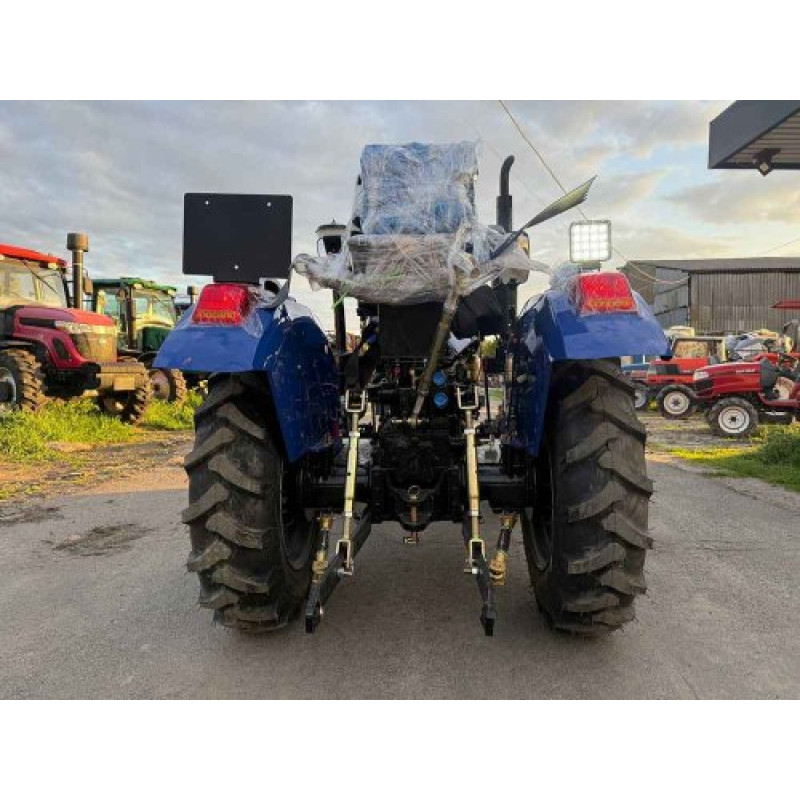

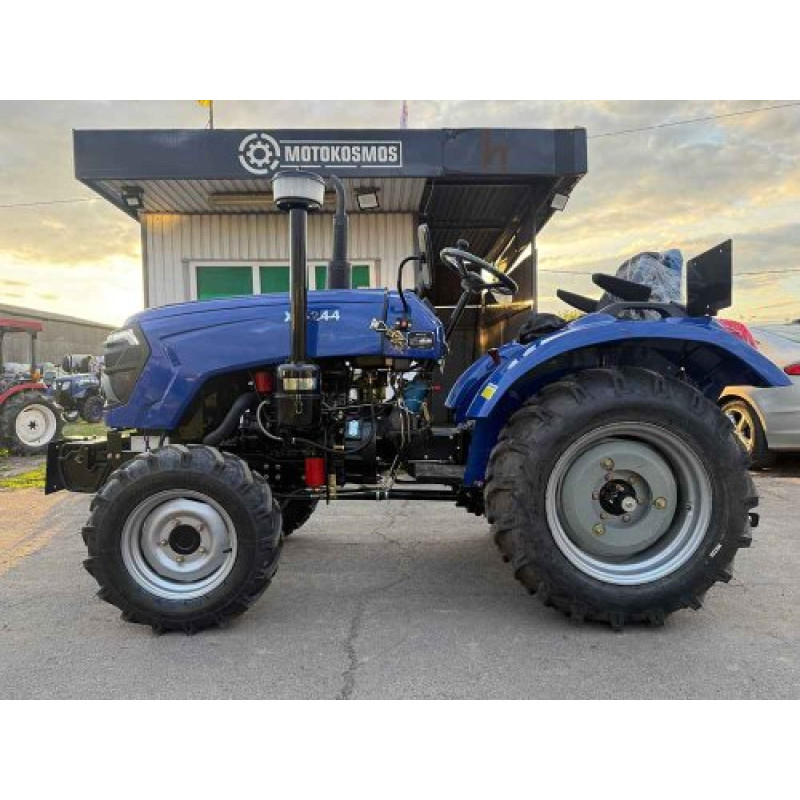

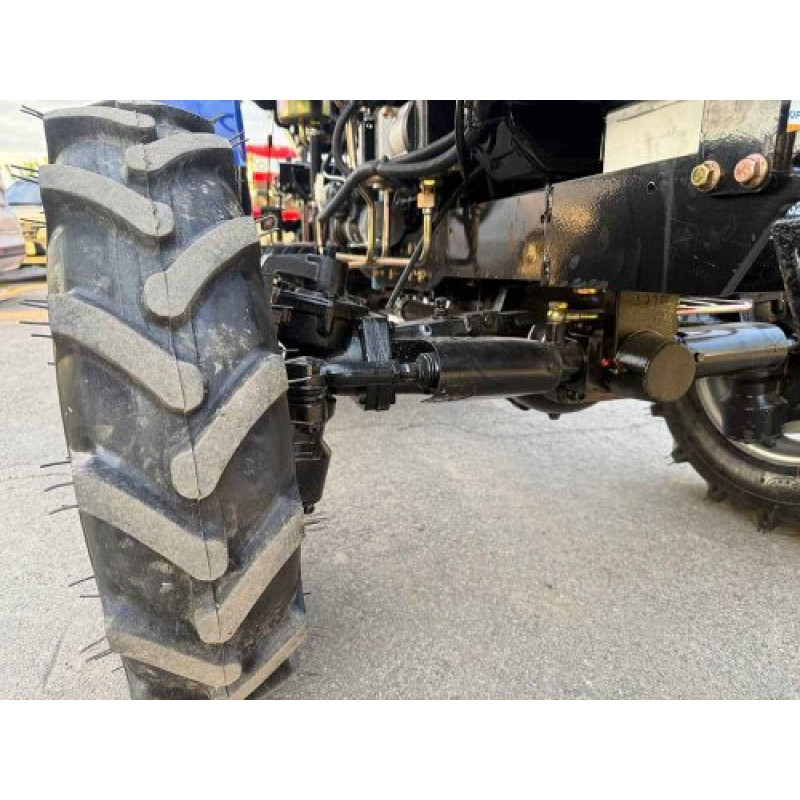

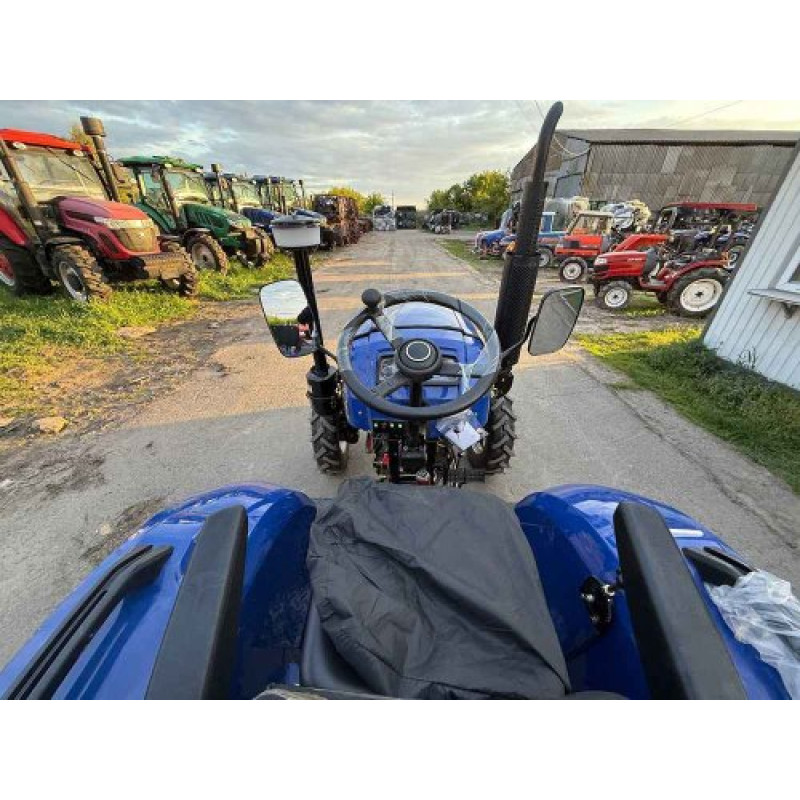

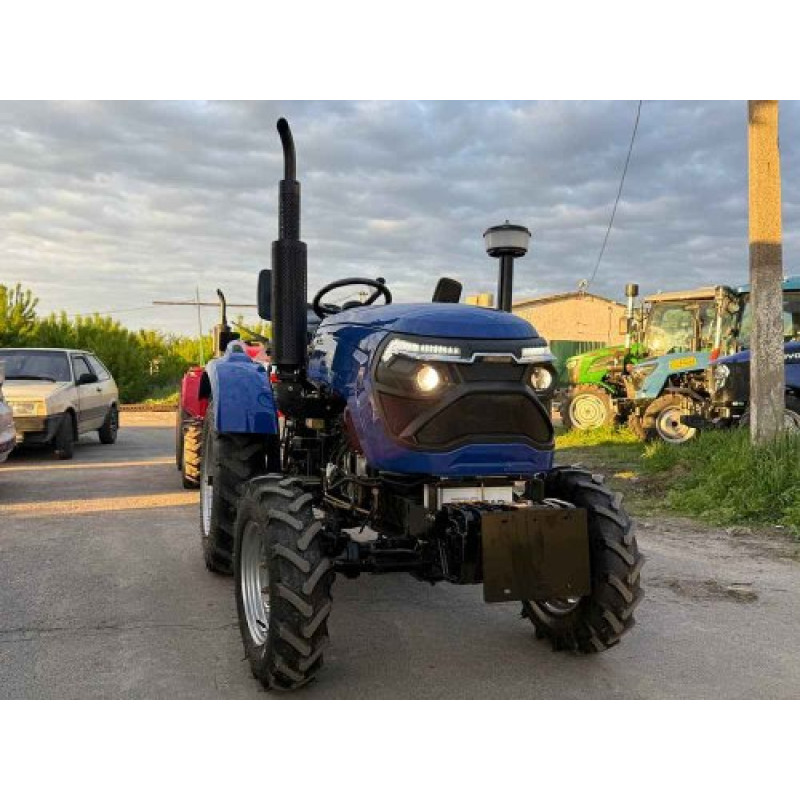

The Faighter XT-244 mini tractor from the manufacturer Faighter is a compact and robust assistant for farms, utilities, and private households. The model belongs to the category: Tractors > Mini Tractors and combines 24 hp (17.6 kW) of power, a diesel 3-cylinder KM385BT engine with a displacement of 1532 cm3 and a nominal crankshaft speed of 2350 rpm, ensuring economical operation with a nominal fuel consumption of 275 g/kWh. Thanks to its 4x4 all-wheel drive, narrow dimensions, and maneuverable design, this mini tractor is ideal for cultivating small plots, greenhouses, gardens, and working on slopes.
The Faighter XT-244 is equipped with a mechanical gearbox with a (3 forward + 1 reverse) x2 scheme, a dry single-disc clutch, and a rear differential lock for stable traction on difficult terrain. The presence of power steering simplifies control during prolonged operation, and drum brakes guarantee reliable braking in field conditions. The power take-off (PTO) shaft with a speed of 540 rpm allows connecting a wide range of mounted and trailed equipment, with a maximum lifting capacity of the mounted mechanism of 420 kg.
Specifications
| Engine power, hp (kW) | 24 (17.6) |
| Wheel formula | 4x4 |
| Engine type | 3 cylinders, KM385BT diesel engine |
| Engine displacement, cm3 | 1532 |
| Nominal fuel consumption g / kWh | 275 |
| Nominal engine crankshaft speed rpm | 2350 |
| Nominal traction force kN | 4.7 |
| Gearbox (transmission) | mechanical (3 forward + 1 reverse)x2 |
| Rear differential lock | Yes |
| Clutch | Dry, single-disc |
| Power steering | Yes |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed rpm | 540 |
| Maximum lifting capacity of mounted mechanism, kg | 420 |
| Wheelbase, mm | 1545 |
| Front wheel track, mm | 1000, 1100 |
| Rear wheel track, mm | 1000, 1080, 1240 |
| Front tire size | 6.0-12 |
| Rear tire size | 9.5-20 |
| Theoretical forward speed, km / h | 2.6-27.0 |
| Theoretical reverse speed, km / h | 2.5-9.4 |
| Fuel tank volume L | 17 |
| Engine crankcase volume, L | 6.5 |
| Gearbox and rear axle crankcase volume, L | 12.0 |
| Lift housing volume, L | 5.0 |
| Engine cooling system volume, L | 20 |
| Overall dimensions (LxWxH), mm | 2950x1250x1940 |
| Structural weight, kg | 1022 |
Dimensions of 2950x1250x1940 mm and a structural weight of 1022 kg ensure good maneuverability and stability during field work. Variable track widths for the front (1000, 1100 mm) and rear (1000, 1080, 1240 mm) wheels allow adapting the tractor to row spacing and soil cultivation conditions. The combination of 6.0-12 front tires and 9.5-20 rear tires improves traction and reduces soil compaction.
Forward operating speeds from 2.6 to 27.0 km/h and reverse speeds from 2.5 to 9.4 km/h allow precise speed selection for various agricultural operations. A 17 L fuel tank capacity and volumes of crankcases and systems (engine crankcase 6.5 L, gearbox and rear axle crankcase 12.0 L, lift housing 5.0 L, cooling system 20 L) ensure long operation between services. The mechanical gearbox with two ranges (x2) facilitates precise gear selection under load.
The Faighter XT-244 mini tractor is a reliable combination of compactness, power, and functionality for small and medium-sized farms, utility services, and private users who value ease of maintenance and versatility of application.
