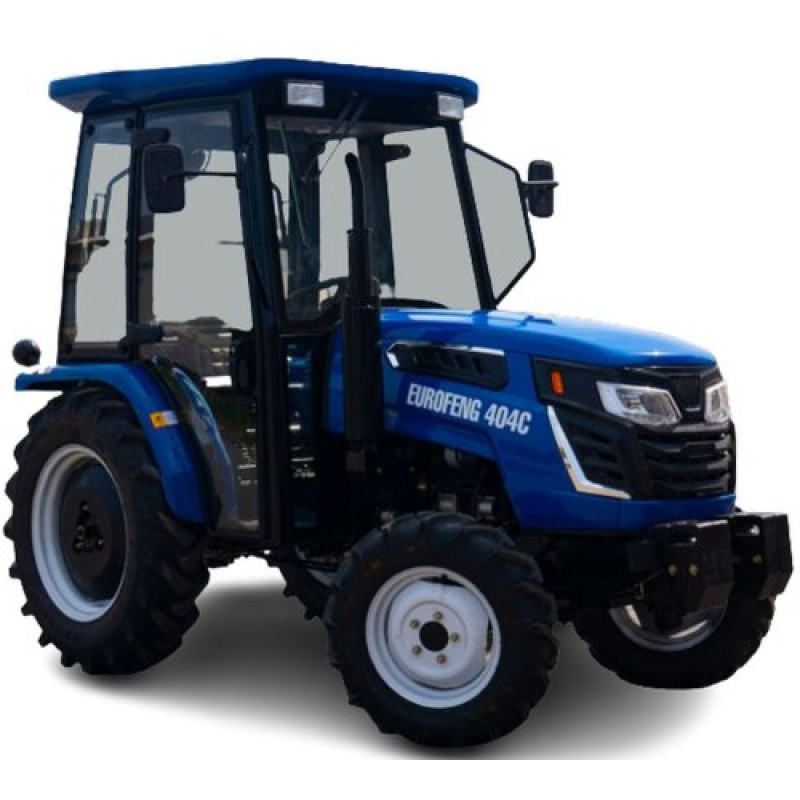

EURO FENG 404 C Mini Tractor — Reliable and Versatile Assistant
The EURO FENG 404 C mini tractor from the manufacturer EURO FENG is a compact yet powerful unit in the Tractors > Mini Tractors category, designed for a wide range of agricultural tasks: soil cultivation, sowing, fertilizing, working with mounted and trailed equipment, and transporting goods over short distances. The heart of this model is a JDM390T3 vertical 4-cylinder diesel engine with forced liquid cooling and direct injection, ensuring high power and economical fuel consumption.
Key parameters: power 40 hp (29.3 kW), wheel formula 4x4, engine displacement 2543 cm3, cylinder bore and piston stroke 90 x 1000. Nominal engine speed — 2350 rpm, nominal fuel consumption — ≤238 g/kWh. Fuel system — plunger-type in-line fuel pump. Recommended engine oil — mineral or semi-synthetic for diesels.
The transmission features a (4+1)x2 gearbox with a dry twin-disc clutch. The type of oil in the gearbox, front, and rear axles is transmission oil. The rear differential has a lock (indicated by "+"), which increases проходимость on difficult terrain. The braking mechanism is drum-type. For convenient maneuvering, power steering with a separate pump and oil tank is provided.
The power take-off (PTO) operates at speeds of 540/720 rpm. The hydraulic system is equipped with a gear pump, and the maximum lifting capacity of the three-point hitch is 550 kg. The cooling fan drive is a V-belt transmission, and the engine cooling system volume is 5.0 L.
Dimensions and operational metrics: minimum ground clearance — 330 mm, wheelbase — 1830 mm. Rear wheel track is available in variants 1300 / 1400 / 1560 mm, front — 1300 mm. Tire size: rear 11.20 - 28.00, front 7.50 - 16.00. Minimum turning radius with one-sided brake — 2.6 m, without brake — 3.0 m. Theoretical travel speed: forward — from 0.39 to 31.97 km/h, reverse — from 0.51 to 12.76 km/h.
Capacities and weights: fuel tank volume — 30.0 L, engine crankcase volume — 4.5 L, gearbox, rear axle, and lift crankcase volume — 18.0 L, front axle crankcase volume — 8.0 L. Overall dimensions (LxWxH): 3340x1570x2000 mm, curb weight — 2311 kg.
Technical Specifications:
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | JDM390T3 |
| Engine type | vertical, 4-cylinder 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 2543 |
| Cylinder bore / piston stroke | 90 x 1000 |
| Nominal engine fuel consumption, g/kWh | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal engine crankshaft speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (transmission) | (4+1)x2 |
| Oil type in gearbox, rear axle | transmission oil |
| Oil type in front axle | transmission oil |
| Rear differential lock | + |
| Clutch | dry, twin-disc |
| Power steering | with separate pump and oil tank |
| Cooling system fan drive | V-belt transmission |
| Braking mechanism | drum-type |
| PTO speed, rpm | 540/720 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of three-point hitch, kg | 550 |
| Minimum ground clearance, mm | 330 |
| Wheelbase, mm | 1830 |
| Wheel track, mm | rear 1300 / 1400 /1560, front 1300 |
| Tire size | rear 11.20 - 28.00, front 7.50 - 16.00 |
| Minimum turning radius, m | with one-sided brake 2.6, without brake 3.0 |
| Theoretical travel speed, km/h | forward 0.39 - 31.97, reverse 0.51 - 12.76 |
| Fuel tank volume, L | 30.0 |
| Engine crankcase volume, L | 4.5 |
| Gearbox, rear axle, and lift crankcase volume, L | 18.0 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3340x1570x2000 |
| Curb weight, kg | 2311 |
The EURO FENG 404 C is ideal for farms and private entrepreneurs who need a reliable mini tractor with good off-road capability, high lifting capacity for mounted equipment, and economical fuel consumption. Thanks to the differential lock, power steering, and track adjustment options, this mini tractor demonstrates versatility in use on fields, gardens, and small plots.
Main advantages: economical JDM390T3 diesel engine, comfortable maintenance, optimal dimensions for working in confined spaces, reliable (4+1)x2 transmission, and the ability to use various mounted and trailed equipment.
