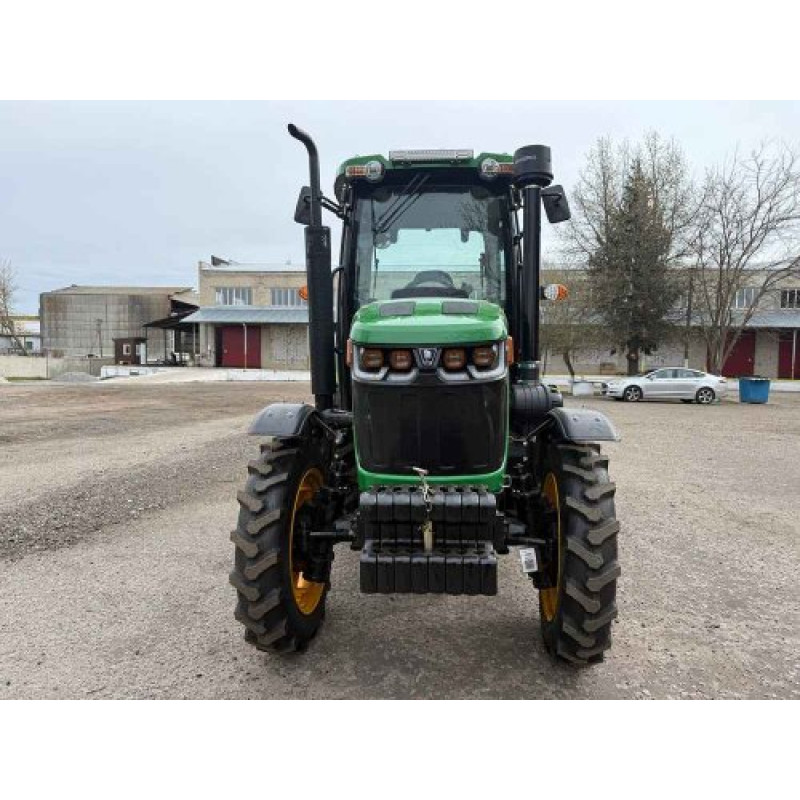

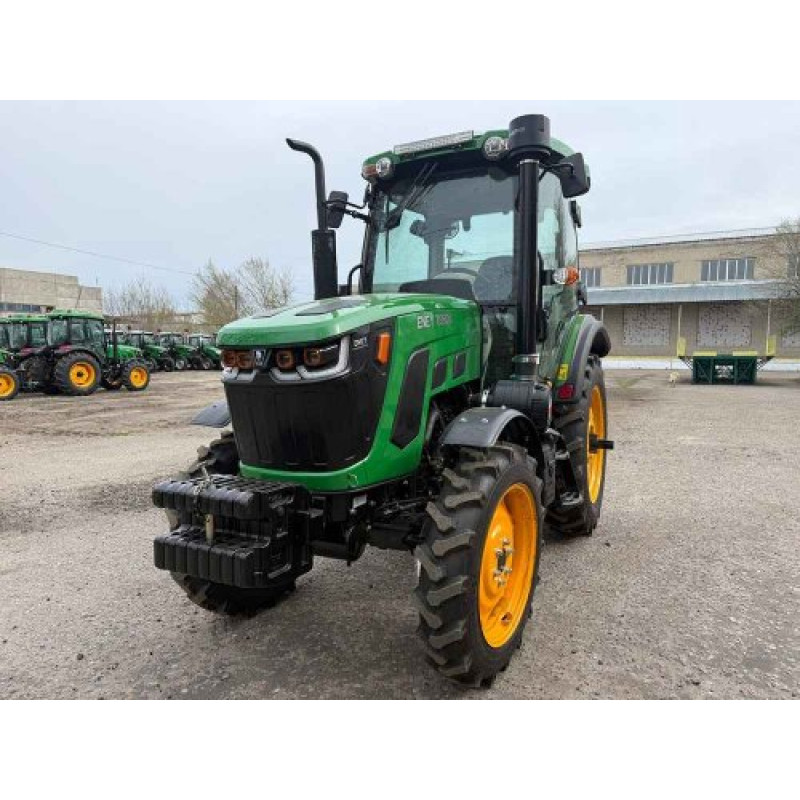

Mini Tractor ENEY TV504 is a reliable and versatile machine from the manufacturer ENEY, designed for intensive work in agriculture, municipal services, and large private plots. The TV504 model combines a powerful diesel engine, 4x4 all-wheel drive, and a wide range of capabilities for soil cultivation, seedbed preparation, fodder harvesting, cargo transportation, and operation with mounted equipment.

The heart of the tractor is a 4-stroke diesel engine YTO 4100 with four vertically arranged cylinders. The engine features an electric starter and a closed liquid cooling system with forced circulation, a volume of 3170 cm3, and a nominal power of 50 hp (36.8 kW). Its efficiency is confirmed by a nominal fuel consumption of ≤243 g/kWh, and the nominal traction force is 13.5 kN.

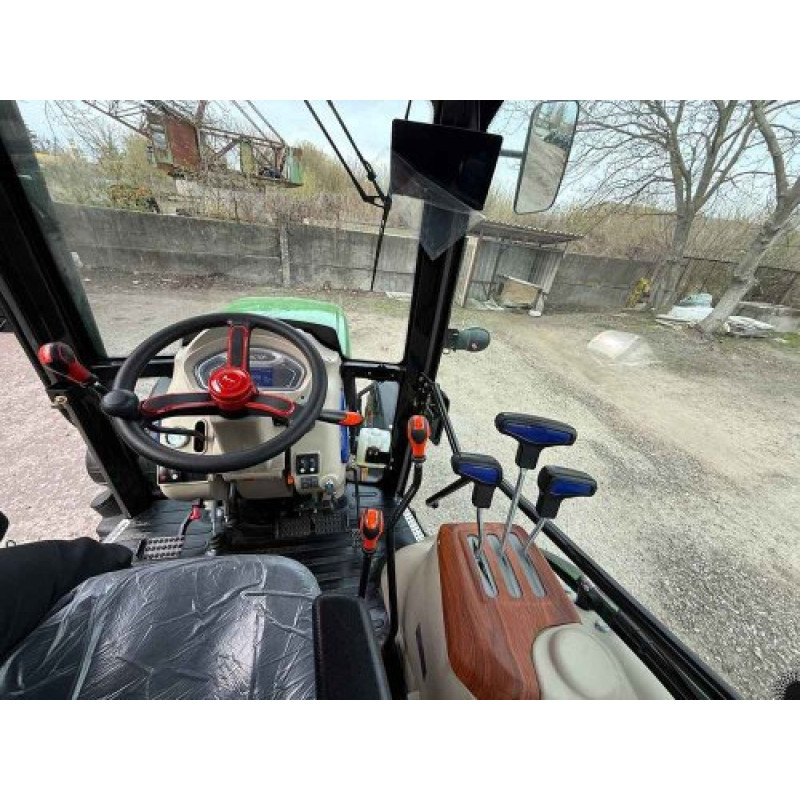

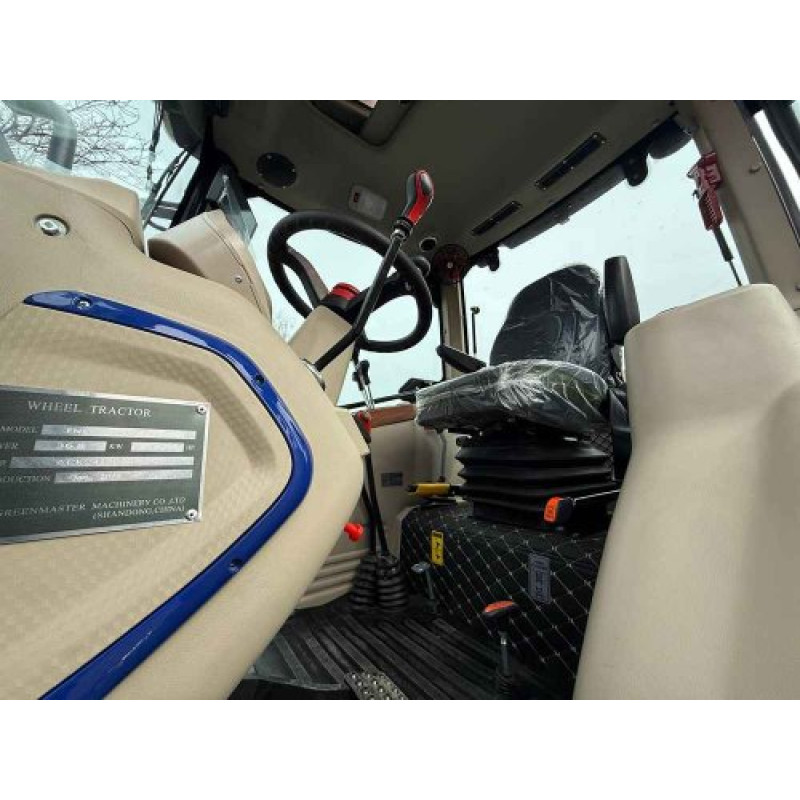

The transmission features a (4+4)x3 gearbox configuration, providing a wide range of speeds for field and transport operations. The clutch system is a dry 2-disc constantly closed type; the presence of a rear differential lock and a direct main drive increases off-road capability and reliability on challenging terrains. The steering is hydraulic, reducing operator fatigue during prolonged use.

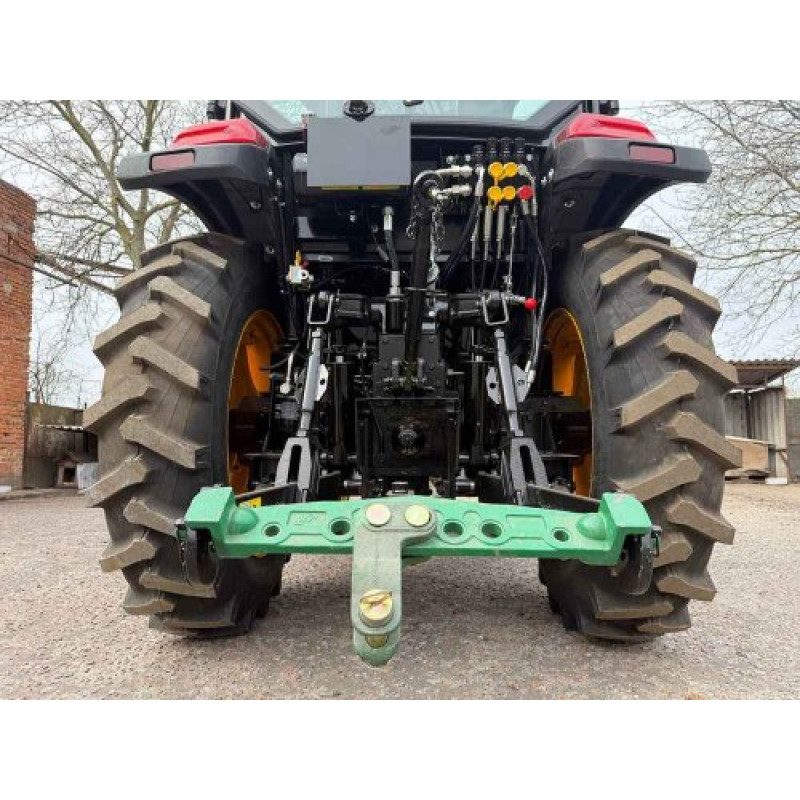

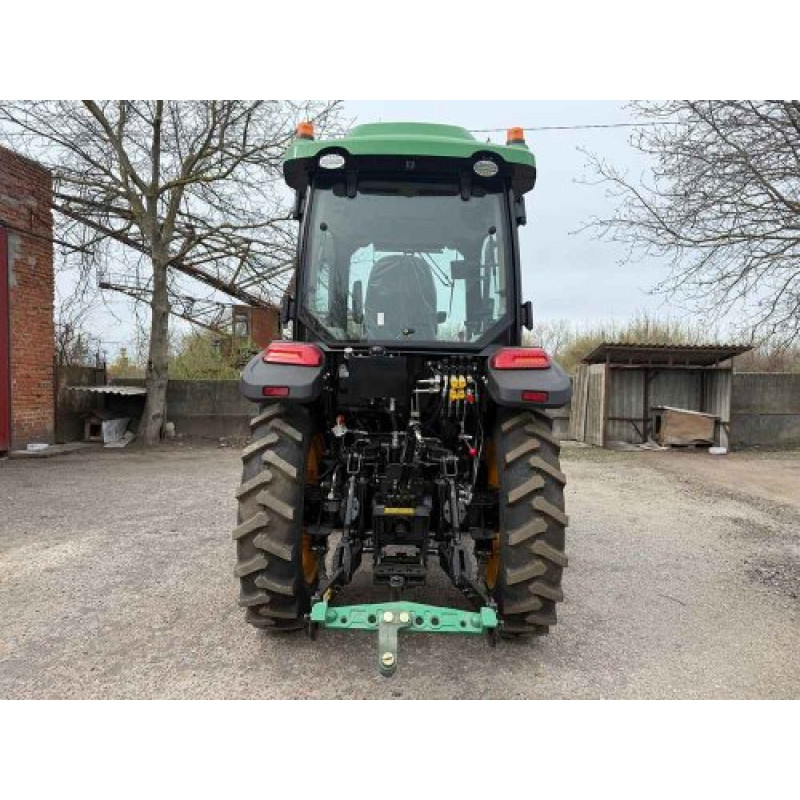

For working with mounted and trailed equipment, a rear splined power take-off (PTO) shaft is provided with 540/1000 rpm modes. The hydraulic system is based on gear pumps (NSH) — one for driving the hitch and a separate NSH for power steering operation; the lifting capacity of the hitch mechanism is 880 kg. There are 2 hydraulic outlets for connecting additional functions, a trailer connector (socket), and a compressor for servicing auxiliary systems.

The braking system is implemented on the secondary shaft of the gearbox with brake drums. The cooling system fan drive is a V-belt transmission, ensuring stable cooling operation in various operating modes. The wheel formula is 4x4, providing high off-road capability.

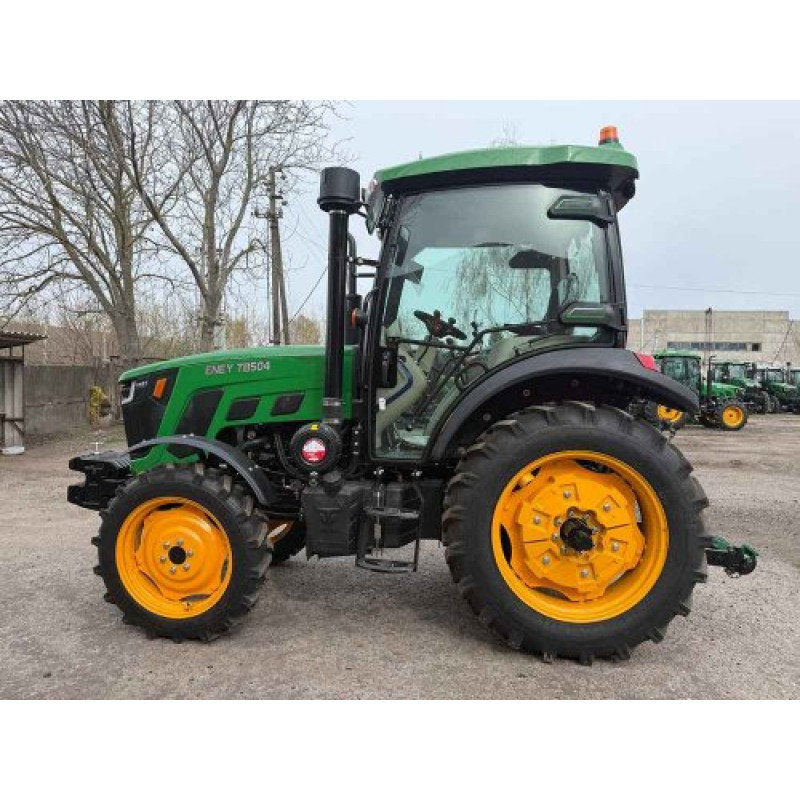

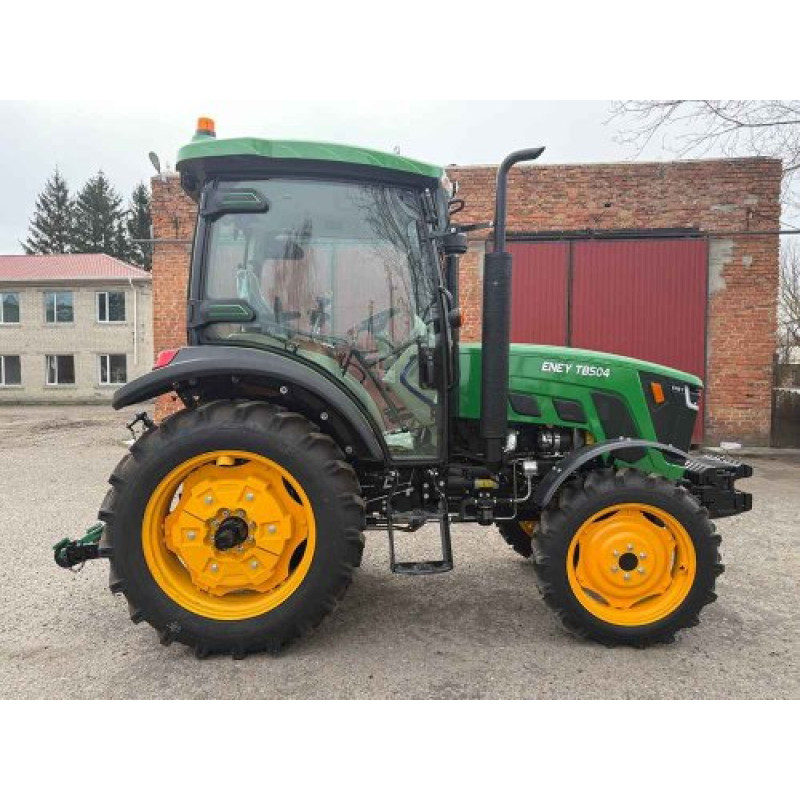

Dimensions and Weight: The tractor's dimensions are 3860x1680x2600 mm, curb weight is 3100 kg, and ground clearance is 310 mm. Tires: front 8.3-24, rear 11.2-32. The front wheel track is adjustable within 1275-1355 mm, and the rear within 1270-1480 mm. These parameters ensure stability, maneuverability, and the ability to work on uneven terrain.

Specifications:

The Mini Tractor ENEY TV504 is ideally suited for a wide range of tasks: soil cultivation, seedbed preparation, mulching, fodder harvesting, operation with various municipal equipment, and working with trailers and mounted implements. Thanks to its powerful engine, reliable transmission, and extended hydraulic capabilities, this model is a profitable investment for farmers, private households, and businesses that value versatility and durability.

Product Type: Tractors > Mini Tractors. Manufacturer: ENEY. Model: TV504.

Additional advantages: simple maintenance, availability of spare parts for the YTO engine, presence of 2 hydraulic outlets, extended configuration for connecting implements, trailer connector and compressor, which enhance functionality and ease of operation.
