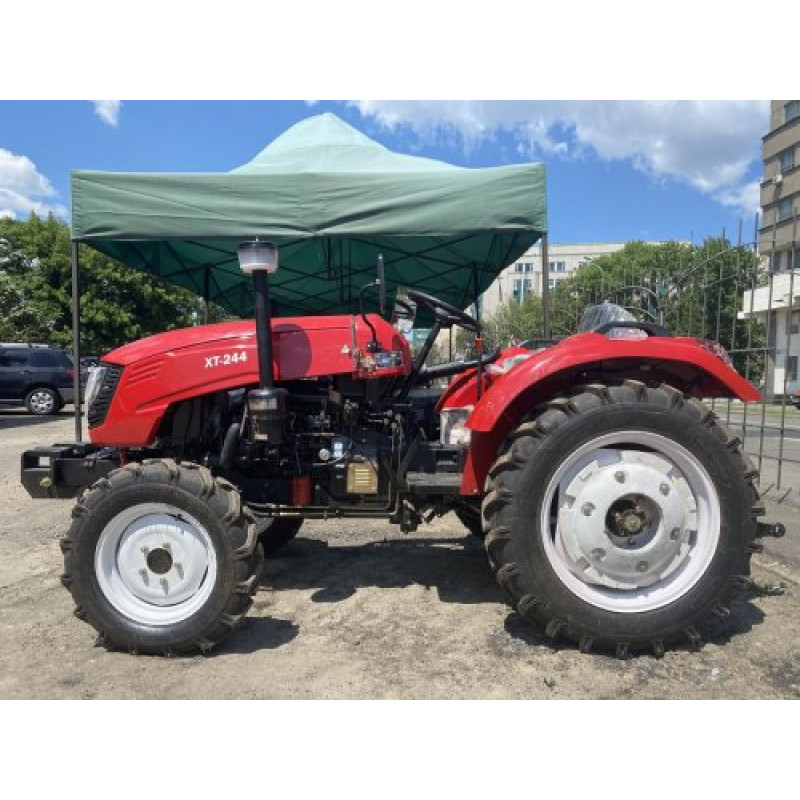

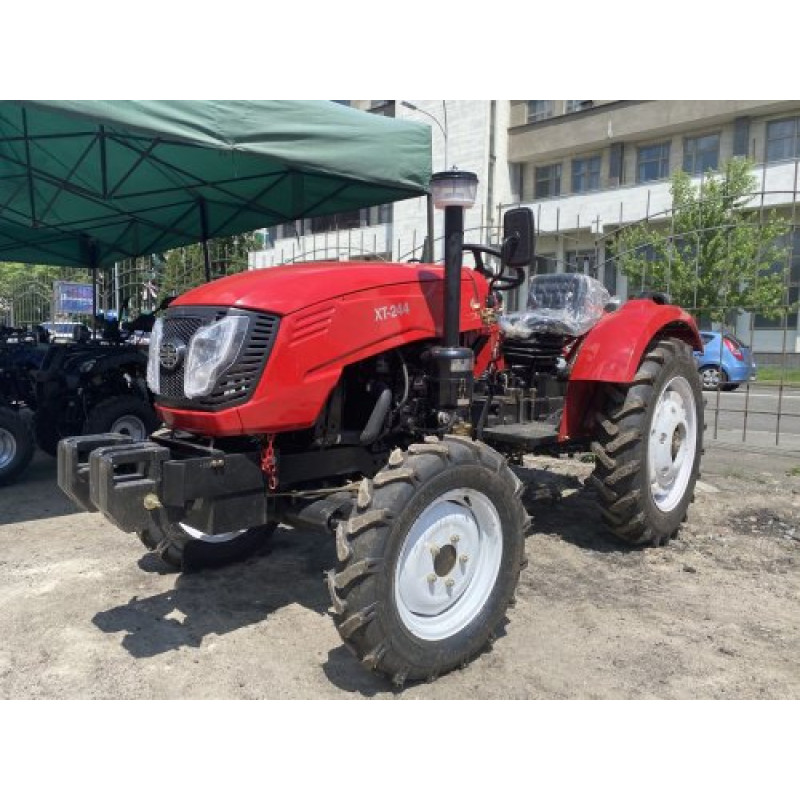

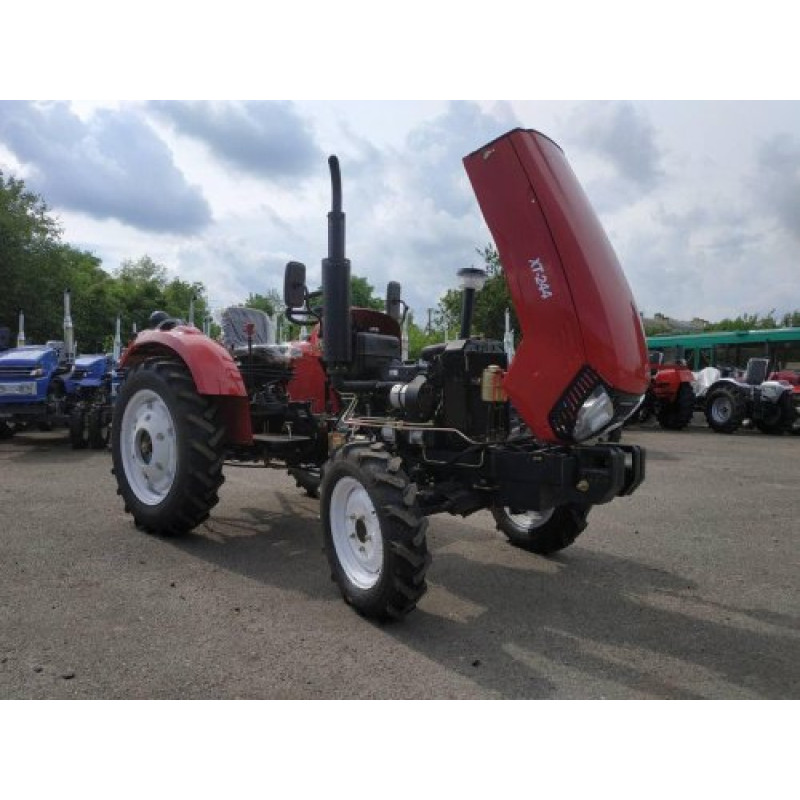

Xingtai XT-244 LUX Mini Tractor
Manufacturer: Xingtai. The Xingtai XT-244 LUX mini tractor is a compact, reliable, and productive unit that combines modern mechanics with ease of maintenance. This model is designed for various agricultural, municipal, and household tasks: cultivating small fields, haymaking, soil preparation, area cleaning, and transporting goods on the farm.
Key Advantages and Purpose
The XT-244 LUX is equipped with a KM 385 BT diesel engine with a nominal power of 24 hp (17.6 kW), ensuring sufficient resources for working with mounted and trailed equipment. The drive type is 4x4, which increases проходимость on difficult terrains and in cross-country conditions. The transmission has (4+1)x2 gears, providing convenient control and optimal fuel consumption. Universal PTO speeds of 540/720 rpm allow connecting a wide range of mounted equipment, and the steering with hydraulic power assist makes the operator's work less tiring.
The engine has 3 cylinders, a cylinder bore of 85 mm, and a piston stroke of 90 mm. Fuel consumption is up to 244 g/(kW*h), making the model economical for daily tasks.
The model's wheelbase is 1,560 mm, overall dimensions are 3,100 mm x 1,240 mm x 1,940 mm, ensuring compactness for maneuvering and stability when working with trailed equipment. The agricultural ground clearance is 330 mm, clearance is 220 mm, front track is 980 mm, and the rear track is adjustable from 980 mm to 1,100 mm, allowing the tractor to adapt to various crops and working conditions.
The clutch is a single-disc dry type, and the machine's weight is 1350 kg. Wheel sizes: front 6.50x16, rear 9.50x24. These technical parameters, combined with a robust chassis, ensure long service life and reliable operation.
Detailed technical specifications for the Xingtai XT-244 LUX model are listed below:
| Wheel formula | 4x4 |
| Engine model | KM 385 BT |
| Engine power, hp and kW | 24 hp or 17.6 kW |
| Number of engine cylinders | 3 |
| Cylinder bore | 85 mm. |
| Piston stroke | 90 mm. |
| Fuel consumption | up to 244 g/(kW*h) |
| Wheelbase, mm | 1,560 mm. |
| Overall dimensions, mm | 3,100 mm x 1,240 mm x 1,940 mm |
| Front wheel track, mm | 980 mm. |
| Rear wheel track, mm | 980 mm - 1,100 mm |
| Agricultural ground clearance, mm | 330 mm. |
| Clearance, mm | 220 mm. |
| Weight, kg | 1350 kg. |
| Drive type | 4x4 |
| Number of gears | (4+1)x2 |
| Clutch | Single-disc dry |
| PTO speed, rpm | 540/720 rpm |
| Front wheel size | 6.50x16 |
| Rear wheel size | 9.50x24 |
| Steering type | Hydraulic power assist |
The Xingtai XT-244 LUX model is ideal for farmers and private households who need versatile and economical equipment. The reliability of the KM 385 BT engine, the ability to connect a wide range of mounted equipment thanks to the 540/720 rpm PTO, and adjustable tracks make this mini tractor a flexible tool for various tasks. For selecting mounted or trailed equipment, as well as for other technical questions, we recommend contacting the dealer, taking into account the specifics of your work and required operating modes.
Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. Manufacturer: Xingtai.
