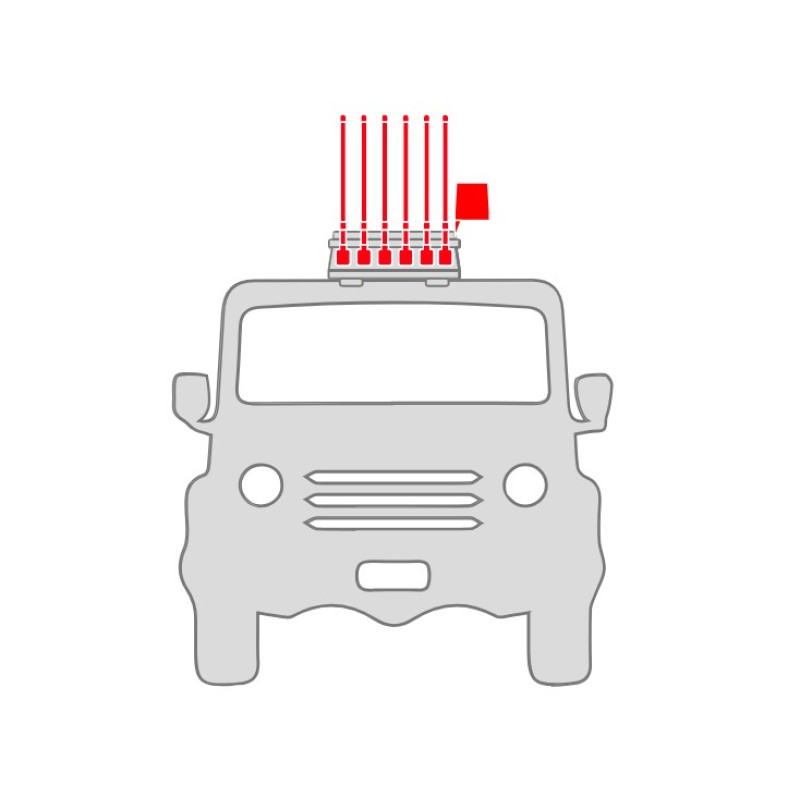

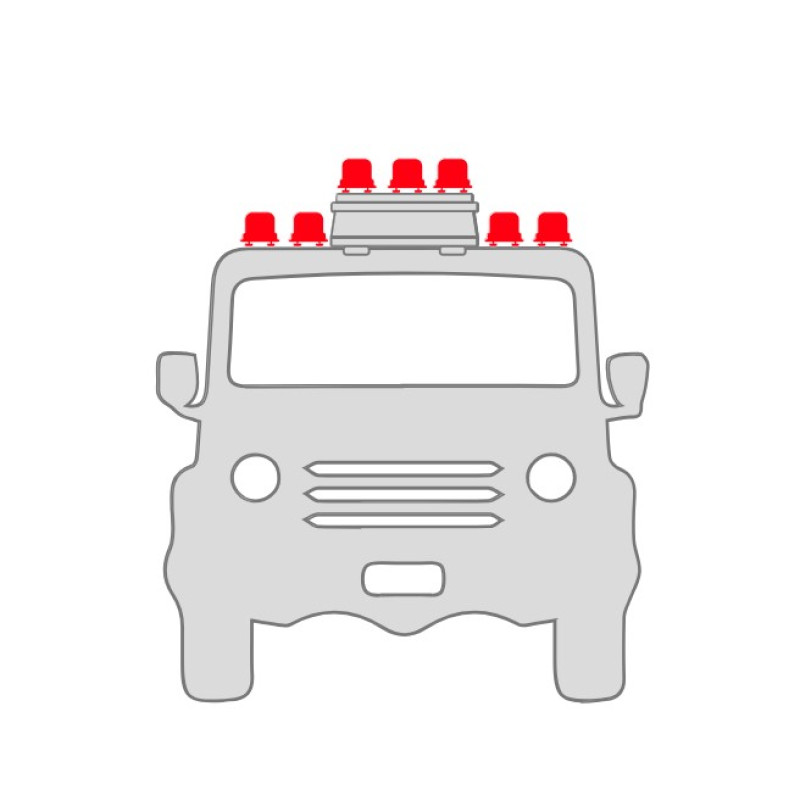

Lokki anti-drone EW system for vehicles is a dome-type vehicle-mounted short-range EW complex designed to counter FPV drones. The complex is housed in a protected box that can be mounted on the roof of a car or other vehicle.
This EW jammer for the Armed Forces of Ukraine blocks frequencies in the 200–5850 MHz range at a distance of up to 500 meters, effectively jamming reconnaissance drones or FPV kamikaze drones. It includes a control panel for quick power on/off and mode switching.
This EW dome is an ideal solution for mobile protection of equipment and vehicles. It is already used for front-line defense, object protection, and convoy escort.
Lokki XL EW complex with 7 antennas – mobile dome anti-drone system for the Armed Forces of Ukraine
The Lokki XL EW complex with 7 antennas is a modern mobile dome-type electronic warfare system designed for military use. Thanks to six omnidirectional antennas, the system provides 360-degree coverage and effective UAV suppression on all main frequencies up to 5.85 GHz.
- Mounts on any vehicle
- Remote control operation
- Can operate autonomously
- Integrates into a common defense system
- Effective against reconnaissance and attack drones
The complex is ideal for the Armed Forces of Ukraine, mobile groups, headquarters, and trenches. It is a reliable solution for suppressing enemy drones, helping to protect military positions and critical infrastructure.
Technical advantages:
7 powerful antennas
Dome placement for maximum coverage
Frequency range: up to 5850 MHz
Compatibility with various types of transport
Supports autonomous operation
Purpose:
EW for the Armed Forces of Ukraine
Trench EW
Vehicle-mounted dome EW
Short-range anti-drone jammer
Technical specifications of the Lokki 7 anti-drone EW complex
- From 100 to 5850 MHz
Any of the available ranges can be selected: 200-300 MHz, 300-400 MHz, 400-500 MHz, 500-610 MHz, 610-720 MHz, 720-840 MHz, 840-950 MHz, 950–1050 MHz, 1050–1200 MHz, 1200–1350 MHz, 1350–1500 MHz, 2400-2500 MHz, 5150-5350 MHz, 5725-5850 MHz - 50 W per antenna
Total output power. For each antenna (if 3 antennas, then 50W * 3 = 150W). 3 to 5 antennas can be installed - 500 m
Effective operating distance. - up to 500 W
Power - AC 110-240V or DC 12V-24V
Power supply - -25 - +65 C
Operating temperature - 47dBm
Average output power - 9.5 kg
Kit weight (housing + antennas) - GaN technology
New GaN semiconductor technology. Better efficiency, less heat generation, and smaller size. - Dual active
Cooling - Reverse polarity
Reverse polarity protection - Ukraine
Manufacture

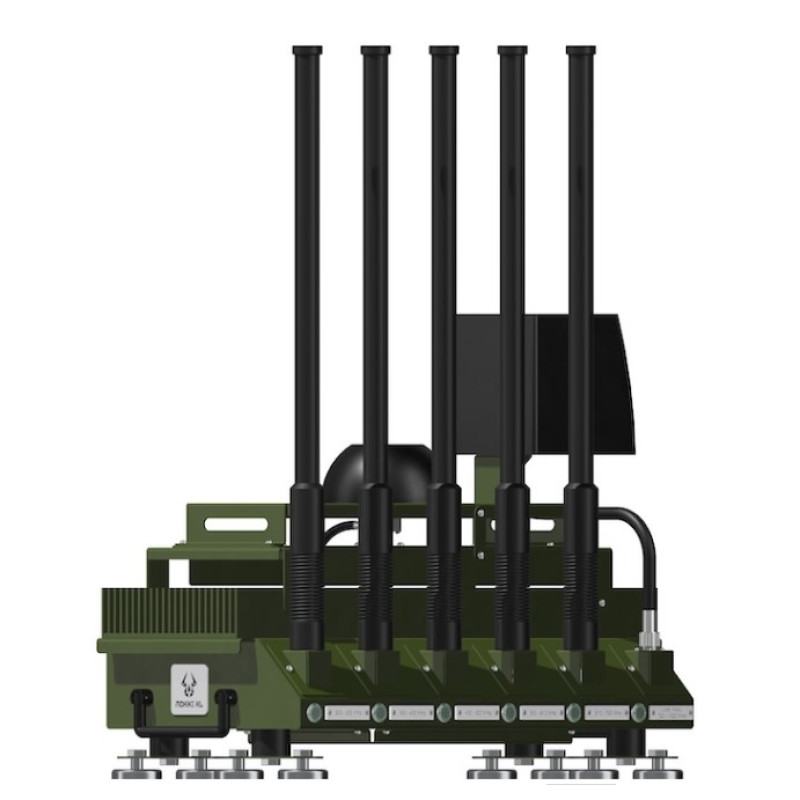

Lokki XL dome EW complex with 7 antennas – EW jammer for vehicles
- 7 antennas
The number of antennas can be selected depending on needs. Any of the possible ranges can be selected for each antenna. - Control panel
Power control panel that can be installed in the vehicle cabin — 1 pc. - Power cable
Cable for connection to the on-board network — 1 pc. - Lokki complex
Assembled complex — 1 pc. - Documentation
Passport and user manual — 1 pc.
