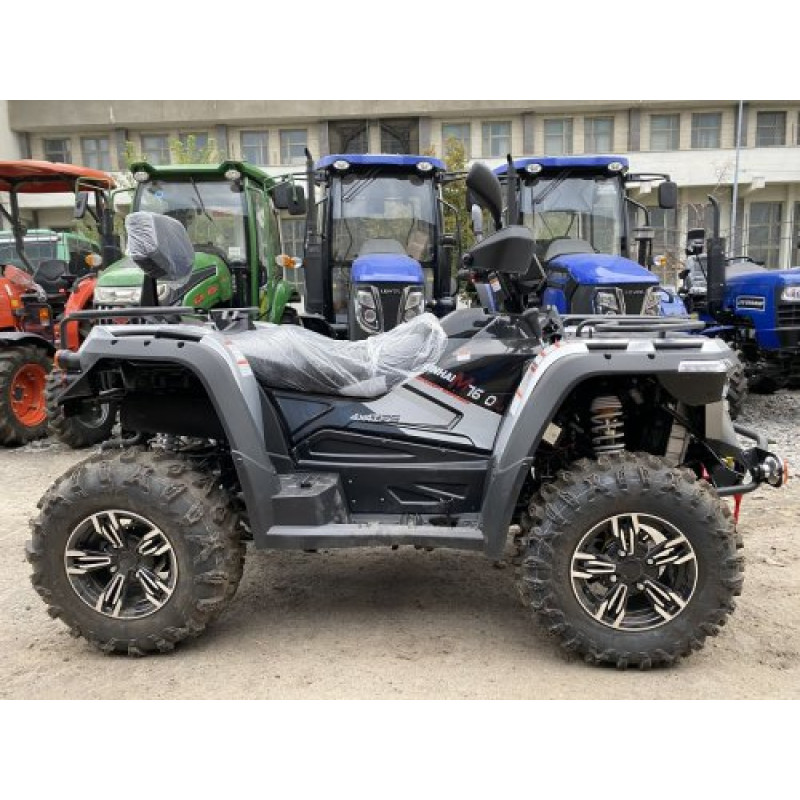

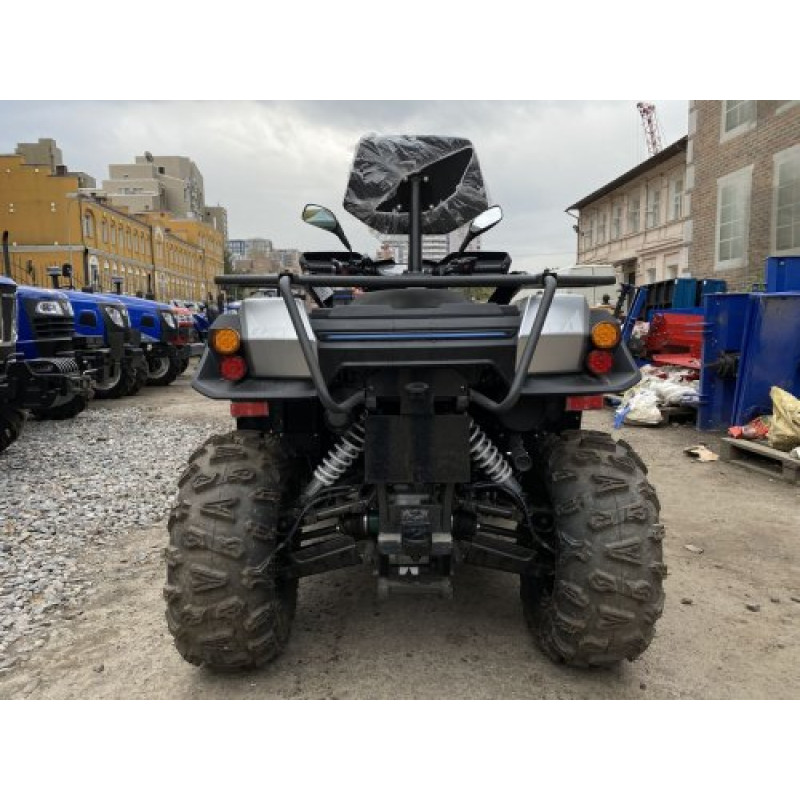

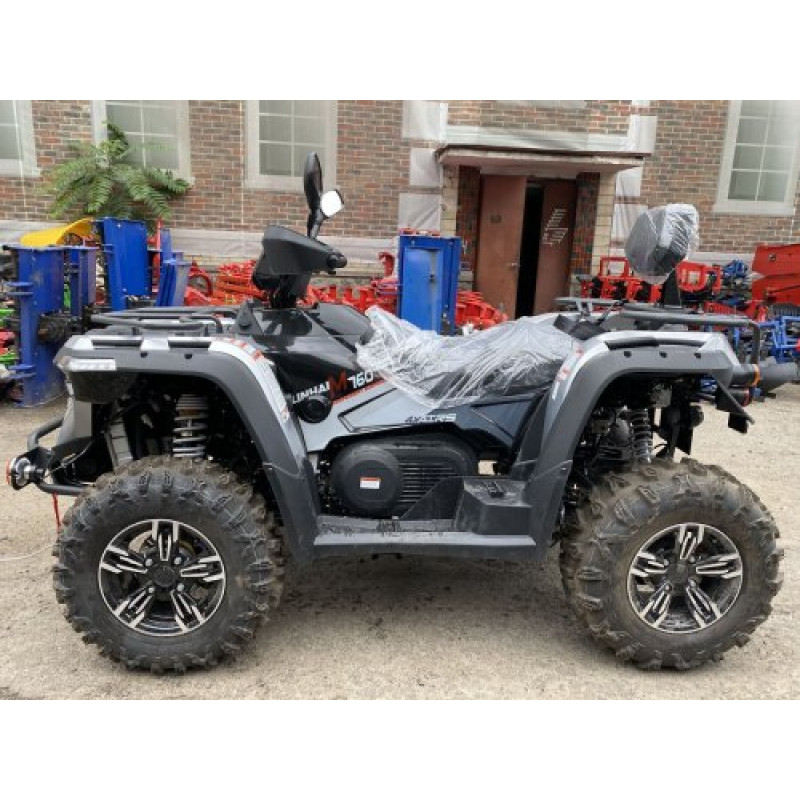

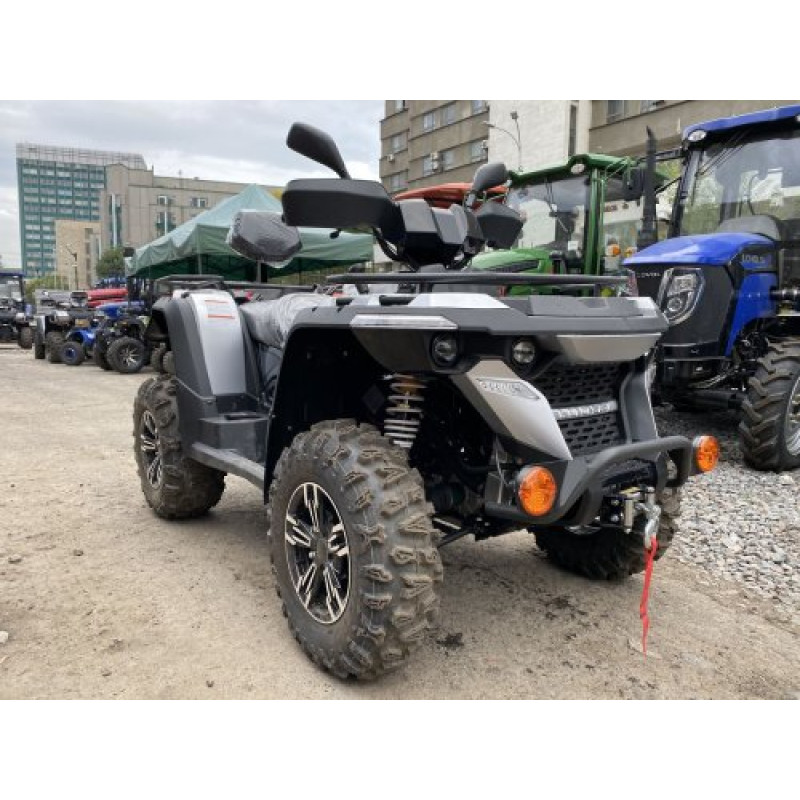

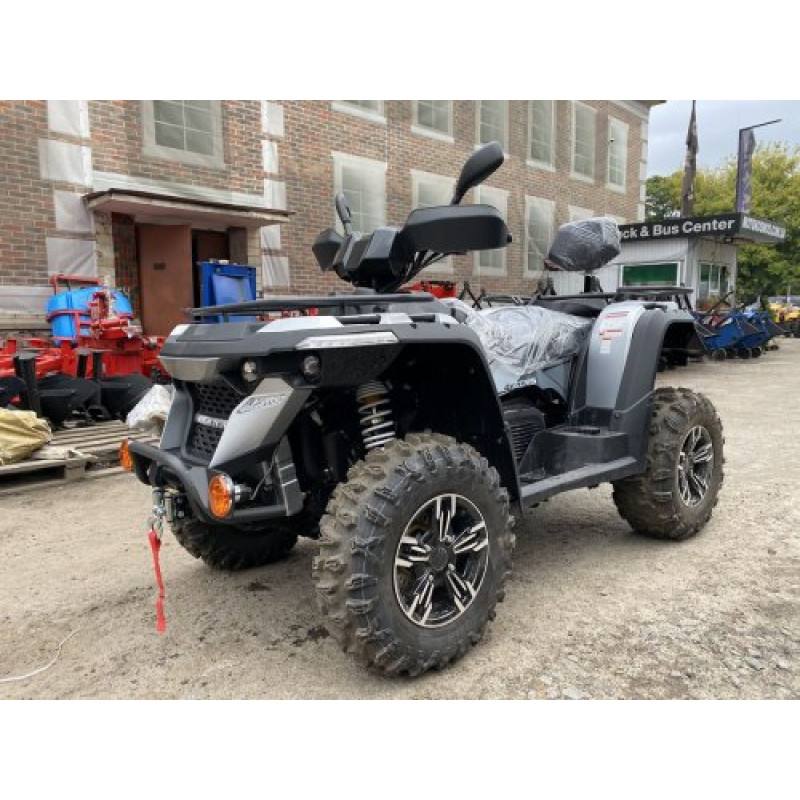

Linhai M760Li EFi — Off-Road ATV
The Linhai M760Li EFi from the LINHAI brand is a professional, versatile 2020 ATV that combines high traction, reliable construction, and modern electronics. The model is designed for two passengers and features a reinforced tubular body kit integrated into the frame, allowing for the installation of additional storage boxes. Thanks to its robust frame and all-season Sun-F tires, the vehicle confidently tackles steep slopes and can tow a loaded light trailer at low speeds.
The standard configuration of the Linhai M760Li EFi includes a range of useful options that make it a versatile assistant in the field, on the farm, and off-road:
- power steering;
- electric winch;
- alloy wheels;
- sturdy rear rack platform (tow hitch for towing);
- front and rear LED optics;
- durable front and rear bumpers;

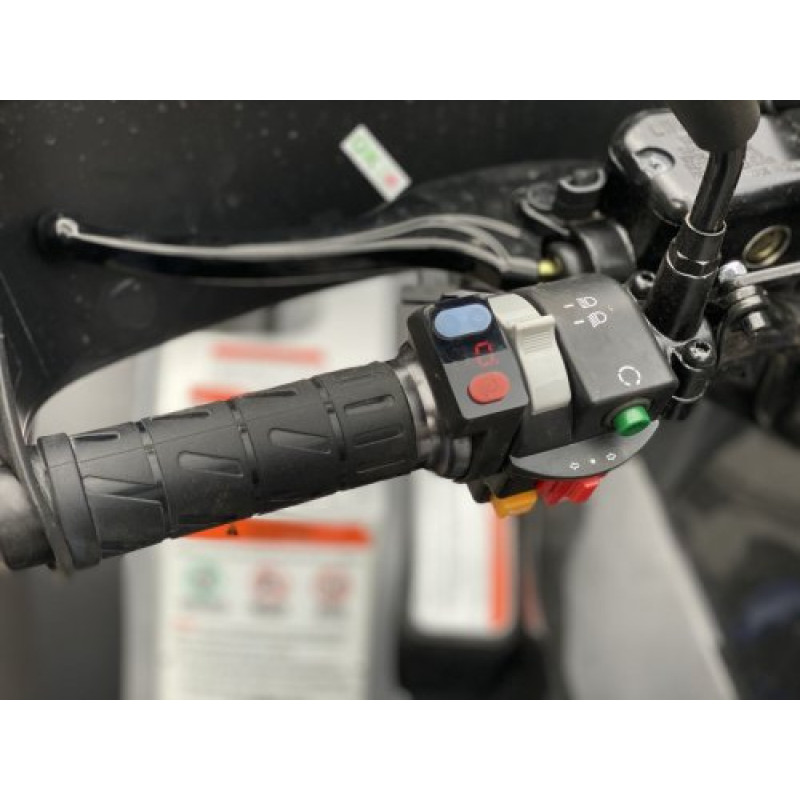

- handguards and heated handlebar grips.
Engine
The heart of the ATV is a single-cylinder 4-stroke gasoline engine with a displacement of 700 cm3 and an EFI system from DELPHI, which ensures an optimal fuel mixture ratio and economical fuel consumption. The nominal power is 41 hp. The cooling system is liquid-based, guaranteeing stable operation in harsh conditions. Starting is done via an electric starter. Torque is transmitted to the wheels through an automatic transmission — a V-belt variator from the Canadian company CV-Tech with L / H / neutral / reverse modes.
Drive and Chassis
The M760Li EFi is equipped with switchable 2×4 / 4×4 all-wheel drive with front differential lock and an LSD system that limits slippage. Drive mode switching is performed by a convenient electric switch. Front and rear hydraulic disc brakes provide effective braking, and the parking brake locks the rear caliper with a manual drive and a lock on the handlebar. Suspension: front — independent, McPherson struts; rear — independent on double A-arms with an anti-roll bar.
Optics and Electronics

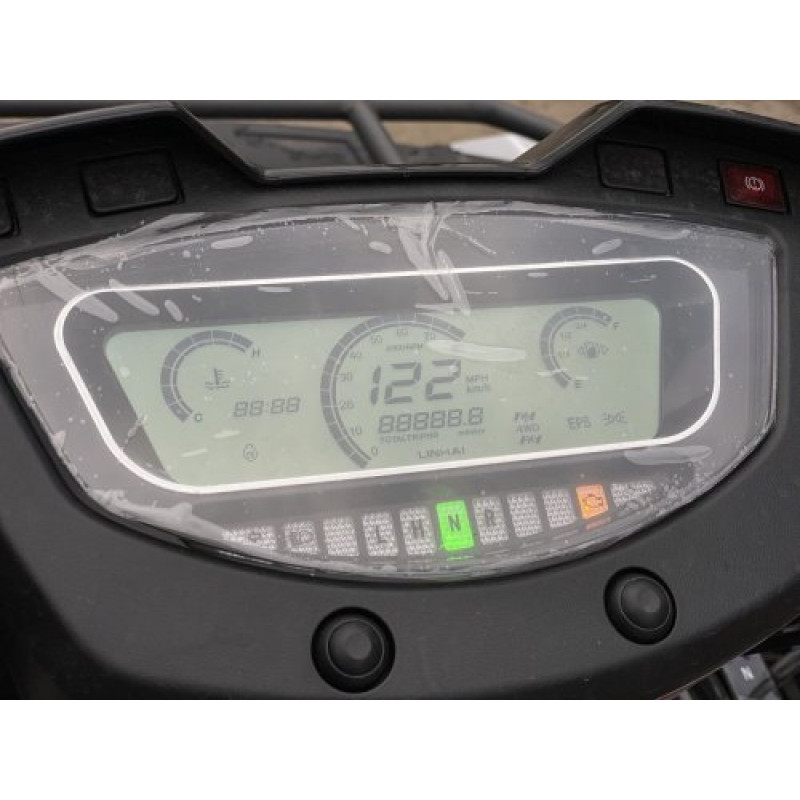

The ATV is equipped with powerful projection headlights for excellent nighttime illumination and an LED strip with 16 diodes on the rear bumper for reliable visibility. The instrument panel with an LCD screen displays speed, RPM, mileage, engine hours, coolant temperature, gear indicators, and turn signals.
Additional Equipment and Options
The Linhai M760Li EFi is available with a rich package of options that enhance comfort and functionality:

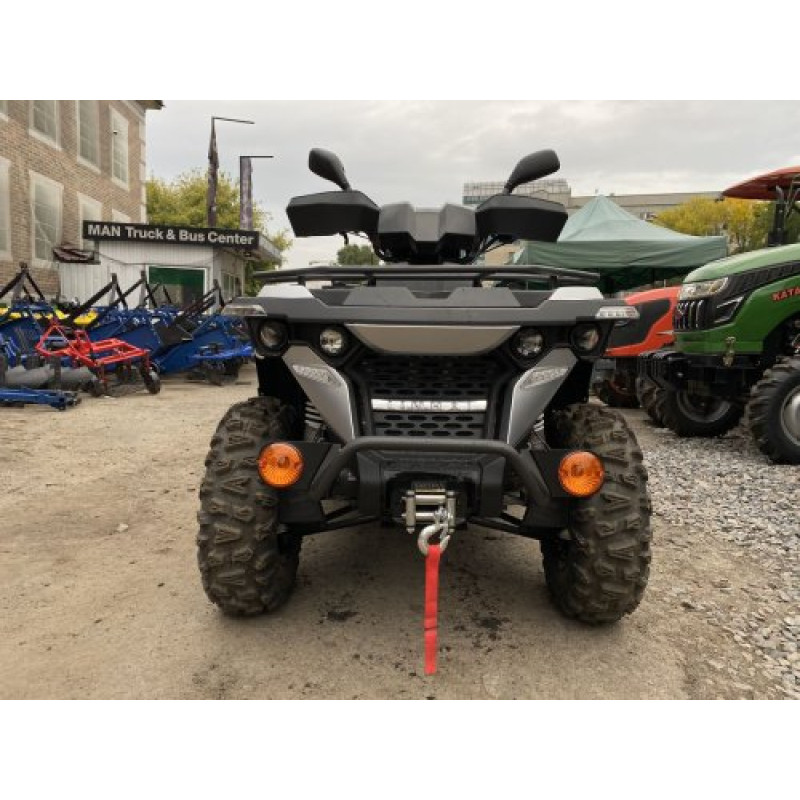

- massive front bumper;
- electric winch, rated for 1360 kg;
- tow hitch for towing a loaded trailer;
- handguards;
- heated grips;
- remote engine start and stop;
- audible alarm for turning and reverse operation;
- powerful front and rear hydraulic disc brakes combined with a parking brake.
The purchase process is organized for maximum convenience: various payment schemes are available — prepayment, full cash payment, installment plan, or credit.
Specifications:
| Engine power, hp | 41 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 700 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Nominal engine RPM, rpm | 6900±150 |
| Torque, Nm / rpm | 59 at 5000 |
| Transmission (КП) | automatic (V-belt variator) |
| Transmission modes | L/H/neutral/reverse |
| Rear differential lock | yes |
| Final drive | direct |
| Front brakes | hydraulic, disc on each wheel with lever actuation (combined with rear brake) |
| Rear brake | hydraulic, disc on wheel axle with pedal actuation (combined with front brakes) |
| Parking brake | locks rear caliper with manual drive and handlebar lock |
| Brake hoses | reinforced |
| Wheelbase, mm | 1350 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 14.2 |
| Dimensions, LxWxH mm | 2370x1185x1265 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent on double A-arms with anti-roll bar |
| Average fuel consumption, L / 100 km | 6 |
| Equipment | rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch |
| Electrics | Front lenses with H4 halogen lamps 35W (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | sealed lead-acid, 12V 18Ah |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguards, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional storage boxes |
Brand: LINHAI. Category: Motor Vehicles > ATVs. The model is ideal for farmers, hunters, fishermen, and extreme sports enthusiasts looking for a reliable and multifunctional ATV.
