* with 24 V, 15 A-h battery - 203,000 UAH excluding VAT

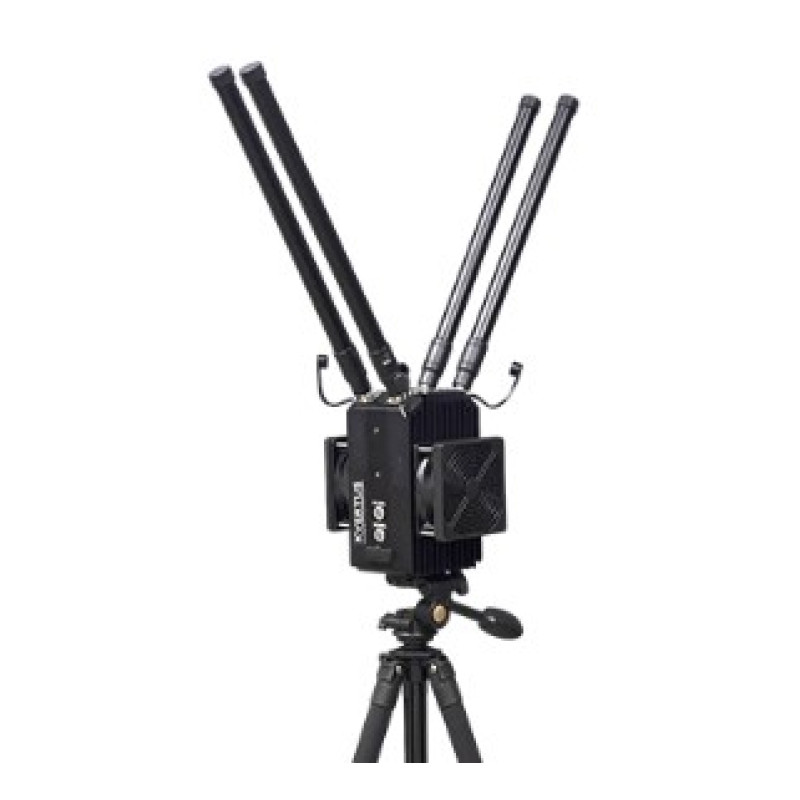

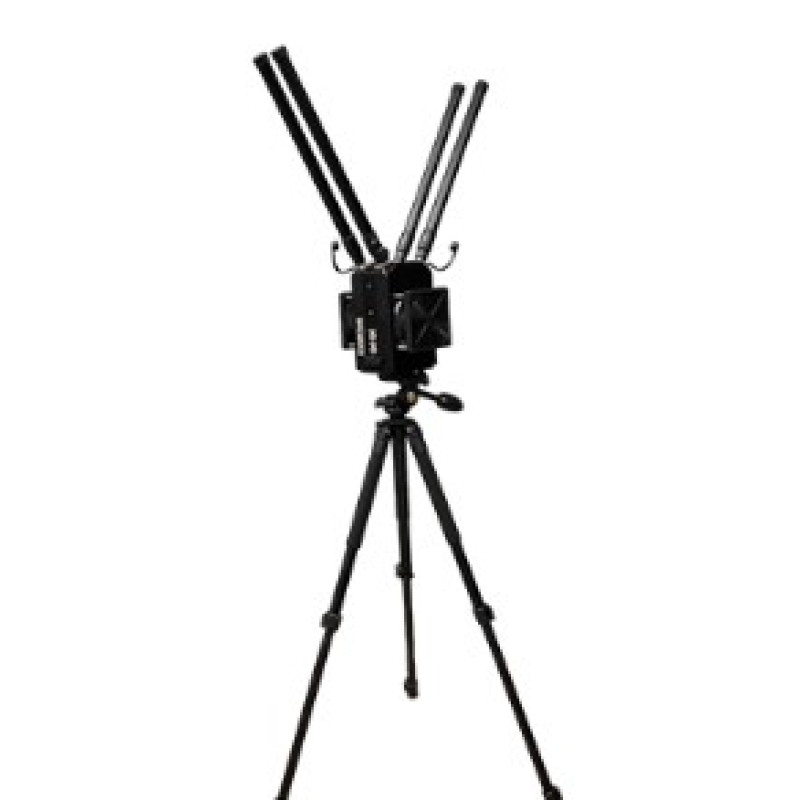

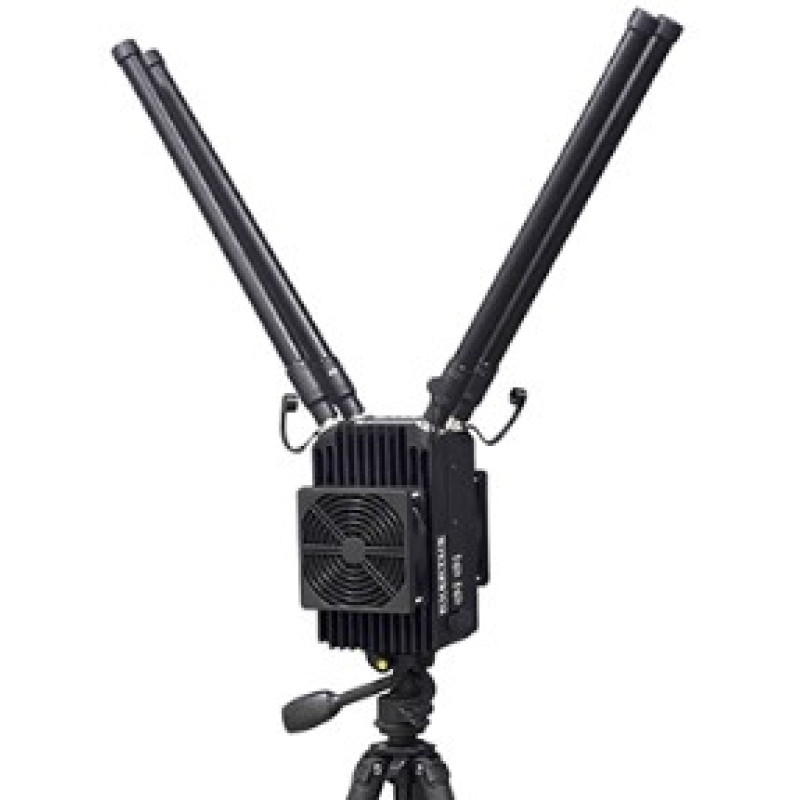

KVERTUS AD COUNTER FPV F2 M30 — an electronic warfare (EW) jammer designed to counter FPV drones in two radio frequency bands. Manufacturer: Kvertus. Category: EW Jammers > Trench EW Jammers.

The device is designed for rapid suppression of FPV drone control and video transmission channels. The jammer can be mounted on vehicles, providing a mobile protection platform. It comes with an IP-1 field indicator, which allows for quick and accurate determination of whether the device is emitting a radio signal under any conditions.

Selection of radio jamming bands (M30 variant — 30 W modules)

From the listed bands, you can choose any two. Two modules of one band are installed (four modules in total).

Technical Specifications (M30 variant)

• Effective range: from 150 m (depending on application conditions).
• Power supply (without battery): 220 V AC, 50 Hz; vehicle electrical system.
• Power supply (with battery): 220 V AC, 50 Hz; 24 V, 15 A-h rechargeable battery; vehicle electrical system.
• Power consumption: no more than 500 W.
• Weight: in transport bag — 15 kg, deployed — 12 kg.
• Antennas: collinear omnidirectional.
• Continuous operation time from mains and vehicle power: 24 hours with a one-hour break.
• Battery operation time: up to 60 min.
• Cooling: active.

Package Contents

• KVERTUS AD COUNTER FPV F2 M30 (depending on selected modification) — 1 pc
• Passport – 1 pc
• Operating Manual – 1 pc
• Antennas — 4 pcs
• Power Supply Unit – 1 pc
• Battery Connector – 1 pc
• Tripod – 1 pc
• Carry Bag – 1 pc
• IP-1 Field Indicator – 1 pc

Selection of radio jamming bands (alternative configuration — increased power)

From the listed bands, you can choose any one.

Technical Specifications (alternative configuration)

• Effective range: from 200 m (depending on application conditions).
• Power supply (without battery): 220 V AC, 50 Hz; vehicle electrical system.
• Power supply (with battery): 220 V AC, 50 Hz; 24 V, 15 A-h rechargeable battery; vehicle electrical system.
• Power consumption: no more than 400 W.
• Weight in deployed state: no more than 7 kg (no more than 9 kg with battery).
• Antennas: collinear omnidirectional.
• Continuous operation time from mains — 24 hours, followed by a 1-hour break; from vehicle electrical system — depends on vehicle electrical system operation time, but no more than 24 hours, followed by a 1-hour break.
• Battery operation time: up to 60 min.
• Readiness time: no more than 30 s.
• Cooling: active.

KVERTUS AD COUNTER FPV F2 M30 — is a mobile, versatile, and customizable EW jammer that allows selecting the necessary bands and module configurations for specific tactical tasks. The devices come with everything needed for quick deployment and operation in field conditions.
