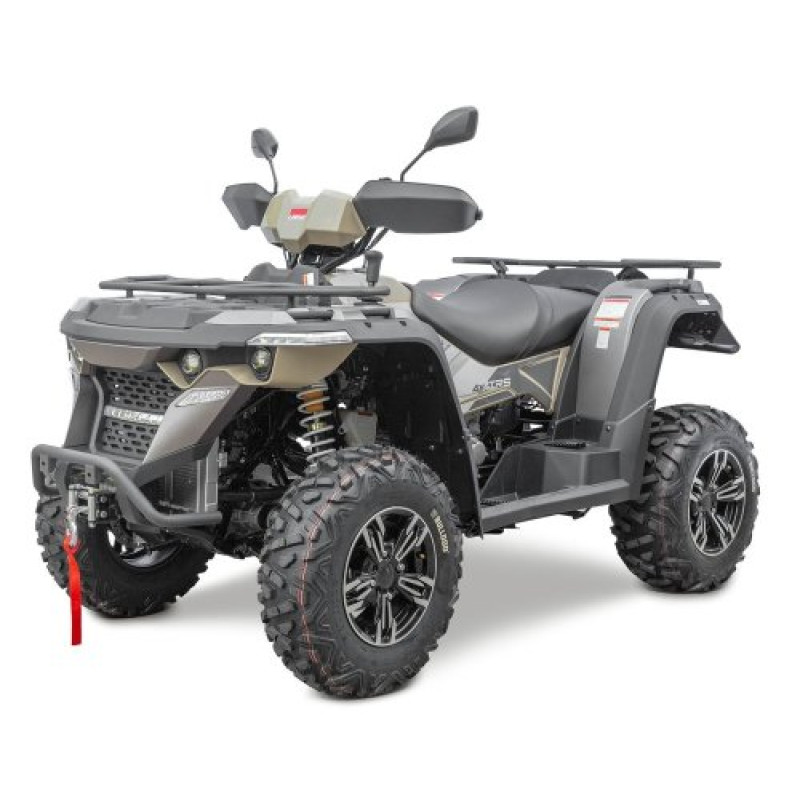

Linhai 650L Promax EFI EPS ATV
The Linhai 650L Promax EFI EPS ATV is a robust, versatile off-road vehicle from the LINHAI brand, designed for active recreation, farm work, and tackling challenging trails. The model combines a powerful gasoline 4-stroke engine with an EFI injection system, electric power steering (EPS) for easy maneuvering, and 4x4 all-wheel drive, ensuring confident movement across various types of terrain. The design features thoughtful ergonomics, modern electronics, and rich factory equipment for comfortable and safe operation.
Key advantages of the Linhai 650L Promax EFI EPS:
- 39 hp power for excellent acceleration, towing, and off-road performance;
- 585 cm3 gasoline 4-stroke engine with EFI fuel injection and electric starter for reliable and easy starting;
- Liquid cooling system, ensuring stable engine operation under intensive loads;
- Automatic transmission — V-belt variator with L/H/N/R modes and the ability to lock the rear differential for enhanced cross-country capability;
- Reliable braking systems: hydraulic disc brakes on all wheels with combined drive and a manual parking brake for safe parking.
Additional equipment and comfort:
- Comfortable independent front suspension with McPherson struts and independent rear suspension with double A-arms and a sway bar for a smooth ride over bumps;
- The package includes rearview mirrors, handguards, an instrument panel with an LCD screen, a factory winch, alloy wheels, and a tow hitch — everything needed for practical use and tuning;
- Electrical equipment: front lenses with H4 35W halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, and speedometer;
- Sealed lead-acid battery, 12V 18Ah; high-quality ABS plastic body kit, tubular metal body kit integrated into the frame with the possibility of installing additional cases.
Specifications:
| Engine power, hp | 39 |
| Wheel formula | 4x4 |
| Engine type | gasoline, 4-stroke, EFI injector |
| Engine displacement, cm3 | 585 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Rated engine speed, rpm | 6900±150 |
| Torque, Nm / rpm | 49.5 at 5750 |
| Transmission (КП) | automatic (V-belt variator) |
| Gearbox modes | L/H/N/R |
| Rear differential lock | yes |
| Final drive | direct |
| Front brakes | hydraulic, disc on each wheel with lever actuation (combined with rear brake) |
| Rear brake | hydraulic, disc on wheel axle with pedal actuation (combined with front brakes) |
| Parking brake | locks rear caliper with manual actuation and handlebar lock |
| Brake hoses | reinforced |
| Wheelbase, mm | 1470 |
| Tire size | front 25x8-12, rear 25x10-12 |
| Fuel tank capacity, L | 20 |
| Dimensions, LxWxH mm | 2395x1305x1330 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent with double A-arms and sway bar |
| Equipment | rearview mirrors, handguards, instrument panel with LCD screen, winch, alloy wheels, tow hitch |
| Electrics | front lenses with H4 35W halogen lamps (low/high beam), front and rear marker lights, brake light, turn signals, horn, speedometer |
| Battery | sealed lead-acid, 12V 18Ah |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguard, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional cases |
This ATV is suitable for owners who need versatile and reliable transport for rough terrain: the combination of a powerful 585 cm3 EFI engine, automatic transmission, and differential lock ensures efficient operation and easy handling even in difficult conditions. The presence of a winch, tow hitch, and aluminum wheels expands its practicality for both recreation and work.
Brand: LINHAI. Product type: Motor Vehicles > ATVs.
