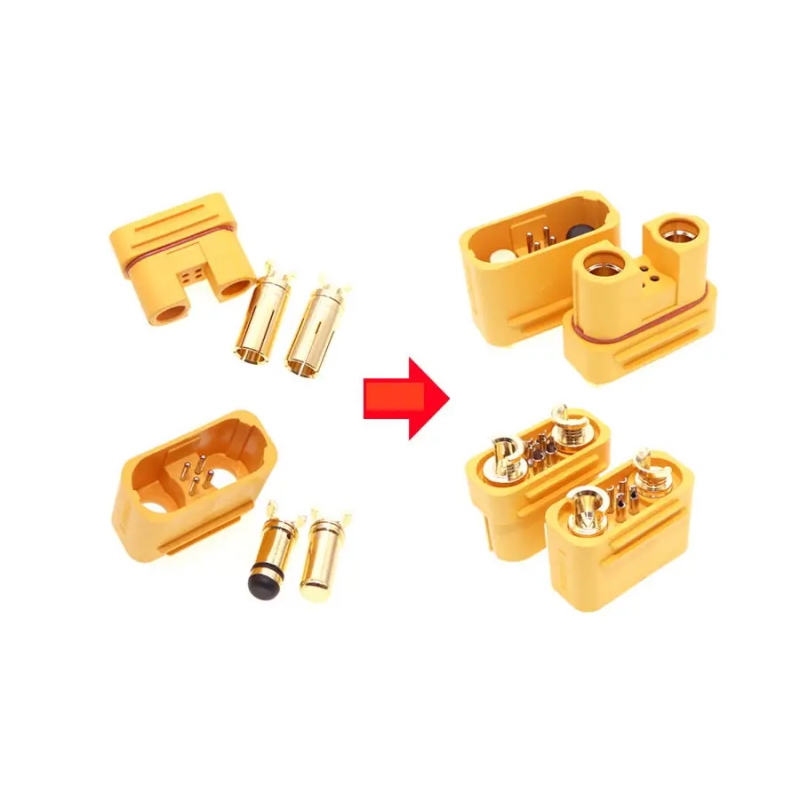

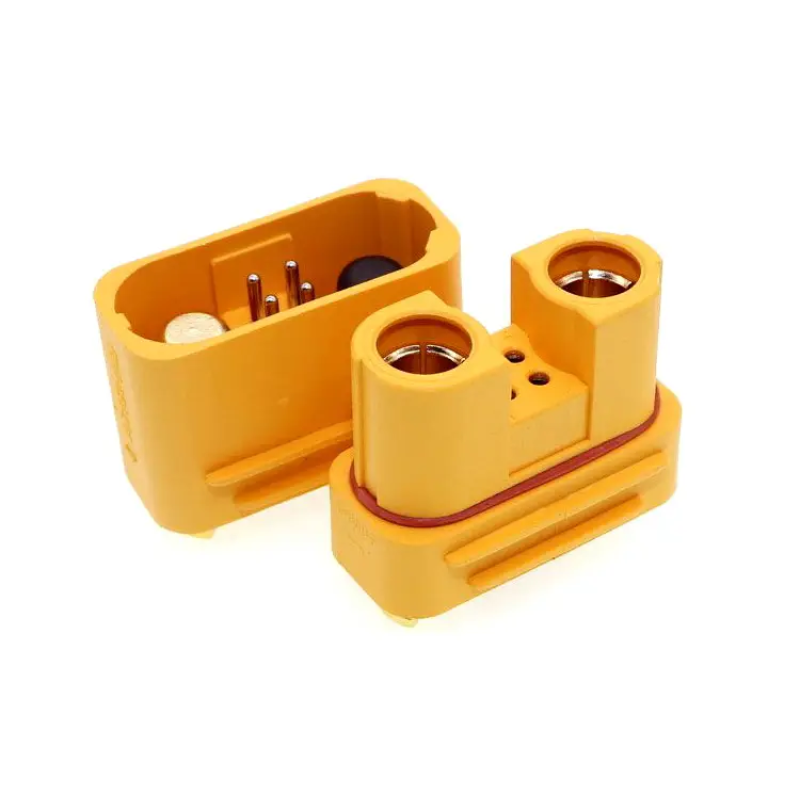

AMASS AS150U Connector Pair/M/F — Reliable Power and Signal Connection
Introducing the AMASS AS150U (Pair, Male, Female) connector from AMASS — a versatile solution for connecting power controllers and electrical circuits in drones, quadcopters, and other electronics. The connector provides high current load capacity and reliable contact thanks to gold-plated copper contacts and a polyamide housing. It is suitable for applications where low contact resistance, temperature resistance, and operational safety are important.
Key advantages: high nominal current of 75 A, peak load up to 140 A, maximum operating voltage up to 500 V DC, recommended wire gauge 8 AWG, low contact resistance — no more than 0.2 mΩ, UL94-V0 flammability rating, and a wide operating temperature range from -20 to 120 °C. The connector is designed for wire mounting and withstands up to 1000 reconnections.
| AMASS AS150U Pair/Male/Female Specifications | Value |
|---|---|
| Manufacturer | AMASS |
| Model | AS150U (Pair, Male, Female) |
| Application Areas | Power controllers |
| Group | AS150U |
| Insulator Color | Yellow |
| Rated Current | 75 A |
| Peak Current | 140 A |
| Maximum Voltage | 500 V (DC) |
| Recommended Wire Gauge | 8 AWG |
| Mounting | Wire mount |
| Number of Main (Power) Lines | 2 |
| Number of Auxiliary (Signal) Lines | 4 |
| Conductor Material | Gold-plated copper |
| Insulator Material | Polyamide |
| Contact Resistance (max) | 0.2 mΩ |
| Flammability Rating | UL94-V0 |
| Additional Options | Spark-quenching resistor |
| Operating Temperature | -20 – 120 °C |
| Rated Number of Reconnections (max) | 1000 times |
| Weight | 17 g |
Application and Recommendations: The AMASS AS150U connector is designed for use in power controllers, power supplies, and systems requiring a stable connection at high currents. It is recommended to use 8 AWG wire to achieve optimal electrical characteristics. Gold-plated contacts ensure low resistance and connection reliability during multiple reconnections. The UL94-V0 flammability rating and wide temperature range guarantee safe operation in challenging conditions.
Package Contents:
1 x AMASS AS150U Connector Pair/M/F

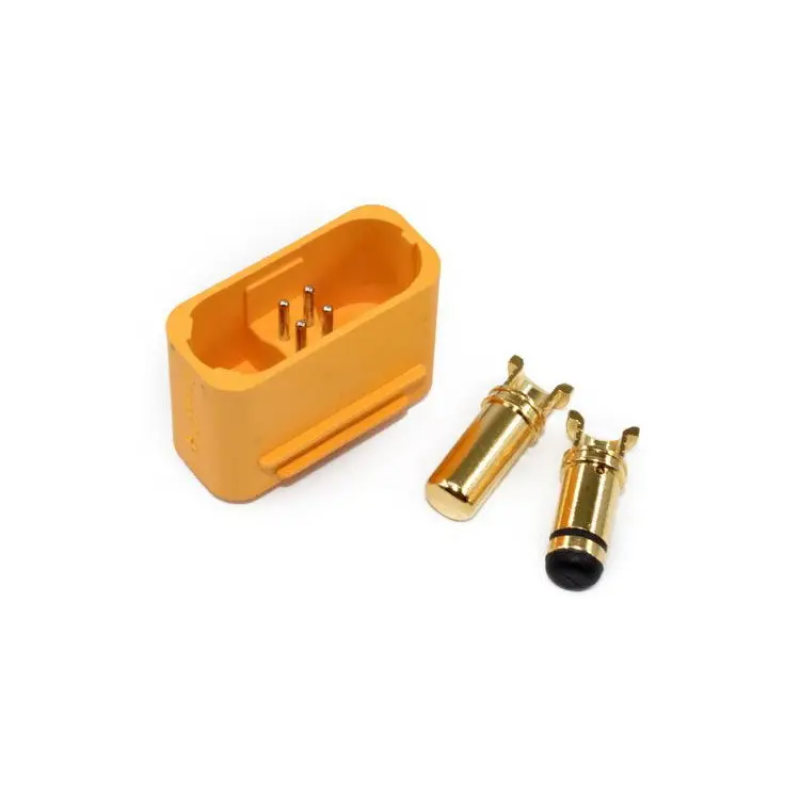

The connector features a yellow insulator for easy visual identification and can be equipped with a spark-quenching resistor to enhance safety when connecting high currents. With a compact weight of 17 g and a wire-mount design, the AMASS AS150U is convenient for integration into drones, quadcopters, and other mobile devices where power-to-weight ratio and reliable electrical connections are crucial.
If you need a robust connector with high electrical performance, the AMASS AS150U will be an excellent choice for projects and repairs of electronics, electric drives, and power systems.
