AMASS AS150U Connector — Overview

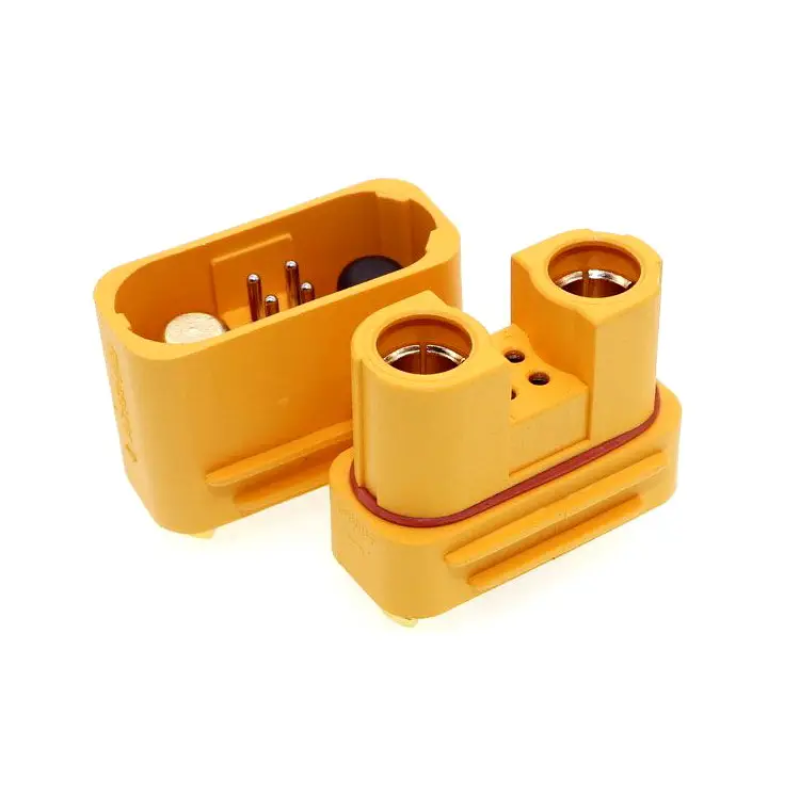

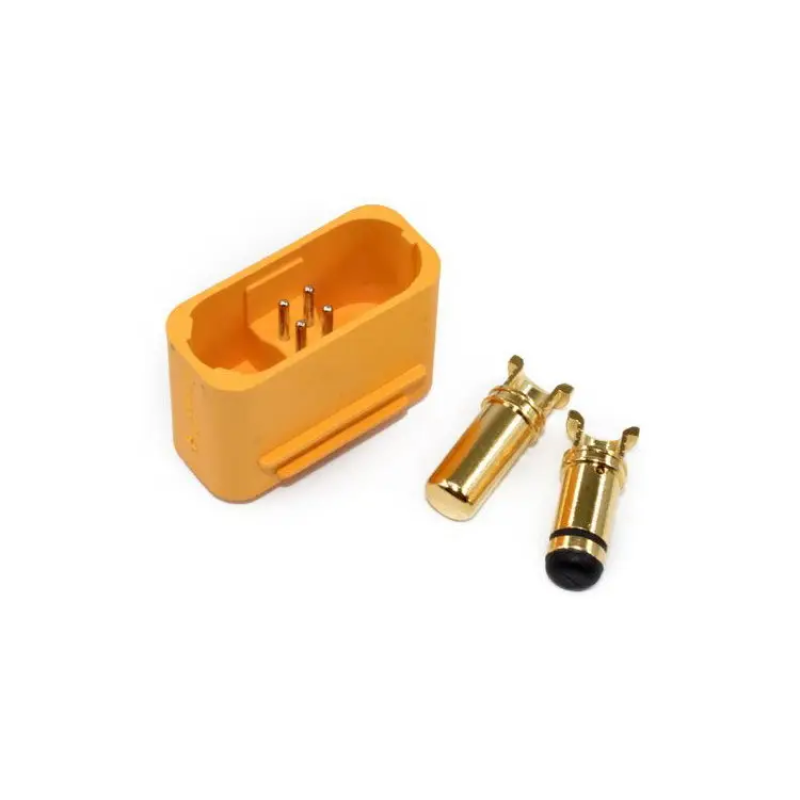

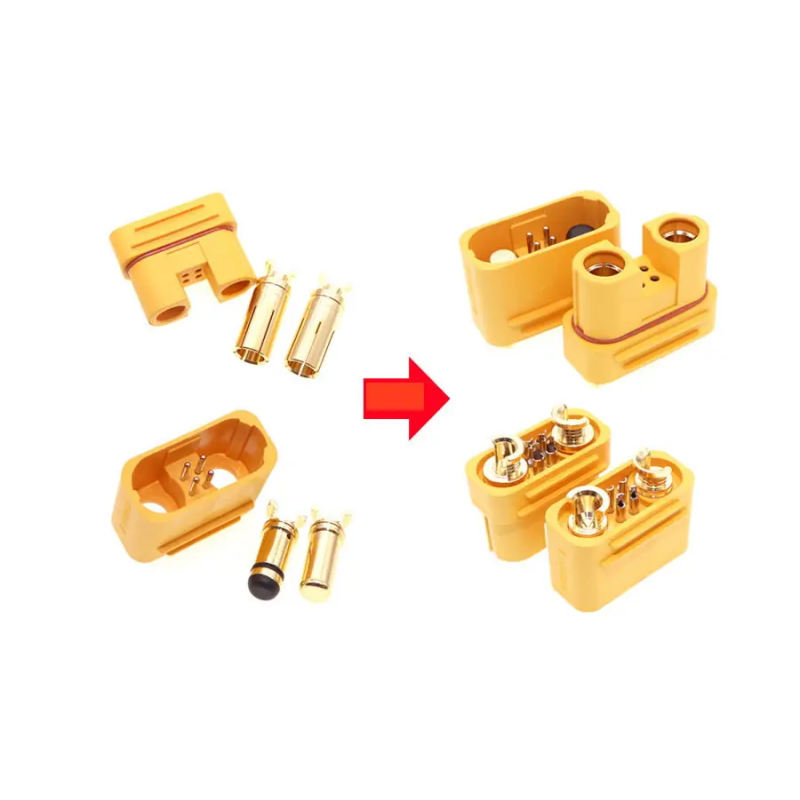

The AMASS AS150U Connector (Pair/Male/Female) is a reliable power solution from the manufacturer AMASS, designed for applications in drones, quadcopters, and industrial electrical systems. The AS150U model comes with a pair of contacts (Pair) in Male and Female variants, features a yellow polyamide insulator, and gold-plated copper conductors, ensuring low contact resistance and high durability. The connector is designed for wire mounting and guarantees simple and reliable connection in complex electrical circuits.
Advantages and Purpose
The AS150U is optimally suited for power controllers, power modules, distribution systems, and battery connections in UAVs and industrial equipment. It provides high current characteristics, resistance to high temperatures, and a UL94-V0 flammability rating, making it a safe solution for applications with increased demands for reliability and heat resistance. An additional option — a spark-suppressing resistor — enhances safety during connection and disconnection under load.
Technical Specifications
| AMASS AS150U Characteristics Pair/ Male/Female | Value |
|---|---|
| Manufacturer | AMASS |
| Model | AS150U (Pair, Male, Female) |
| Application Areas | Power controllers |
| Group | AS150U |
| Insulator Color | Yellow |
| Rated Current | 75 A |
| Peak Current | 140 A |
| Maximum Voltage | 500 V (DC) |
| Recommended Wire Gauge | 8 AWG |
| Mounting | Wire mounting |
| Number of Main (Power) Lines | 2 |
| Number of Auxiliary (Signal) Lines | 4 |
| Conductor Material | Gold-plated copper |
| Insulator Material | Polyamide |
| Contact Resistance (max) | 0.2 mOhm |
| Flammability Rating | UL94-V0 |
| Additional Options | Spark-suppressing resistor |
| Operating Temperature | -20 – 120 °C |
| Rated Number of Reconnections (max) | 1000 times |
| Weight | 17 g |
The rated current of 75 A ensures long-term operation under continuous load, while the peak current of up to 140 A allows it to withstand short-term surges without damage. The maximum operating voltage of 500 V DC makes the AS150U suitable for a wide range of electrical systems. The recommended 8 AWG gauge and wire mounting simplify installation and ensure reliable contact in areas with increased electrical demands.
The materials are designed with loads in mind: gold-plated copper provides low contact resistance (no more than 0.2 mOhm), and the polyamide insulator with a UL94-V0 flammability rating enhances safety. The operating temperature range from -20 to 120 °C and a lifespan of no more than 1000 reconnections guarantee durability in field conditions. The kit weighs only 17 g, which is important when creating lightweight and efficient designs in UAVs.
Package Contents:
- 1 x AMASS AS150U Connector Pair/M/F
The AMASS AS150U Connector is an ideal choice for engineers and enthusiasts seeking a compact, robust, and safe power connector with high electrical characteristics. Manufacturer: AMASS. Category: Drones & Quadcopters > Drone Accessories. Model: AS150U (Pair, Male, Female). Application areas: power controllers, power modules, distribution systems, and battery connections in UAVs and industry.
