iFlight 4.9G/5.8G Goggle Receiver Module Set VRX (for skyzone)
Brand: iFlight. The iFlight VRX 4.9-5.8G Goggle Receiver Module is designed to enhance the FPV experience and ensures compatibility with popular FATSHARK and SKYZONE goggles.
Brief Overview

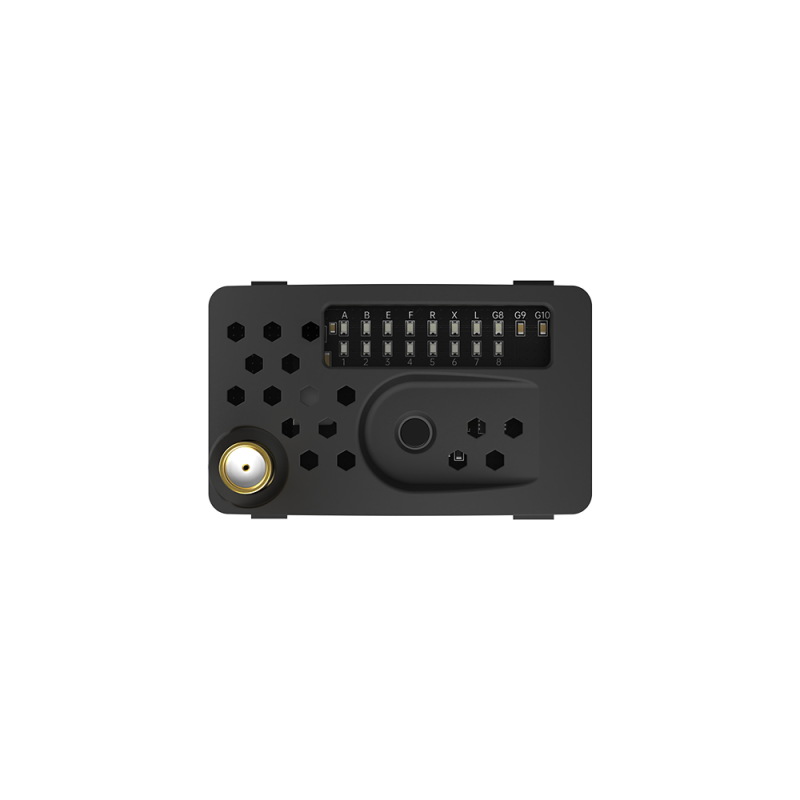

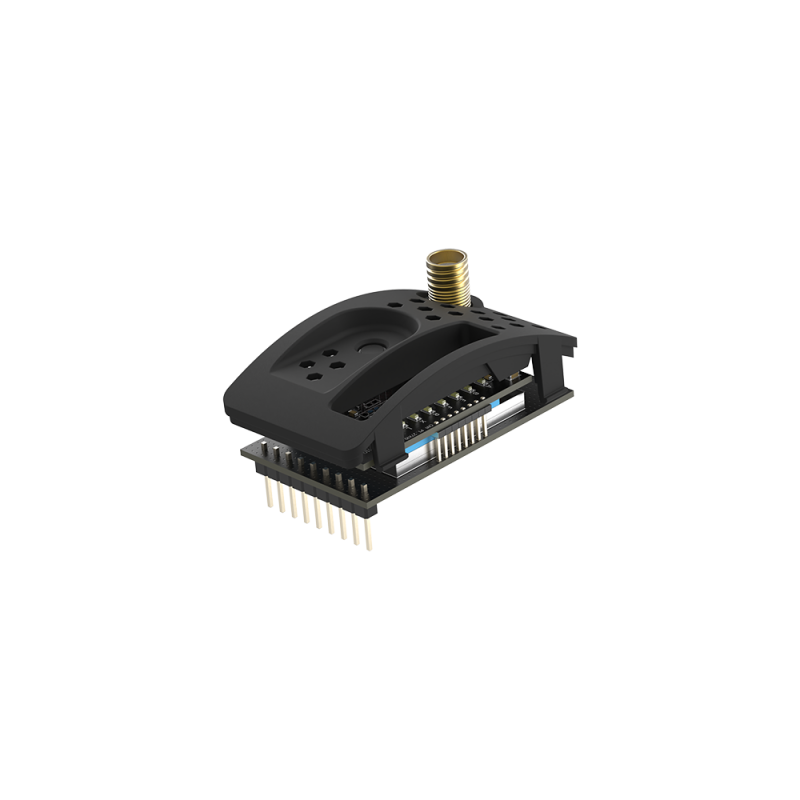

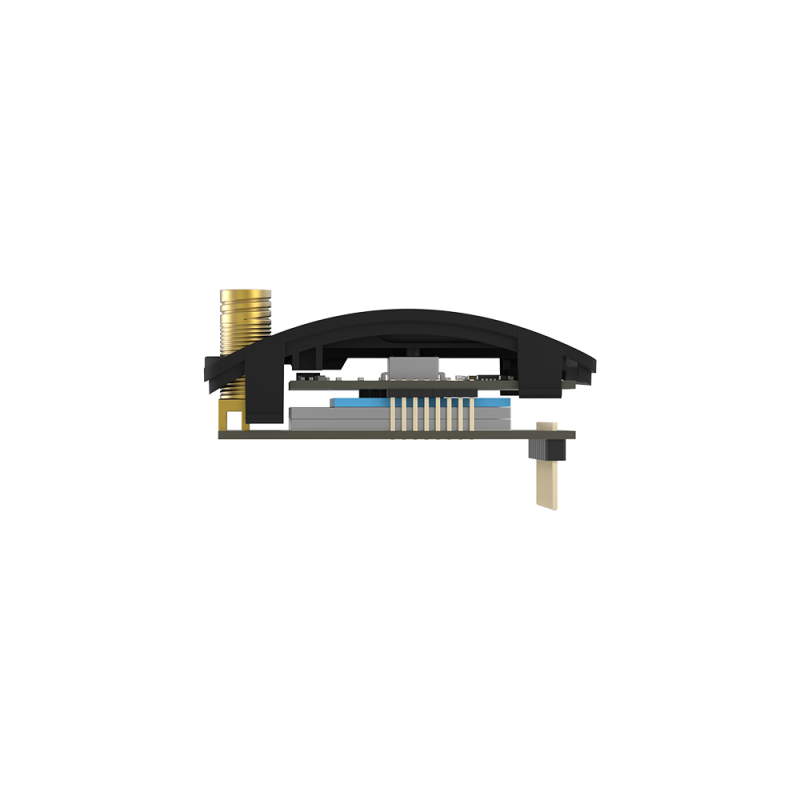

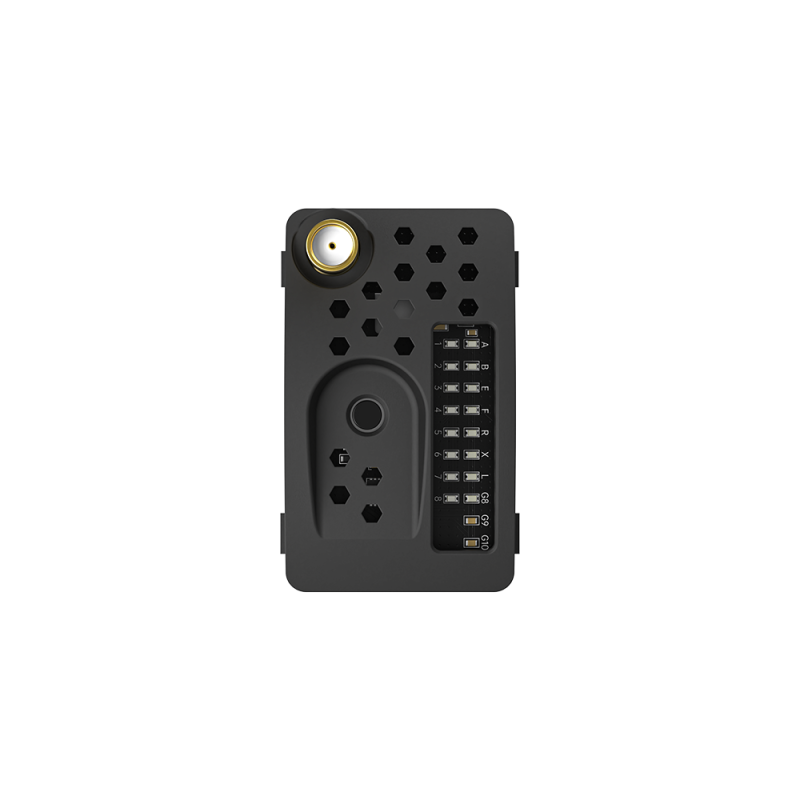

The iFlight VRX 4.9-5.8G is a compact and reliable video receiver in a goggle module form factor, offering a wide frequency range, high sensitivity, and intuitive controls. The device is ideal for drone pilots seeking high-quality video signal reception during flight, as well as easy integration into goggles thanks to its standard 9-PIN connector and 5V power supply.
Technical Specifications
| Parameter | Value |
|---|---|
| Reception Frequency | 56 channels (4990MHz to 5945MHz) |
| Receiver Sensitivity | -95dBm |
| Input | 5V/2.54 9-PIN connector, compatible with FATSHARK/SKYZONE FPV goggles |
| Current Consumption | 0.3A @5V |
| Channel LEDs | 8 LED |
| Band LEDs | 7 LED |
| Video Format | NTSC/PLA |
| Video Output Impedance | 75Ω, typical |
| Audio Carrier Frequency | 6.5MHz and 6.0MHz |
| Input Signal Impedance | 50Ω, typical |
| RF Connector | SMA |
| Button Control | Short press — to change frequency; long press (2 seconds) — to change frequency band |
These technical parameters ensure stable video signal reception even in challenging conditions and allow flexible operation with various frequency bands and channels. The SMA connector enables the connection of external antennas to improve range and signal quality, while the standard 9-PIN connector makes installation simple and quick.
Compatibility and Features
The module is specifically designed for integration with SKYZONE and FATSHARK goggles. It operates on 5V via a 2.54 mm 9-PIN connector and supports a wide frequency range of 4990–5945MHz (56 channels). LED indication for channels and bands allows for quick orientation during flight, and hardware button control provides convenient frequency and band changes without unnecessary manipulation.

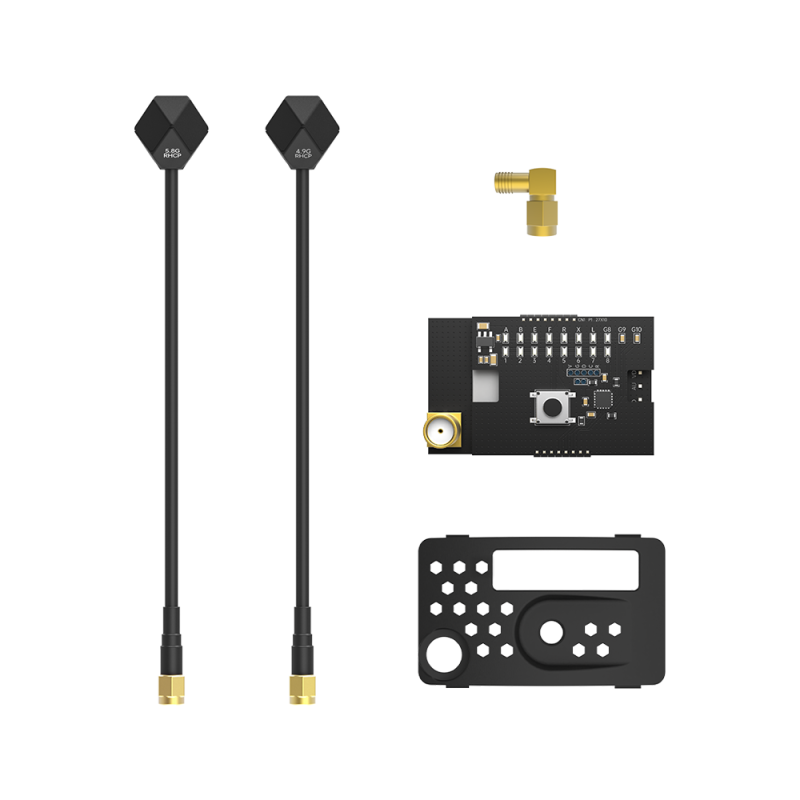

Package Contents
- 1 x iFlight 4.9-5.8G VRX
- 1 x iFlight 4.9-5.8G VRX case
- 2 x Albatross SMA antennas for 4.9G / 5.8G
- 1 x SMA male to SMA female adapter
The kit includes everything needed to upgrade or replace the receiver in FPV goggles: the module itself, a protective case, and compatible Albatross antennas with an adapter. This allows for instant modernization of the video reception system and improved signal quality while maintaining compatibility with your goggles.
Product Category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters
High sensitivity (-95dBm), a wide range of channels, and thoughtful hardware design make the iFlight VRX an excellent choice for both amateurs and professionals who require a stable video stream during flights. Ease of installation, standard interfaces, and the ability to connect external antennas make this module a universal solution for most FPV goggles.
Other technical and operational advantages include: reliability in low-reception conditions, quick channel and band switching via buttons, clear receiver status indication through LED indicators, standard impedance values for video and RF interfaces (75Ω and 50Ω respectively), ensuring compatibility with existing video transmission systems.
