OMNIDIRECTIONAL DOME PROTECTION SYSTEM HAD-5 (ANTI FPV) "Closed Sale"

The price is for marketing purposes. Please inquire about the actual price from our manager. The calculation is made individually for your request!

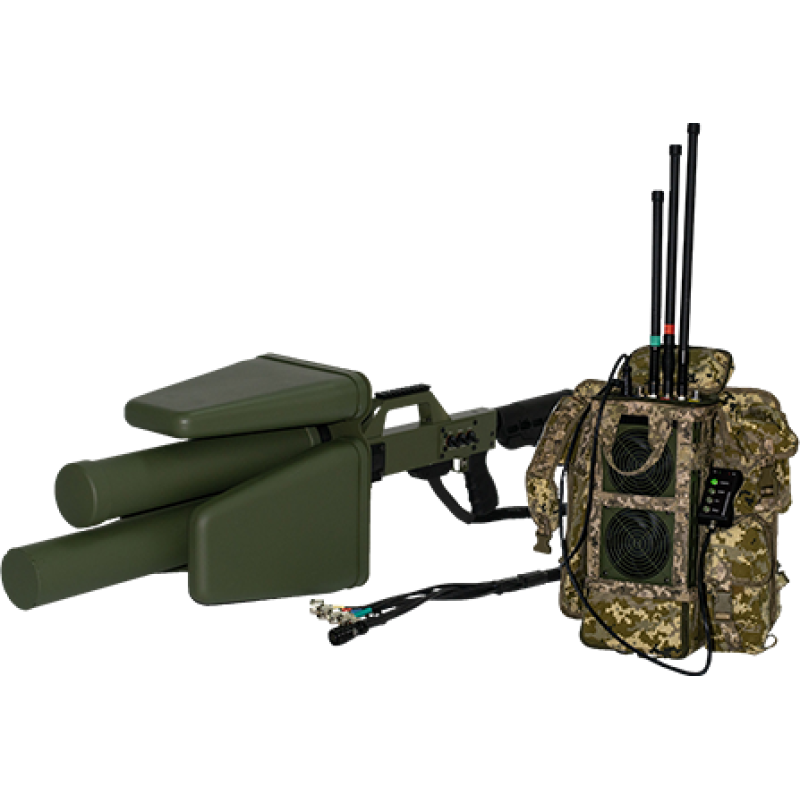

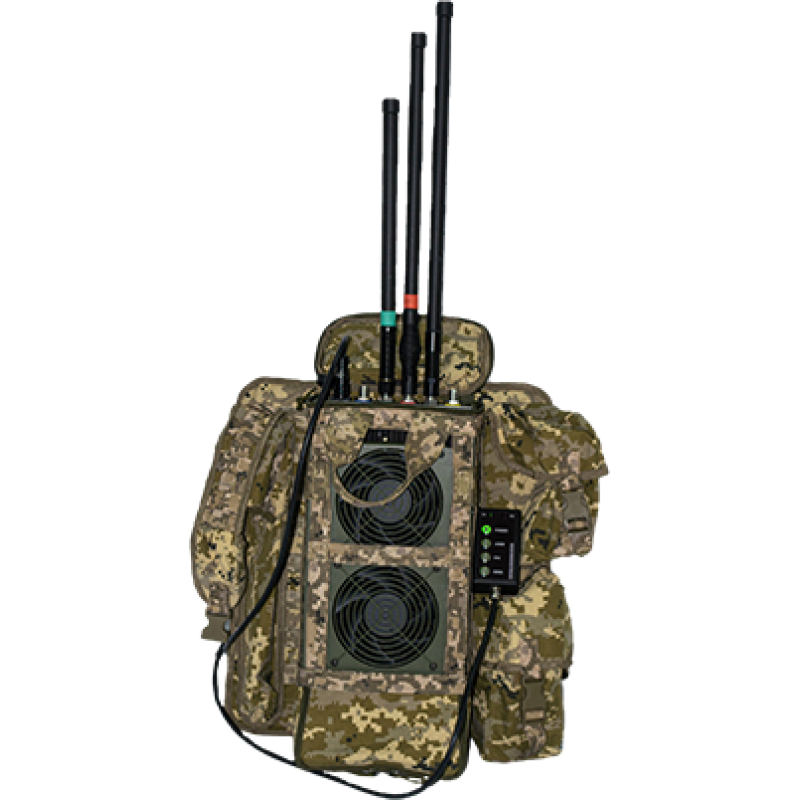

The professional mobile system from manufacturer Piranha-Tech is a solution for effective counteraction against unauthorized UAV flights. The "backpack + rifle" design combines maneuverability and rapid deployment in field conditions: the backpack (size 475*300*120 mm) contains electronic units and a battery, while the directional rifle provides narrow-beam signal suppression. The total weight of the system is up to 12 kg including the battery, allowing transportation by infantry units or special groups.

Principle of operation: directional radio jamming with a narrow beam angle on selected frequency bands. Such an impact can lead to the UAV losing connection with the remote control or geopositioning systems, causing disorientation, forced return to the takeoff point, or emergency landing/crash. The system makes UAV piloting impossible or significantly complicates it, ensuring the protection of objects and personnel.

Specifications

• Output power up to 50 W per channel
• Omnidirectional antennas with vertical polarization
• Total output power: up to 250 W
• No interference with adjacent frequency bands
• VSWR – protection against antenna disconnection / short circuit
• Overheat protection: 65 °C – amplifier shutdown, 55 °C – operation resumes
• Operating temperature: from -20 °C to +40 °C
• Humidity: 5%-95%, non-condensing
• Backpack size: 475*300*120 mm
• Weight: up to 12 kg including battery
• Battery life: up to 30 minutes with possibility of replacement

Features and Configuration

• Microcontroller-based control system
• Voltage stabilization
• Lightweight aluminum casing
• Battery charge level indicator
• IP54 protection class
• Convenient connectors for connection
• 140*20 mm cooling system fans with low noise and speed control
• Replaceable lithium-ion battery with built-in BMS
• Wired control panel
• Equipped with omnidirectional antennas

The HAD-5 (ANTI FPV) system provides high-precision impact on selected frequencies due to the combination of powerful amplifiers and a cooling system. The design and protection elements guarantee stable operation under intensive load: overheat protection at 65 °C with automatic shutdown and recovery at 55 °C, antenna short-circuit protection (VSWR), and voltage stabilization for uniform power supply to the amplifiers.

Operational properties: operating temperature range from -20 °C to +40 °C, relative humidity 5%-95% non-condensing, and IP54 protection class allow the device to be used in various weather conditions. The possibility of quick replacement of the lithium-ion battery and the charge level indicator allow planning shifts and mission durations; autonomous operation time is up to 30 minutes with the possibility of quick battery replacement to extend operation.

The system is supplied in a configuration that includes omnidirectional antennas, a wired control panel, a replaceable battery with BMS, 140*20 mm cooling fans, a backpack, and a directional rifle for operational use. The lightweight aluminum casing reduces weight while maintaining strength, and convenient connectors allow quick connection of additional modules.

The product belongs to the category: EW Jammers > Anti-drone Rifles. Manufacturer: Piranha-Tech. If you need an urgent commercial offer or technical details for your application scenario, please contact our manager for an individual calculation and consultation.
